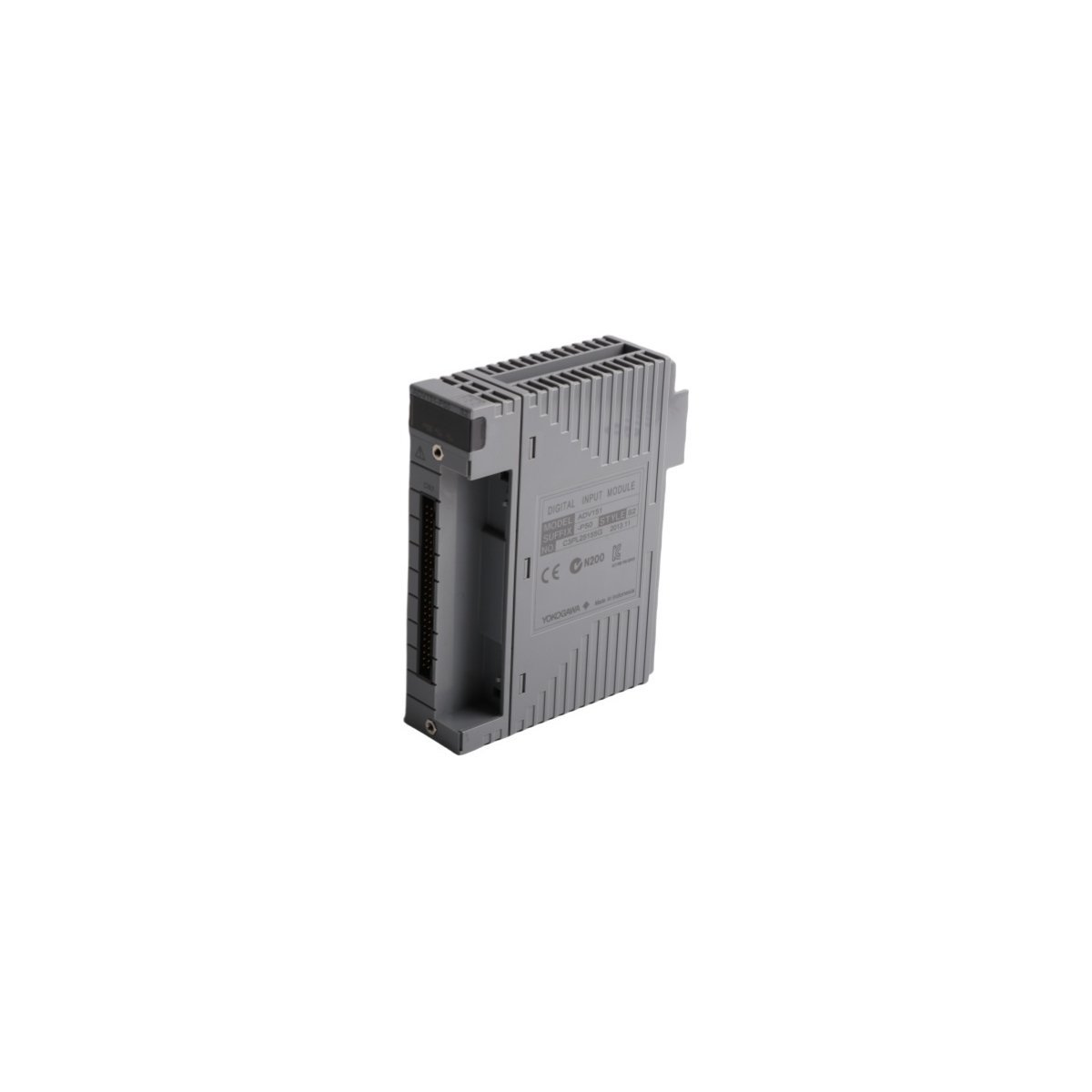

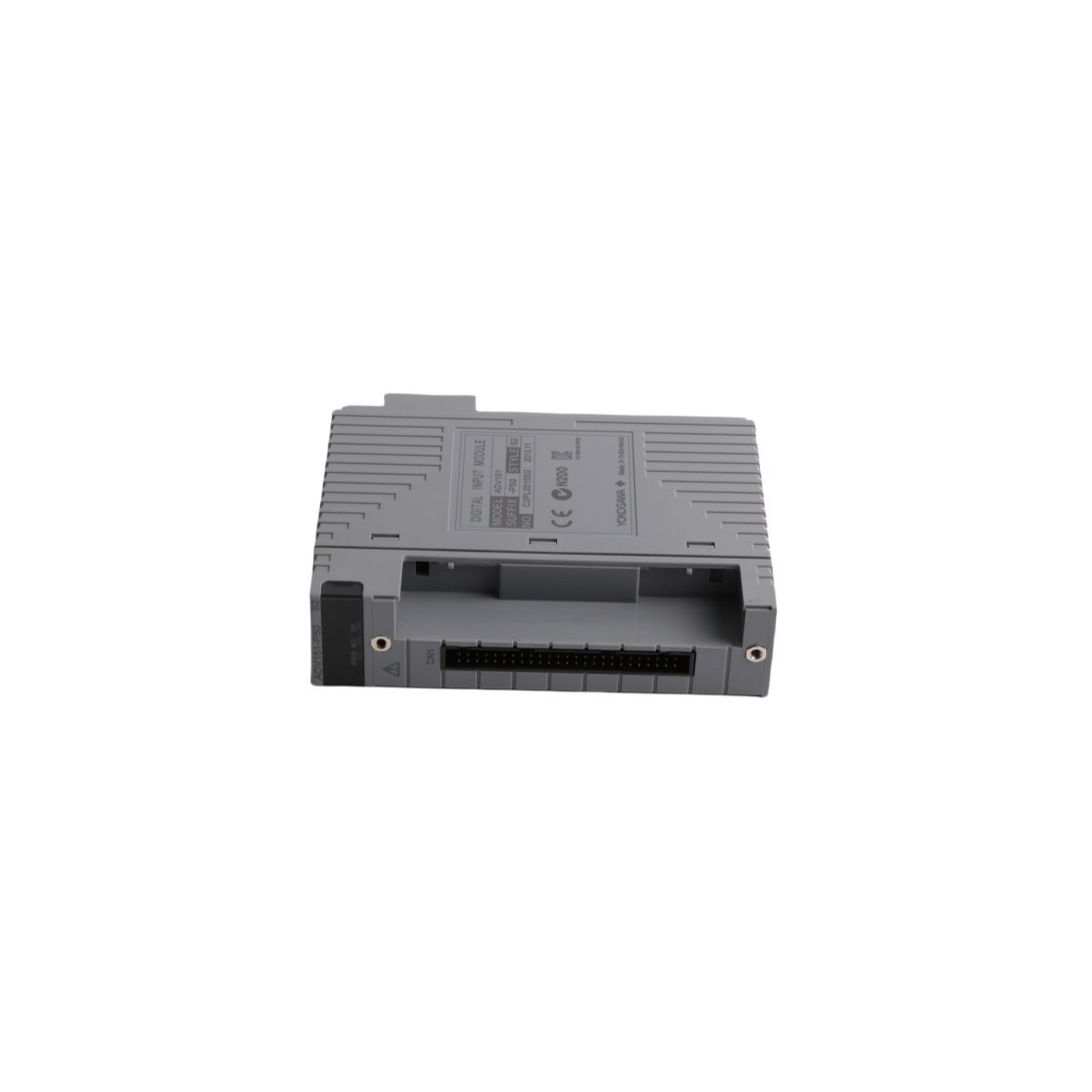

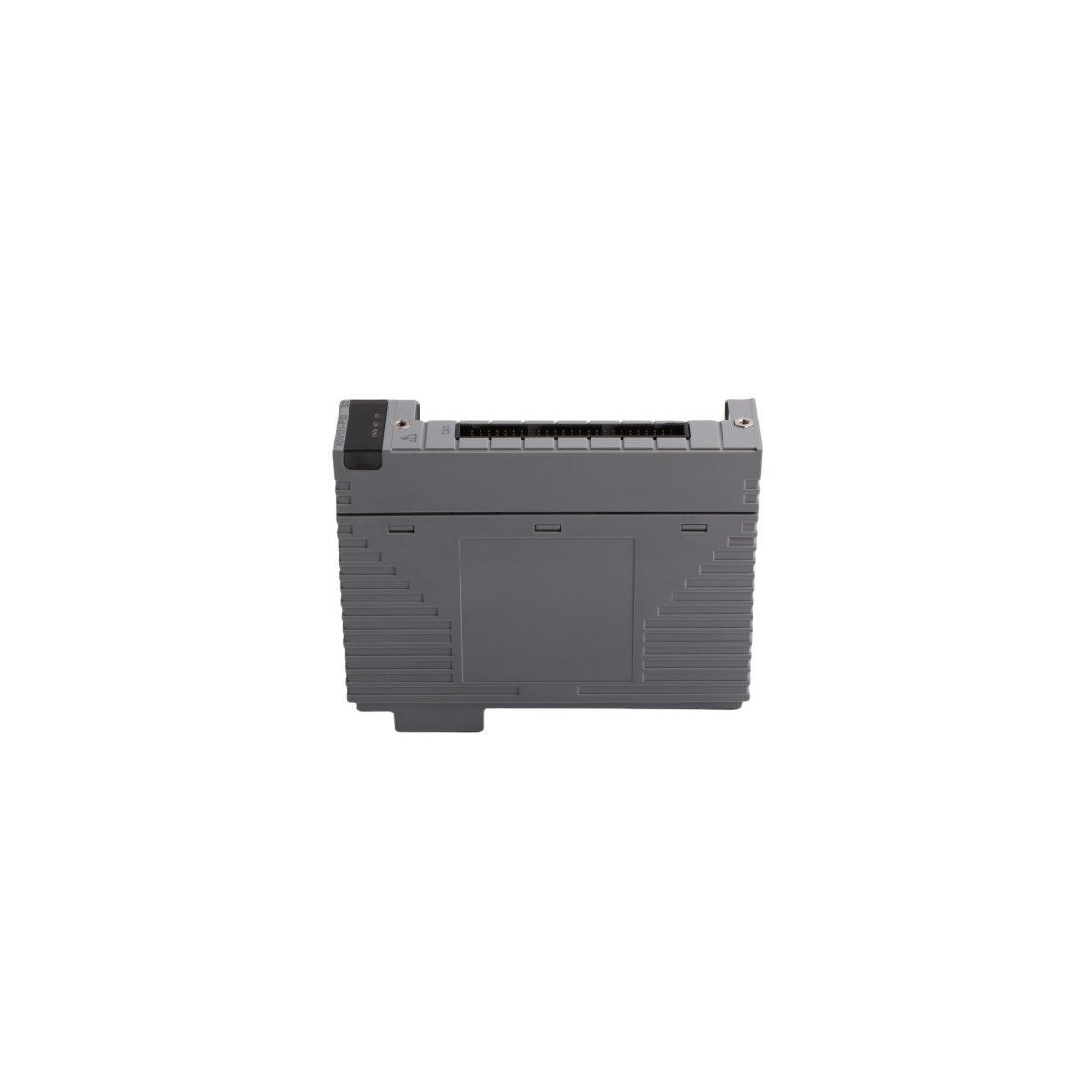

The Yokogawa ADV151-P50 S2 is a high-density 32-channel digital input module designed for the CENTUM VP and FIO architectures, supporting 24V DC discrete signals. This robust interface card enables precise data acquisition from field switches and contacts while maintaining a compact footprint for industrial control cabinets.

High-Density Signal Processing and Connectivity

The Yokogawa ADV151-P50 S2 serves as a pivotal interface for 24V DC digital signals within the Distributed Control System (DCS). This module manages 32 discrete input channels, effectively translating field-side binary states into actionable data for the control processor. By utilizing a high-density architecture, it allows engineers to maximize I/O capacity within limited cabinet space. Furthermore, the module supports versatile wiring configurations, including compatibility with AKB331 and MIL connector cables, which streamlines the integration between field instrumentation and the primary control rack.

Industrial Reliability and Operational Performance

Engineers specify the ADV151-P50 S2 for its exceptional durability in demanding process environments. The module features pressure clamp terminals that ensure a vibration-resistant electrical connection, preventing signal loss in high-stress industrial settings. Because it utilizes advanced opto-coupler isolation, the unit protects the internal system logic from electrical noise and voltage surges originating in the field. Consequently, this hardware provides the high level of uptime required for mission-critical applications in sectors such as chemical processing, power generation, and oil and gas refining.

Flexible Configuration and System Integration

The ADV151-P50 S2 offers specialized functionality through its specific suffix configurations, allowing it to adapt to diverse automation requirements. For instance, the “P” suffix indicates specialized pushbutton input capabilities, while the internal logic supports both sink and source signal types. This flexibility simplifies the procurement process for complex projects, as a single module type can handle various field device architectures. Additionally, the lightweight 0.24 kg design reduces the mechanical load on the backplane, facilitating easier maintenance and hot-swapping procedures without disrupting the broader automation framework.

Key Technical Characteristics

• 32-Channel Acquisition: Provides high-density discrete monitoring for large-scale I/O deployments.
• 24V DC Input Rating: Optimized for standard industrial signal voltages with high accuracy.
• Pressure Clamp Termination: Ensures secure, maintenance-free electrical contacts.
• Galvanic Isolation: Protects sensitive DCS electronics from field-side interference.
• FIO Architecture Compatibility: Integrates natively with Yokogawa CENTUM VP and CS 3000 systems.
• Robust Build Quality: Manufactured in Japan to withstand harsh thermal and electrical conditions.
