Description

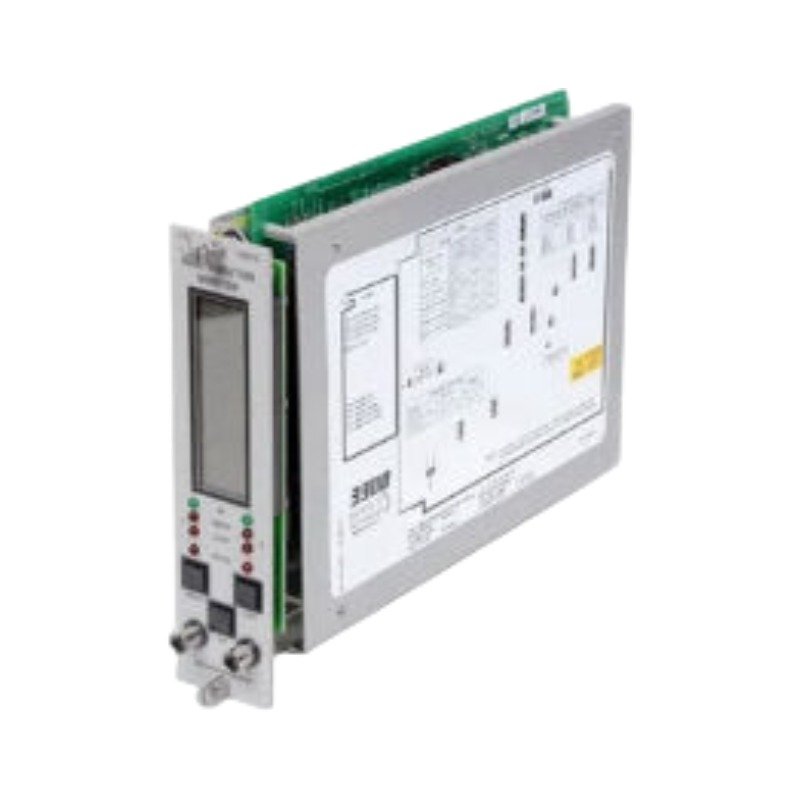

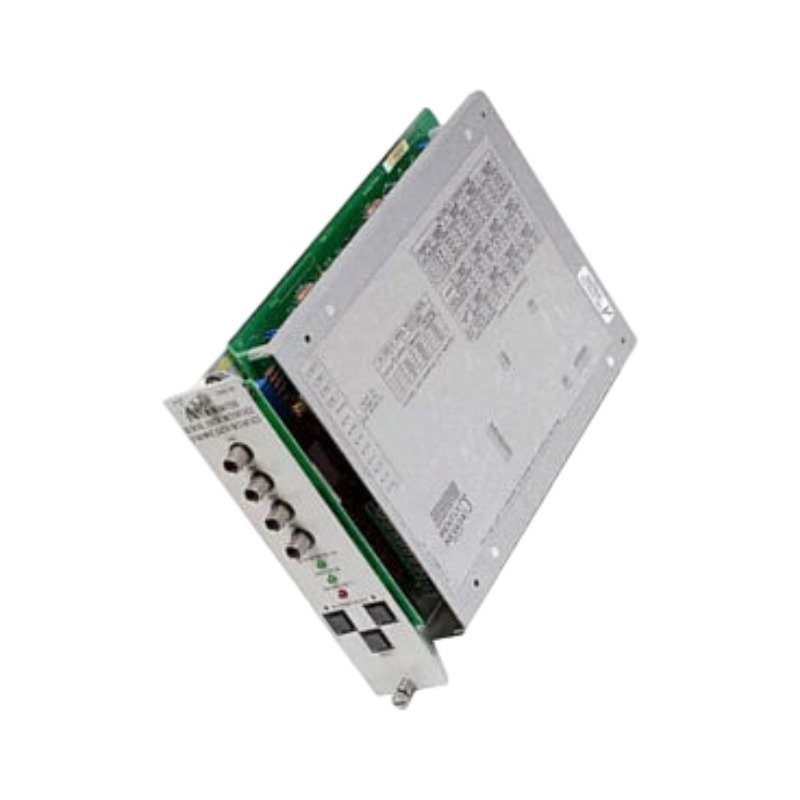

The Bently Nevada 3300/53-03-02-00-60-05-00-00-00, also cataloged as the 3300/53 Overspeed Protection Monitor, operates as a dedicated hardware component for continuous high-speed shaft rotational velocity tracking and automatic trip execution within 3300 Monitoring System platforms.

Suffix Breakdown & Model Matrix

• 03: Full-scale range option (0 to 3,000 rpm)
• 02: Transducer input selection option (Magnetic pickup)
• 00: Alarm relay hardware configuration option (No relays installed in monitor slot)
• 60: Trip multiply configuration option (60% value adjustment)
• 05: Speed range option modifier
• 00: System safety integration option
• 00: Factory mounting hardware selection option
• 00: Factory internal insulation option
• 00: Factory standard agency approval option

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The internal processing architecture uses strict eddy-current probe scaling and magnetic pickup frequency tracking to convert raw tooth-passing pulses into accurate angular velocity data. During startup sequences, the circuitry performs continuous gap voltage validation (-10 VDC targets) on proximity type sensors to confirm optimal target distance. This real-time validation prevents speed pulse dropout caused by axial shaft movement or thermal casing drift. Furthermore, integrated cross-talk suppression filters isolate the dual active channels from adjacent backplane noise, which delivers error-free frequency inputs needed to evaluate complex rotor dynamics during critical trip-point thresholds.

Frequently Asked Questions

Q: Why does this specific model configuration show “00” for the alarm relay option?

A: The “00” suffix indicates that this specific card relies on an external, specialized 3300 system overspeed relay module located elsewhere in the system rack to execute the physical machinery trip, rather than using on-board relays.

Q: What happens to the speed tracking loop if one field transducer sustains physical damage?

A: The monitor instantly activates its internal transducer diagnostic routine. If a signal drops below the operating threshold, the front panel OK LED switches off and the system inhibits that single channel to prevent false trips while maintaining safety coverage on the redundant channel.

Field Installation Guidelines

• Power down the primary rack assembly before inserting or extracting the overspeed monitor module to avoid damaging sensitive microprocessors.
• Route all speed sensor cables through dedicated, isolated conduit lines away from high-voltage AC lines to eliminate magnetic pulse interference.
• Terminate all shield drain wires at the designated chassis ground point on the rear backplane terminal strip to maximize high-frequency noise attenuation.
