Description

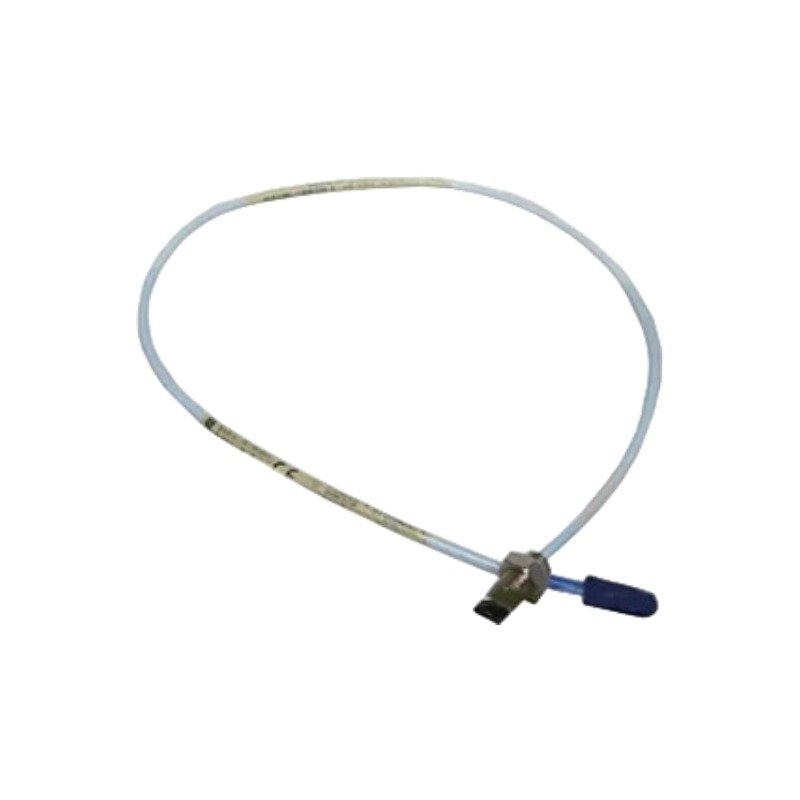

The Bently Nevada 330105-02-12-10-02-00, also cataloged as the 330105 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for executing non-contact vibration and displacement measurements within machine protection platforms. Specifically, the probe utilizes eddy-current induction principles to capture physical shaft displacement and dynamic rotational changes relative to fluid-film bearings. Consequently, it supplies accurate, distance-proportional analog voltage signals directly to system monitors to facilitate automated hazard mitigation and ongoing asset tracking.

Hardware Specifications

Mechanical Monitoring & TSI Characterization

The 330105-02-12-10-02-00 proximity probe depends on standardized eddy-current probe scaling to convert structural shaft oscillations into linear voltage outputs. During installation, engineers adjust probe positioning to perform accurate gap voltage validation, targeting exact -10 VDC levels over the designated AISI 4140 steel target surface. This initial setup keeps the transducer operating within its precise linear measurement window, providing clean real-time signals that prevent noise from corrupting rotor dynamics and keyphasor speed trends. Furthermore, the miniature coaxial ClickLoc connector maintains tight contact interfaces to enforce cross-talk suppression between close-running sensor lines, completely blocking high-frequency electrical fields inside the asset housing.

Frequently Asked Questions

Q: Does the 330105-02-12-10-02-00 probe configuration require specialized component matching or field calibration during assembly?

A: No. The 3300 XL 8 mm system supports full interchangeability across all probes, extension cables, and Proximitor sensors. Technicians can replace individual elements directly without requiring bench recalibration or custom adjustments.

Q: Can the probe cable connection withstand continuous machine vibrations without coming loose?

A: Yes. The integrated ClickLoc coaxial connector features a positive mechanical locking detent mechanism. When fully engaged, the internal retention architecture prevents accidental line separation under heavy continuous turbomachinery vibration.

Field Installation Guidelines

1. First, insert the 3/8-24 UNF threaded probe case directly into the mounting bracket, adjusting the location by hand to verify that the unthreaded length measures exactly 0.2 inches.
2. Next, route the integrated 1.0-meter coaxial cable along internal support rails, maintaining a minimum structural cable bend radius of 25.4 mm to prevent inner core fracturing.
3. Subsequently, connect the miniature coaxial ClickLoc tip to the system extension cable, pushing the connection firmly together until the mechanical locking ring seats fully.
4. Finally, monitor the sensor loop output with a voltmeter to confirm proper gap voltage validation near -10 VDC before locking down the dual external positioning jam nuts.
