Description

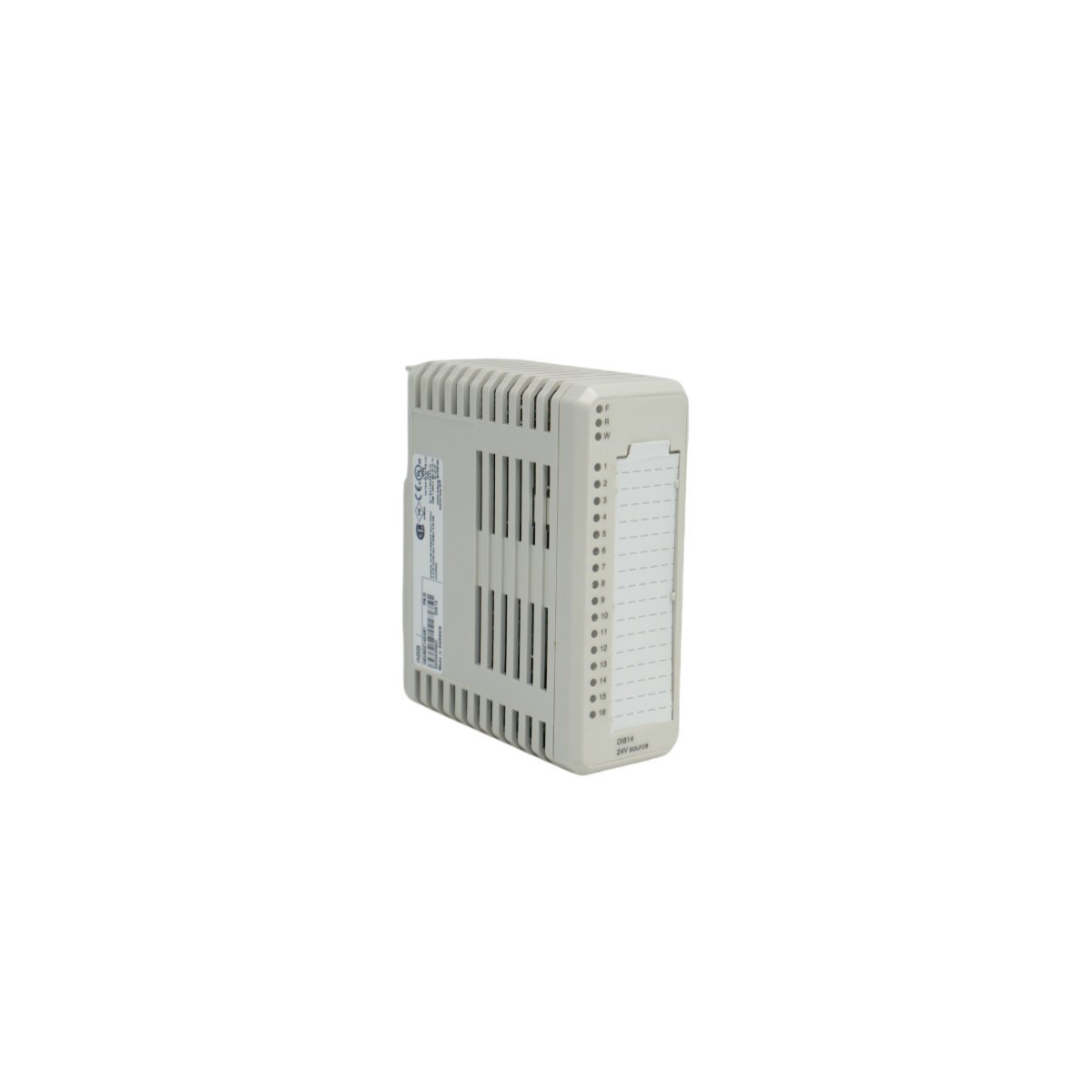

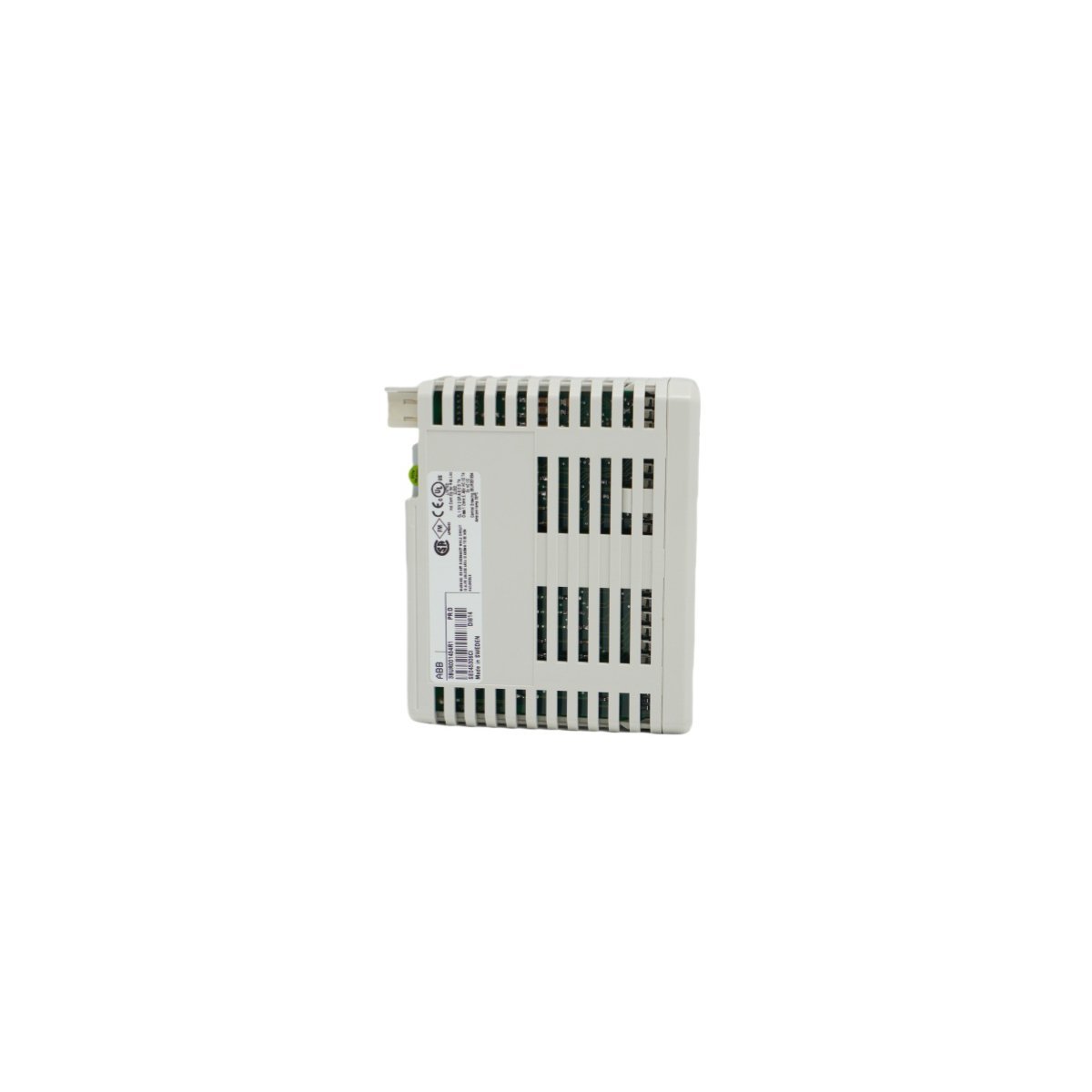

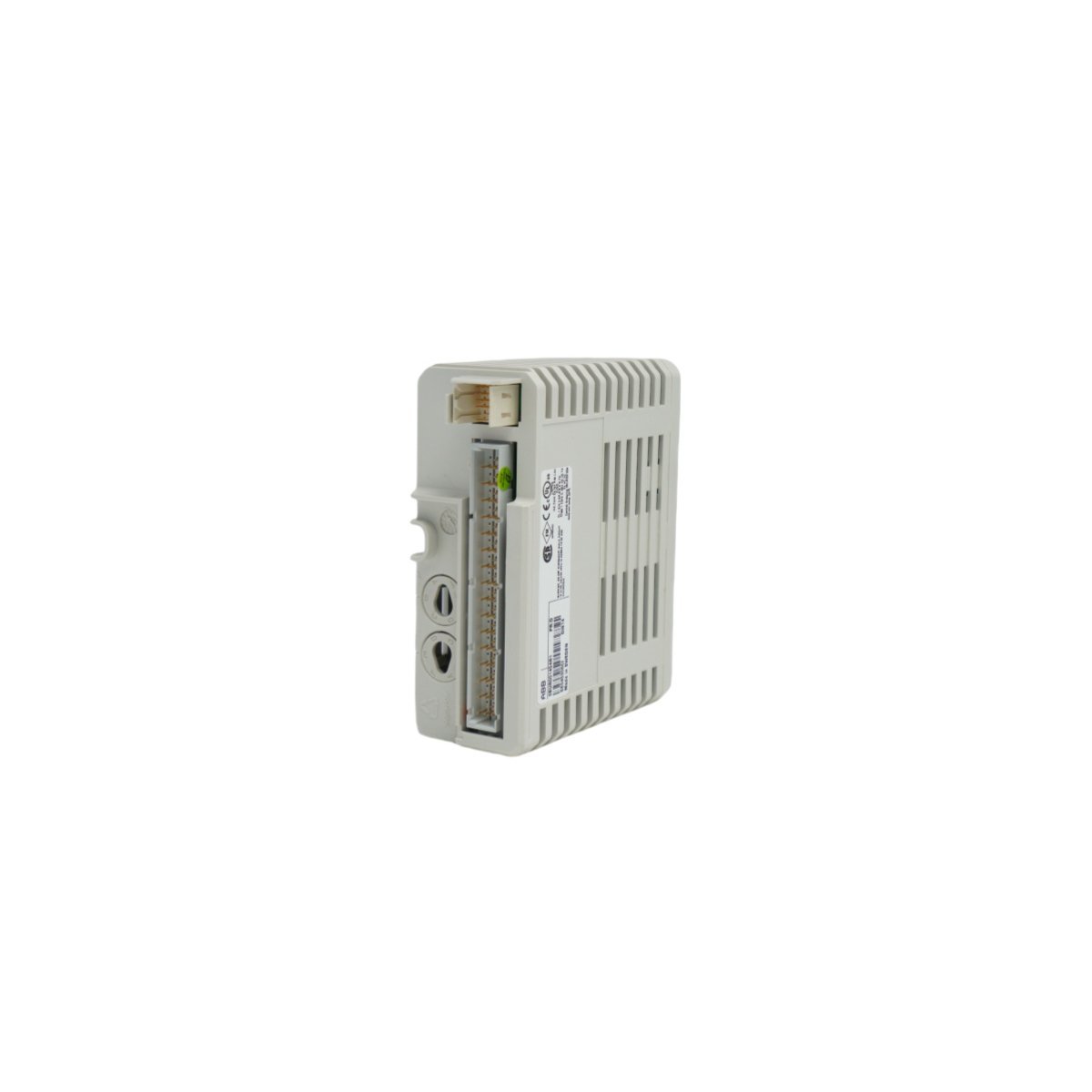

The ABB DI814 3BUR001454R1 serves as a high-density signal interface for the S800 I/O system. This module captures digital signals from field devices like switches and sensors. It features 16 independent input channels designed for 24 VDC current sink applications. Consequently, it enables precise monitoring of binary states across complex industrial networks. The unit maintains signal integrity while operating within demanding Distributed Control Systems (DCS). Its compact architecture allows for high-density mounting in standard control cabinets.

Technical Specifications and Data

Operational Performance and Safety

This module utilizes advanced galvanic isolation to protect internal logic from field-side surges. It effectively suppresses electrical noise to ensure accurate binary state detection. Furthermore, the DI814 supports hot-swap functionality when paired with appropriate terminal bases. This feature allows for hardware replacement without interrupting the entire process. The module performs internal self-diagnostics to verify circuit health during operation. It also includes LED indicators for immediate visual status of each input channel.

Industrial System Application

The DI814 3BUR001454R1 fits seamlessly into ABB Ability System 800xA environments. It excels in power plant automation and chemical processing facilities. Operators rely on this module for time-critical interlocking and sequence control. Additionally, it integrates easily with third-party controllers via standard communication interfaces. The Swedish-engineered housing provides durability against typical industrial vibrations. This reliability makes the DI814 a preferred choice for high-availability automation projects.
