Description

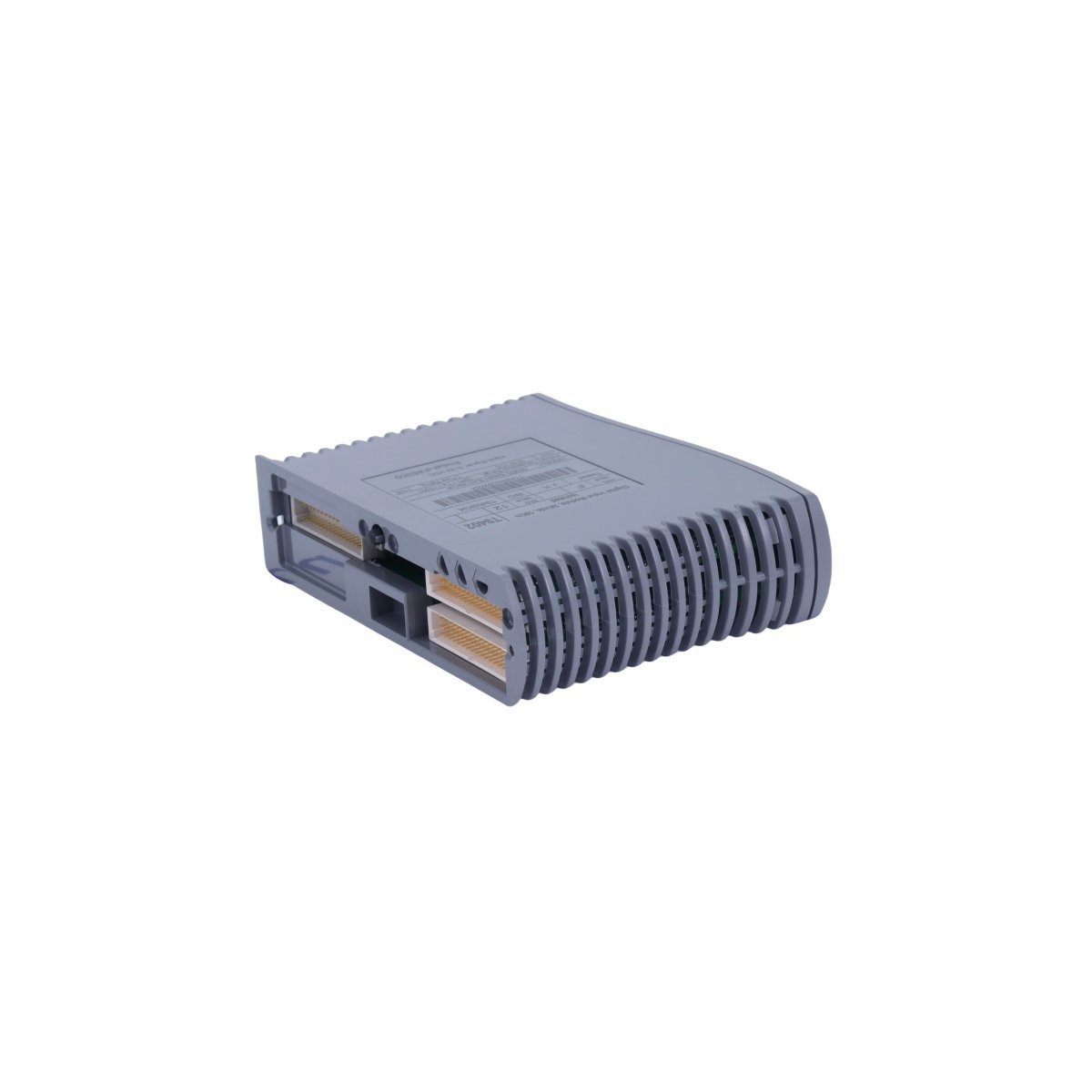

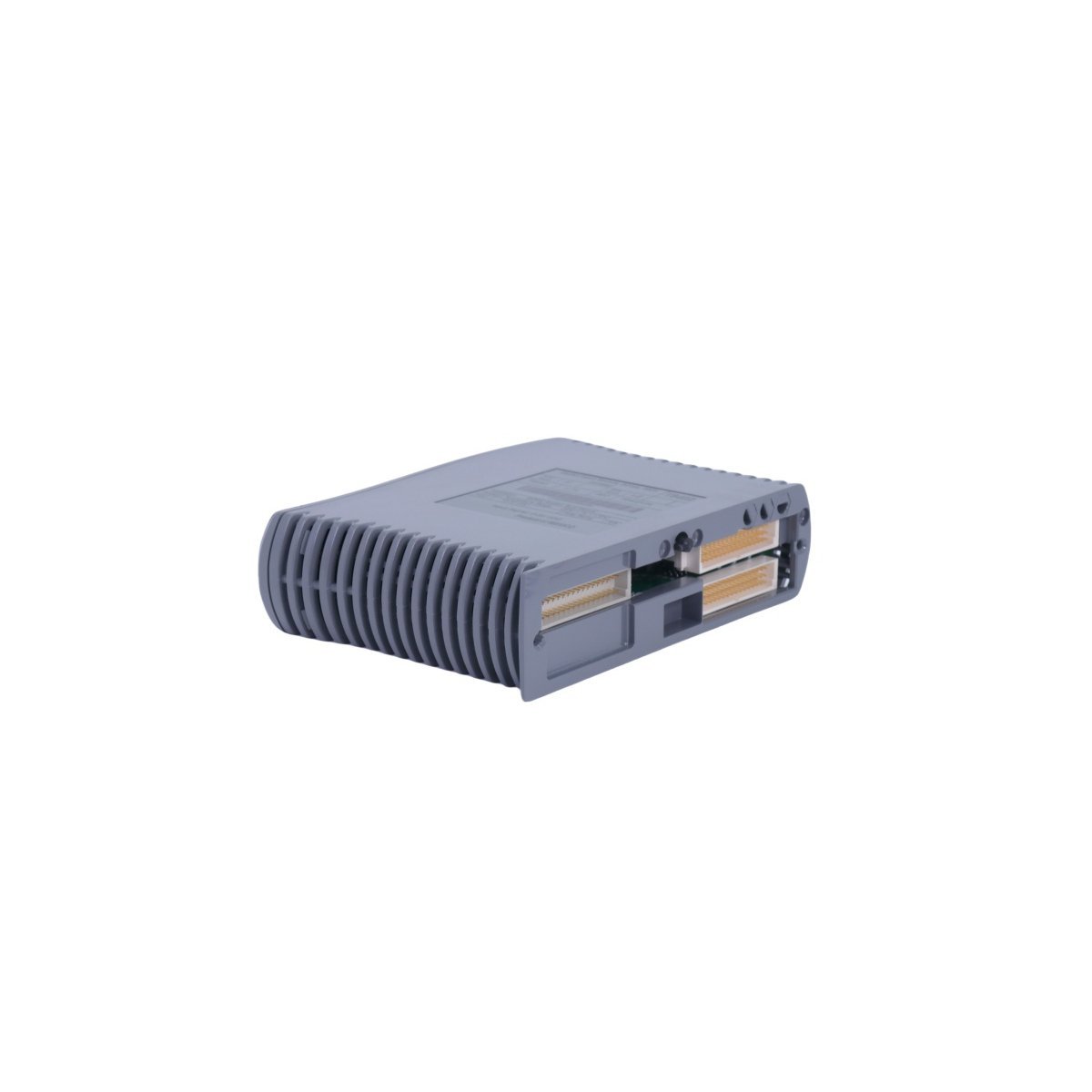

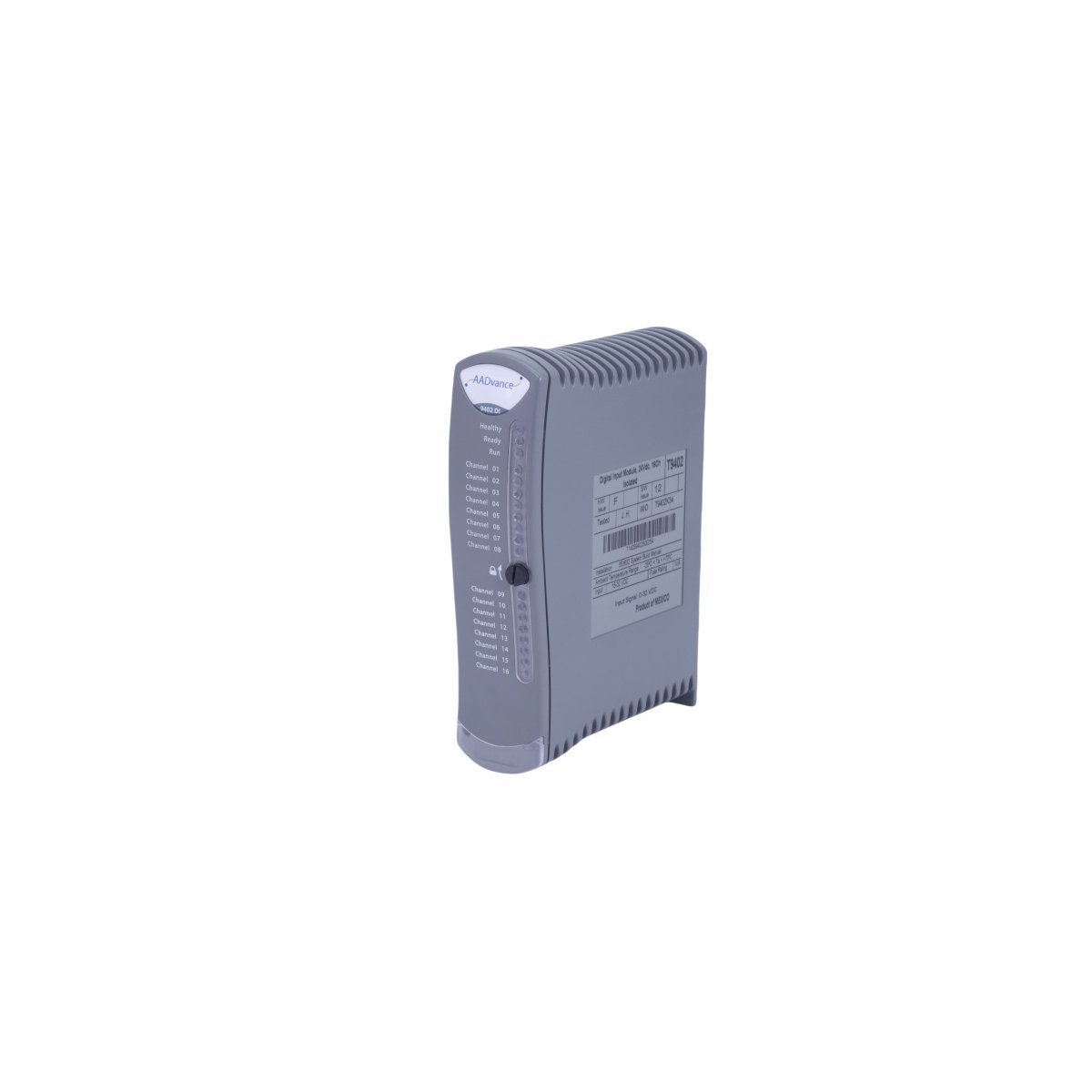

The ICS Triplex T9402 is a high-performance digital input interface designed for the AADvance functional safety controller. This module facilitates the accurate acquisition of discrete signals from critical field instrumentation. Engineers utilize the T9402 to monitor real-time binary states in high-availability industrial environments. It provides a robust link between the physical process and the safety logic solver.

Technical Specifications and Hardware Profile

Advanced Functional Capabilities

The T9402 module converts incoming 24V DC signals into digital data for the AADvance processor. It supports 16 independent channels, which allow for extensive monitoring of field devices. Because the module features high-speed signal processing, it detects state changes with minimal latency. This rapid detection is vital for time-critical safety functions.

Moreover, the hardware incorporates internal diagnostic routines to ensure signal integrity. If an internal fault occurs, the system identifies the error to maintain safe operational states. The compact design and low power consumption make it ideal for dense cabinet installations.

Critical Industrial Applications

The T9402 excels in sectors where fail-safe performance is a mandatory requirement. Typical use cases include:

• Monitoring limit switches on valves and mechanical actuators
• Interfacing with proximity sensors for object detection
• Acquiring status signals from pushbuttons and selector switches
• Integrating fire and gas detector binary outputs
• Processing safety interlock signals in chemical plants

Performance and Integration Benefits

This module integrates effortlessly into the AADvance I/O bus architecture. It supports hot-swappable configurations, which allow for maintenance without stopping the entire controller. As a result, facility managers can achieve higher uptime and lower maintenance costs. The T9402 also adheres to strict industrial standards for electromagnetic compatibility. Consequently, it operates reliably even in environments with significant electrical noise.
