Description

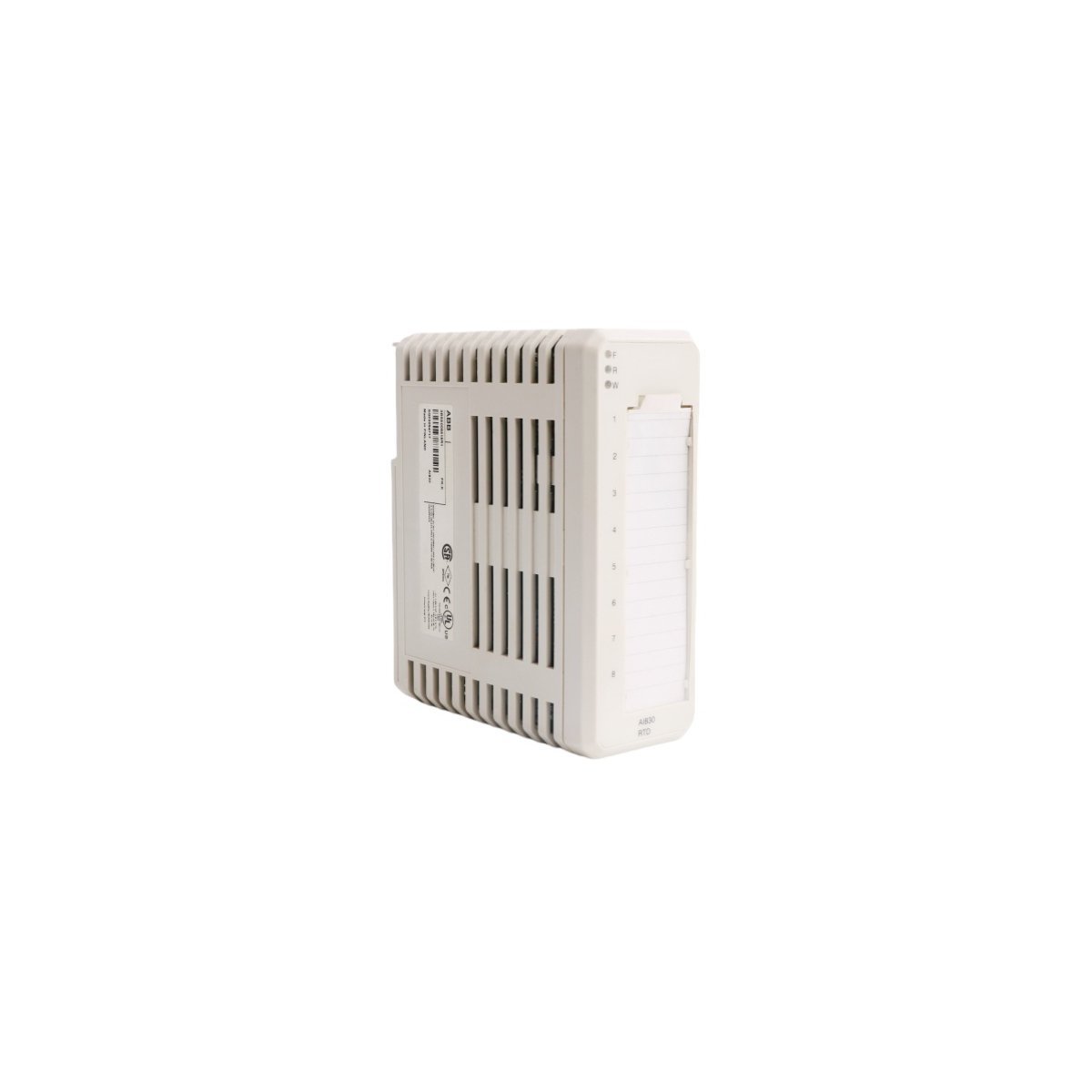

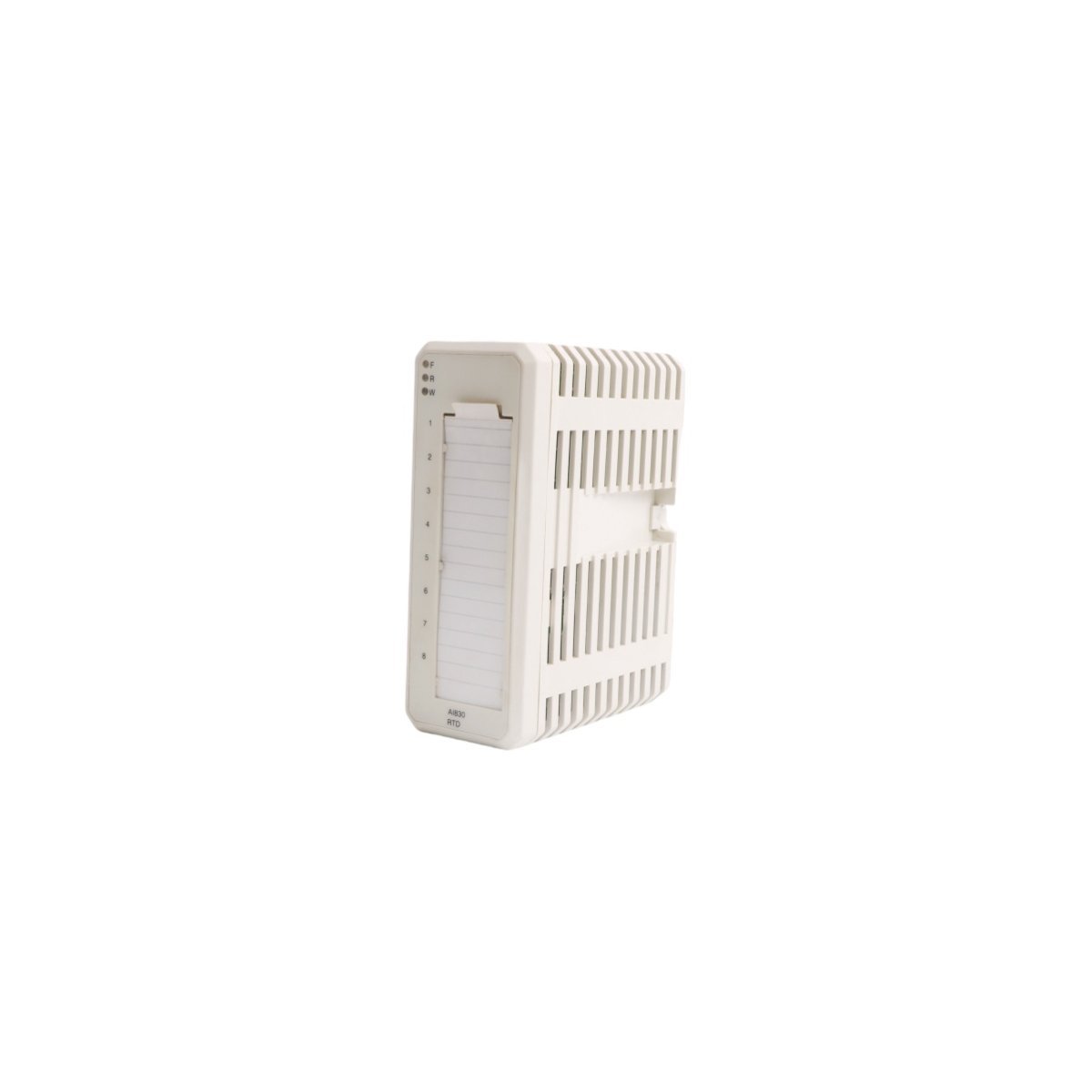

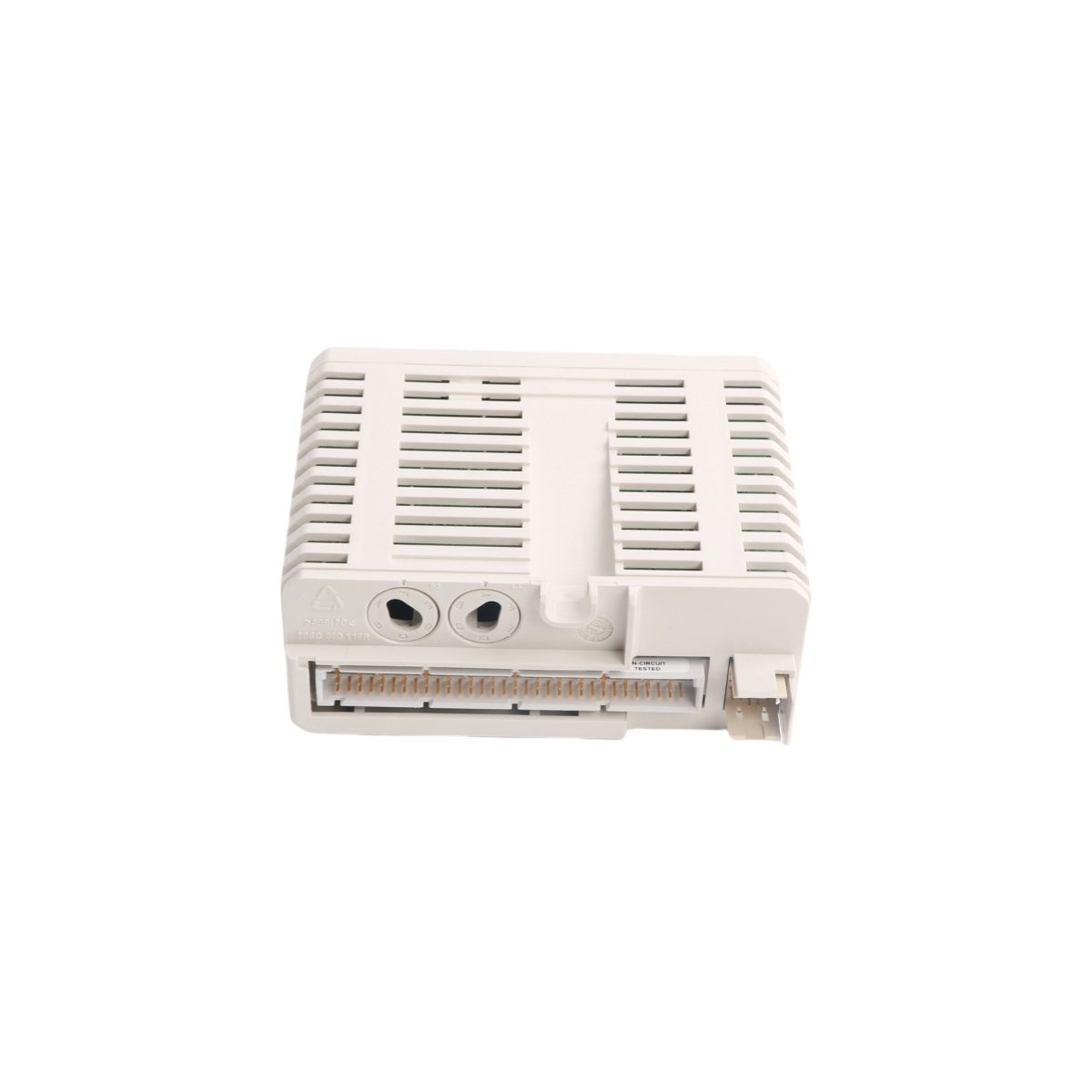

The ABB AI830 (3BSE008518R1) functions as a specialized analog input interface within the S800 I/O family. This module specifically targets high-precision temperature measurements using Resistance Temperature Detectors (RTDs). It supports 8 independent channels for thermal monitoring in complex industrial processes.

The hardware converts low-level resistance signals into digital data for the controller. Consequently, it provides the accuracy necessary for critical chemical and power generation applications. The AI830 integrates seamlessly with AC 800M controllers to enhance process transparency.

Core Technical Characteristics

Operational Reliability and Protection

ABB utilizes advanced filtering technology to eliminate electrical noise from field wiring. This ensures stable readings even in high-interference manufacturing environments. Furthermore, the module includes group-wise galvanic isolation to protect internal logic from external surges.

The AI830 operates effectively across a broad temperature range from -25°C to +70°C. Robust Swedish engineering guarantees a long service life under continuous industrial loads. Additionally, the unit features built-in diagnostics to detect open circuits or sensor short-circuits.

Installation and Network Integration

The compact housing allows for high-density mounting on standard DIN rails. This design effectively optimizes limited space within control enclosures. Moreover, the ModuleBus interface facilitates rapid communication with the primary station cluster.

Technicians can replace modules easily thanks to the hot-swap capability of the S800 system. This feature significantly reduces maintenance time during critical hardware updates. The AI830 remains a standard choice for modernizing legacy DCS temperature monitoring loops.
