Description

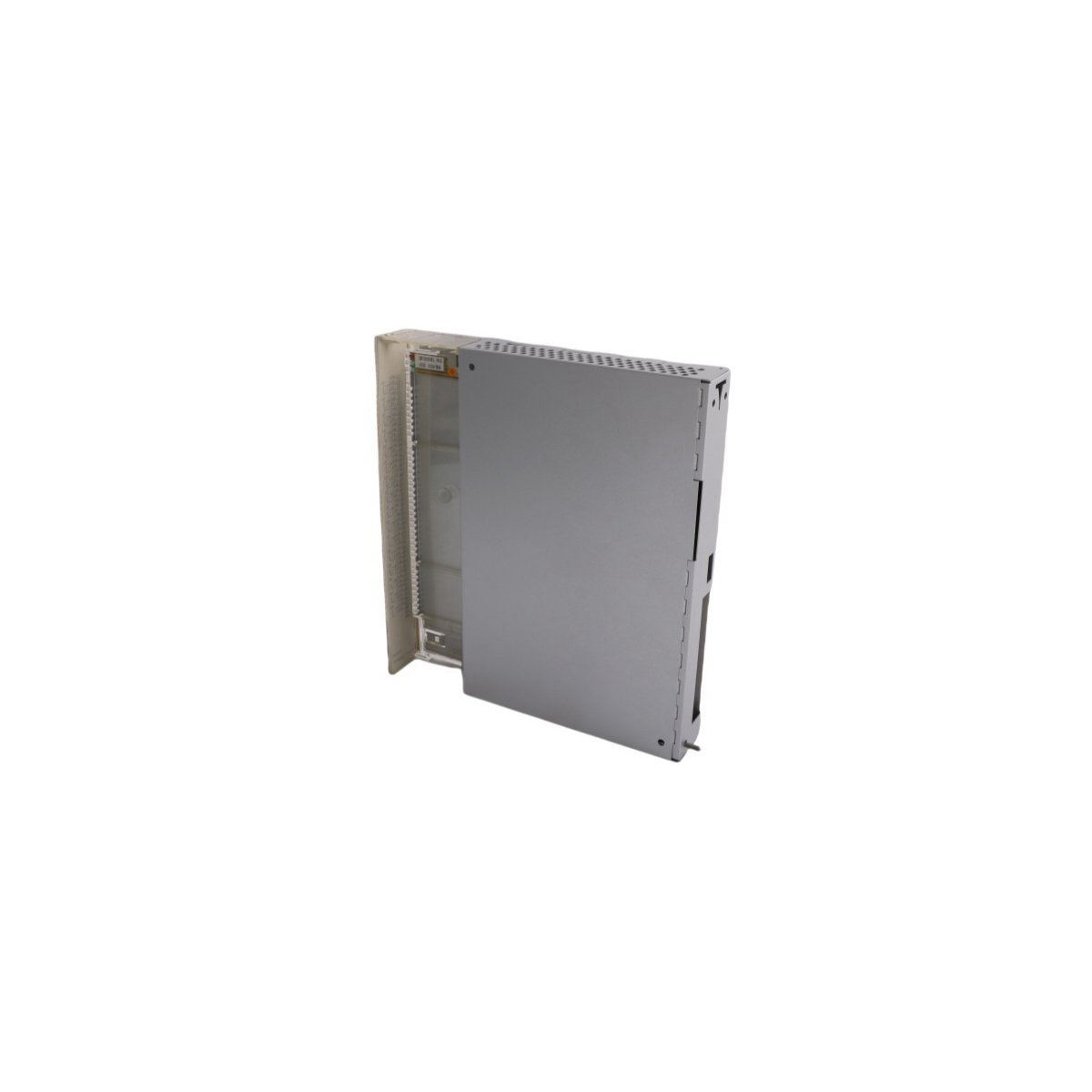

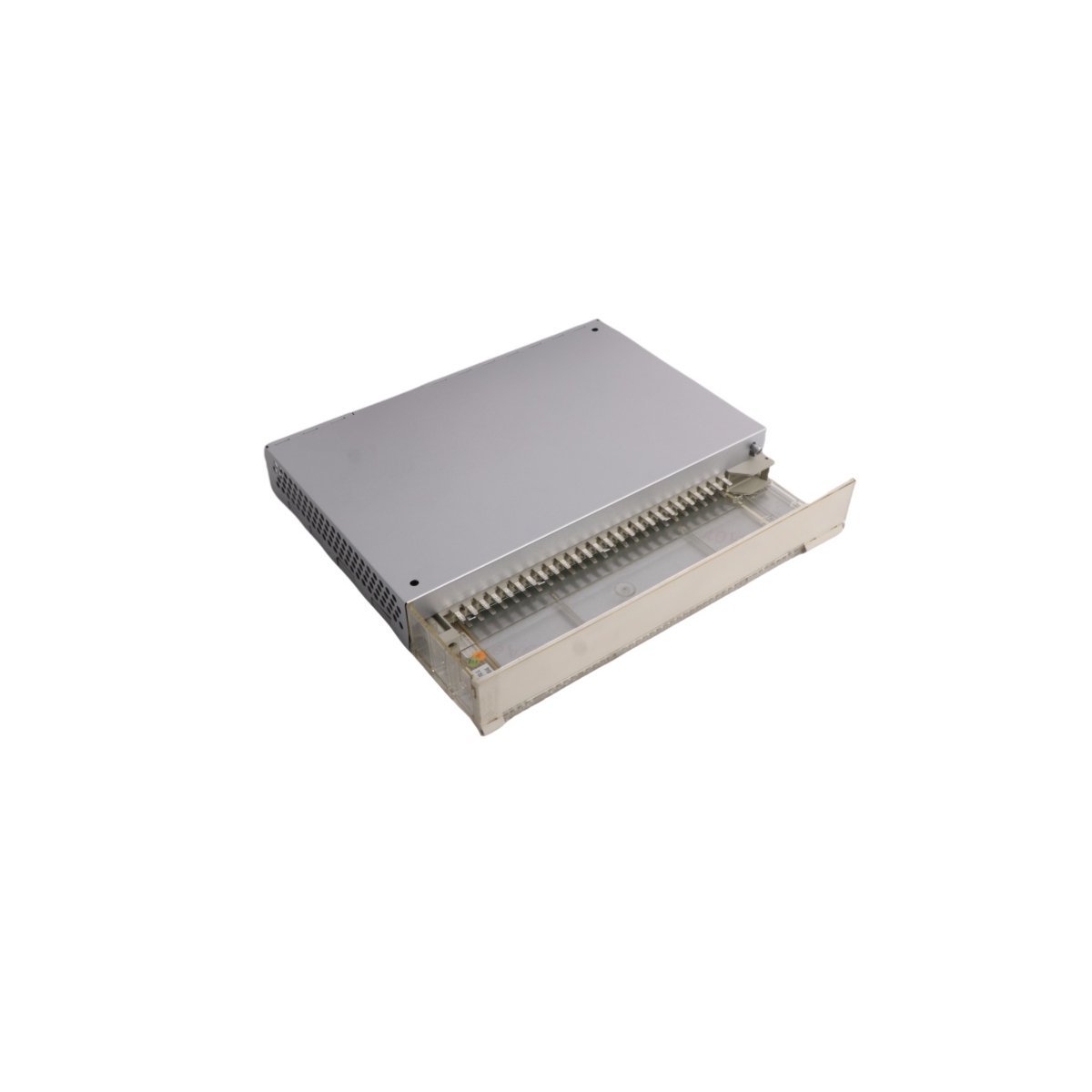

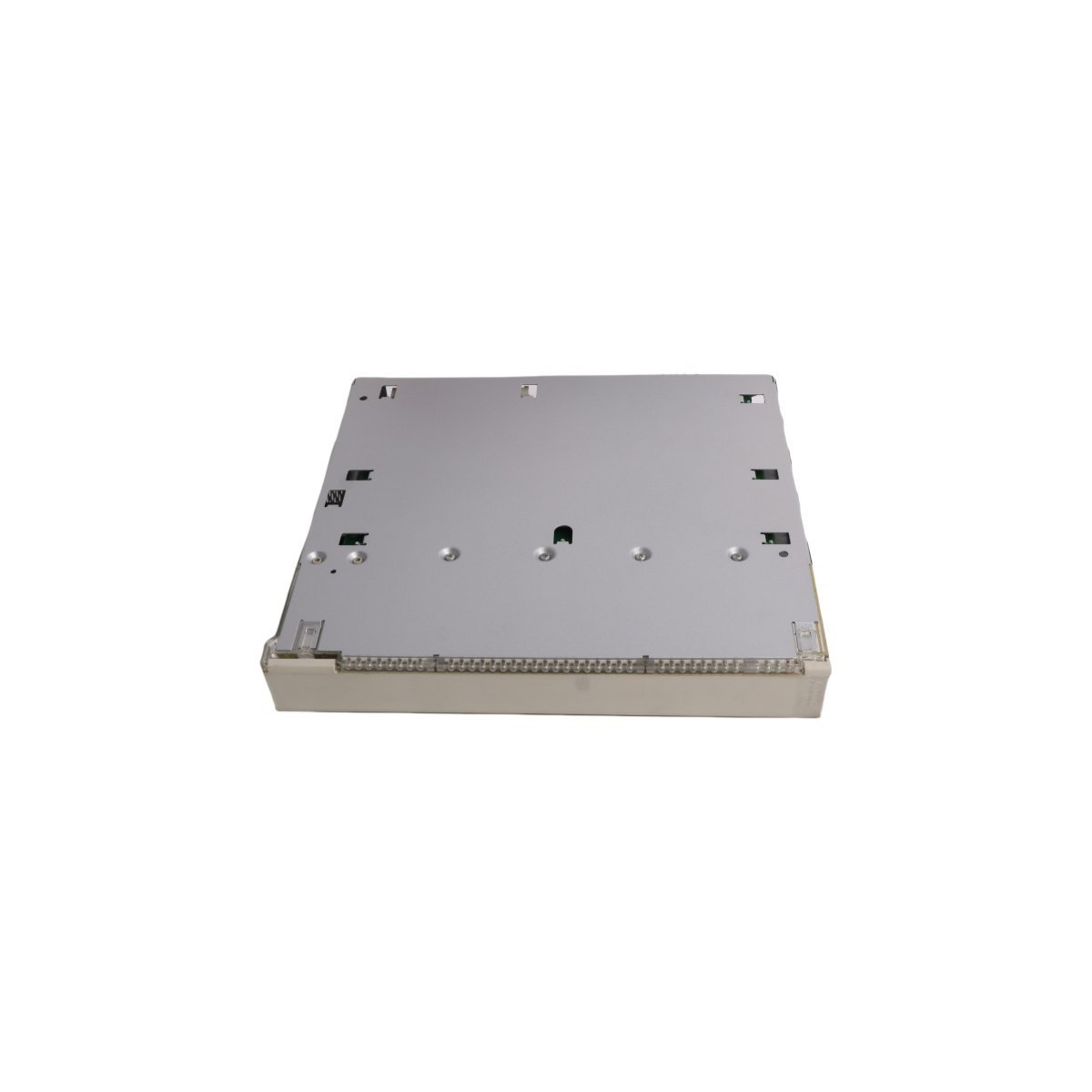

The ABB AI620 (3BHT300005R1) serves as a high-density analog interface for the S600 I/O system. This module converts external analog process signals into digital data for DCS controllers. It effectively manages 16 independent input channels within a single compact housing.

Engineers utilize this module for precise data acquisition in complex industrial environments. The hardware supports voltage-based signal processing with high accuracy levels. It integrates seamlessly into existing ABB DCS architectures to ensure stable communication.

Core Technical Specifications

• Manufacturer: ABB
• Series: S600 I/O System
• Model Identifier: AI620
• Part Number: 3BHT300005R1
• Channel Count: 16 Analog Inputs
• Resolution: 12-bit Analog-to-Digital Conversion
• Input Voltage Range: -10 V to +10 V DC
• Isolation Rating: 50 V Continuous
• Operating Temperature: -25°C to +85°C
• Weight: 1.24 kg
• HS Code: 8537101190

Operational Applications and Benefits

The AI620 module operates reliably across extreme temperature variations. This versatility makes it ideal for heavy manufacturing and power generation plants. The 16-channel design significantly reduces the physical footprint in control cabinets.

Built-in electrical isolation protects the system from ground loops and signal interference. This feature maintains signal integrity and prevents damage to sensitive controller components. The modular design allows for rapid replacement and minimal downtime during maintenance.
