Description

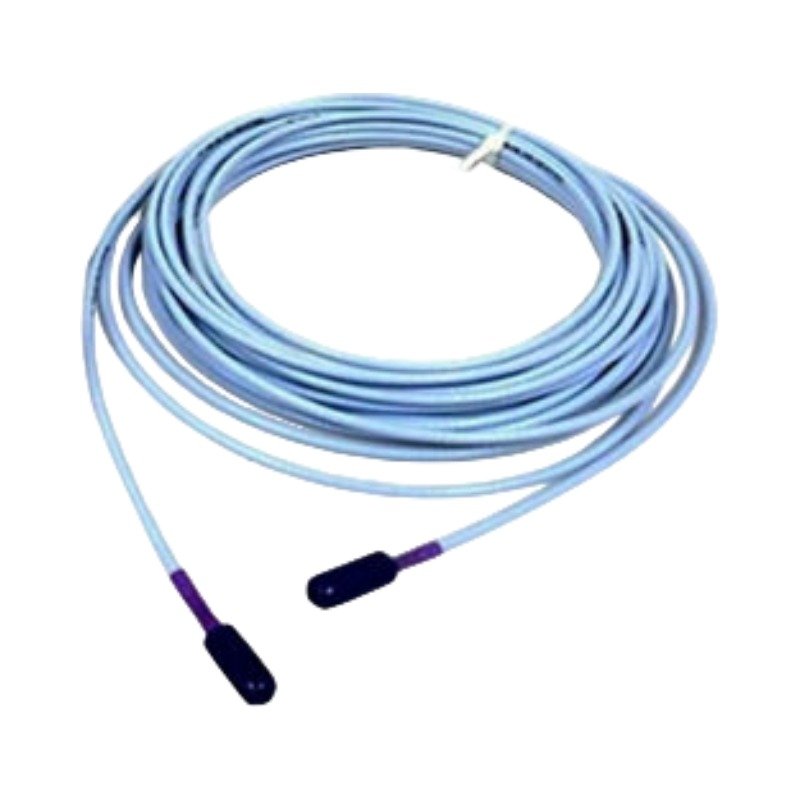

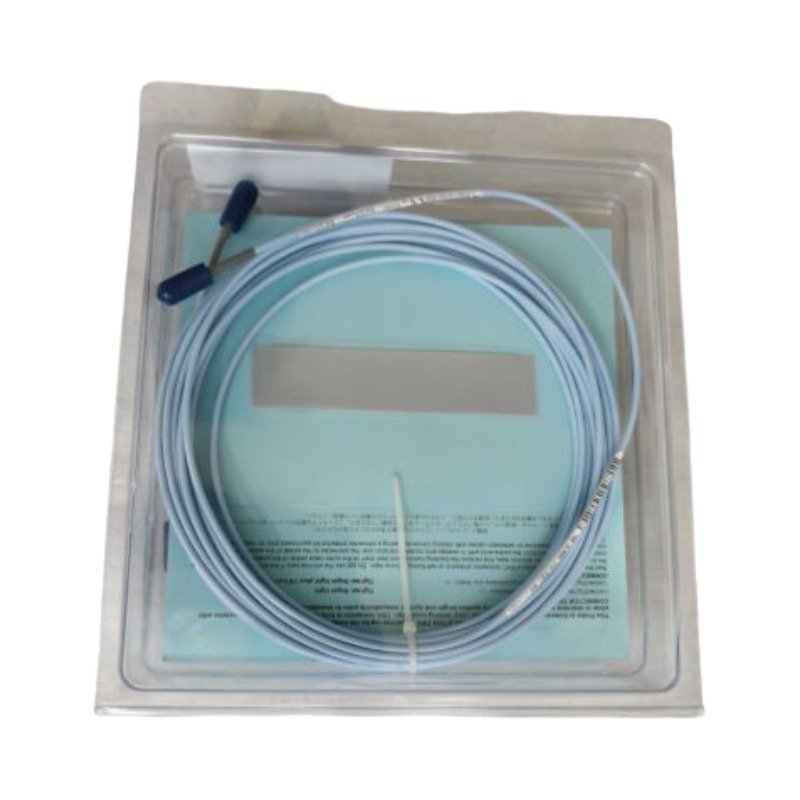

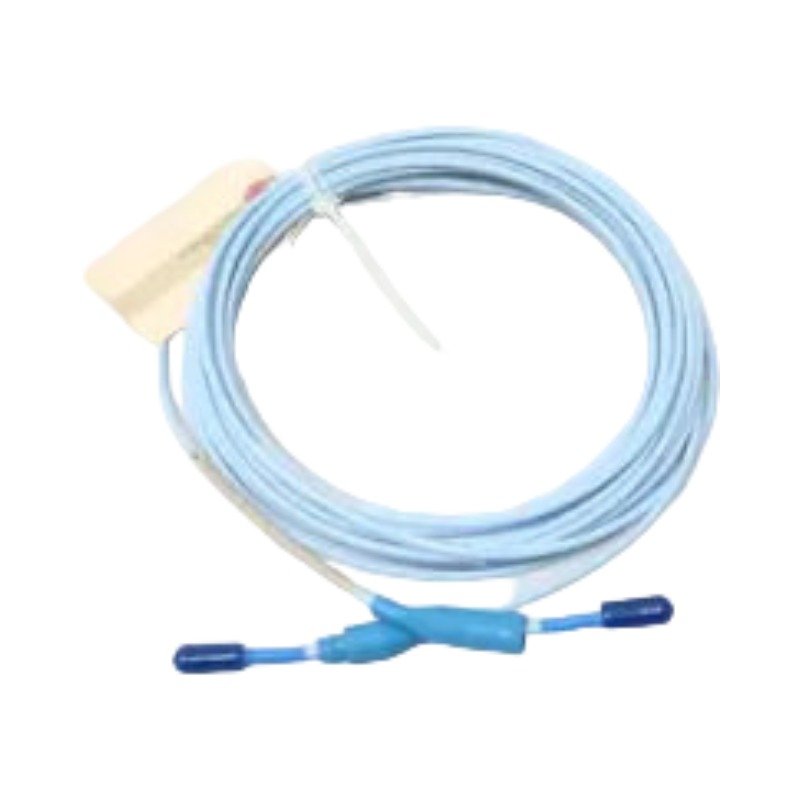

The Bently Nevada 330930-040-00-05, also cataloged as the 330930 Extension Cable, operates as a dedicated hardware component for signal transmission within the 3300 XL NSv Proximity Transducer System. Specifically, this triaxial cable links the 3300 NSv proximity probe to the 3300 XL NSv Proximitor Sensor. Consequently, the hardware routes raw high-frequency electrical signals without attenuation to ensure accurate machinery monitoring processing.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330930-040-00-05 maintains precise electrical impedance matching between the probe head and the Proximitor loop. During diagnostic setup, technicians verify the system gap voltage to achieve a stable -10 VDC baseline across the specialized 3300 NSv linear range. Consequently, this cable design preserves the standard 7.87 V/mm (200 mV/mil) average scale factor across the entire link. Furthermore, the robust triaxial shielding provides substantial cross-talk suppression when engineers pack multiple sensor cables into a single conduit or near tight bearing housings. Meanwhile, monitoring dynamic rotor abnormalities requires zero signal phase shift. The FEP insulation specifically isolates the core conductors from transient interferences, which prevents parasitic voltage fluctuations from corrupting the high-frequency rotor dynamics waveform.

Frequently Asked Questions

Q: How does the technician verify that the extension cable matches the electrical length requirements of the Proximitor Sensor?

A: The technician must check the sensor part number against the total combined length of the probe and extension cable. For instance, the 4.0-meter extension cable typically pairs with a 1.0-meter probe to fulfill the total 5.0-meter electrical length requirement of the Proximitor tuning circuit.

Q: Does the stainless steel armor provide any environmental protection for the underlying FEP insulation?

A: Yes, the flexible stainless steel armor provides mechanical crushing resistance and abrasion defense against sharp metal edges within the machine casing. However, because this specific option omits an outer FEP jacket over the armor, the technician must prevent pooling liquids from entering the bare mesh braid.

Field Installation Guidelines

• Minimum Bend Radius Restrictions: Route the armored cable through the protective conduit network carefully. Technicians must maintain a minimum bend radius of 25 mm (1.0 in) for the armored assembly. As a result, you prevent internal dielectric distortion and structural degradation of the 75 Ohm core.
• ClickLoc Connector Tightness and Protection: Connect the miniature coaxial ClickLoc interfaces until they produce an audible mechanical click. Afterward, slip the integrated connector protector over the junction to seal out oil, water, and ambient contaminants. Do not use mechanical pliers to over-tighten these gold-plated terminals.
• Cable Shield Isolation Protocol: Isolate the outer armor and inner shield completely from intermediate structural junctions or junction box frames. Technicians must route the shield continuously to the Proximitor Sensor housing. At that location, the terminal pins ground the shield back to the instrumentation common bus.
