Description

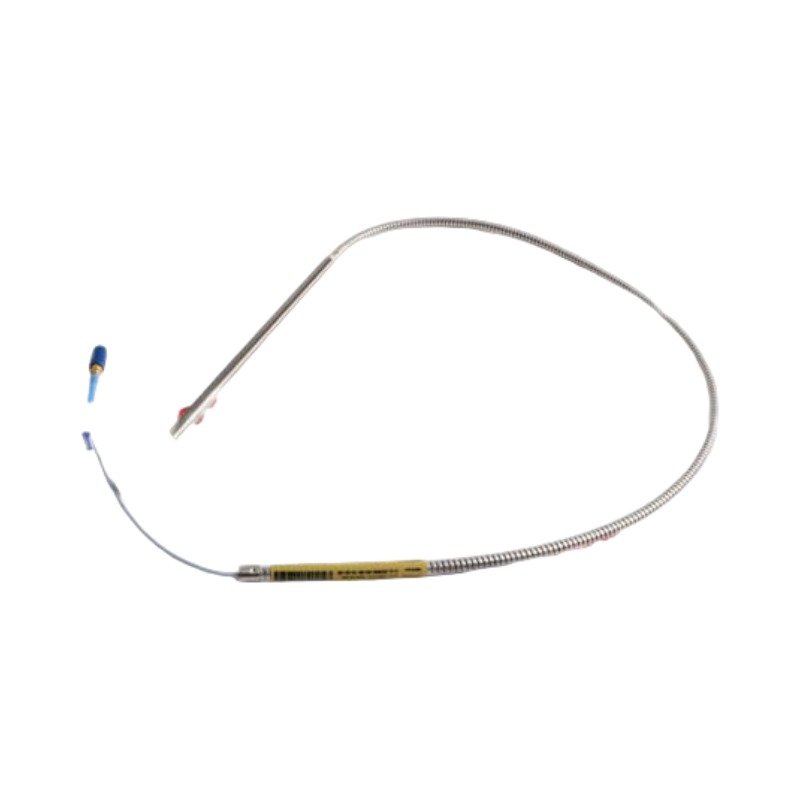

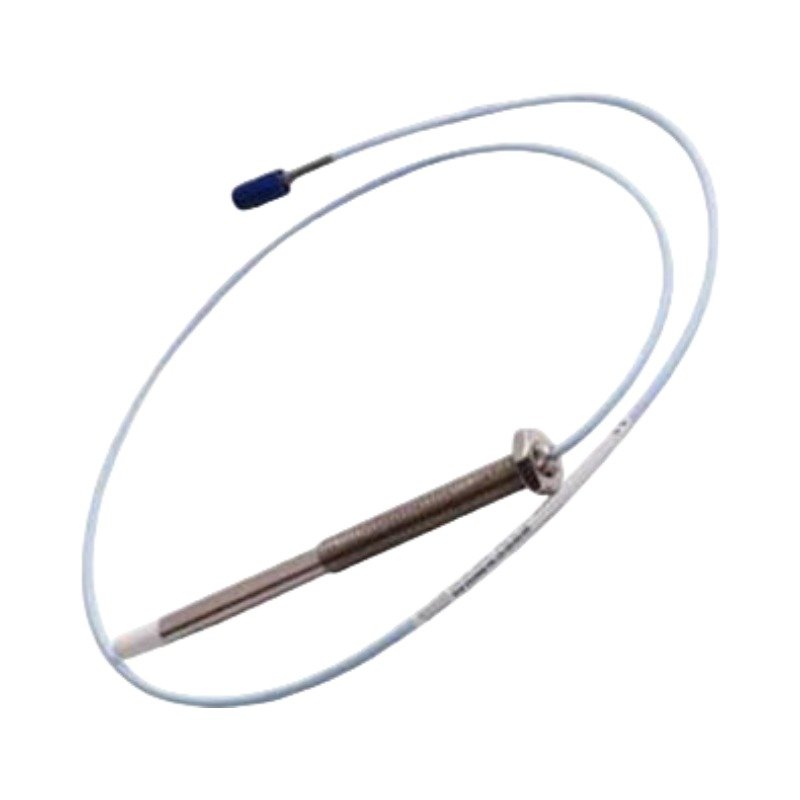

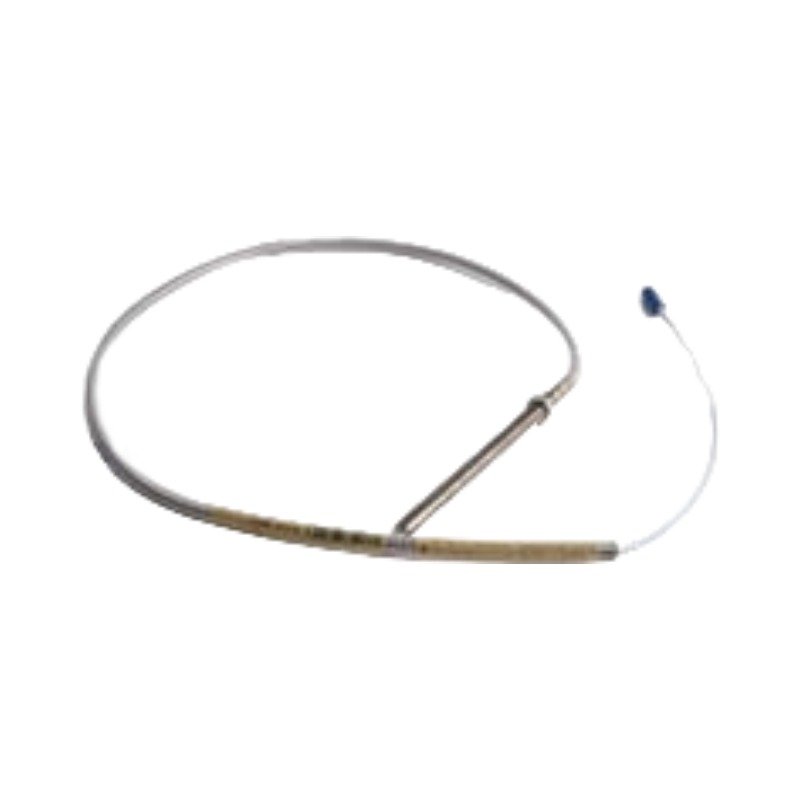

The Bently Nevada 330909-00-99-10-02-00 serves as the primary 330909 Proximity Transducer utilized to execute non-contacting shaft displacement and radial vibration measurements across 3300 XL NSv Proximitor loop platforms. Specifically, this sensor tracks dynamic distances between the probe tip and small-diameter or confined-space target shafts. Consequently, the hardware passes this continuous electrical signal directly to the machinery monitoring backplane for real-time diagnostic evaluation.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330909-00-99-10-02-00 projects a specialized eddy-current field designed specifically for small target surfaces and restricted mechanical clearings. During standard calibration procedures, technicians check the gap voltage to confirm it achieves a nominal -10 VDC baseline within the linear measurement zone. This electrical alignment establishes the system’s signature 7.87 V/mm (200 mV/mil) scale factor. Furthermore, this specific sensor architecture improves cross-talk suppression whenever engineers install multiple proximity probes in close physical intervals on the same bearing block. Meanwhile, evaluating high-frequency rotor dynamics requires a highly stable physical mounting. Without it, mechanical and electrical runout variations on the shaft surface inject parasitic voltage distortion directly into the dynamic radial vibration waveform.

Frequently Asked Questions

Q: How does the technician set the proper physical gap clearance during commissioning?

A: The technician rotates the armored probe body into the 3/8-24 UNF thread until the connected monitoring loop records a static gap voltage of -10 VDC. This reading indicates that the probe tip maintains approximately 1.0 mm (40 mils) of mechanical clearance from the shaft target. Afterward, the technician fastens the jam nuts to secure the installation.

Q: Can an engineer plug this 1.0-meter probe cable directly into a 3500 series rack without an intermediate cable?

A: No, because the 3300 XL NSv loop demands an exact total system electrical length. Therefore, the engineer must insert a matching 3300 NSv extension cable to establish the appropriate matched impedance circuit for the Proximitor.

Field Installation Guidelines

• Thread Engagement and Torque Limits: Install the armored probe into a clean 3/8-24 UNF threaded port. Ensure a minimum thread engagement of 5 full threads so that continuous structural machine housing vibration cannot loosen the assembly. Additionally, do not exceed the maximum allowable torque value of 4.5 N-m (40 in-lb).
• Coaxial Cable Shield Grounding: Completely isolate the outer armor and inner shield of the miniature coaxial cable from the local machine casing ground. Maintain this electrical isolation through all intermediate junction box enclosures. Finally, terminate the shield drain wire exclusively at the designated instrumentation system ground point inside the monitor rack panel.
• Minimum Target Area Clearance: Because the NSv geometry incorporates distinct side-view field profiles, provide a counterbore clearance diameter of at least 13 mm around the probe tip when recessing the assembly. As a result, you successfully eliminate side-wall interference and prevent a corrupted eddy-current footprint.
