Description

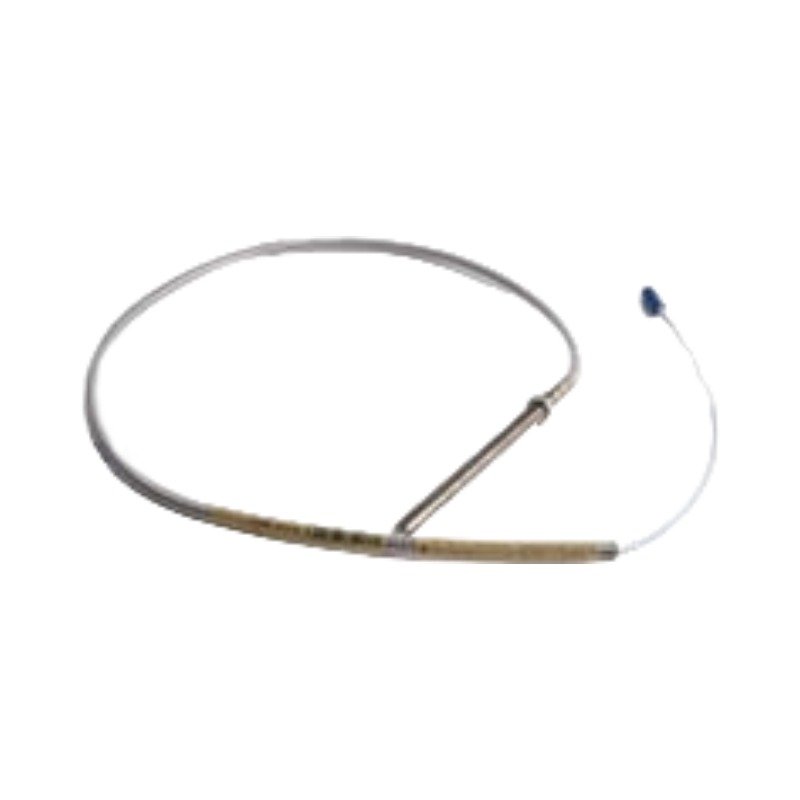

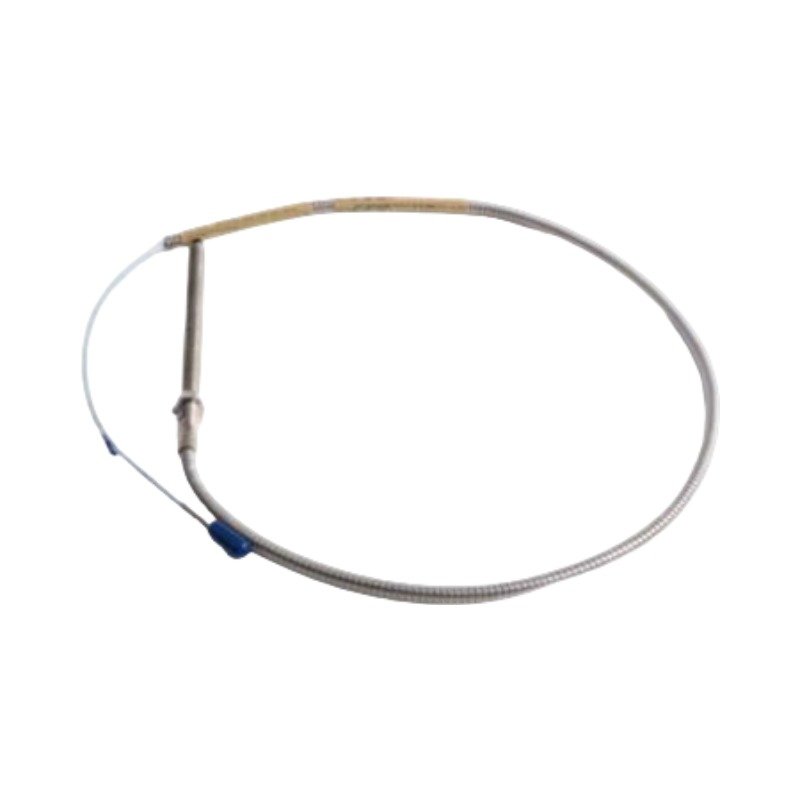

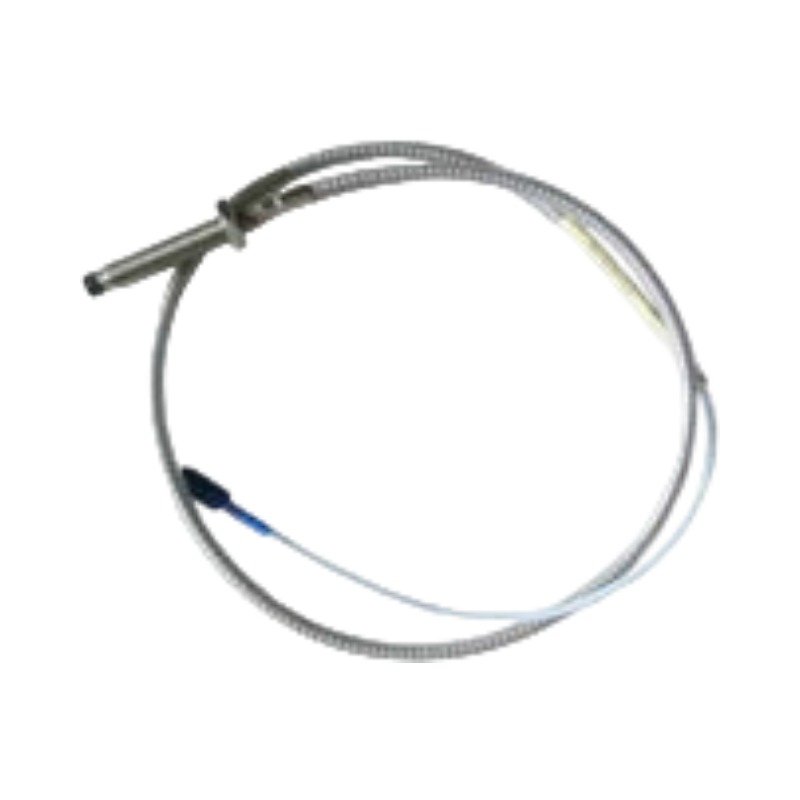

The Bently Nevada 330905-00-15-05-02-05, also cataloged as the 330905 Proximity Transducer, operates as a dedicated hardware component for non-contacting displacement measurements within tight installation clearances. Specifically, this sensor converts the physical distance between the probe tip and a small diameter rotor shaft into a proportional electrical signal. Consequently, the hardware passes this raw dynamic data to the 3300 XL NSv Proximitor processing loop.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330905-00-15-05-02-05 generates a concentrated eddy-current field that interacts with a conductive shaft target surface, specifically optimizing measurements on target diameters smaller than 51 mm (2.0 in). During installation, technicians must execute precise gap voltage validation to target a nominal -10 VDC baseline within the narrower 1.5 mm (60 mils) linear range. This exact spacing ensures steady calibration across the standard 7.87 V/mm (200 mV/mil) scale factor. Furthermore, the specialized tight-space configuration enhances cross-talk suppression whenever engineers must mount multiple probes close to each other. Meanwhile, monitoring high-frequency rotor dynamics requires careful physical alignment to prevent mechanical runout. Otherwise, tiny structural variances in the rotor shaft introduce parasitic voltage deviations directly into the dynamic radial vibration waveform.

Frequently Asked Questions

Q: How does the technician adjust the mechanical clearance for this narrow-space probe?

A: The technician must physically advance the probe through the M10 x 1 mounting thread until the Proximitor loop registers a quiescent gap voltage of -10 VDC. This electrical value typically corresponds to approximately 1.0 mm (40 mils) of physical clearance from the shaft target. Afterward, the technician locks the position using the jam nuts.

Q: Can the engineer patch the 0.5-meter probe cable directly into a 3500 rack without any intermediate cable?

A: No, because the 3300 XL NSv Proximitor Sensor mandates a precise total electrical length. Therefore, the engineer must insert a matching 3300 NSv extension cable to establish the mandatory loop impedance profile.

Field Installation Guidelines

• Thread Engagement and Torque Limits: Thread the unarmored M10 x 1 probe housing into the pre-tapped installation hole. Maintain a minimum thread engagement of 5 full threads to prevent high-frequency casing vibrations from loosening the sensor. Additionally, do not exceed the maximum recommended torque of 11.3 N-m (100 in-lb).
• Coaxial Cable Shield Grounding: Isolate the outer shield of the miniature coaxial cable from the local machine structural ground. Maintain this complete shield isolation through the junction box enclosures up to the Proximitor Sensor housing. At that final stage, land the shield terminal at the designated instrumentation system ground.
• Minimum Target Area Clearance: Because the NSv design features enhanced side-view characteristics, maintain a counterbore clearance diameter of at least 13 mm around the probe tip. As a result, you eliminate side-wall interference and prevent a distorted eddy-current footprint.
