Description

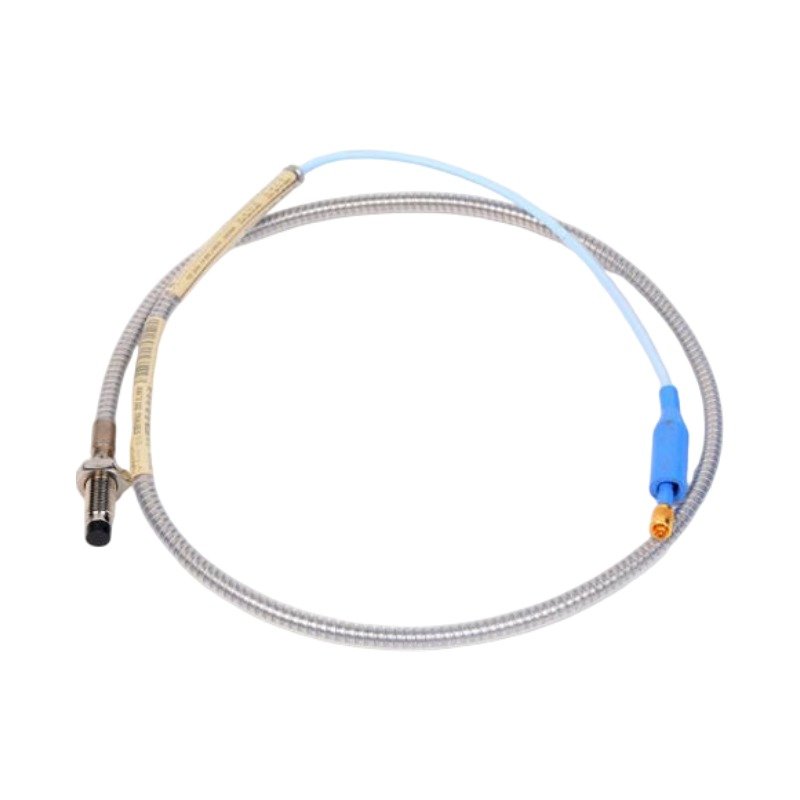

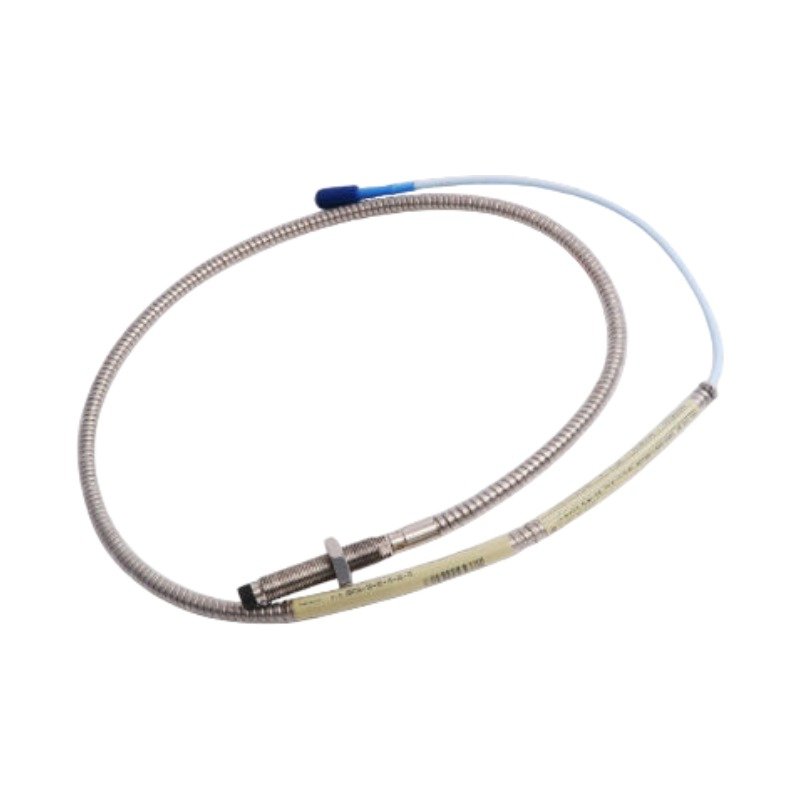

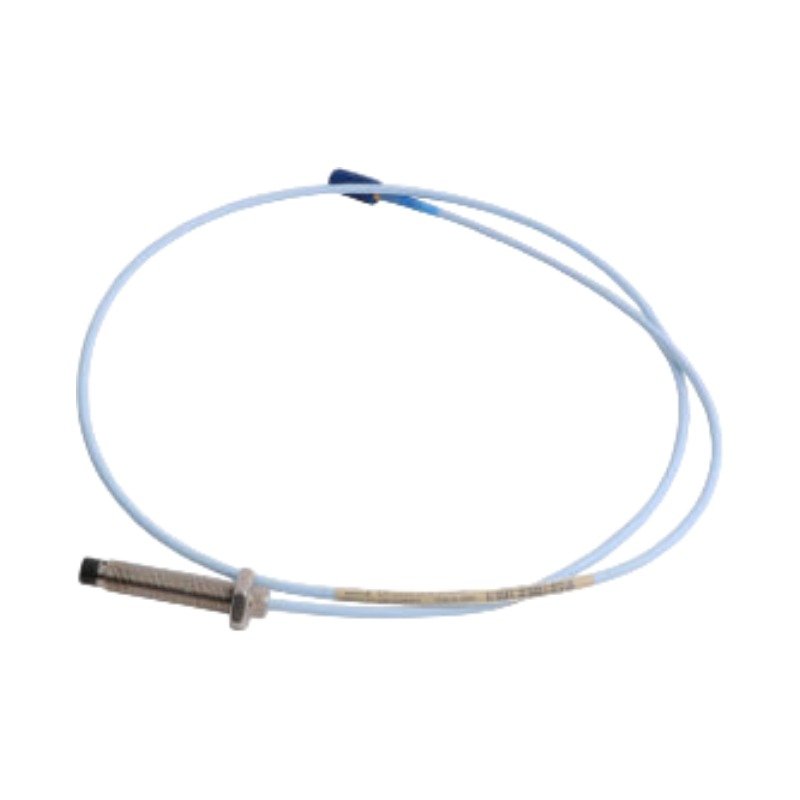

The Bently Nevada 330104-00-23-10-02-00 serves as the primary 330104 Proximity Transducer utilized to execute non-contacting shaft displacement and vibration measurements across 3500 Monitoring System platforms. Specifically, this sensor converts the physical distance between the probe tip and the target shaft into a proportional electrical signal. Consequently, the hardware passes this raw dynamic data to the proximity transducer backplane for machinery protection processing.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330104-00-23-10-02-00 projects a high-frequency eddy-current field into the conductive fluid-film bearing journal or shaft target surface. During initial setup, technicians must verify the gap voltage to ensure it registers a nominal -10 VDC baseline within the linear region. This precise adjustment establishes a standardized 7.87 V/mm (200 mV/mil) scale factor. Furthermore, proper voltage calibration guarantees optimal cross-talk suppression if engineers mount multiple eddy-current probes inside the same bearing housing. Meanwhile, high-frequency rotor dynamics observations require precise mechanical installation to mitigate electrical and mechanical runout. Otherwise, micro-structural variances or residual magnetism in the rotor shaft material introduce parasitic voltage spikes into the dynamic vibration waveform.

Frequently Asked Questions

Q: How does the installation engineer establish the correct mechanical clearance for this specific probe?

A: The installation engineer must rotate the probe into the threaded mounting hole until the system reads a quiescent gap voltage of -10 VDC. This value matches approximately 1.0 mm (40 mils) of physical space from the target surface. Afterward, the engineer locks the position using the supplied hex nuts.

Q: Can the field technician link the 1.0-meter probe cable directly to a 3500/42M monitor card?

A: No, because the complete system loop dictates an electrical length of either 5.0 meters or 9.0 meters. Therefore, the field technician must install a matching 3300 XL extension cable to bridge the distance between the probe and the Proximitor Sensor.

Field Installation Guidelines

• Thread Engagement and Torque Limits: Thread the probe into the pre-tapped 3/8-24 UNF mounting bore. Ensure a minimum thread engagement of 5 full threads so that continuous machinery casing vibration does not back out the hardware. Additionally, tighten the housing to a torque value not exceeding 4.5 N-m (40 in-lb).
• Coaxial Cable Shield Grounding: Isolate the outer shield of the miniature coaxial cable from the structural machine ground. Maintain this electrical isolation through the junction box enclosures up to the Proximitor Sensor housing. At that stage, connect the shield to the dedicated instrumentation ground system.
• Minimum Target Area Clearance: Provide a counterbore clearance diameter of at least 30 mm around the 8 mm probe tip whenever you recess the assembly into a machine housing wall. As a result, you eliminate side-view interference and prevent distorted eddy-current paths.
