Description

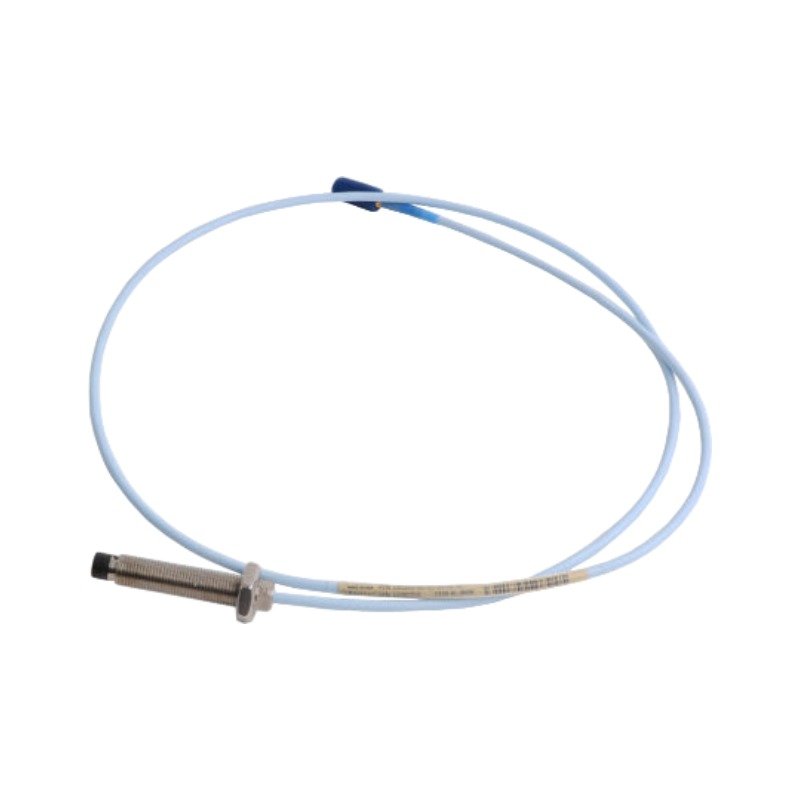

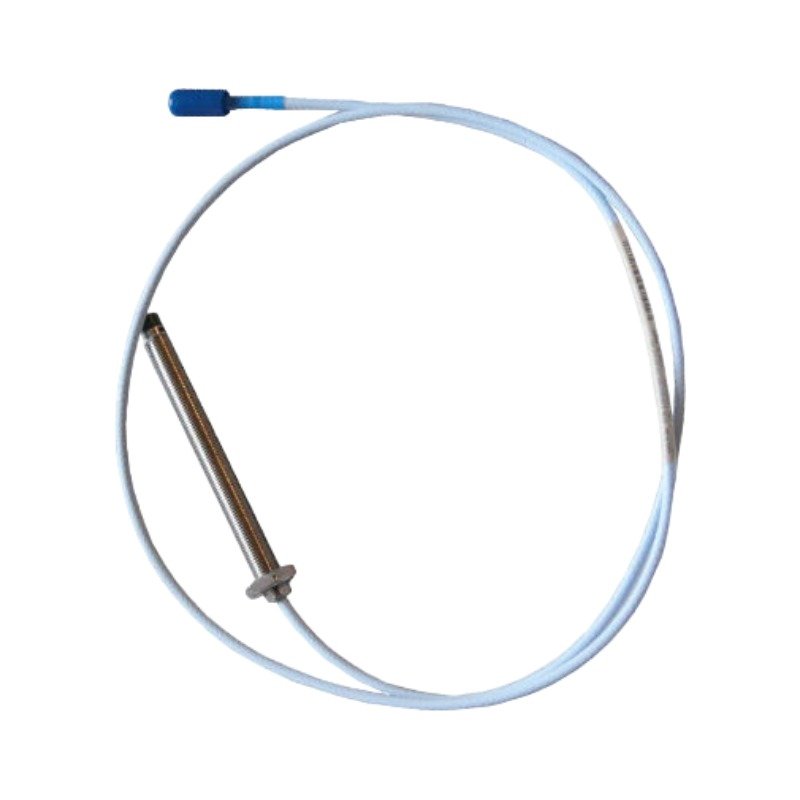

The Bently Nevada 330103-00-10-10-02-00 (330103 Proximity Transducer) executes non-contacting vibration and position measurements within rotating machinery monitoring systems. Specifically, this primary sensing element measures static and dynamic distances between the probe tip and the observed target area. Consequently, the unit transmits raw proximity data directly to the associated proximity transducer system backplane.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330103-00-10-10-02-00 generates an eddy-current field that interacts directly with a conductive fluid-film bearing journal or shaft target surface. During mechanical inspection, engineers must validate the gap voltage to ensure it achieves a nominal -10 VDC baseline within the linear range. This calibration step establishes a standard 7.87 V/mm (200 mV/mil) scale factor. Furthermore, precise voltage alignment suppresses signal cross-talk when technicians mount multiple eddy-current probes in close proximity on the same bearing housing. Meanwhile, high-frequency rotor dynamics observations require careful physical installation to eliminate electrical and mechanical runout. Otherwise, micro-structural variations in the rotor shaft material introduce parasitic voltage fluctuations into the dynamic vibration signal waveform.

Frequently Asked Questions

Q: How does the technician establish the correct mechanical clearance during gap voltage validation?

A: The technician must mechanically position the probe until the system registers a quiescent gap voltage of -10 VDC. This value typically corresponds to approximately 1.0 mm (40 mils) of physical clearance at the center of the linear calibration envelope. Afterward, the technician tightens the locknuts to secure the position.

Q: Can the engineer connect the 1.0-meter probe cable directly to a 3500 monitoring rack without an extension cable?

A: No, because the Proximitor Sensor requires a total system electrical length of either 5.0 meters or 9.0 meters. Therefore, the engineer must utilize a matching 3300 XL extension cable to complete the transmission loop impedance circuit.

Field Installation Guidelines

• Thread Engagement and Torque Limits: Mount the probe using standard 3/8-24 UNF tapped holes. Ensure a minimum thread engagement of 5 full threads so that high-frequency rotor casing vibration does not loosen the assembly. Additionally, do not exceed a maximum installation torque of 4.5 N-m (40 in-lb).
• Coaxial Cable Shield Grounding: Isolate the outer shield of the miniature coaxial cable from the machine casing ground. Maintain this continuous shield isolation through the junction box up to the Proximitor Sensor terminal block. At that point, connect the shield directly to the designated instrumentation system ground point.
• Minimum Target Area Clearance: Maintain a counterbore clearance diameter of at least 30 mm around the 8 mm probe tip when recessing the unit into a machine housing wall. As a result, you prevent side-view interference and distorted eddy-current fields.
