Description

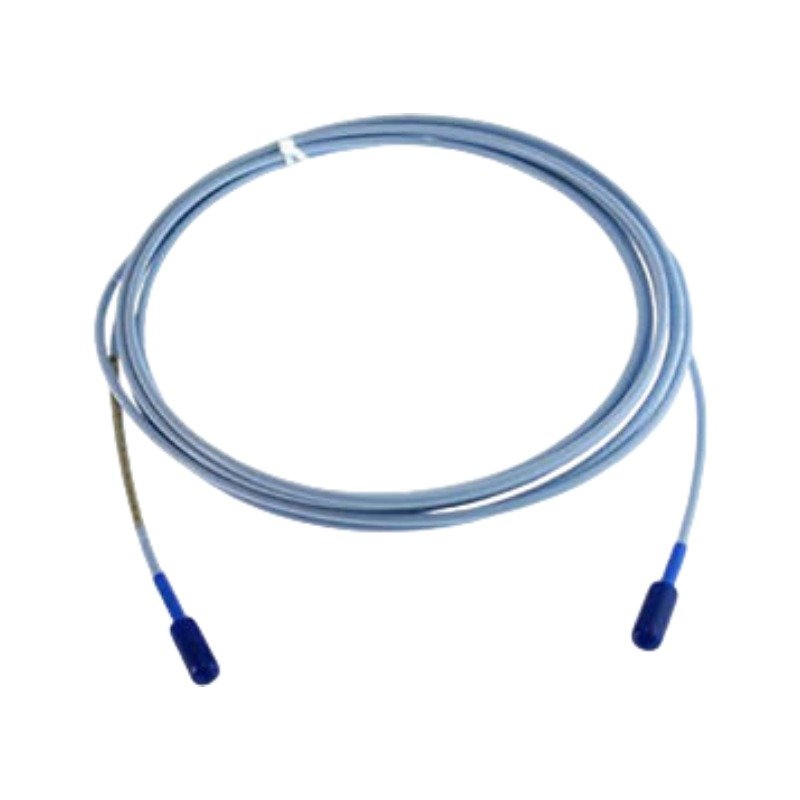

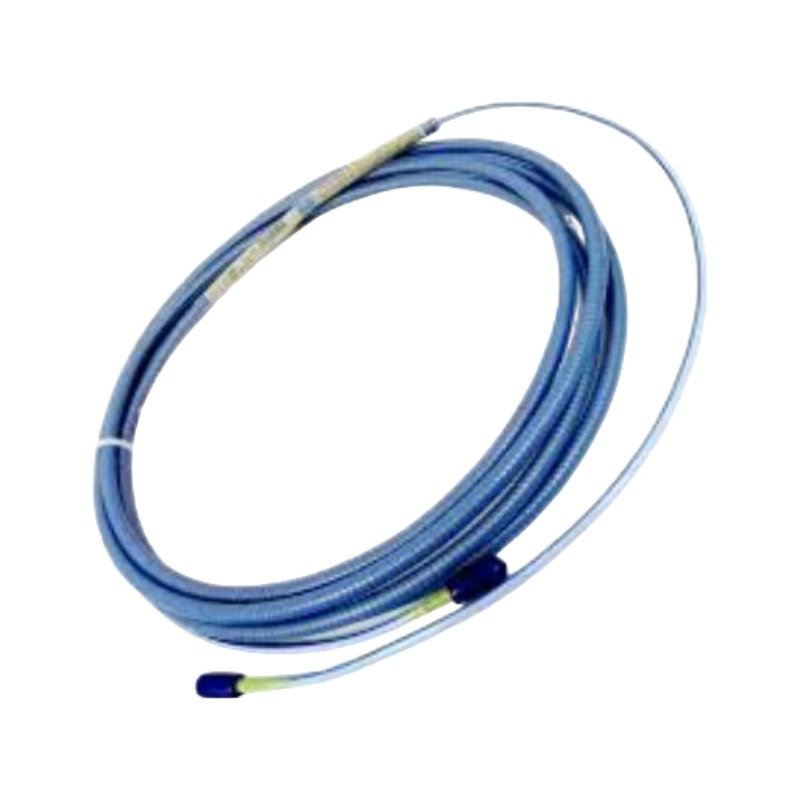

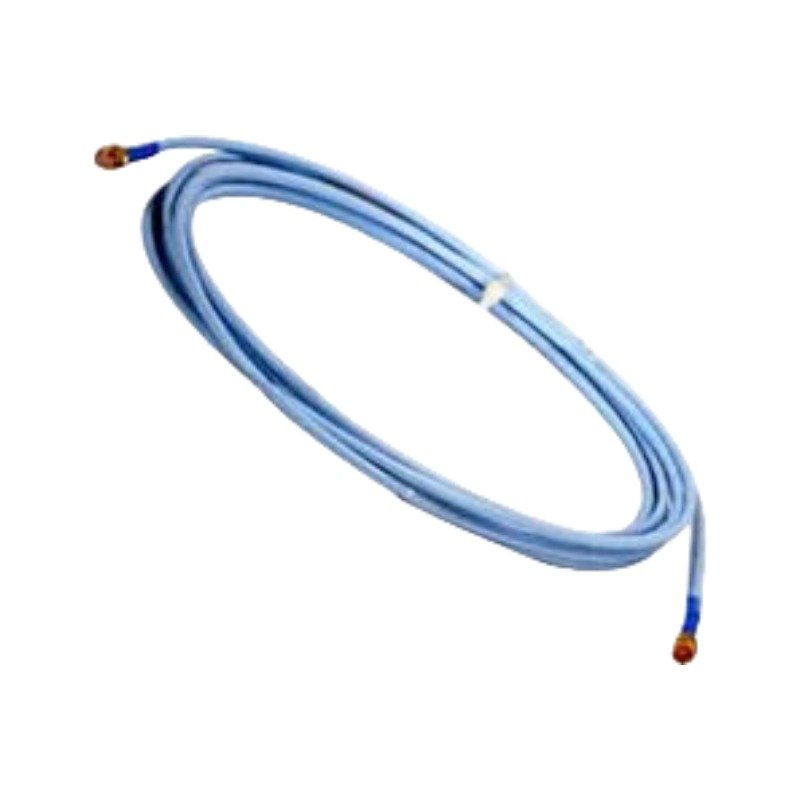

Configured for proximity and vibration measurement tasks in machinery protection and diagnostic platforms, the Bently Nevada 330854-040-24-05 (330854 Extension Cable) provides direct physical/electrical execution. This hardware component links the proximity sensor probe to the conditioning electronics, executing signal transmission within critical asset monitoring frameworks. It facilitates the continuous delivery of high-frequency eddy-current data to the main processing modules without introducing signal attenuation. The component design targets demanding industrial locations where mechanical displacement monitoring dictates overall equipment uptime.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 330854-040-24-05 extension cable maintains precise eddy-current probe scaling across its entire operating envelope. The engineering configuration ensures that cross-talk suppression remains above standard industry thresholds when routed alongside adjacent sensor lines. During gap voltage validation (-10 VDC targets), the physical integrity of the coaxial shielding prevents stray voltage fluctuations from destabilizing the static calibration curve. This attenuation stability allows the processing monitor to accurately track rotor dynamics, ensuring that phase angle and vibration amplitude calculations reflect true mechanical states rather than electrical noise.

Frequently Asked Questions

Q: How does the connector protector option alter physical installation requirements?

A: The 05 suffix indicates the inclusion of connector protectors. This mechanical addition increases the outer diameter at the connection point, requiring a larger conduit or minimum internal clearance during installation routing to prevent physical binding.

Q: Can this extension cable be spliced or modified in the field if the length is incorrect?

A: No. Altering the physical length of the coaxial cable shifts the electrical capacitance and impedance values. This corruption invalidates the factory eddy-current calibration matrix, leading to incorrect gap voltage readings and flawed vibration metrics.

Q: What is the primary cause of signal degradation across this passive link?

A: Mechanical damage to the outer fluoropolymer jacket or exceeding the minimum bend radius causes changes in internal coaxial geometry. This deformation compromises cross-talk suppression and introduces electrical noise into the monitor input stage.

Field Installation Guidelines

• Verify that the mechanical routing path adheres to the minimum bend radius specification of 24.5 mm to avoid structural damage to the internal shield.
• Isolate the cable from high-voltage conduit lines to maximize cross-talk suppression and ensure clean signal propagation.
• Confirm the mechanical engagement of the miniature coaxial connectors by torqueing them to the standard hand-tight specification before applying the connector protector seals.
• Implement standard industrial grounding procedures by ensuring the outer armor or shield connects only to the designated instrument ground terminal at the housing box layer.
