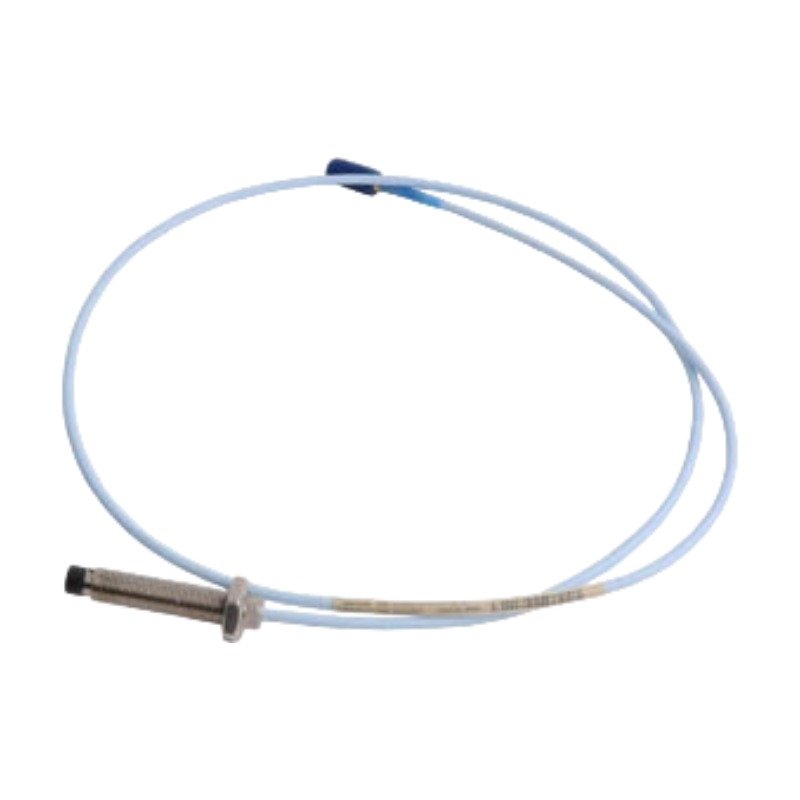

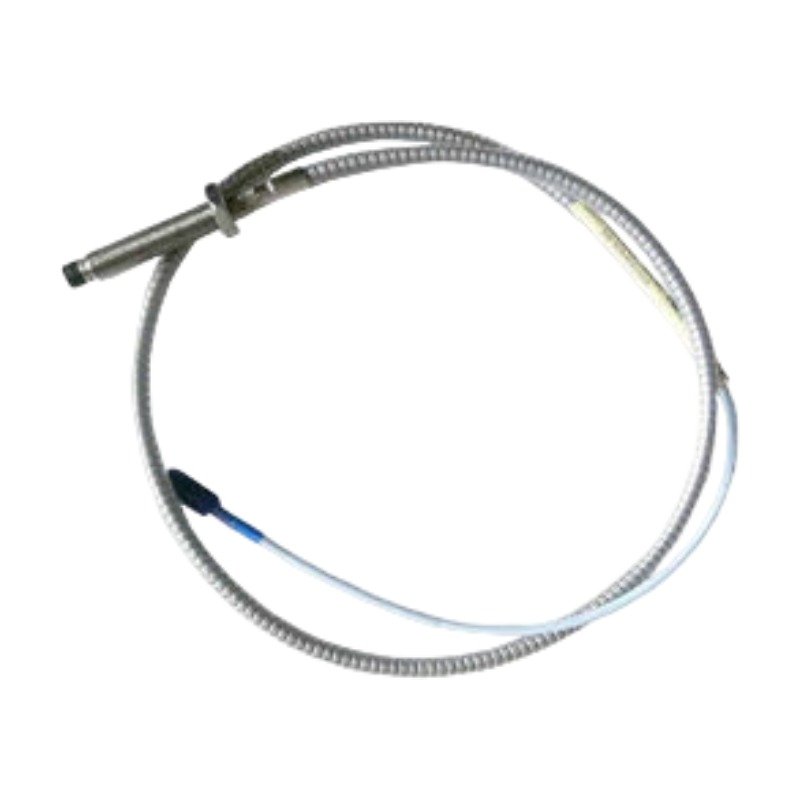

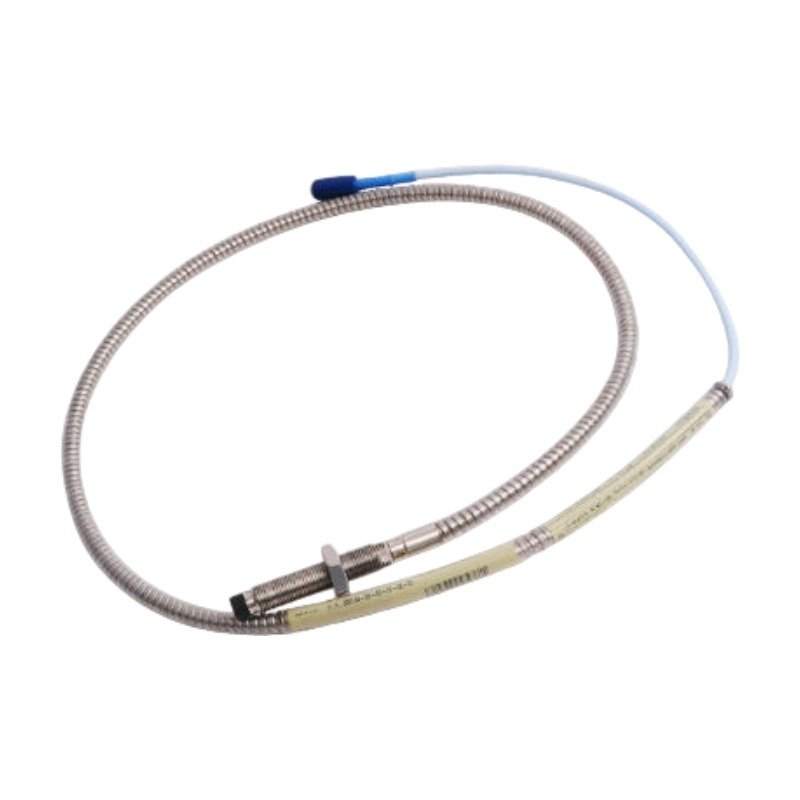

Configured for non-contact eddy-current displacement and vibration measurements in machinery monitoring systems, the Bently Nevada 330104-00-20-05-02-00 (330104 Proximity Probe) provides direct physical/electrical execution. This hardware component interfaces with a Proximitor Sensor to convert the dynamic distance between the probe tip and the observed target track into a proportional electrical signal.

Hardware Specifications

Mechanical Monitoring & TSI Characterization

The component adheres strictly to the physical principles governing eddy-current probe scaling. This transducer requires proper gap voltage validation during mechanical alignment to ensure the target rests within the linear range of the sensor calibration. Technicians must adjust the mechanical positioning until the Proximitor output measures a -10 VDC target voltage, which represents the midpoint of the linear displacement zone.

Furthermore, the design incorporates advanced shielding to facilitate cross-talk suppression when multiple 8 mm probes are mounted in close proximity. This shielding prevents electromagnetic interference between adjacent probe tips from distorting the rotor dynamics data provided to the main machinery protection monitor.

Frequently Asked Questions

Q: How does the total length configuration affect system calibration?

A: The 2.0 m total length of this probe must match the electrical length specified by the 3300 XL Proximitor Sensor. Mismatches between probe length and sensor configuration alter the tuned LC circuit frequency, which destroys calibration accuracy and results in incorrect scale factor outputs.

Q: What is the mechanical torque limit for installing this 3/8-24 threaded probe?

A: Do not exceed 13.6 N-m (120 in-lb) of torque during installation. Exceeding this limit can cause permanent deformation of the threaded case or cause mechanical separation between the ceramic probe tip and the stainless steel body.

Field Installation Guidelines

• Target Clearance Assessment: Ensure a minimum clearance of 9.5 mm (0.375 in) around the probe tip from any adjacent structural metal to prevent side-viewing interference.
• Connector Integrity: Use the correct silicone connector protectors or self-fusing tape at the extension cable junction to prevent moisture ingress and ground loops.
• Conduit Routing: Route the probe lead away from high-voltage AC cabling to eliminate induced noise. Secure the cable using Teflon-lined clamps to avoid insulation wear caused by machinery vibration.
