Description

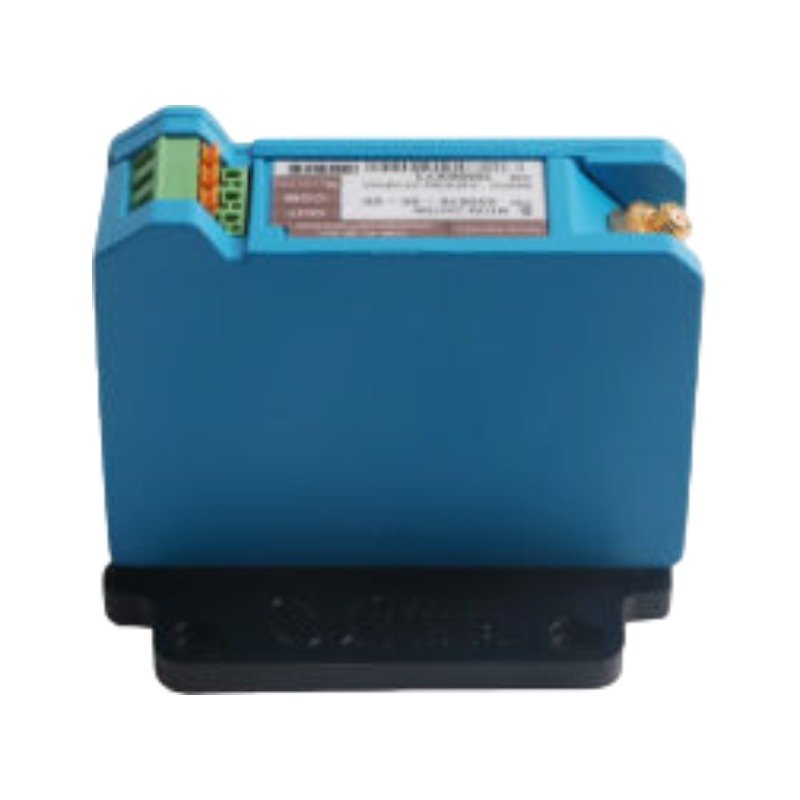

The Bently Nevada 330878-90-00, also cataloged as the 330878 Proximity Transducer System, operates as a dedicated hardware component for non-contacting vibration and displacement measurements within Bently Nevada 3500 Machinery Protection System platforms. This module converts the physical distance between the probe tip and the target rotor shaft into a proportional analog voltage signal. It delivers continuous, dynamic data directly to machinery protection monitors without physical component wear.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The configuration of the 330878-90-00 relies on strict eddy-current probe scaling to ensure precise tracking of high-speed rotor dynamics. Field calibration requires meticulous gap voltage validation, targeting a nominal value of -10 VDC to position the sensor precisely at the midpoint of its linear range. Because magnetic anomalies in the shaft material can introduce false vibration readings, the installation process demands precise measurement of electrical runout. Furthermore, proper separation of extension cables is critical to achieve cross-talk suppression, which prevents adjacent electromagnetic fields from distorting the high-frequency RF signal generated by the Proximitor.

Frequently Asked Questions

Q: How can field engineers confirm the correct physical gap before powering the system?

A: Engineers must use a physical feeler gauge or measure the DC gap voltage at the monitoring terminal block. A reading of -10 VDC confirms that the probe is perfectly centered within its 4.0 mm linear range.

Q: What are the consequences of altering the 9.0-meter system length during installation?

A: The Proximitor sensor relies on a tuned RF circuit optimized for exactly 9.0 meters of total cable length. Cutting the extension cable changes the overall system capacitance, which disrupts the eddy-current probe scaling and alters the 3.94 V/mm scale factor.

Field Installation Guidelines

• Mechanical Thread Engagement: Hand-tighten the 11 mm probe into the housing mounting bracket until it makes light contact with the target, then back it off to achieve the -10 VDC gap voltage target before securing the locknut.
• Coaxial Connector Isolation: Insulate the miniature click-loc connectors using clear heat-shrink tubing to prevent any physical contact with the machine ground, which eliminates ground loop noise.
• Bending Radius Constraints: Maintain a minimum physical bending radius of 25.4 mm (1.0 inch) for all coaxial and extension routing cables to prevent internal core damage and signal reflection.
• Conduit Routing: Route the sensor cables through dedicated, isolated conduit structures to suppress external electromagnetic interference from nearby high-voltage lines.
