Description

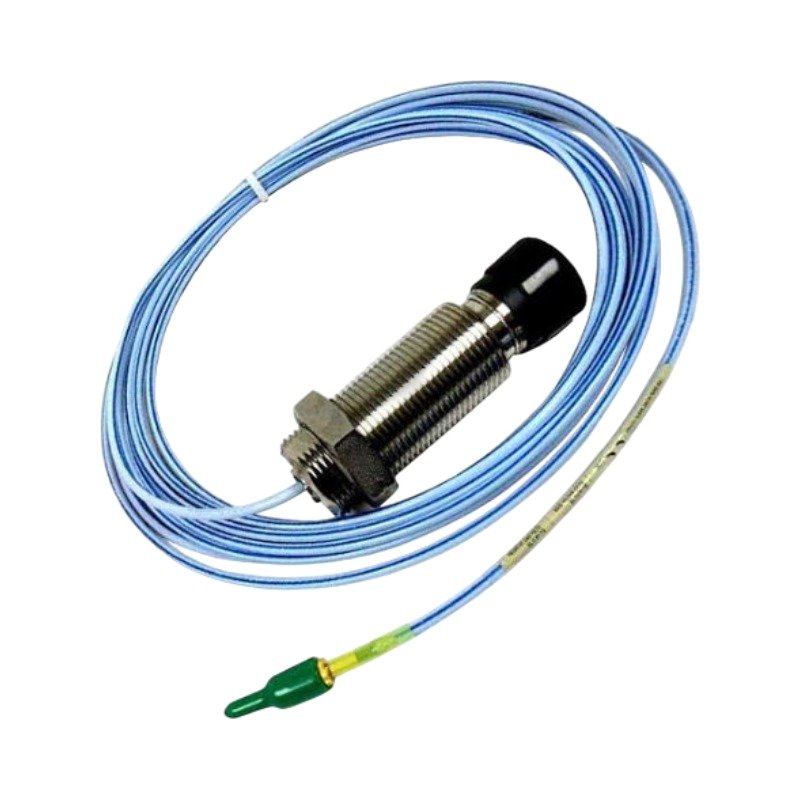

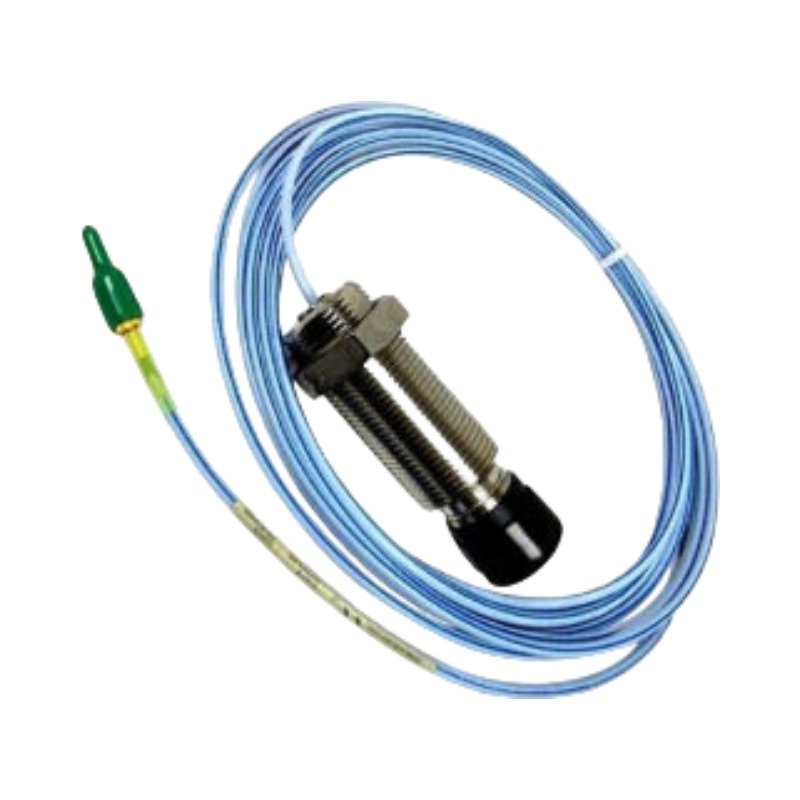

Configured for precision shaft displacement measurements in tight physical constraints and small target geometries, the Bently Nevada 330851-02-000-060-10-00-CN (330851 Proximity Probe) provides direct physical/electrical execution. This fractional-threaded eddy-current sensor converts mechanical relative movement into proportional voltage changes, feeding continuous data to adjacent monitoring hardware. The assembly operates primarily within small industrial machine housings where narrow installation clearance prevents the deployment of standard 8 mm probe configurations.

Suffix Breakdown & Model Matrix

• 02: Thread Type Option (3/8-24 UNF threads, smooth unthreaded sleeve section layout)
• 000: Unthreaded Length Option (0.0 inches unthreaded length; fully threaded body configuration)
• 060: Overall Case Length Option (6.0 inches total case length)
• 10: Total Length Option (1.0 meter / 3.3 feet integral probe cable length)
• 00: Connector Option (Miniature coaxial ClickLoc connector, standard configuration without fluid leakage protection)
• CN: Agency Approval Option (Country-specific hazardous area approvals for China market deployment)

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 330851-02-000-060-10-00-CN serves a specialized role within structural Turbomachinery Instrumentation (TSI) deployments by delivering micro-displacement metrics from small diameter shafts and counterbored targets. The underlying eddy-current probe scaling maps the localized gap variation onto a narrow linear sweep window, responding accurately to targets as small as 5 mm (0.2 inches) in diameter. The internal FEP insulated coaxial cable enforces robust cross-talk suppression paths, blocking electrostatic fields generated by surrounding machine instrumentation lines. Technicians perform initial installation routines by evaluating the gap voltage validation parameters; setting the static distance to match standard -10 VDC targets fixes the probe tip exactly at the center of the calibrated linear range. This positioning integrity enables precise logging of rotor dynamics profiles and guards against catastrophic shaft-to-casing contact during transient vibration excursions.

Frequently Asked Questions

Q: Can the 330851-02-000-060-10-00-CN probe tip directly tolerate continuous immersion in synthetic lubrication oils?

A: Yes. The polyphenylene sulfide (PPS) tip material and stainless steel case handle direct exposure to industrial lubricants and process contaminants. The baseline design features an internal tip-to-case seal structure to block fluid migration through the internal probe head assembly.

Q: Is this NSv probe compatible with standard 3300 XL 5 mm or 8 mm Proximitor sensors?

A: No. The NSv system possesses unique linear range and scale factor characteristics optimized for small targets. You must pair this probe explicitly with a 3300 XL NSv Proximitor sensor to maintain the system-wide 7.87 V/mm (200 mV/mil) output accuracy.

Field Installation Guidelines

• Mechanical Thread Engagement: Clean the target tapped housing to eliminate metal shards and thread binding. Hand-thread the 3/8-24 UNF probe body into the mounting port until proper clearance is achieved, then secure the probe assembly position by tightening the external locknut to a specification of 4.5 N-m (40 in-lb).

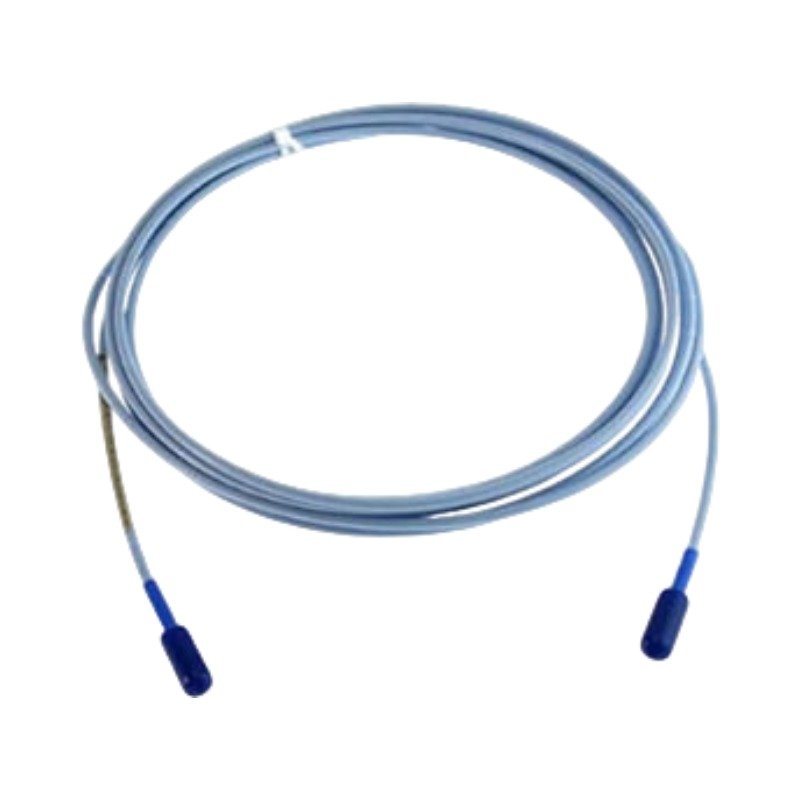

• ClickLoc Connector Coupling: Ensure the gold-plated miniature coaxial connection surfaces remain free of oil film and dirt before mating. Push the probe lead and extension cable connectors together and turn finger-tight until the internal mechanism produces a distinct tactile click; do not use pliers or specialized wrenches.
• Cable Protection Enclosure: Wrap the final coaxial connector junction using a dedicated silicone connector protector sleeve to shield the connection from ambient moisture infiltration. Route the 1.0 meter triaxial lead wire inside flexible or rigid conduit paths to prevent structural pinching from casing deflections during thermal machine expansion.
