Description

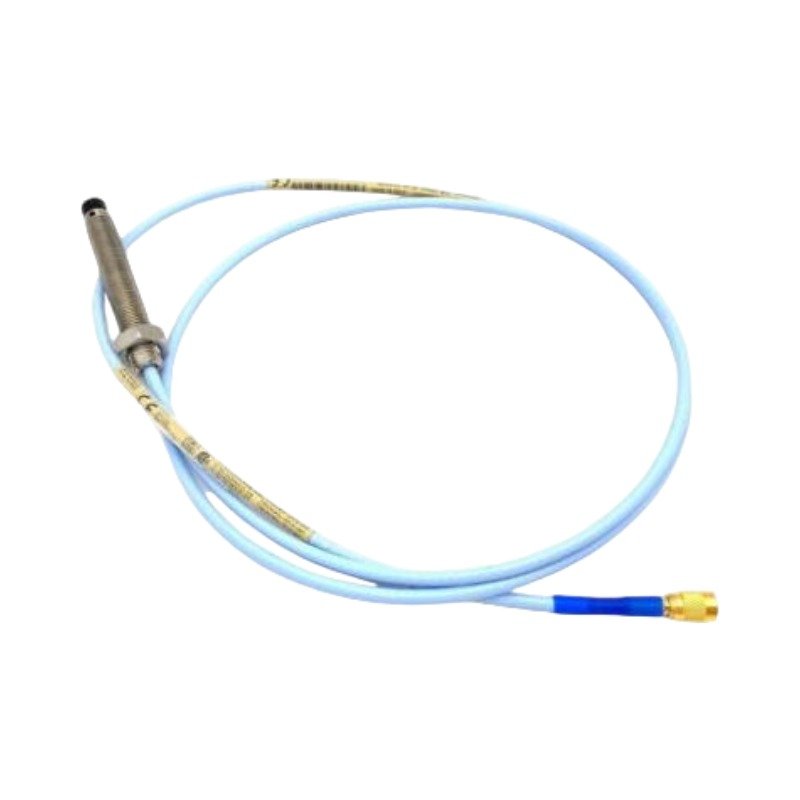

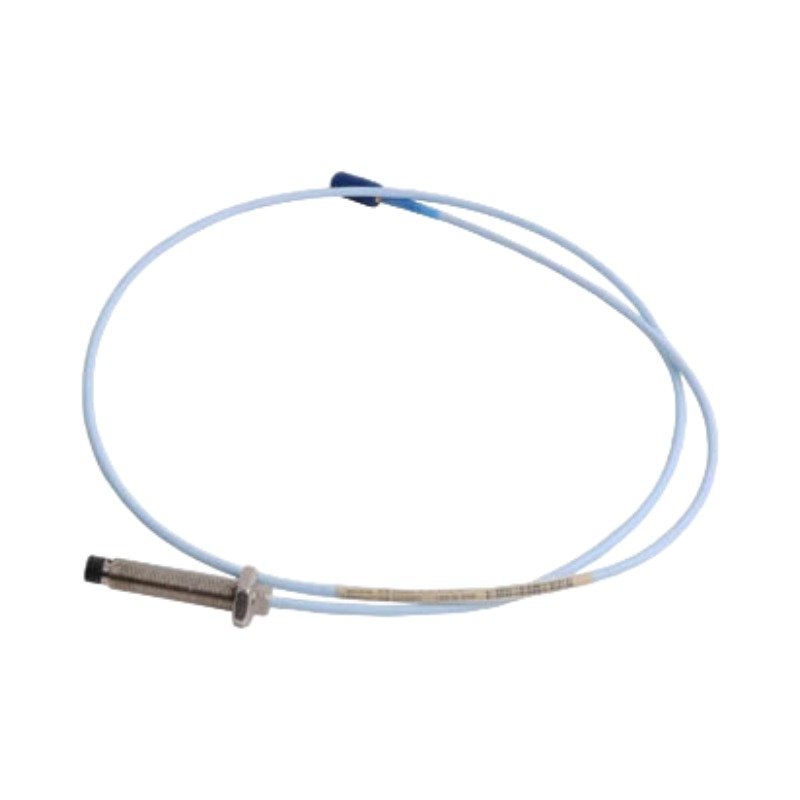

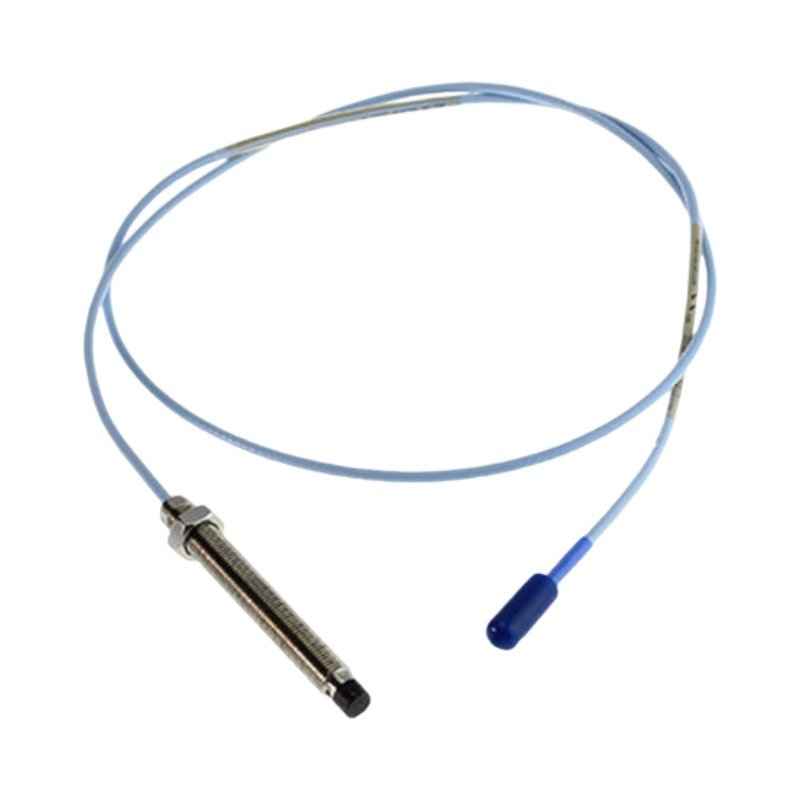

Configured for non-contacting vibration and displacement measurement in rotating machinery platforms, the Bently Nevada 330130-00-05-10-02-CN (330130 Proximity Sensor) provides direct physical/electrical execution. The hardware translates the physical gap distance between the 8 mm probe tip and a conductive target area into a proportional analog voltage signal. It operates continuously within high-speed fluid-film bearing housings to measure dynamic shaft movement without physical contact or mechanical delay.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The physical assembly relies on precise eddy-current probe scaling to ensure linear performance across its 80 mil (2.0 mm) operational range. During machinery alignment, engineers utilize gap voltage validation to adjust the probe position until the signal output hits the designated -10 VDC targets, which marks the exact midpoint of the linear calibration scale. The coaxial cable assembly incorporates strict internal shielding geometries for cross-talk suppression when multiple proximity lines run through common junction boxes. This shielding design guarantees that high-frequency electromagnetic noise does not interfere with the raw orbital data required to monitor shaft centerline position and rotor dynamics.

Frequently Asked Questions

Q: What specific hardware parameters do the option codes 00-05-10-02 signify for this probe?

A: The codes define the physical dimensions and certifications: 00 specifies an unthreaded length of 0.0 inches; 05 defines a 0.5-inch case length; 10 sets the total length at 1.0 meter; 02 chooses the miniature coaxial click-loc connector option.

Q: How must the probe cable connection be protected from fluid contamination in field environments?

A: The connection between the probe lead and the extension cable must be insulated using silicone tape or fluid-resistant connector protectors to prevent oil, water, or chemical ingress from shorting out the coaxial signal.

Q: Can this sensor operate reliably if the target material changes from standard AISI 4140 steel?

A: The standard eddy-current probe scaling is factory-calibrated for AISI 4140 steel target material. If used with different target alloys, the output voltage slope changes, which requires custom recalibration of the external Proximitor Sensor.

Field Installation Guidelines

1. Inspect the 8 mm probe tip prior to installation to confirm the composite material is free of cracks, scoring, or embedded metallic debris.
2. Thread the probe into the mounting bracket by hand to prevent cross-threading, ensuring the 3/8-24 UNF threads engage smoothly.
3. Advance the probe toward the target surface while monitoring the gap voltage with a digital multimeter connected to the Proximitor terminal block.
4. Stop rotation when the gap voltage reaches the calibrated -10 VDC target, indicating the sensor is sitting in the center of its linear range.
5. Tighten the locknuts to a torque specification of 11.2 Nm to prevent the assembly from backing out under high industrial vibration conditions.
6. Route the flexible coaxial cable through rigid or flexible metal conduit, keeping minimum bend radii above 25.4 mm to prevent internal core damage.
