Description

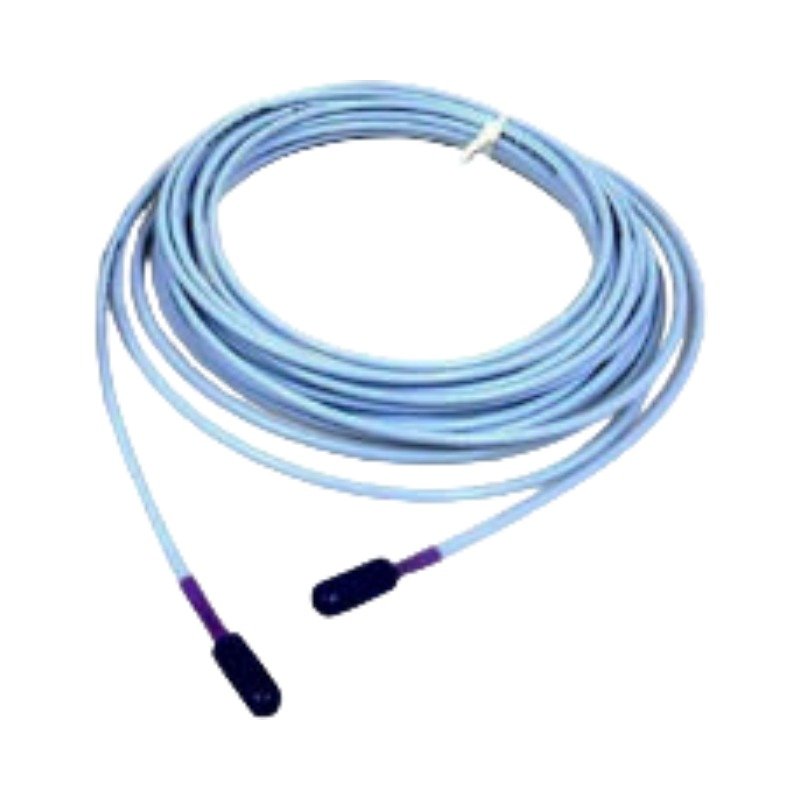

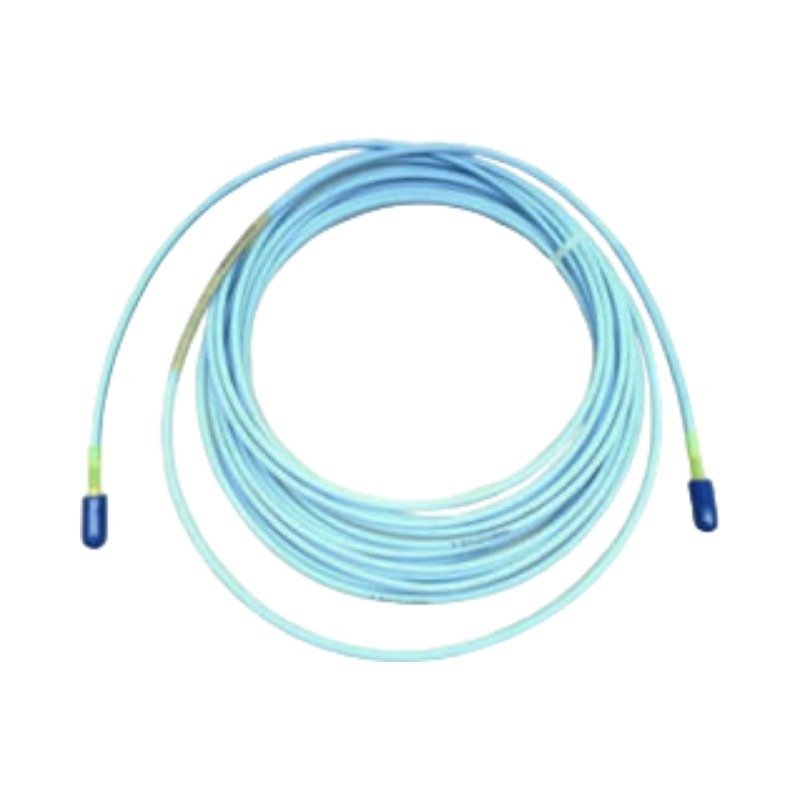

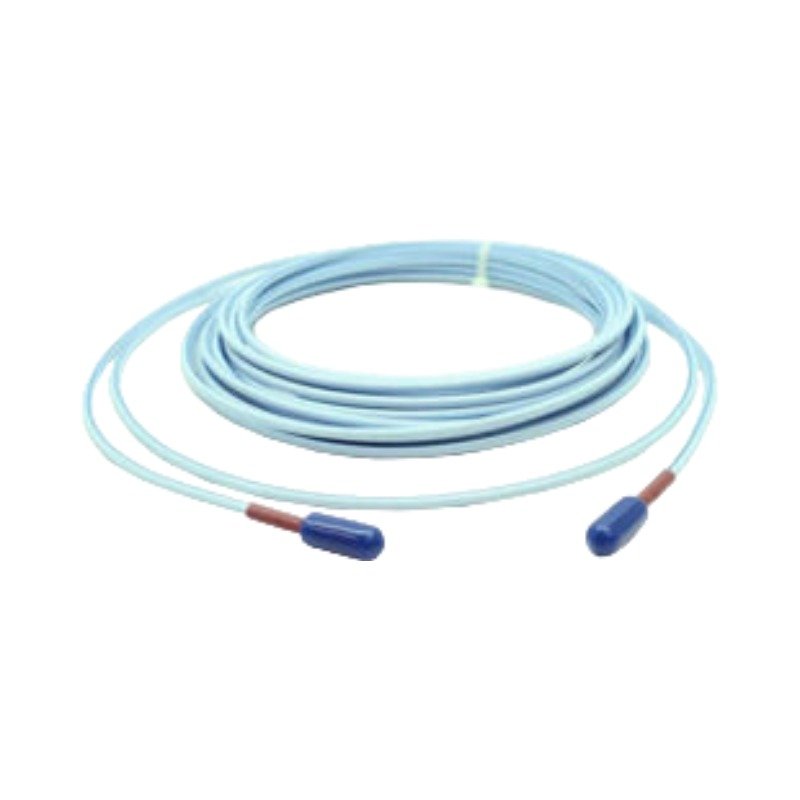

The Bently Nevada 330130-005-00-00, also cataloged as the 330130 Proximity Transducer, serves as the primary 330130 Proximity Probe utilized to execute non-contacting shaft displacement and dynamic vibration measurements across 3300 XL platform environments. The sensor transforms the physical distance between the probe tip and the rotating shaft surface into a continuous analog electrical signal. This hardware operates within critical machinery bearing housings to capture high-frequency fluid-film bearing changes without mechanical damping.

Hardware Specifications

Transducer Calibration Matrices and Rotor Dynamics Performance

The device relies on precise eddy-current probe scaling to maintain a linear sensitivity profile of 200 mV/mil (7.87 V/mm) across its standard operating range. Field calibration procedures use gap voltage validation to lock the initial mechanical installation point to the standard -10 VDC targets, positioning the sensor in the exact middle of its electrical linear range. The miniature coaxial termination features high-isolation shielding for active cross-talk suppression when multiple transducer cables share a single routing conduit. This layout maintains signal fidelity under extreme electrical noise conditions, providing clean orbit profiles and accurate tracking of high-speed rotor dynamics.

Frequently Asked Questions

Q: What physical configurations do the option codes -005-00-00 specify for this 330130 probe?

A: The configuration codes indicate a 0.5-inch threaded case length (005), 0.0 inches of unthreaded body length (00), a total physical cable length of 0.5 meters (00), and no coaxial connector protector installed (00).

Q: Can this 0.5-meter probe be wired directly to a remote monitoring system without an extension cable?

A: No, this hardware requires a matched 3300 XL extension cable to achieve a total system length of either 5.0 meters or 9.0 meters. Operating the probe without the designated extension cable causes severe impedance mismatches and breaks the calibration scaling.

Q: What occurs if the 8 mm probe tip encounters conductive carbon buildup or oil pooling inside the machine housing?

A: Non-conductive oil pooling does not shift the calibration metrics due to the dielectric nature of industrial oil. However, conductive carbon or metallic debris accumulation directly alters the eddy-current path, which destabilizes the -10 VDC gap voltage calibration.

Field Installation Guidelines

1. Inspect the 8 mm composite probe tip to ensure it is clear of physical scratches, cracks, or metallic particulate contamination before insertion.
2. Thread the probe housing into the mounting port by hand, confirming the 3/8-24 UNF threads move freely without binding.
3. Hook up a digital multimeter to the external Proximitor terminals to monitor the live analog output while adjusting the physical probe depth.
4. Advance the probe toward the target surface until the multimeter registers the correct -10 VDC targets, verifying proper mechanical clearance.
5. Tighten the locknut to a final torque value of 11.2 Nm to secure the position against continuous high-vibration operational forces.
6. Route the 0.5-meter coaxial lead wire inside rigid metal conduit, maintaining a minimum bend radius of 25.4 mm to protect the inner core from fracture.
