Description

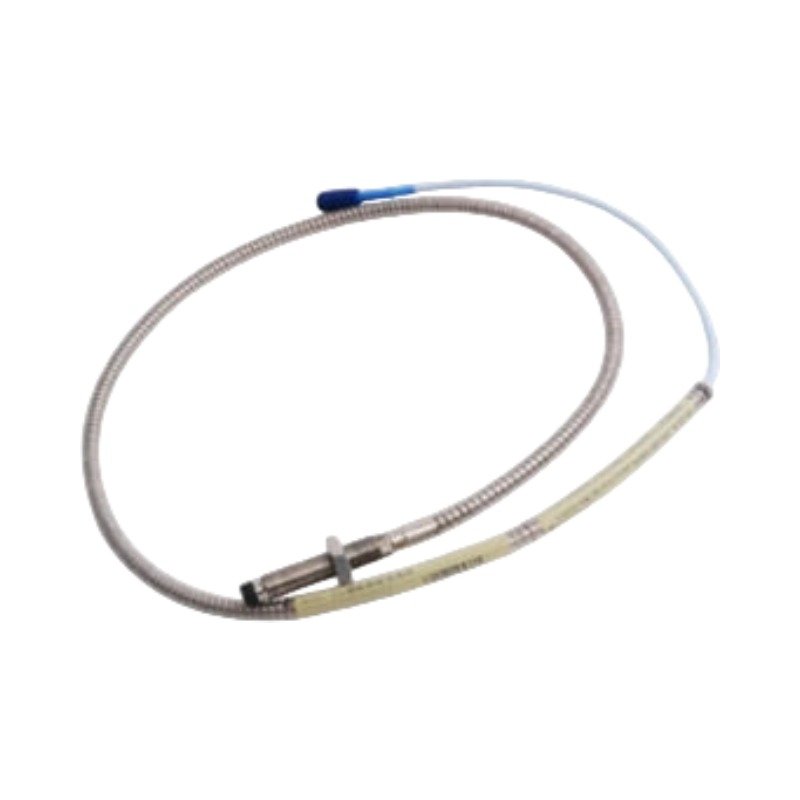

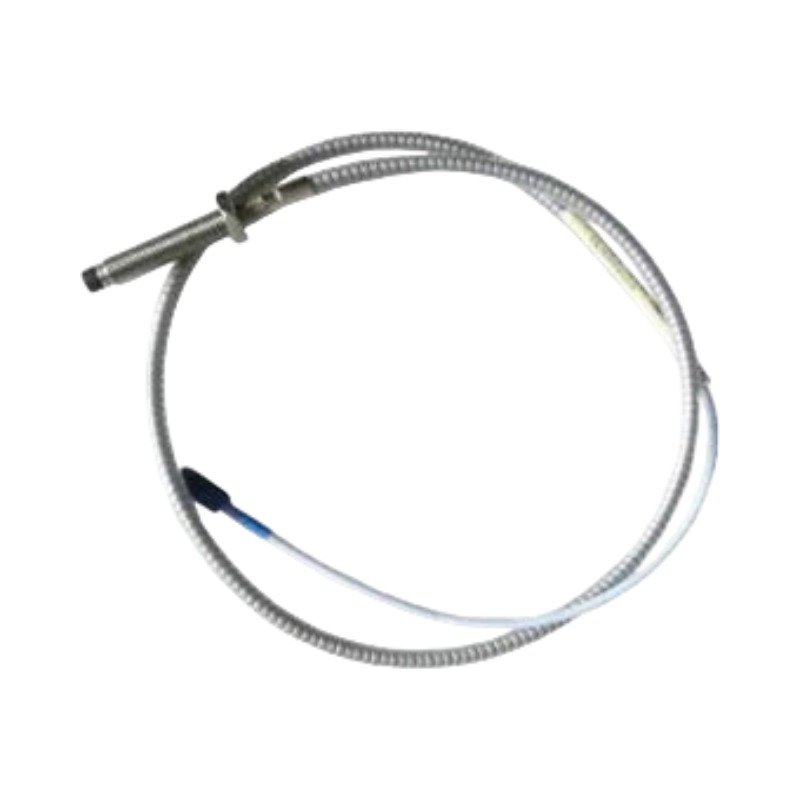

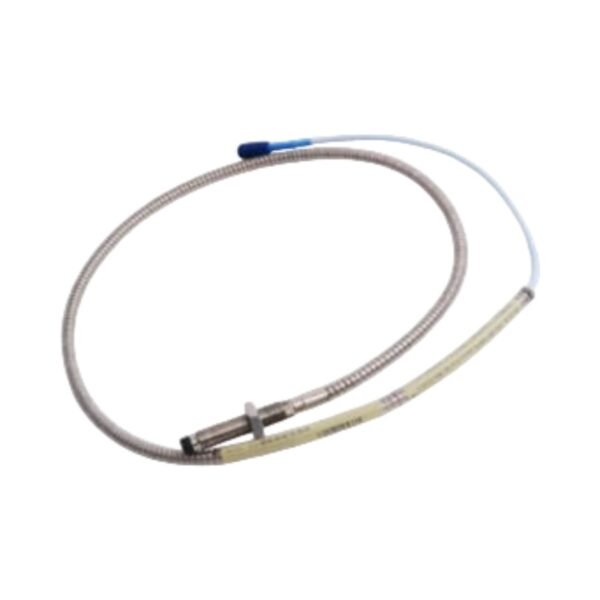

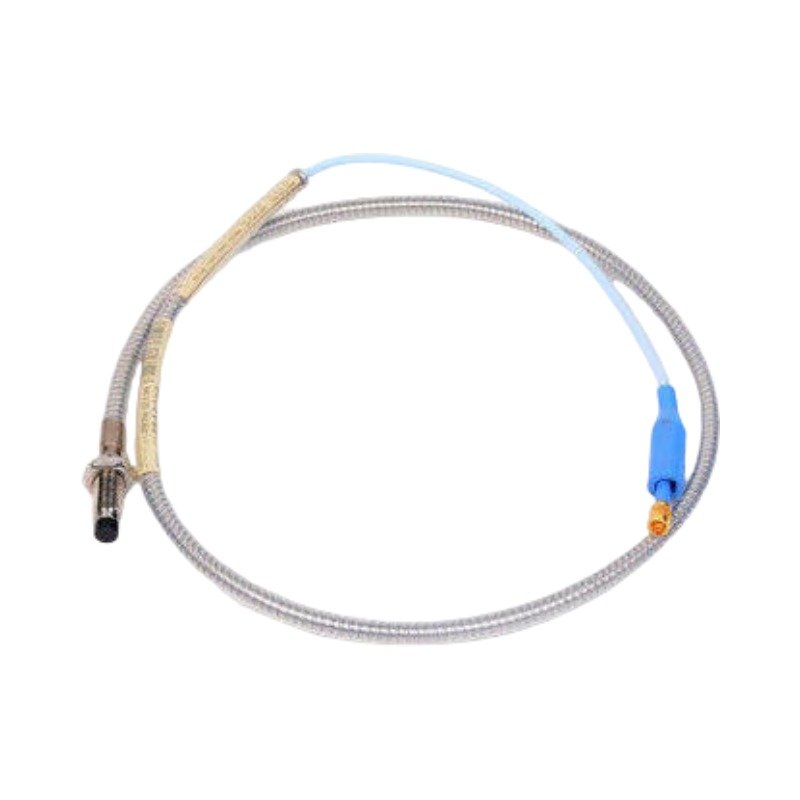

Configured for high-precision shaft displacement measurements in critical rotating machinery, the Bently Nevada 330104-10-20-10-02-CN (330104 Proximity Probe) provides direct physical/electrical execution. This metric-threaded eddy-current sensor converts mechanical movement into proportional voltage changes, feeding dynamic data to adjacent monitoring hardware. The assembly operates within industrial machine housings to observe parameters such as radial vibration, axial thrust position, and phase reference indicators.

Suffix Breakdown & Model Matrix

• 10: Unthreaded Length Option (10 mm unthreaded sleeve section)
• 20: Overall Case Length Option (200 mm total threaded case length, M10 x 1 thread pattern)
• 10: Total Length Option (1.0 meter / 3.3 feet integral probe cable length)
• 02: Connector and Cable Option (Miniature coaxial ClickLoc connector, standard triaxial cable)
• CN: Agency Approval Option (Country-specific hazardous area approvals for China market deployment)

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 330104-10-20-10-02-CN serves a vital role within structural Turbomachinery Instrumentation (TSI) deployments by delivering continuous micro-displacement metrics from fluid-film bearings. The underlying eddy-current probe scaling maps the dynamic gap variation onto a -1 to -17 VDC linear sweep window. The internal FEP insulated triaxial cable enforces internal cross-talk suppression paths, blocking electrostatic fields generated by surrounding machine infrastructure. Technicians perform initial installation routines by evaluating the gap voltage validation parameters; setting the static distance to match standard -10 VDC targets fixes the probe tip exactly at the center of the calibrated linear range. This positioning integrity enables precise logging of rotor dynamics profiles and guards against catastrophic shaft-to-casing contact.

Frequently Asked Questions

Q: Can the 330104-10-20-10-02-CN probe tip directly tolerate continuous immersion in synthetic lubrication oils?

A: Yes. The polyphenylene sulfide (PPS) tip material and stainless steel case handle direct exposure to industrial lubricants and process contaminants. The baseline design features an internal tip-to-case seal structure to block fluid migration through the internal probe head assembly.

Q: Is a bench calibration required when swapping a damaged 330104 probe with a new unit?

A: No. Every 3300 XL 8 mm system component maintains strict factory interchangeability limits. Replacing a probe requires only setting the physical gap distance to return the channel to factory calibrated accuracy, removing the need to recalibrate or adjust the matching Proximitor sensor parameters.

Field Installation Guidelines

• Mechanical Thread Engagement: Clean the target tapped housing to eliminate metal shards and thread binding. Hand-thread the M10 x 1 probe body into the mounting port until proper clearance is achieved, then secure the probe assembly position by tightening the external locknut to a specification of 5.4 N-m (48 in-lb).
• ClickLoc Connector Coupling: Ensure the gold-plated miniature coaxial connection surfaces remain free of oil film and dirt before mating. Push the probe lead and extension cable connectors together and turn finger-tight until the internal mechanism produces a distinct tactile click; do not use pliers or specialized wrenches.
• Cable Protection Enclosure: Wrap the final coaxial connector junction using a dedicated silicone connector protector sleeve to shield the connection from ambient moisture infiltration. Route the 1.0 meter triaxial lead wire inside flexible or rigid conduit paths to prevent structural pinching from casing deflections during thermal machine expansion.
