Description

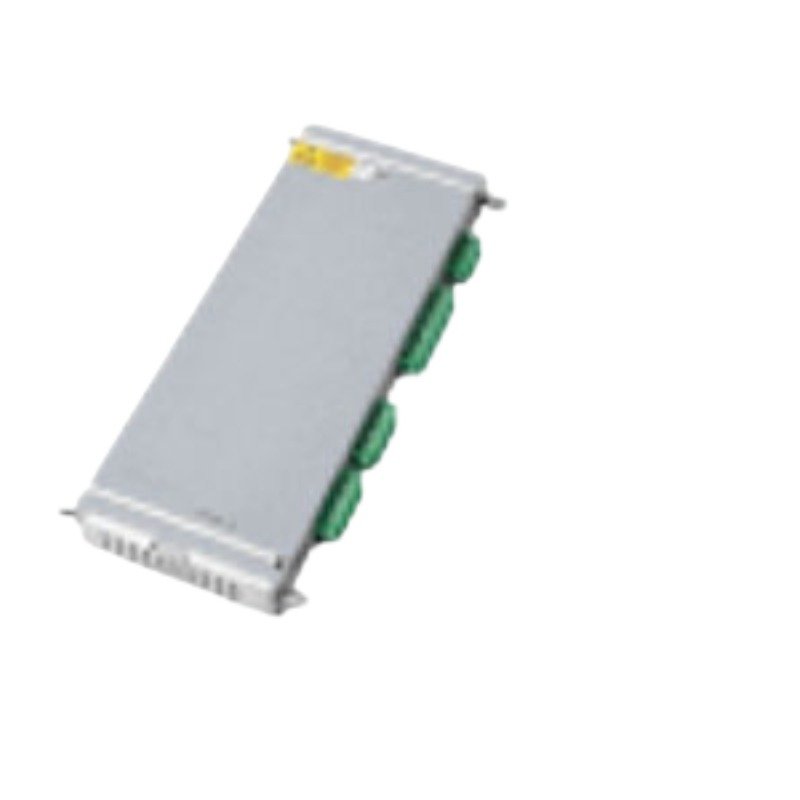

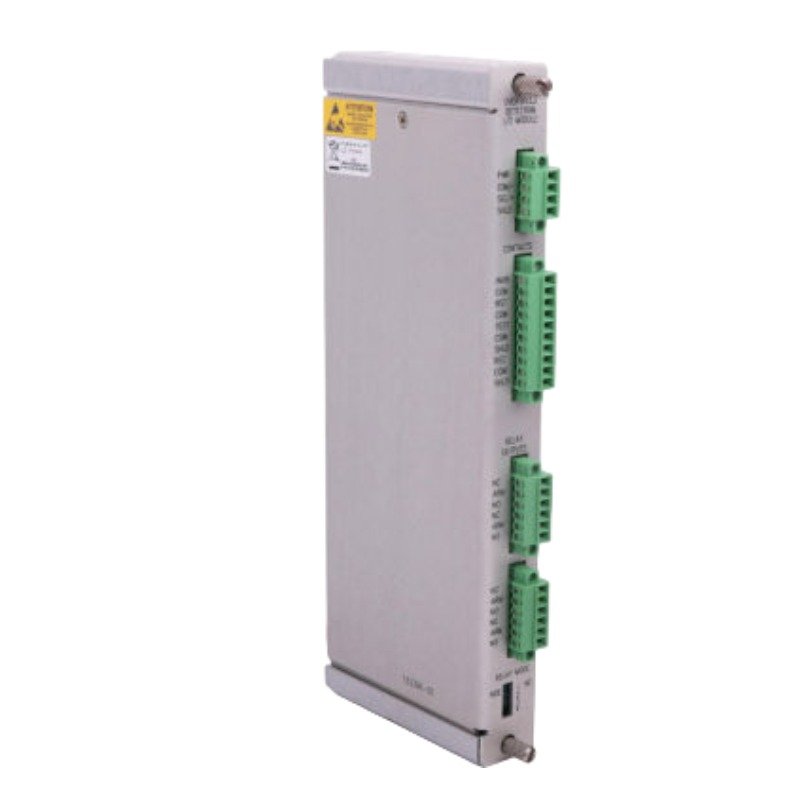

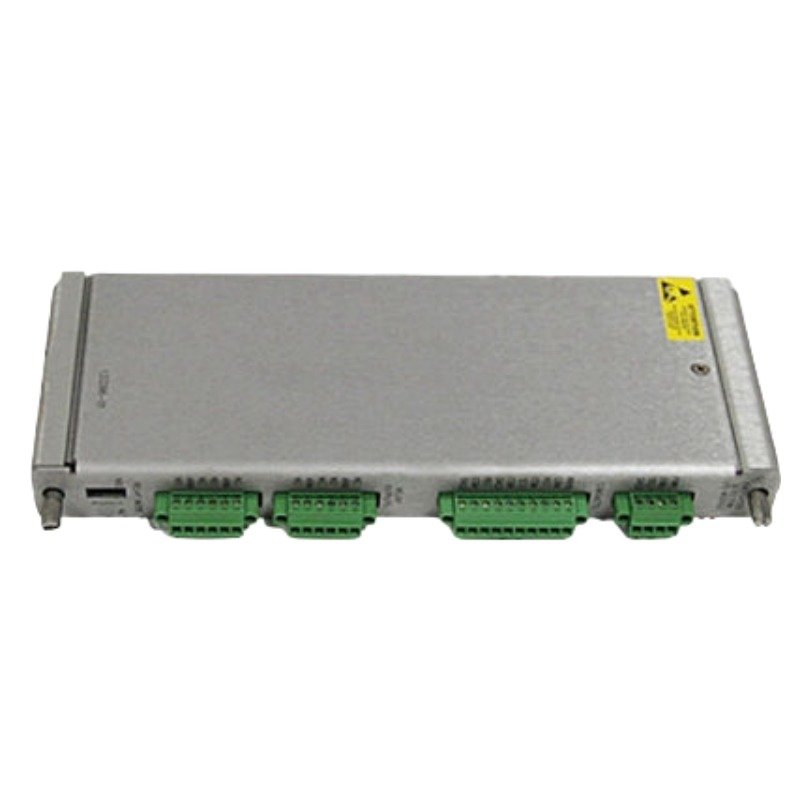

The Bently Nevada 3500/53 133396-01, also cataloged as the 3500/53 Overspeed Detection I/O Module, operates as a dedicated hardware component for electronic rotational speed tracking within 3500 Machinery Monitoring System networks. The unit continuously receives high-frequency speed pulse signals from external sensors. Consequently, the hardware transfers conditioned pulse streams through the backplane to drive trip execution loops when monitored shaft velocities breach programmed threshold boundaries.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The module runs dedicated internal hardware pipelines to optimize machinery diagnostics and Turbomachinery Protection System (TSI) deployments. Specifically, the internal circuitry automates gap voltage validation (-10 VDC targets) by maintaining isolated power supplies for connected proximity sensors and magnetic pickups. If the transmission path drops or the transducer suffers calibration drift, the diagnostic core reports a Not OK flag to suppress accidental emergency shutdowns. Furthermore, the specialized grounding plane provides cross-talk suppression along adjacent speed input lines to block inductive high-voltage switching transients. As a result, the hardware accurately tracks complex rotor dynamics up to 99,999 rpm to enable voting criteria execution like 2oo2 or 2oo3 safety actions.

Frequently Asked Questions

Q: Does the 133396-01 overspeed detection I/O module allow live replacement while the rack remains powered?

A: Yes. Technicians can execute hot-swap installation of this rear I/O component without interrupting the operational logic of adjacent monitor modules. However, disconnecting this card completely interrupts the input speed pulse signal to the front monitor for that specific channel.

Q: What specific sensor types can connect straight to the input terminals of this module?

A: The module directly terminates connections from Bently Nevada 3300 8 mm, 16 mm HTPS, 7200 series proximity probes, or passive magnetic pickups.

Field Installation Guidelines

• Chassis Grounding: Bond the 3500 rack structure directly to the local instrument clean earth grid. In addition, terminate external sensor shielding wires exclusively at the designated ground terminals on the I/O block to prevent ground loops from injecting noise into the speed readings.
• Backplane Alignment: Slide the front 3500/53 speed monitor into its front chassis terminal and align the 133396-01 I/O module into the corresponding rear position. Always verify vertical tracking of all connector pins before executing final seating force.
• Signal Cable Isolation: Route speed sensor field wiring through dedicated grounded steel conduits. Therefore, maintain a minimum physical distance of 30 cm from high-current AC lines to prevent magnetic coupling from corrupting the tachometer pulses.
