Description

Brief Product Description

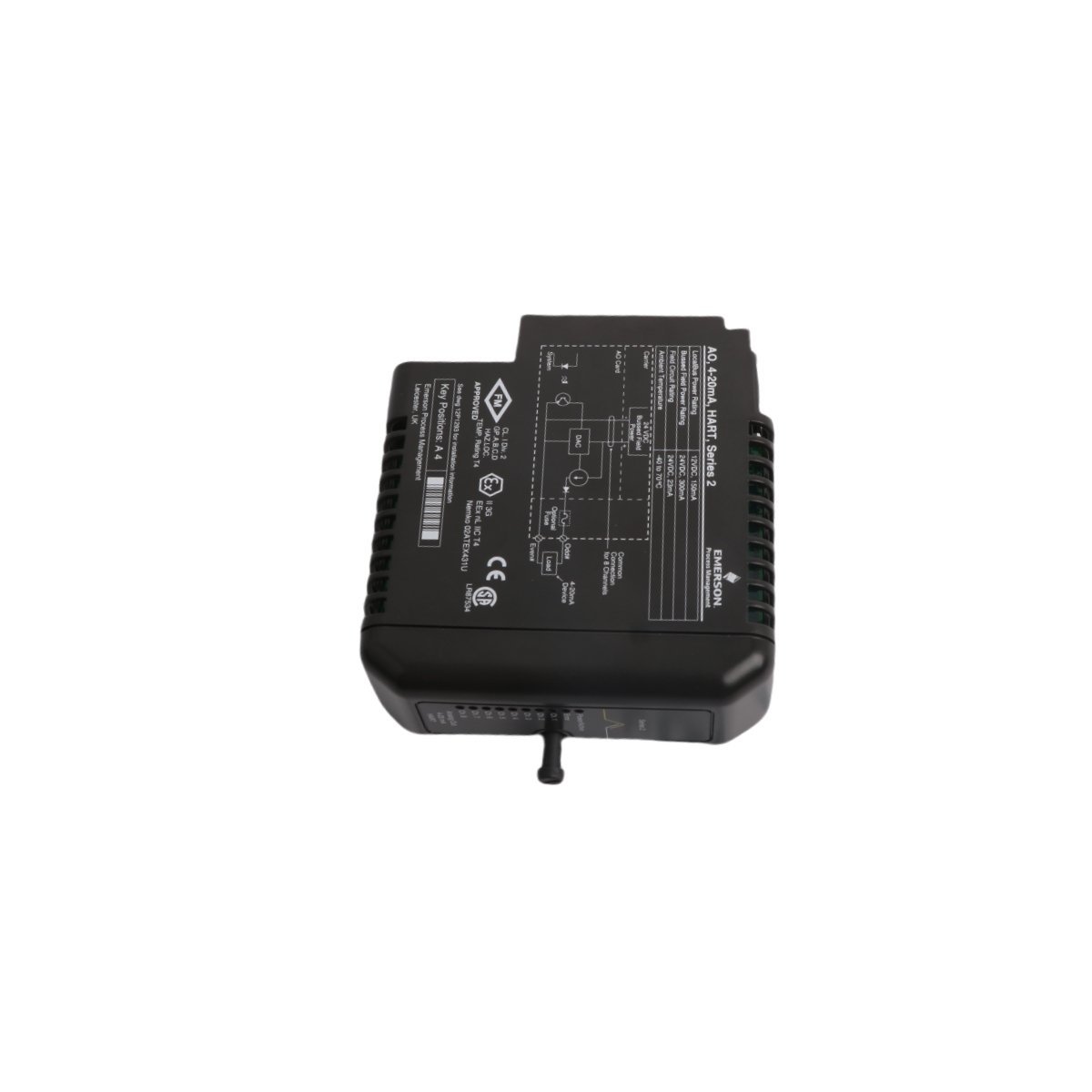

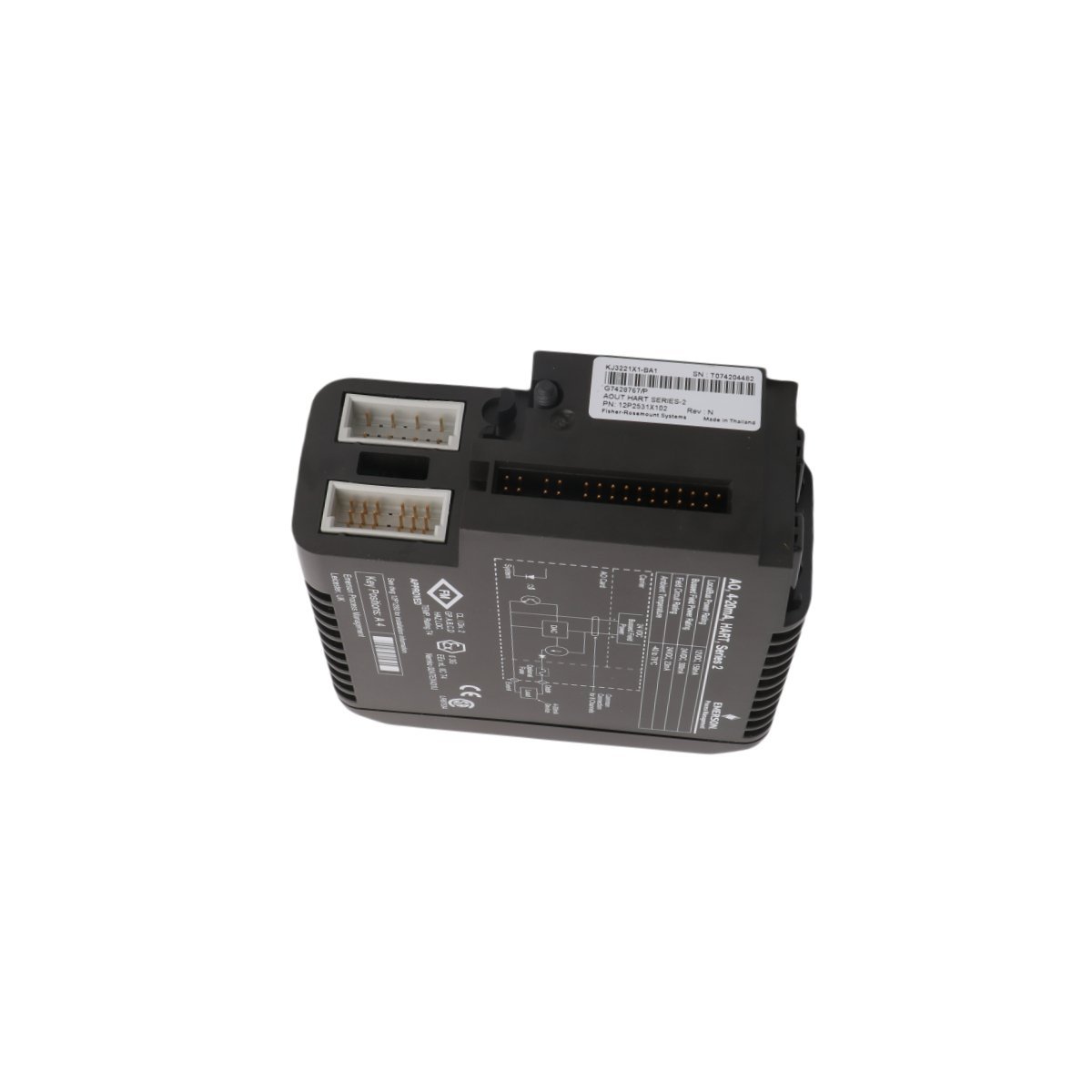

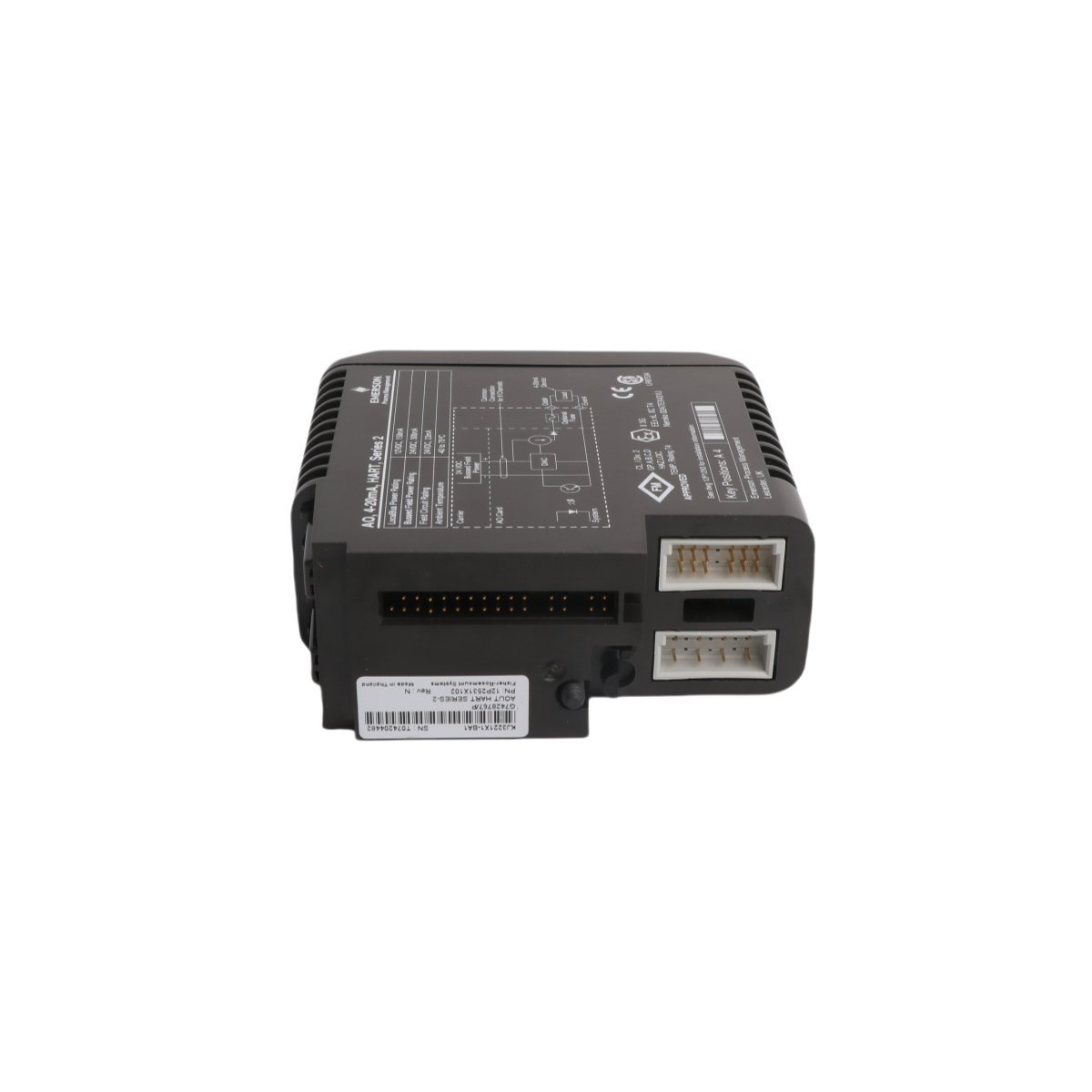

The Emerson KJ3221X1-BA1 is a Series 2 redundant analog output module engineered for the DeltaV™ M-series I/O subsystem. It manages eight channels of 4-20mA signals with integrated HART pass-through, providing essential control and diagnostic capabilities for high-availability industrial processes.

Product Description

High-Availability Process Control

The Emerson KJ3221X1-BA1, also identified by part number 12P2531X122, functions as a critical interface within the DeltaV™ Distributed Control System. This module provides eight independent channels of isolated analog outputs, specifically designed to drive final control elements like actuators and valves. Because the module supports fully redundant configurations, it ensures that your process remains active even during hardware maintenance or unforeseen component failure. This fault-tolerant architecture effectively eliminates single points of failure in the I/O layer, making it indispensable for mission-critical applications in refining and power generation.

Integrated Digital Intelligence via HART

Modern automation requires more than simple variable control; it demands deep device insight. The KJ3221X1-BA1 facilitates this by offering native HART (Highway Addressable Remote Transducer) protocol support across all output channels. This feature enables the control system to communicate digitally with smart field instruments while maintaining the primary 4-20mA analog signal. Consequently, operators can perform remote calibrations, monitor secondary variables, and access real-time device health diagnostics. By utilizing these digital capabilities, plants can shift toward predictive maintenance models and significantly reduce site-visit requirements for troubleshooting.

Durable Design and Modular Versatility

Emerson constructed the VE4003S2B2 to withstand the rigorous demands of industrial environments. As a Series 2 module, it incorporates improved circuitry for better thermal management and electrical isolation, protecting the system backplane from field-side electrical surges. The module’s compact form factor allows for high-density mounting, which optimizes cabinet space. Furthermore, the hot-swappable design permits technicians to replace units without disrupting the power or communication of adjacent modules on the I/O rail. This flexibility ensures that the DeltaV M-series subsystem remains a cost-effective and scalable solution for evolving automation needs.

Technical Specifications
