Description

Brief Product Description

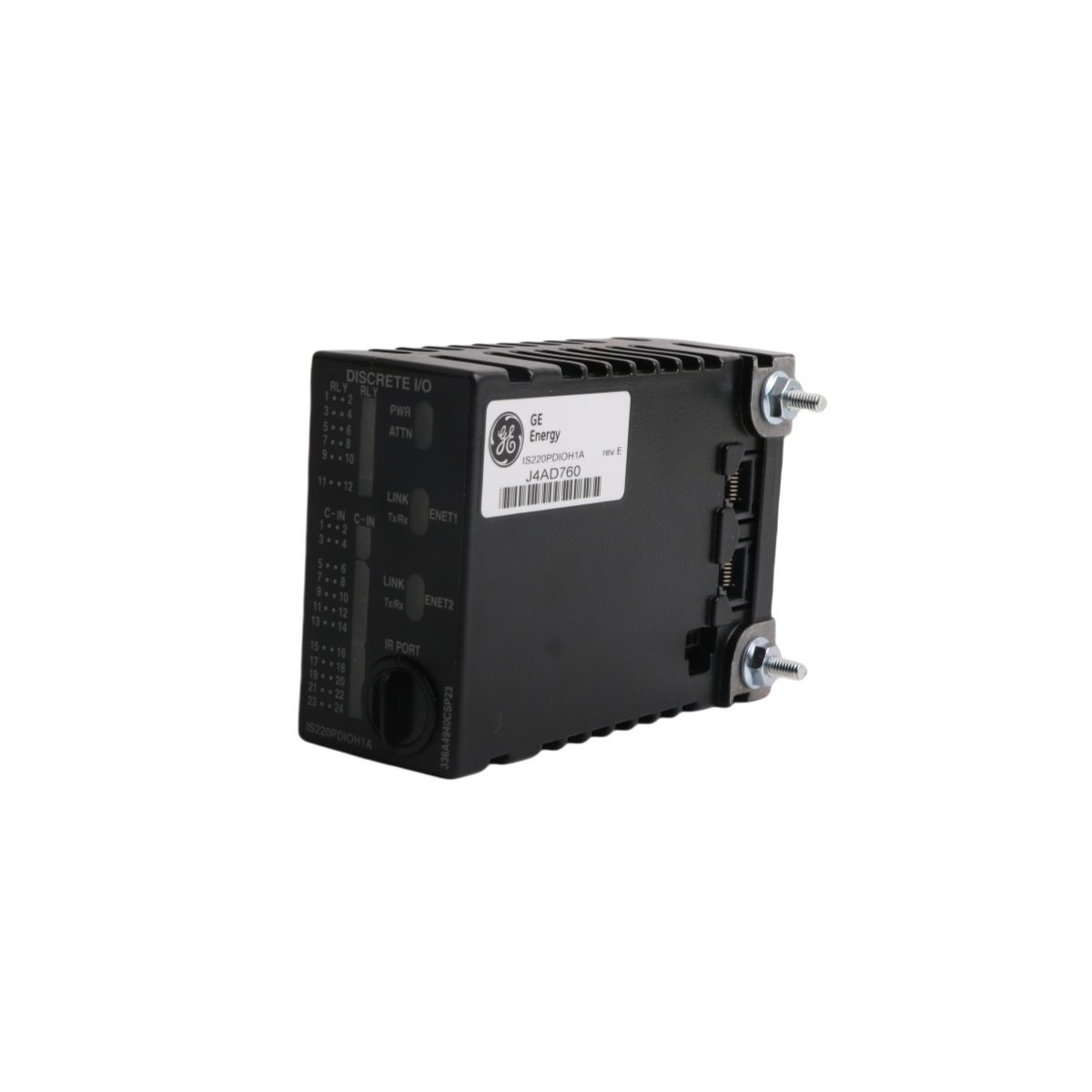

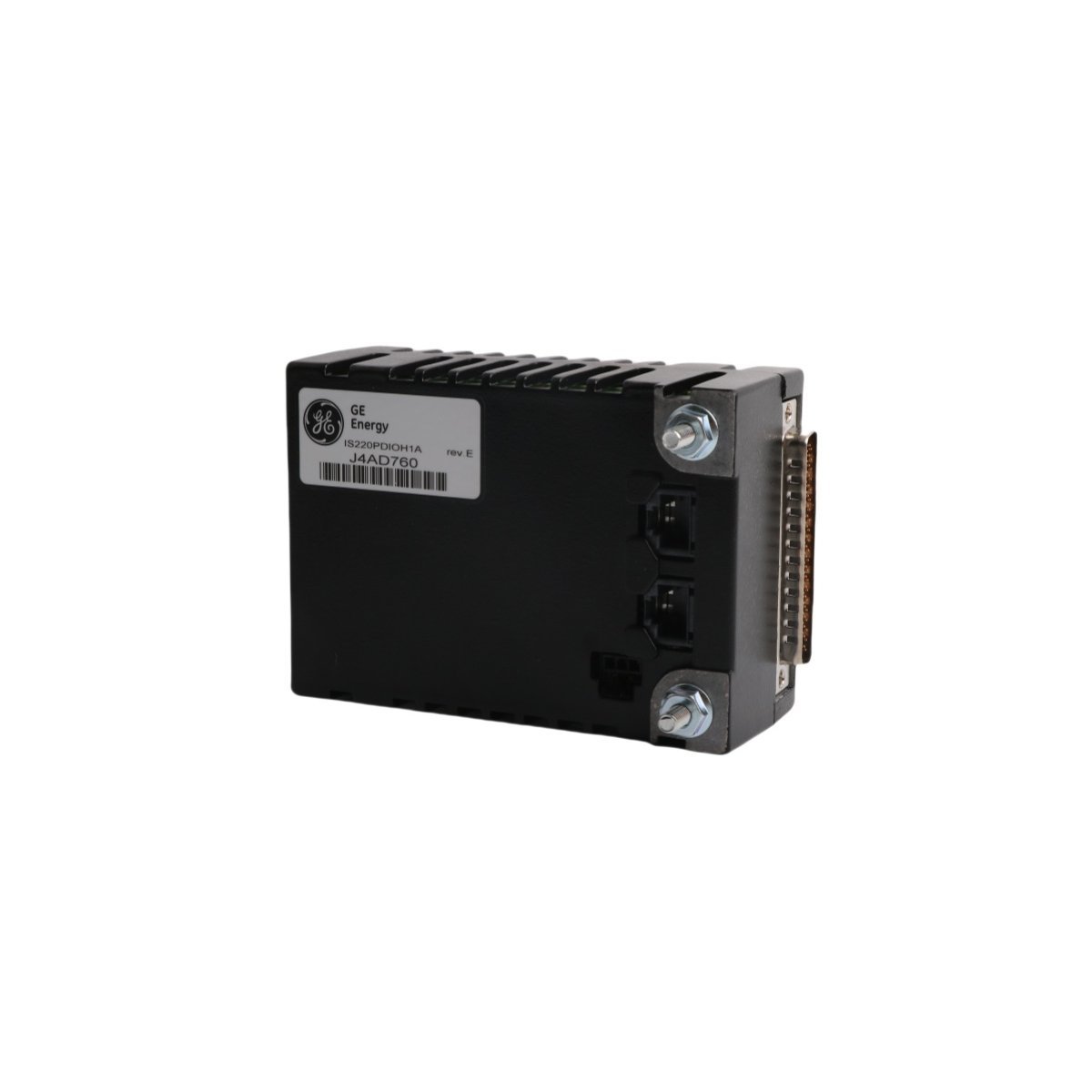

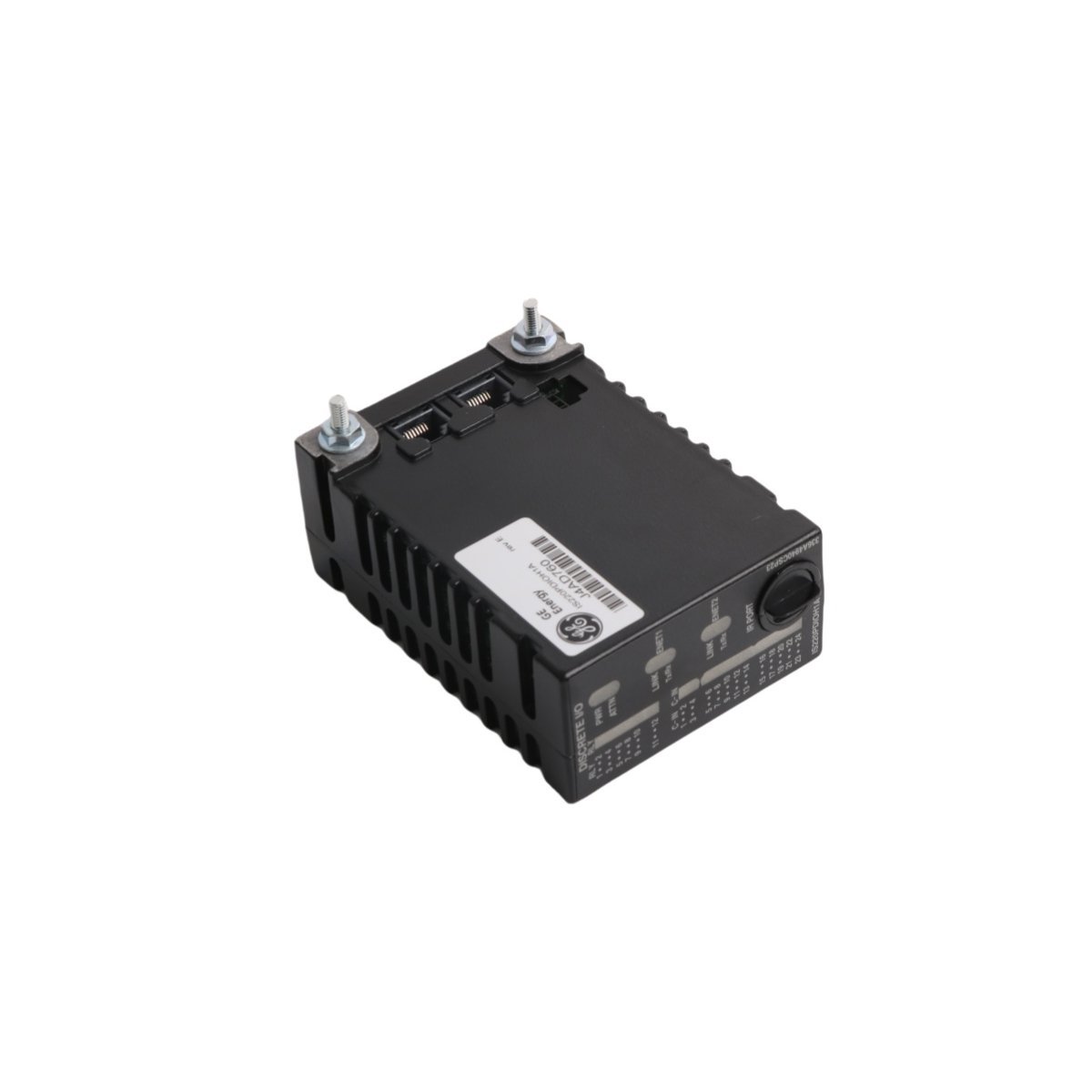

The General Electric IS220PDIOH1A is a specialized discrete input/output pack for the Mark VIe control platform, combining the capabilities of separate input and output modules into a single unit. It manages up to 24 contact inputs and 12 relay outputs with full Ethernet redundancy for high-reliability gas turbine and DCS applications.

Product Description

Integrated Discrete Signal Processing

The GE IS220PDIOH1A serves as a high-performance interface within the Mark VIe Distributed Control System (DCS). This module consolidates the functions of the PDIA and PDOA packs into one streamlined component, allowing for more efficient cabinet layouts. It handles up to 24 discrete contact inputs and 12 relay outputs, facilitating complex digital signal management. Because it supports both simplex and Triple Modular Redundant (TMR) configurations, engineers can deploy the IS220PDIOH1A in critical safety loops where fault tolerance is mandatory. The module also monitors board-specific feedback signals to ensure that field commands execute precisely as intended.

Redundant Networking and Architecture

Reliability remains a core feature of the IS220PDIOH1A architecture. The module utilizes dual RJ45 Ethernet ports to connect with IONet, supporting auto-negotiation for 10/100 MB/s full or half-duplex modes. This dual-network capability ensures that communication remains active even if one network path fails. Internally, the pack consists of a shared processor board and a specialized acquisition board. A standard DC-62 connector links the module to the terminal board, while a three-pin power connector supplies the necessary voltage. Furthermore, an onboard infrared port enables local serial communication for advanced diagnostic sessions without disturbing the primary network.

Ruggedized Design for Industrial Environments

General Electric engineered the IS220PDIOH1A to withstand the demanding conditions typical of power generation and gas turbine environments. The module incorporates robust RFI/EMI protection and opto-isolated inputs to prevent electrical noise from compromising signal integrity. Additionally, a soft-start feature protects the internal circuitry during power-up sequences, extending the hardware’s operational lifespan. Visual diagnostics are provided via integrated LEDs, which offer real-time status updates on power, communication, and individual I/O health. This combination of intelligent diagnostics and rugged hardware makes the IS220PDIOH1A a dependable choice for managing critical digital automation tasks.
