Description

Brief Product Description

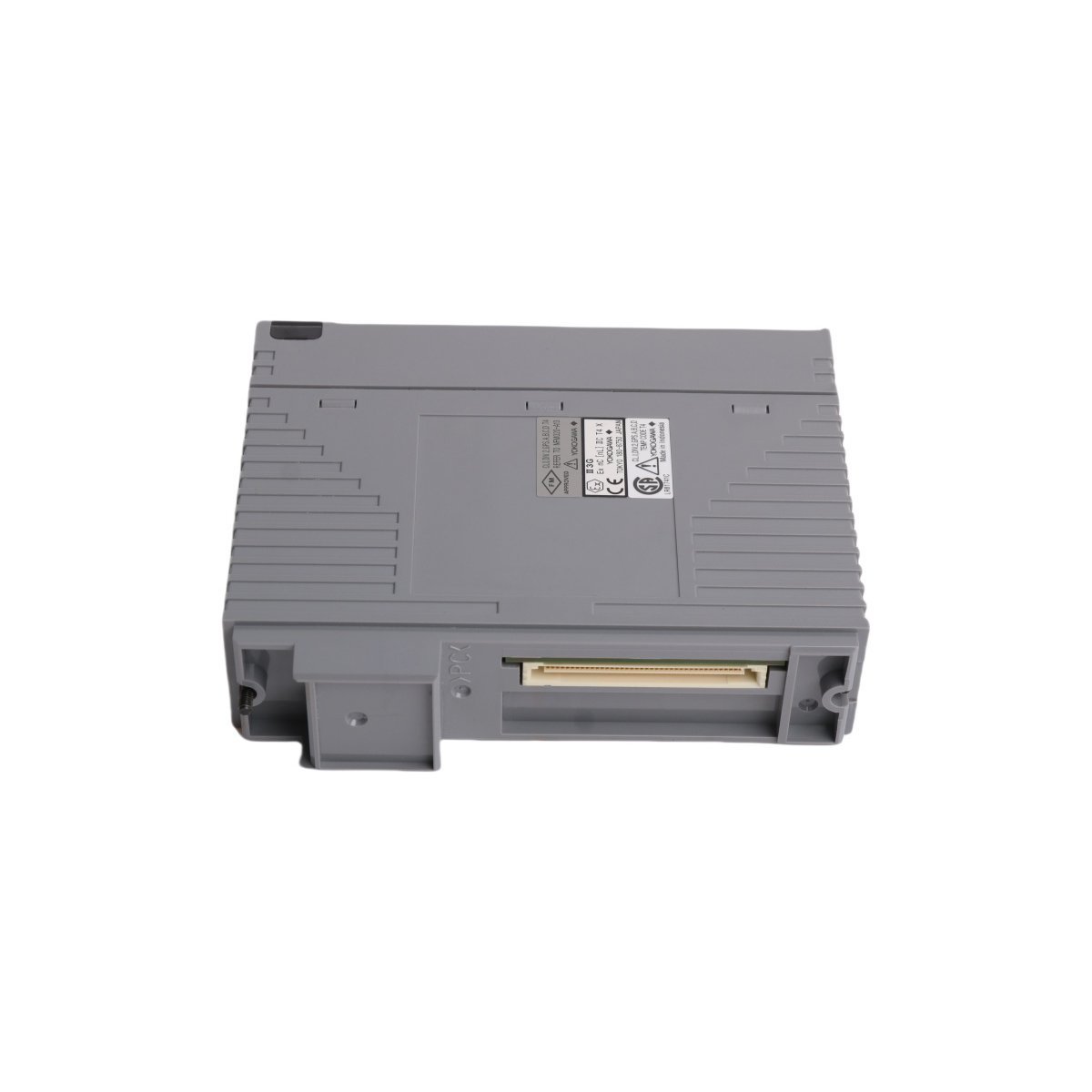

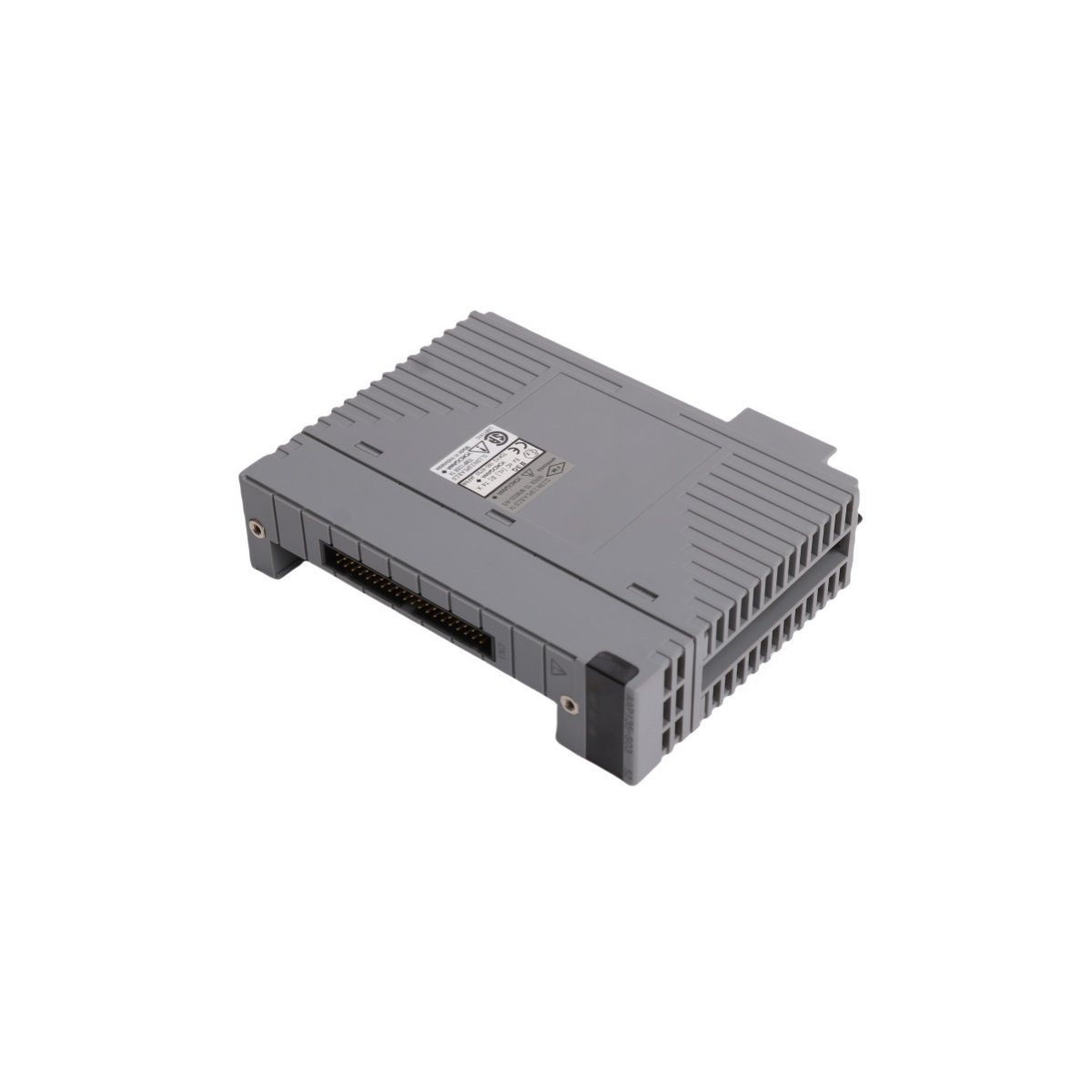

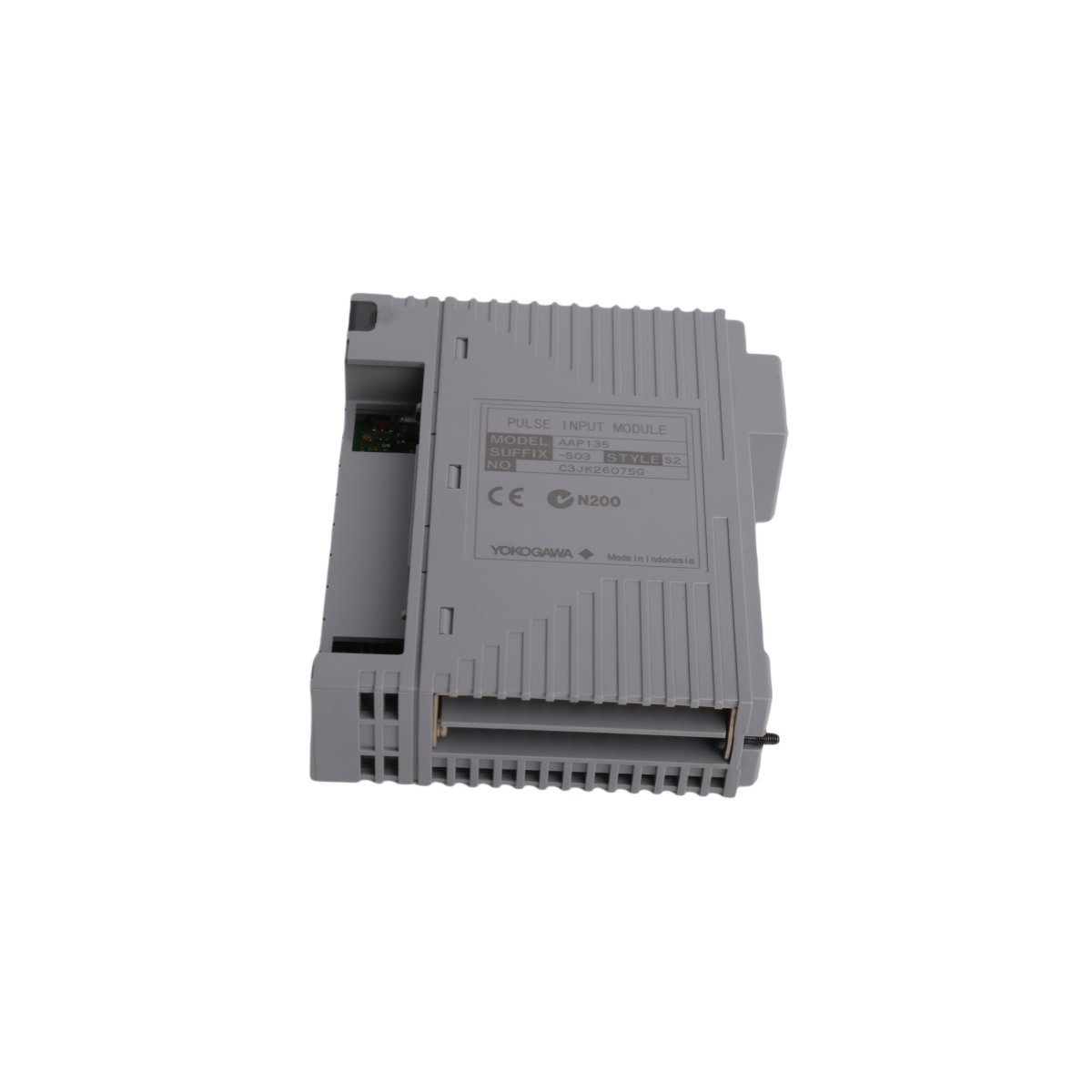

The Yokogawa AAP135-S50 is a high-performance pulse input module designed for Centum VP systems to accurately measure frequency and count pulses from field instruments. It provides robust signal isolation and real-time data integration for precise flow and speed monitoring in industrial processes.¹

High-Precision Pulse Signal Processing

The Yokogawa AAP135-S50 acts as a specialized interface for capturing high-speed pulse signals from devices such as flowmeters, tachometers, and motor drives.² This module translates frequency and pulse count data into actionable digital information for the Distributed Control System (DCS). By utilizing advanced internal timing circuitry, the AAP135-S50 maintains high measurement accuracy across its input range. This precision allows plant operators to monitor critical metrics like totalized flow and rotational speed with absolute confidence, ensuring optimal process efficiency.³

Seamless DCS Integration and Data Mapping

Yokogawa simplifies complex data management by mapping pulse variables directly into the Field Control Station (FCS) I/O image area. The system treats pulse counts and frequency data as standard process variables, which enables engineers to use them within conventional function blocks without custom programming. Furthermore, the module supports sophisticated filtering techniques to eliminate signal chatter and noise interference. Consequently, the control system receives clean, reliable data even when monitoring instruments located at significant distances from the control cabinet.

Industrial Reliability and Safety Architecture

Designed for mission-critical applications, the AAP135-S50 incorporates a rugged hardware design that excels in harsh industrial climates.⁴ The module features complete electrical isolation between field wiring and system logic to prevent ground loops and protect sensitive DCS components from voltage transients.⁵ In addition to its robust protection, the unit supports hot-swapping, which permits maintenance personnel to replace modules without powering down the system. For plants requiring enhanced safety, this module provides the stability and diagnostic capabilities necessary for integration into SIL-rated environments and high-availability architectures.⁶

Key Technical Characteristics

• Multi-Channel Support: Offers 8 isolated channels for high-density pulse signal acquisition.⁷
• Versatile Input Compatibility: Accepts various pulse types, including voltage pulses and dry contact signals.⁸
• Real-Time Frequency Measurement: Provides instantaneous frequency data alongside cumulative pulse counts.
• Galvanic Isolation: Ensures superior noise immunity and hardware protection across all channels.⁹
• Hot-Swappable Design: Facilitates rapid module replacement without process interruption.¹⁰
• Wide Temperature Tolerance: Operates reliably in ambient temperatures ranging from -20 to 60°C.
