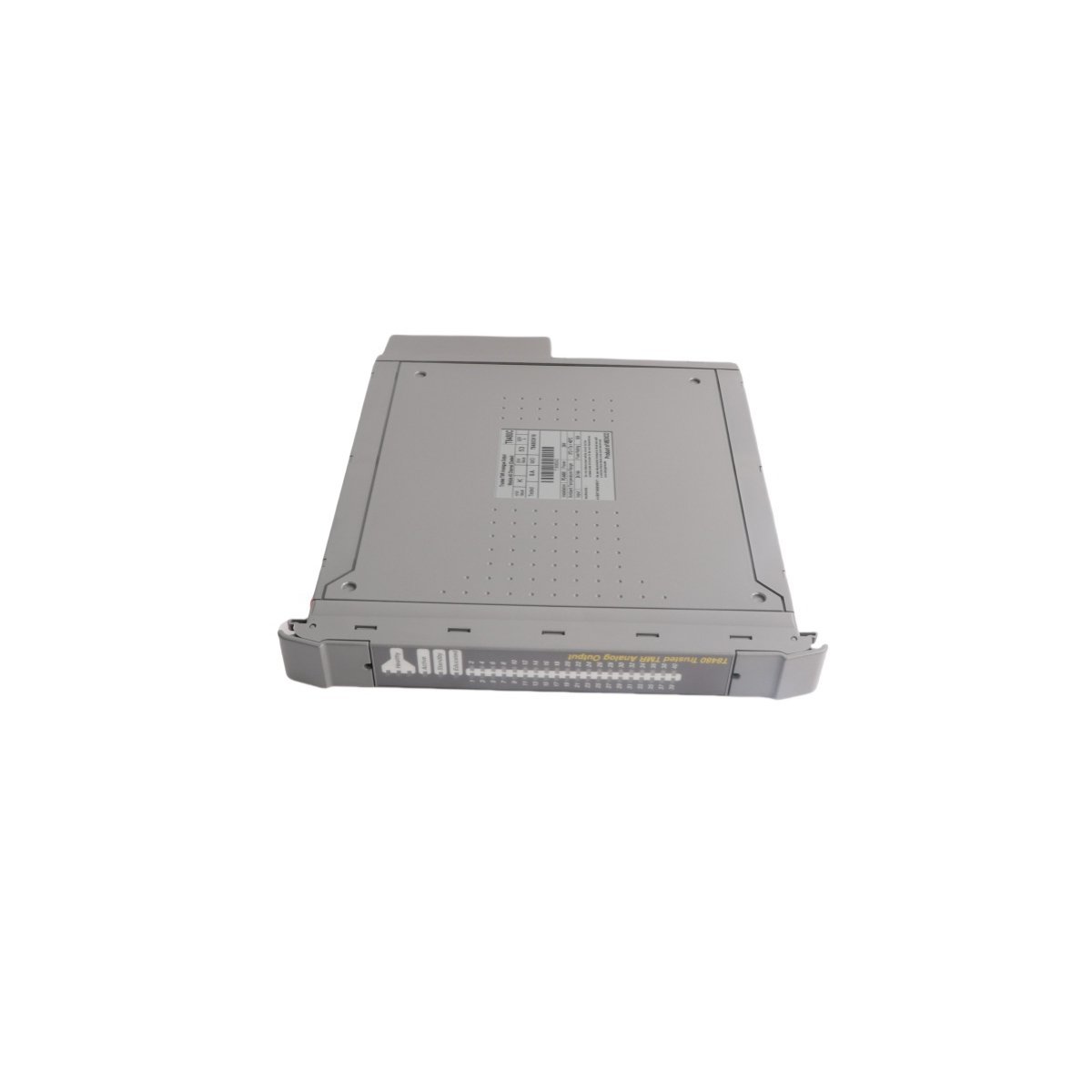

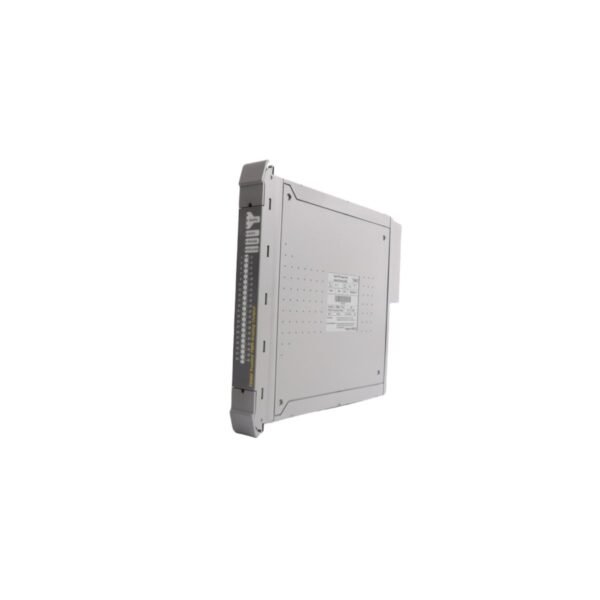

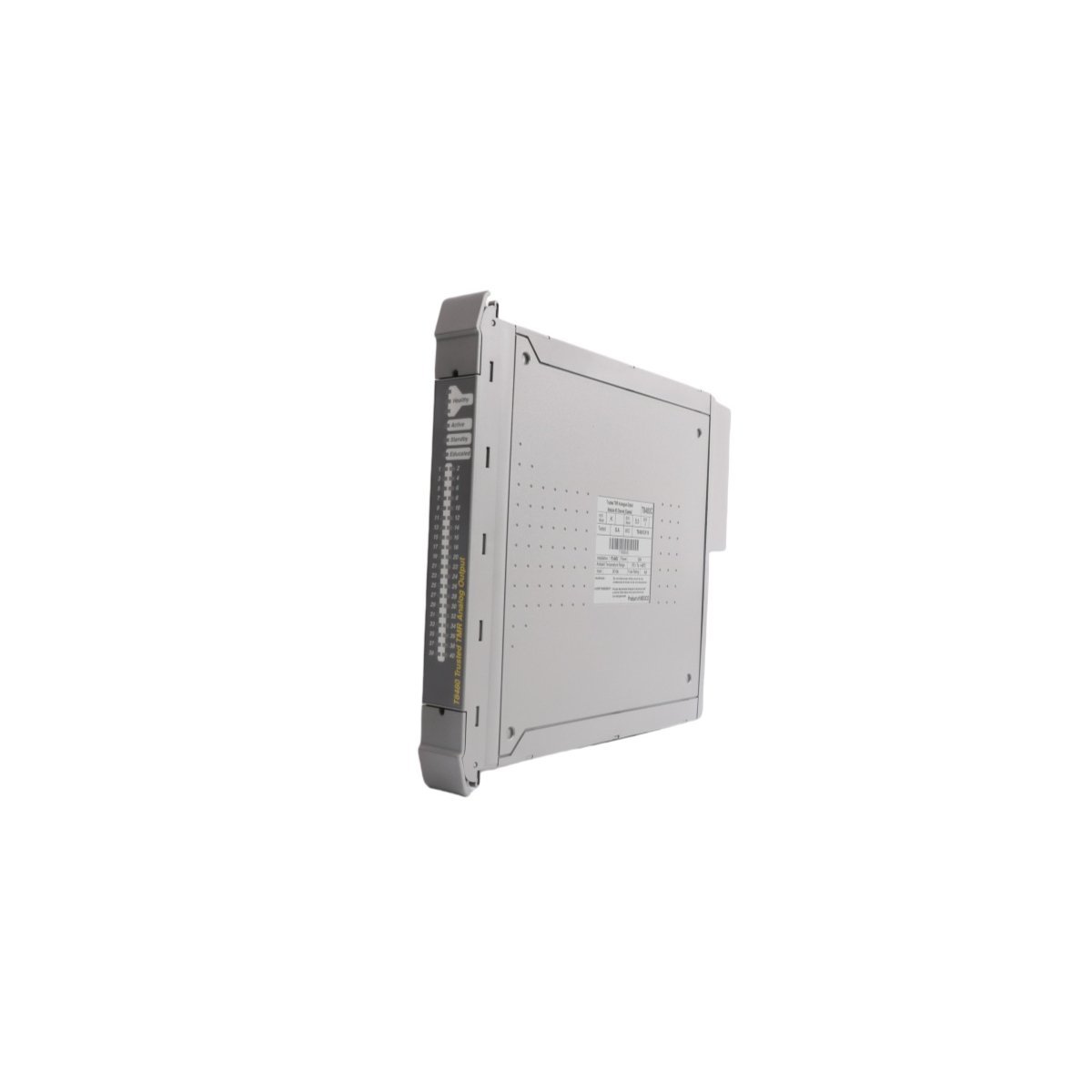

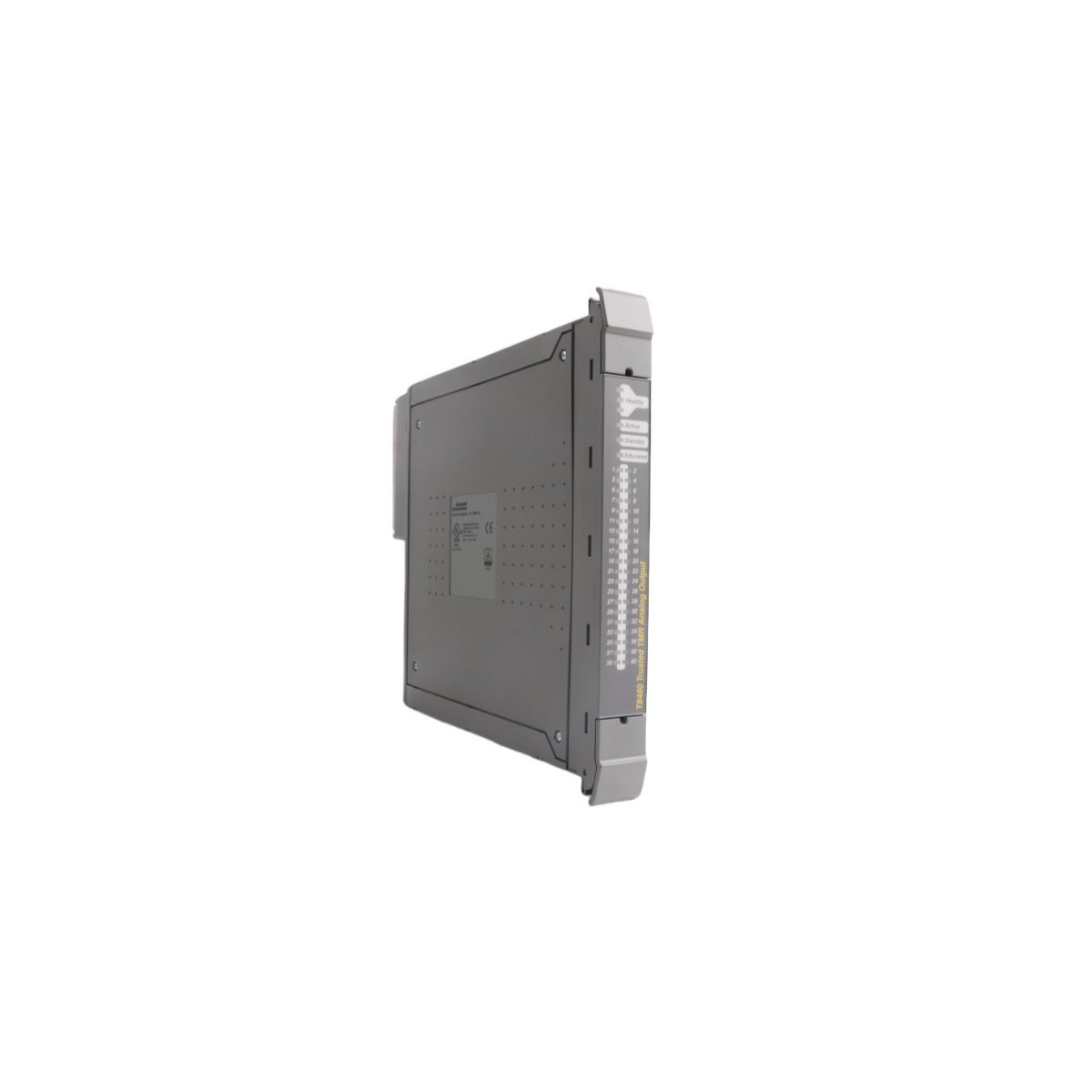

The ICS Triplex T8480C is a high-availability Triple Modular Redundant (TMR) analog output module engineered for the Trusted platform. It provides SIL 3 rated, fault-tolerant control for critical industrial actuators while performing continuous automated line monitoring and self-diagnostics.

Fault-Tolerant Safety Architecture

The ICS Triplex T8480C functions as a primary control interface within the Trusted safety system, delivering 40 independent TMR channels for mission-critical applications. This module utilizes a Triple Modular Redundant voting architecture, where three internal sub-modules cross-verify every output signal. Consequently, the system can detect and isolate a single hardware failure without interrupting the process, ensuring the zero-compromise reliability required for SIL 3 compliance. This redundant design proves indispensable for high-stakes environments like offshore platforms and chemical processing plants.

Advanced Diagnostics and Field Monitoring

Beyond basic signal delivery, the T8480C incorporates sophisticated field wiring surveillance. The module actively monitors each channel for open circuits and short circuits, allowing operators to identify field-side faults before they cause a system trip. Additionally, the unit supports Sequence of Events (SOE) recording with 1ms resolution. This capability provides a millisecond-accurate chronological log of all output state changes, which simplifies post-fault analysis and improves overall plant forensic capabilities.

Seamless System Integration and Maintenance

Rockwell ICS Triplex designed the T8480C for continuous operation, incorporating a hot-swappable interface that allows for module replacement while the system remains live. The module connects to the Inter-Module Bus (IMB) for high-speed communication and power distribution. Furthermore, the outputs are organized into isolated power groups, each featuring integrated overcurrent protection. This design eliminates the need for external fusing and prevents a localized fault from affecting the entire module. Status LEDs on the front panel provide immediate visual feedback regarding the module’s operational state, including active, standby, and educated modes.

Key Technical Characteristics

• Triple Modular Redundancy (TMR): Employs a 2-out-of-3 voting logic to ensure absolute output integrity.
• High-Resolution SOE: Captures state changes at 1ms intervals for precise event tracking.
• Galvanic Isolation: Features 2500V opto-isolation to safeguard the control bus from field surges.
• Automated Line Monitoring: Detects wiring faults and load discrepancies in real-time.
• SIL 3 Certified: Meets rigorous international standards for Safety Instrumented Systems (SIS).
• Hot-Swap Compatibility: Facilitates maintenance and hardware upgrades without process interruption.
