Description

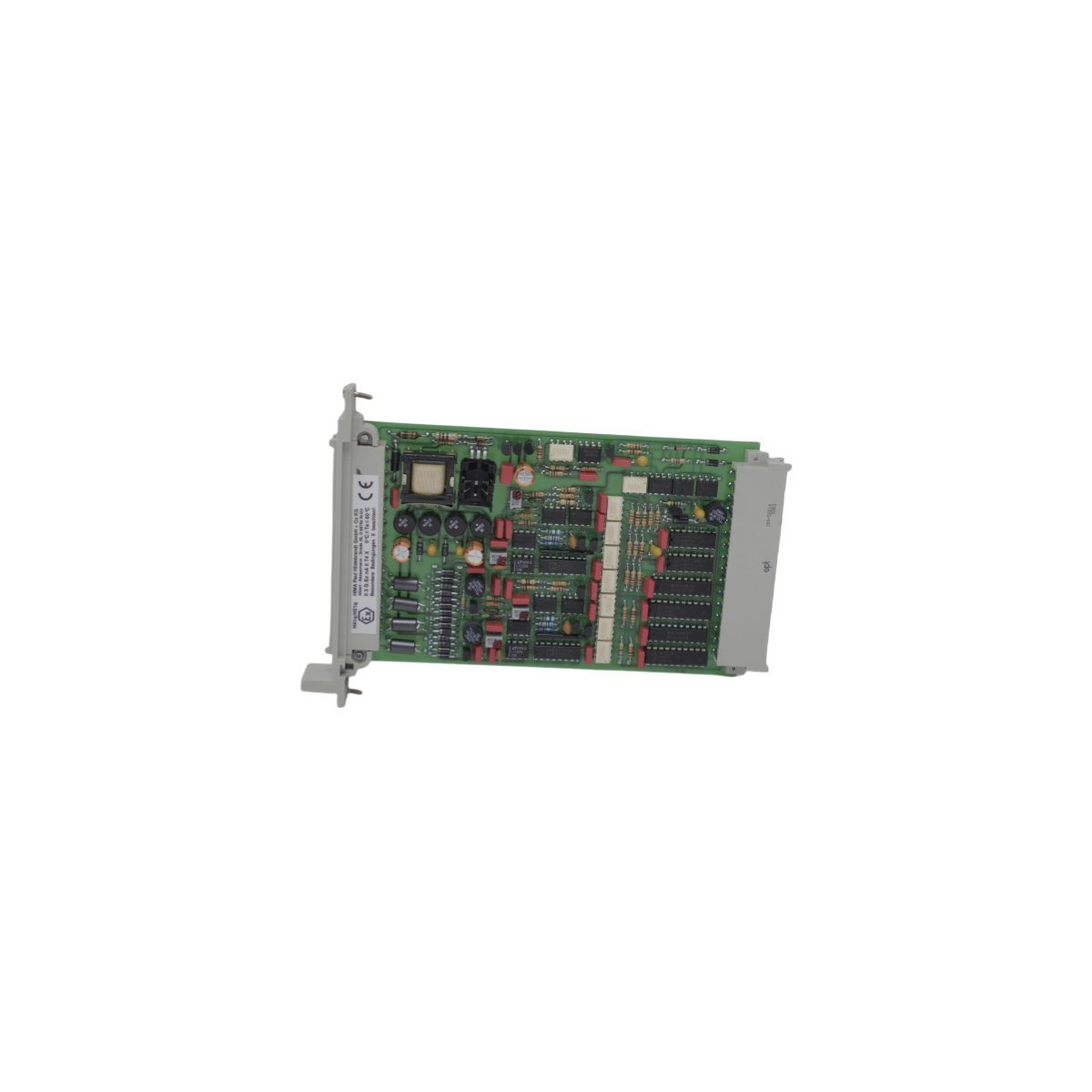

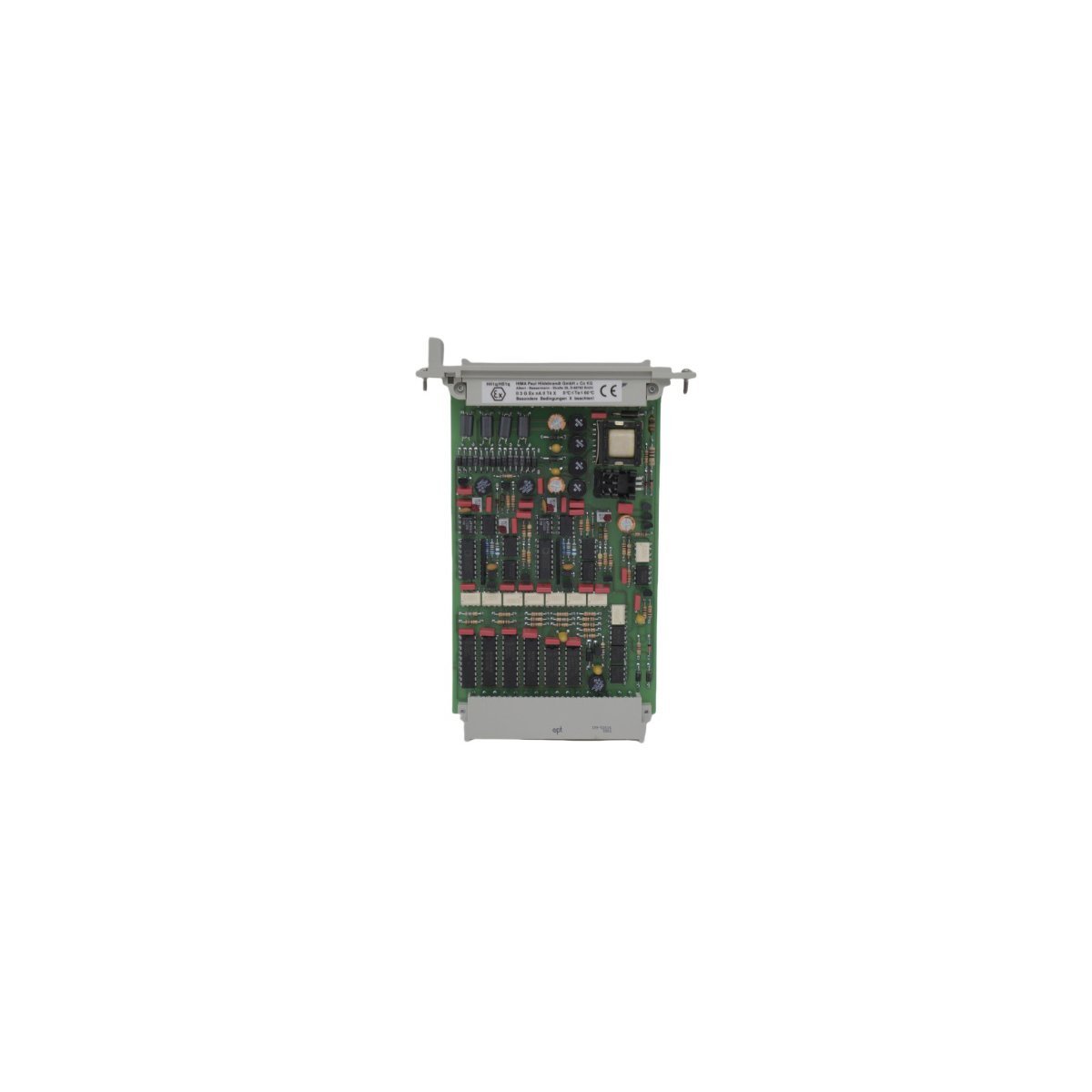

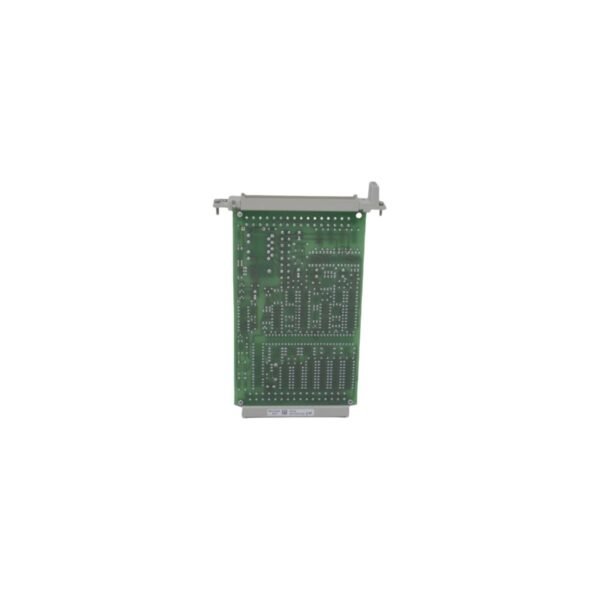

The HIMA F6705 serves as a high-integrity interface for modern Distributed Control Systems (DCS). This module converts digital processor data into precise analog signals for field device regulation. Because it originates from HIMA’s German engineering facilities, it adheres to the highest functional safety standards. The hardware maintains consistent accuracy even in electronically noisy industrial environments. Consequently, it supports the safe operation of valves, actuators, and other critical process elements. This unit remains an essential component for achieving stable and predictable plant control.

Technical Specifications and Hardware Profile

Functional Performance and Safety

The F6705 module features two independent output channels for localized process control. Every channel can drive a load up to 500 mA with exceptional stability. Furthermore, the rapid conversion rate minimizes signal latency within the control loop. This responsiveness allows the system to adjust field conditions in real time. Such speed is vital for maintaining safety margins in high-pressure or high-temperature applications.

Standard CE certification ensures the hardware meets rigorous European safety and quality directives. The IP20-rated housing protects internal circuitry from dust and contact during routine inspections. Additionally, the module operates across a broad temperature range for diverse climate deployments. This rugged construction prevents premature failure in unconditioned control rooms. Therefore, the F6705 represents a durable long-term investment for safety-critical infrastructure.

Integration and Industrial Use Cases

Installation remains straightforward due to the modular plug-and-play design of the HIMA platform. The F6705 integrates seamlessly with existing H41q and H51q system backplanes. Moreover, the unit supports standard communication protocols via the system’s ethernet routing capabilities. This compatibility reduces the need for specialized interface hardware or custom cabling. Typical industrial applications include:

• Modulating control valves in chemical refineries
• Controlling actuator positions in oil and gas pipelines
• Managing speed setpoints for specialized heavy machinery
• Regulating heating elements in thermal processing plants
• Interfacing with variable frequency drives (VFD)

The lightweight 0.18 kg frame allows for high-density mounting in standard racks. This compact footprint optimizes cabinet space and simplifies heat management within the enclosure. By selecting the F6705, operators ensure reliable signal transmission and enhanced process integrity. The module provides a perfect balance of German precision and industrial-grade durability.
