Description

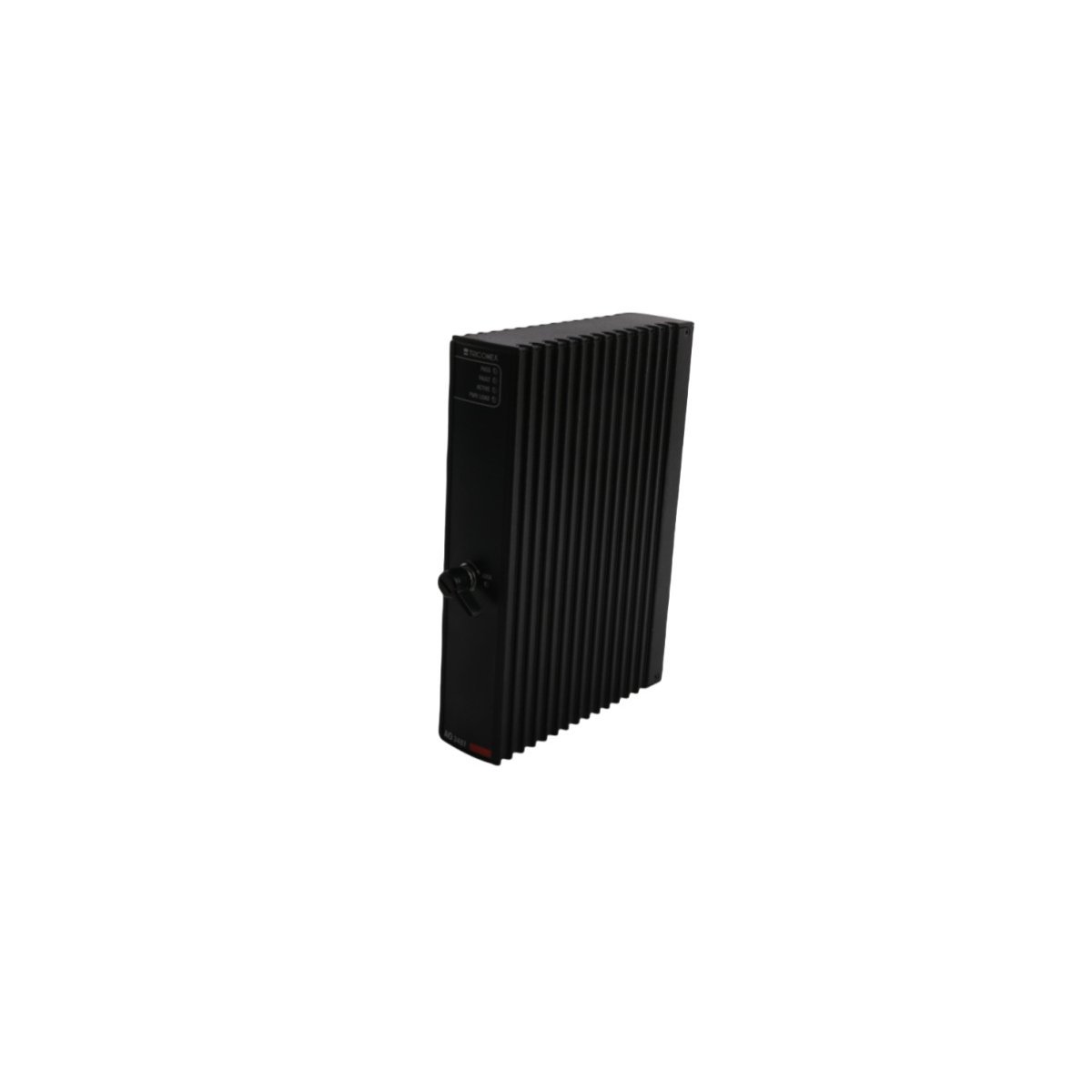

The Triconex AO 3481S2 operates as a high-integrity analog output component within the Tricon Triple Modular Redundancy (TMR) system. This module delivers precise current signals to critical field devices like control valves and actuators. It maintains exceptional signal stability through constant hardware-based validation. The architecture specifically serves environments where failure could lead to significant process hazards or financial loss.

Core Technical Parameters

High-Reliability TMR Architecture

The 3481S2 utilizes three independent output legs to ensure maximum reliability. Every main processor transmits output values to the module via the TriBus interface. The internal circuitry then employs a mid-value selection algorithm to determine the final output signal. This process effectively eliminates errors from any single channel discrepancy.

Furthermore, the module performs continuous self-diagnostics to identify potential hardware faults. It executes periodic reference checks to maintain calibration without manual intervention. This automated adjustment corrects gain and bias errors in real-time. Consequently, the system maintains high accuracy for sensitive temperature and pressure control loops.

Industrial Applications and Integration

Engineers deploy the AO 3481S2 in various safety-instrumented functions (SIF). The module supports diverse industrial field instruments through its robust signal processing capabilities. Its design allows for seamless integration with both legacy and contemporary Tricon architectures.

Common application areas include:

• Emergency Shutdown Systems (ESD) for offshore platforms.
• High-pressure protection in natural gas pipelines.
• Critical temperature control in chemical reactors.
• Turbine speed control in power generation facilities.
• Burner Management Systems (BMS) for industrial furnaces.

Maintenance and Field Performance

The AO 3481S2 features a hot-swappable design for simplified maintenance. Technicians can replace a faulty module while the process remains fully operational. This capability prevents costly shutdowns during routine hardware upgrades or repairs. The rugged mechanical assembly protects internal electronics from industrial electromagnetic interference and vibration.
