Description

Product Overview

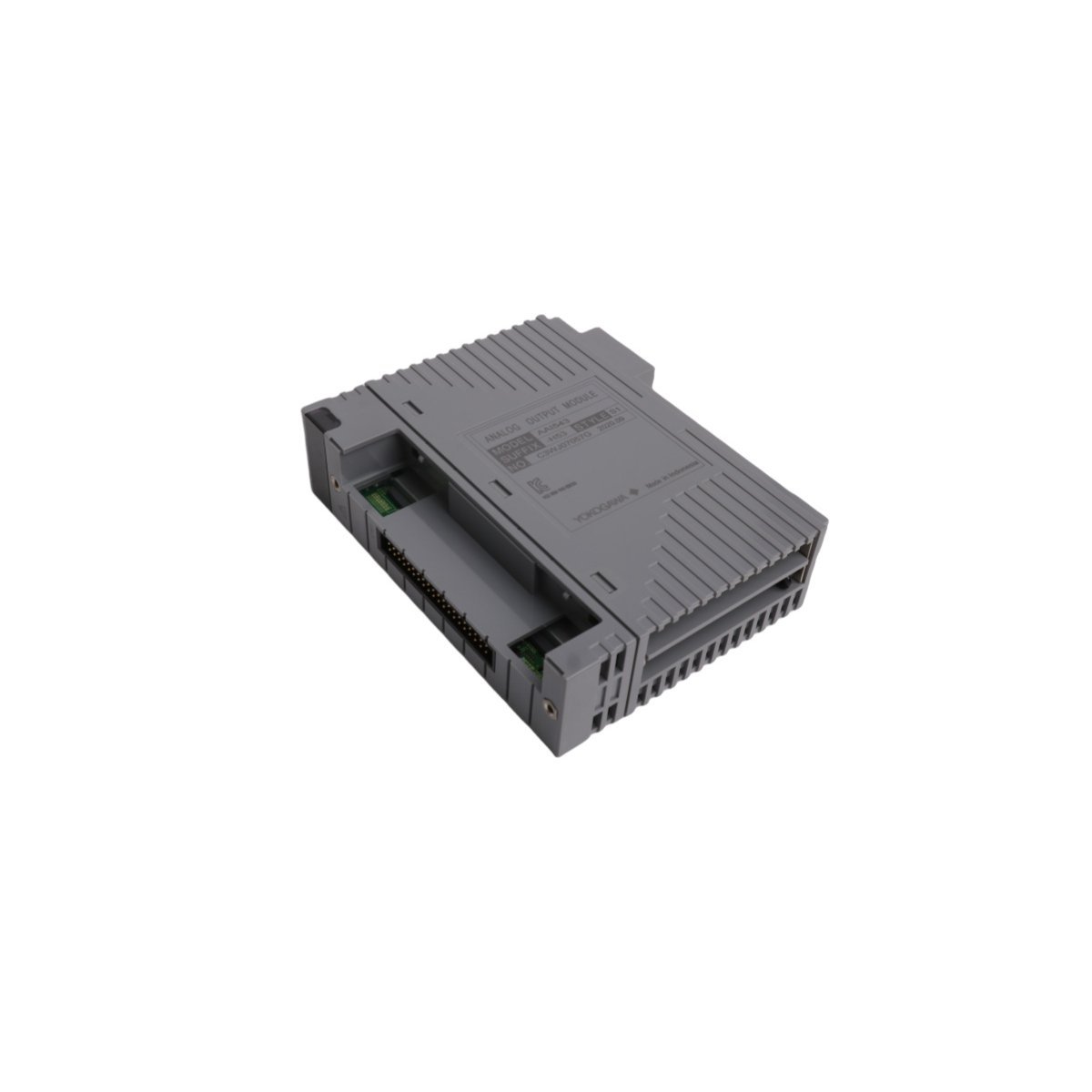

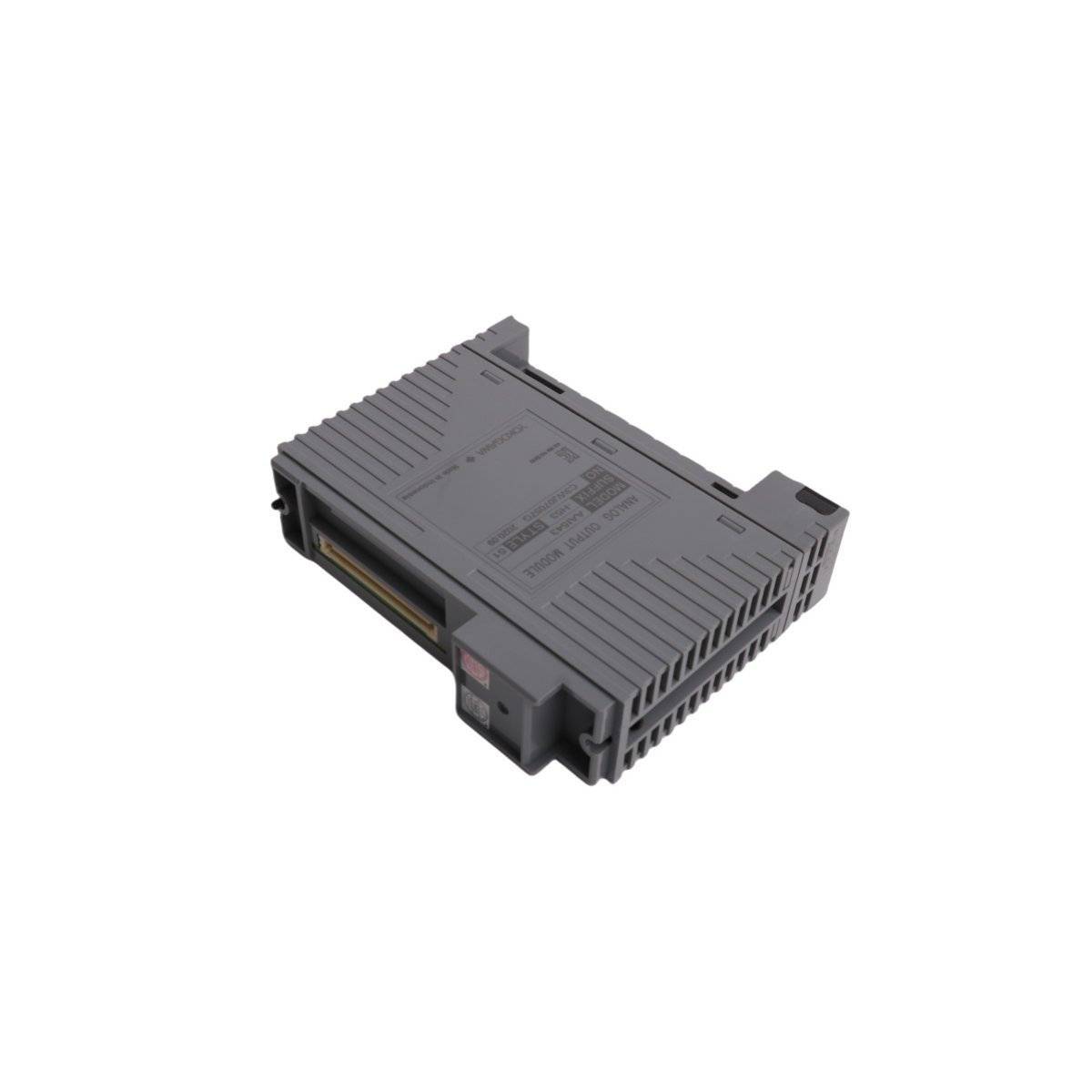

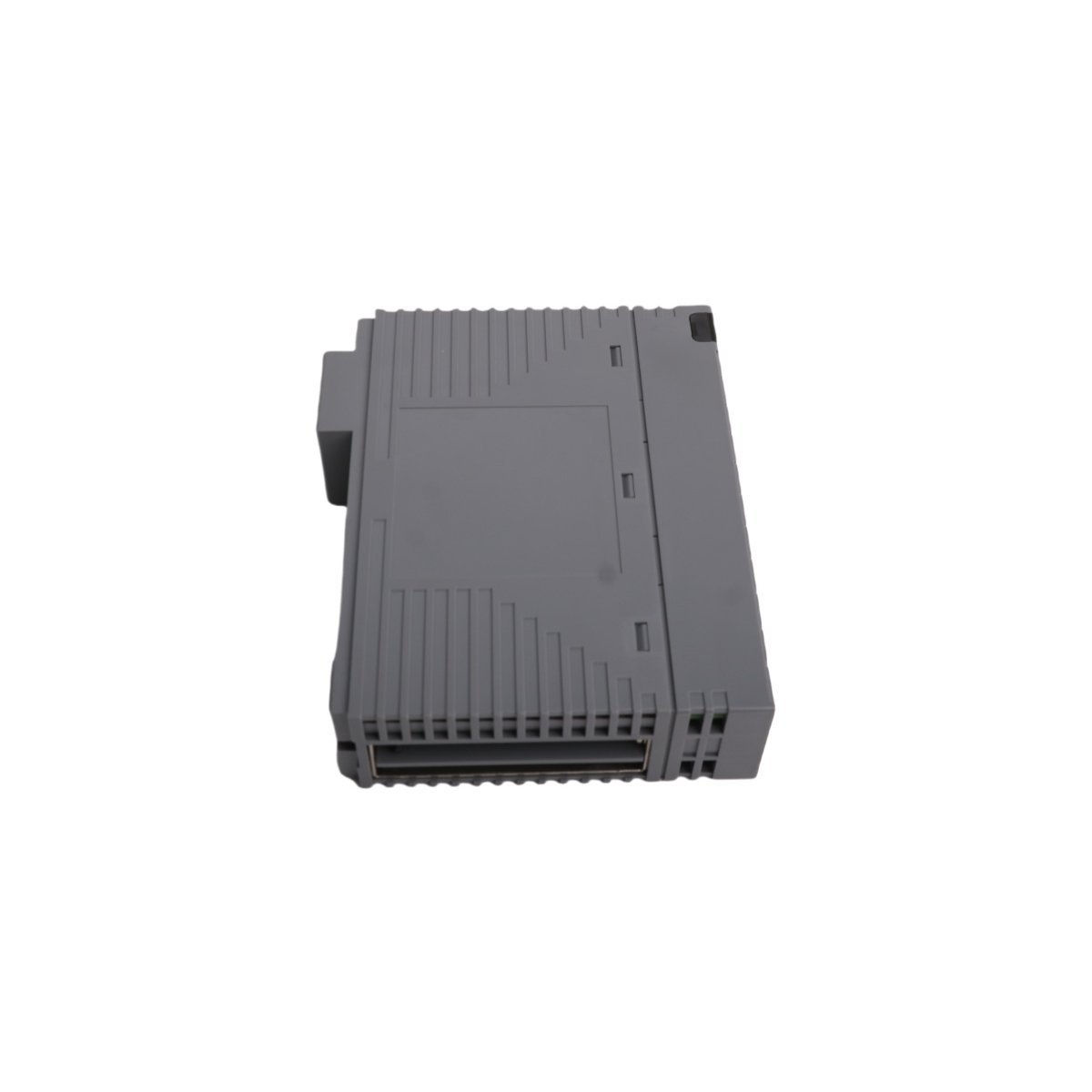

The Yokogawa AAI543-H50 serves as a high-density analog output module designed to facilitate precise current control within industrial automation systems. This unit delivers 4-20mA signals to field devices, ensuring accurate process regulation across complex control loops. By integrating advanced output circuitry into a compact physical footprint, the module empowers operators to maintain stringent control over process variables while optimizing cabinet space.

Technical Characteristics

• Performance: Features high-precision signal conversion that supports critical control applications requiring consistent output accuracy
• Reliability: Supports redundant hardware configurations, which provide automatic failover capabilities to ensure continuous operational uptime
• Design: Incorporates hot-swappable functionality, allowing maintenance personnel to replace components without interrupting active process loops
• Isolation: Utilizes channel-to-channel galvanic isolation to mitigate electrical noise and prevent signal interference between loops
• Diagnostics: Includes integrated status indicators that simplify loop health monitoring and accelerate routine troubleshooting efforts
• Compatibility: Complies with global industrial standards for hazardous area installation, ensuring safe deployment in demanding environmental conditions

Technical Specifications

• Manufacturer: Yokogawa
• Model Number: AAI543-H50
• Product Category: Analog Current Output Module
• System Compatibility: CENTUM Series Distributed Control Systems
• Physical Dimensions: 3.2 cm x 10.6 cm x 13 cm
• Weight: 0.32 kg
• Harmonized System (HS) Code: 8537101190
• Product Status: Active

Operational Application

Process engineers utilize the AAI543-H50 to manage complex output requirements in sectors such as petrochemical refining, power generation, and chemical processing. Because the module offers robust protection against electrical transients, it provides a stable interface for sensitive field instrumentation. Furthermore, the unit supports seamless integration with modern DCS architectures, enabling facilities to achieve superior loop control density. By implementing this module, plants successfully reduce wiring complexity and enhance the overall integrity of their process management systems.
