Description

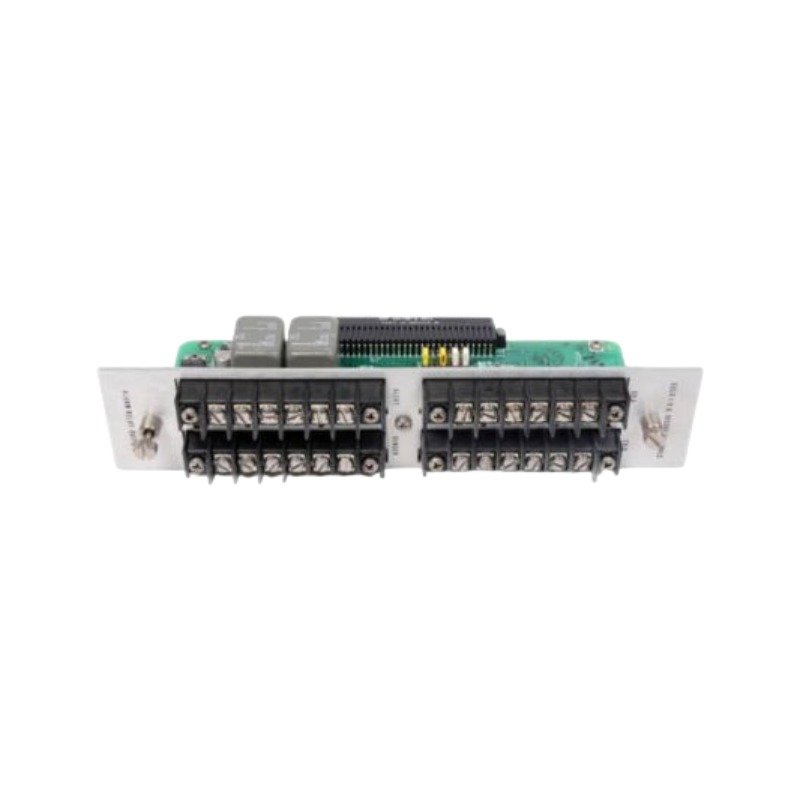

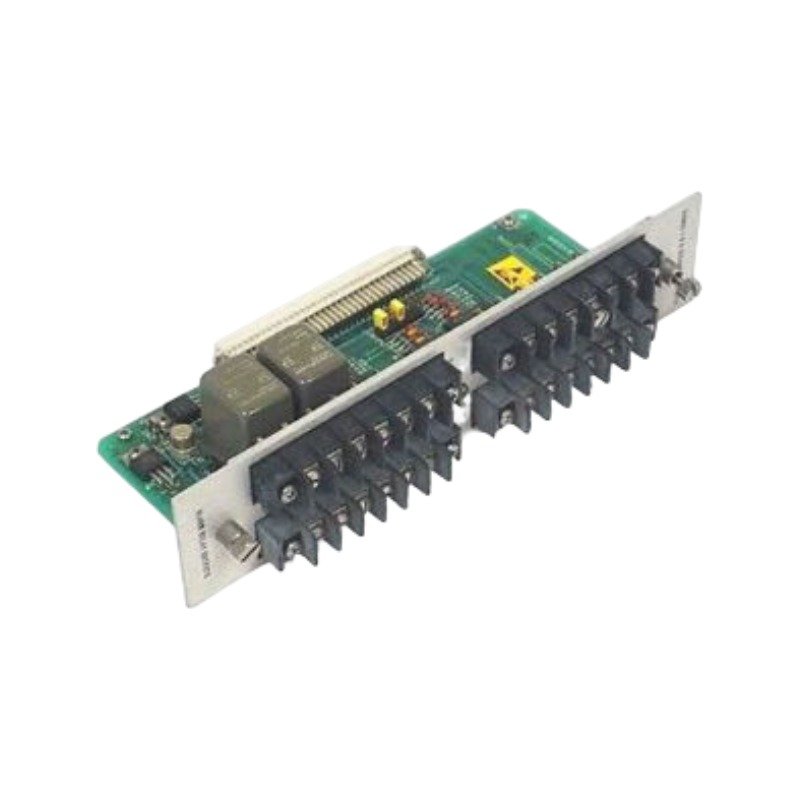

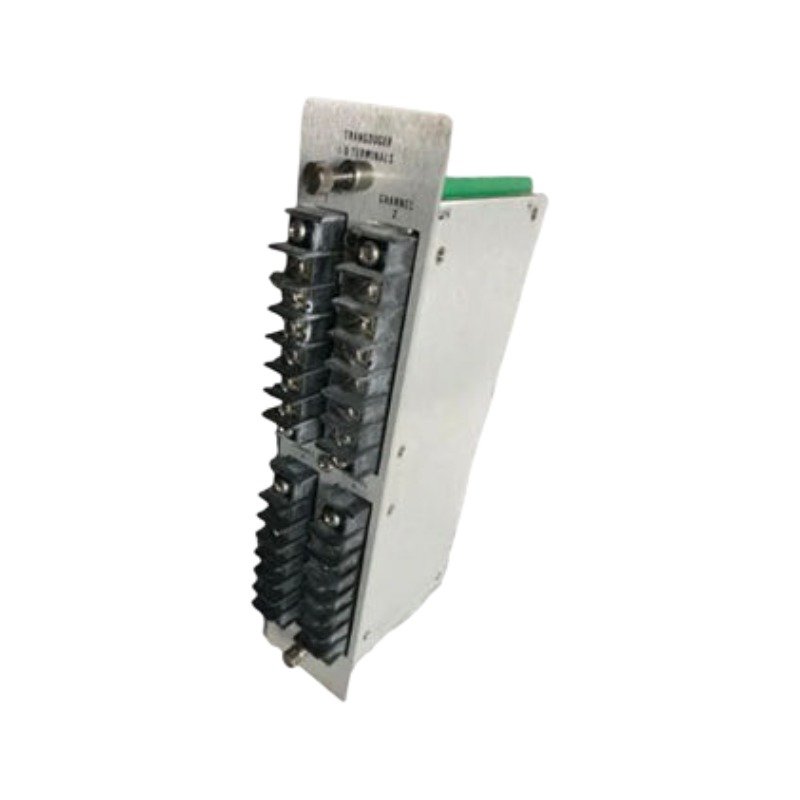

The Bently Nevada 122407-01, also cataloged as the 122407-01 RTD Input and Record Terminals / Alarm Relay Outputs Module, operates as a dedicated hardware component for temperature monitoring and alarm relay execution within 3300 Series Monitoring System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The terminal interface architecture structures reliable paths for temperature-driven Turbine Supervisory Instrumentation (TSI) parameters. Specifically, the internal conditioning board integrates precision pathways to maintain strict linearity during eddy-current probe scaling configurations or thermal monitoring cycles. Furthermore, the routing framework provides stable reference paths to perform ongoing validation routines across the sensor network. To safeguard critical data, the module introduces comprehensive insulation barriers that achieve cross-talk suppression between high-density signal feeds. Consequently, this continuous isolation loop stabilizes data transfers under harsh electromagnetic conditions, which preserves the overall tracking accuracy required to analyze structural load variations and complex rotor dynamics.

Frequently Asked Questions

Q: How does this termination module interface with the main 3300 rack power structure?

A: The board draws its operational voltage directly from the integrated system backplane connectors. Consequently, the assembly eliminates the need for separate external power lines and reduces wiring complexity during panel integration.

Q: What actions should technicians take if an RTD input experiences an open-circuit fault?

A: The internal detection circuits immediately register the high-resistance condition as a transducer failure. Therefore, the monitor automatically activates the channel inhibit logic, suppresses false relay trips, and sets the respective record terminal output to a low-scale state.

Field Installation Guidelines

Slide the terminal assembly into the rear slot allocation of the 3300 system enclosure until the multi-pin backplane plug engages tightly. To optimize noise rejection across the measurement circuits, ground the RTD cable shields only at the specified instrument earth bar rather than landing them on intermediate frame surfaces. Furthermore, route low-level sensor cabling through separate, isolated metal conduits away from high-power supply paths. Finally, verify that continuous airflow through the cabinet enclosure keeps ambient temperature parameters below the +65 deg C limit to protect internal solid-state relay components from premature thermal stress.
