Description

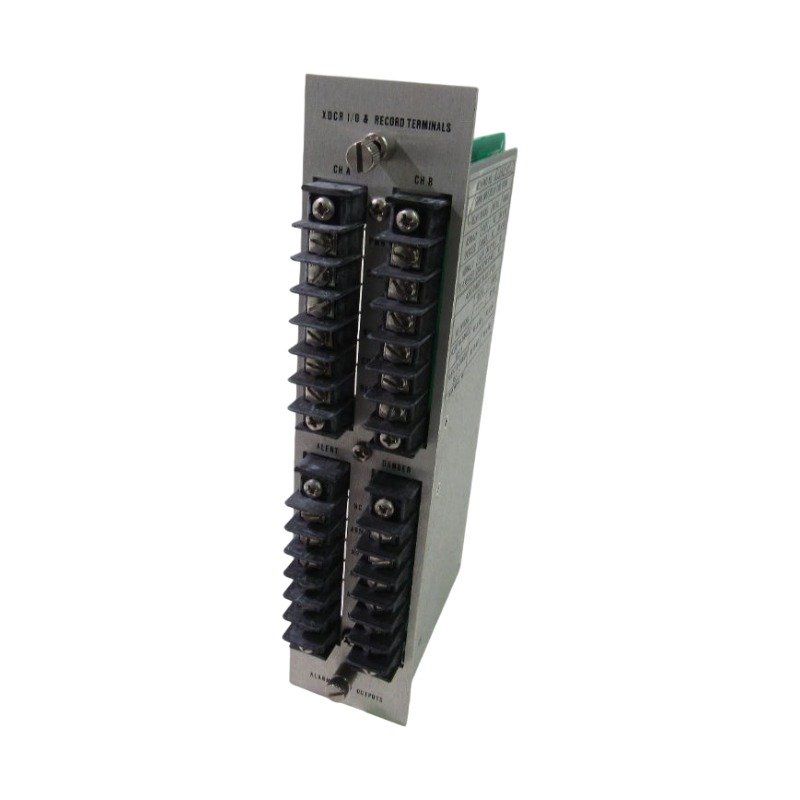

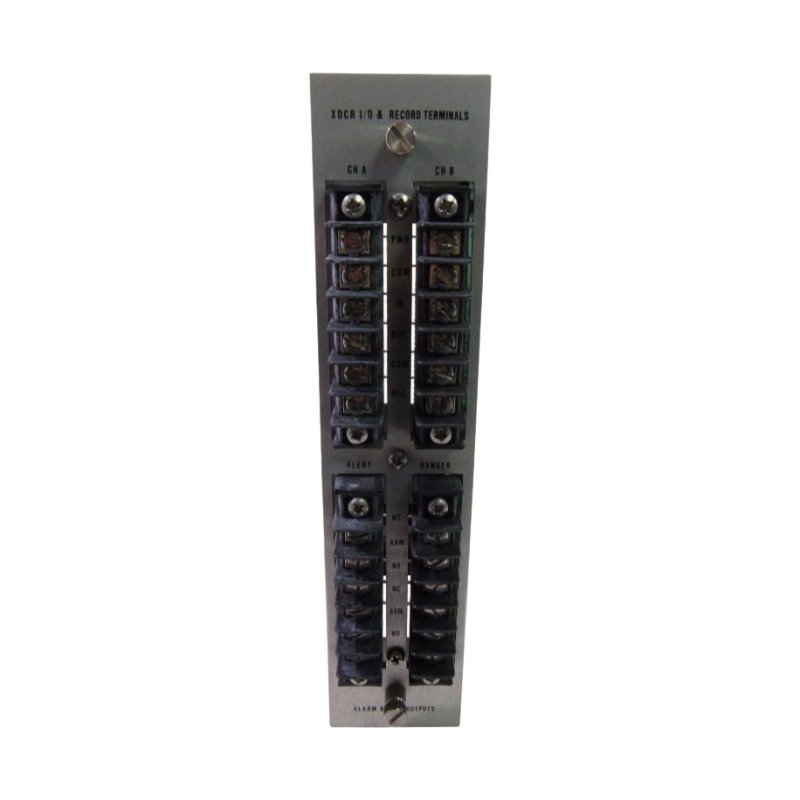

The Bently Nevada 78462-01, also cataloged as the 78462-01 Alarm Relay Output Module, operates as a dedicated hardware component for continuous machinery protection by providing physical relay switches and signal interface routing within the Bently Nevada 3300 Machinery Protection System.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 78462-01 relay module routes conditioned analog signals and discrete alarm transitions from primary proximity monitors to external emergency trip circuits, helping plant operators safeguard plant assets against destructive rotor dynamics. Because this terminal interface bridges raw sensor variables to control networks, all output thresholds directly reflect the specific eddy-current probe scaling configured on the main rack monitors.

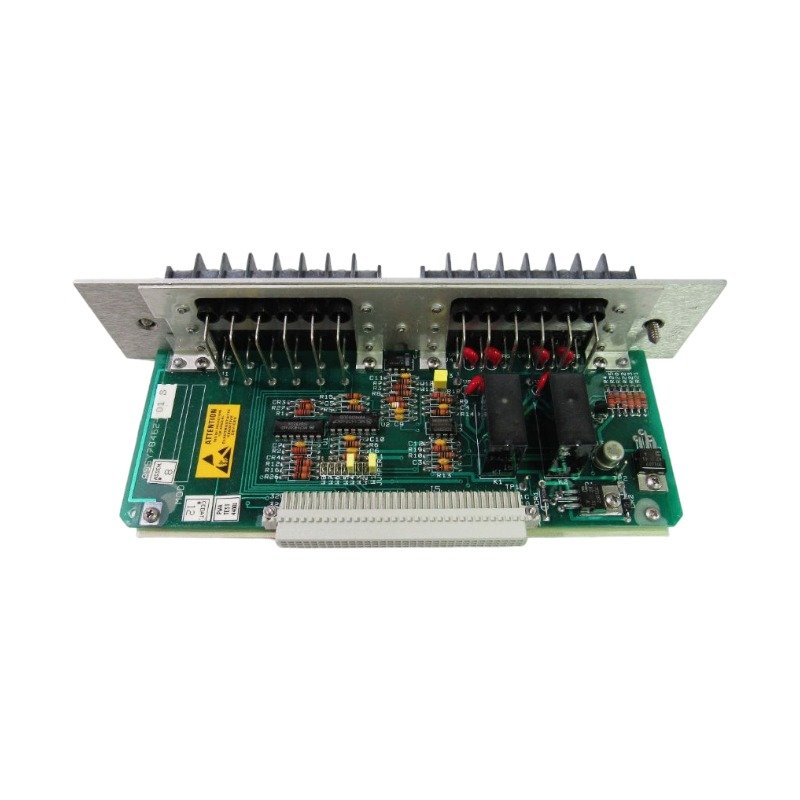

Simultaneously, the hardwired board architecture integrates structural cross-talk suppression pathways across parallel terminal traces to prevent signal bleed from high-frequency vibration signals. During loop installation procedures, field technicians prioritize gap voltage validation to ensure that the static sensor DC bias matches the -10 VDC operational baseline. If a proximity sensor drifts from this designated target, the 78462-01 module instantly changes the continuity of its alarm contact matrix to notify the supervisory system of a potential instrumentation fault.

Frequently Asked Questions

Q: What primary role does the 78462-01 card fulfill inside the Bently Nevada 3300 rack chassis?

A: The module provides dedicated physical dry relay contacts and individual recorder interface points, which allow the associated 3300 vibration, position, or speed monitors to actuate downstream plant trip interlocks.

Q: Can maintenance teams replace or remove the 78462-01 module while the 3300 chassis remains powered?

A: No, field teams must disconnect primary power from the specific rack section before separating the 78462-01 rear module from the chassis backplane. This practice avoids unexpected relay contact state changes and protects internal circuitry from transient shorts.

Field Installation Guidelines

1. Guide the 78462-01 module forward into its designated rear guide rail assignment behind the corresponding 3300 monitor module until the connection headers mate completely with the rack backplane.
2. Tighten the rear assembly captive screws directly into the frame structure to guarantee chassis ground continuity and establish rigid structural containment.
3. Keep the dry contact relay control wires fully isolated from parallel high-voltage AC lines in the panel ducting to stop induction fields from introducing noise into the signal circuits.
4. Verify that all rigid conduit hub adapters achieve a minimum of 5-thread engagement when routing external field loops through standard NPT pipe fittings to the termination box.
