Description

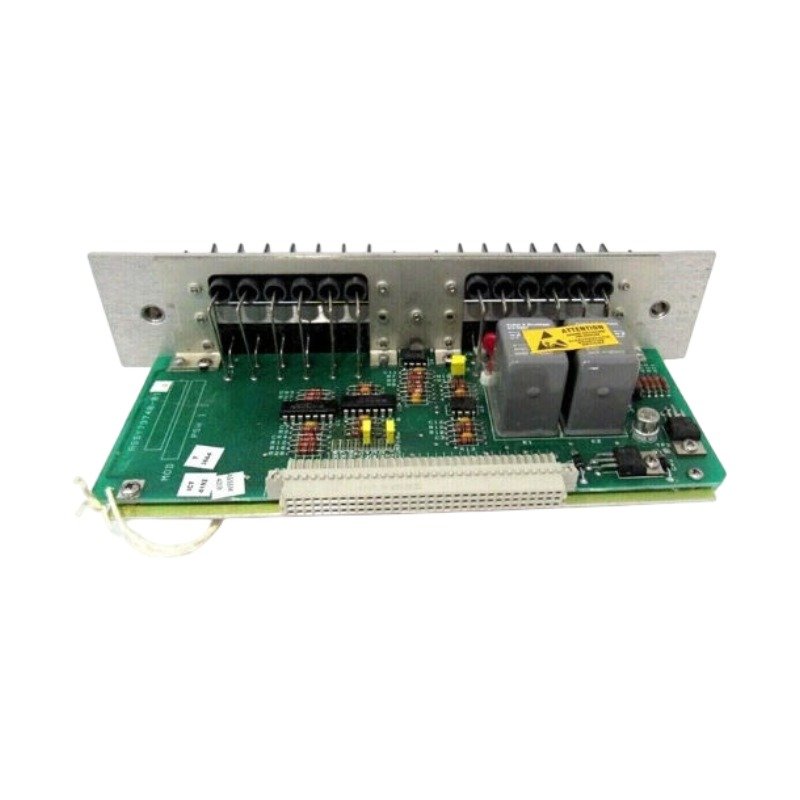

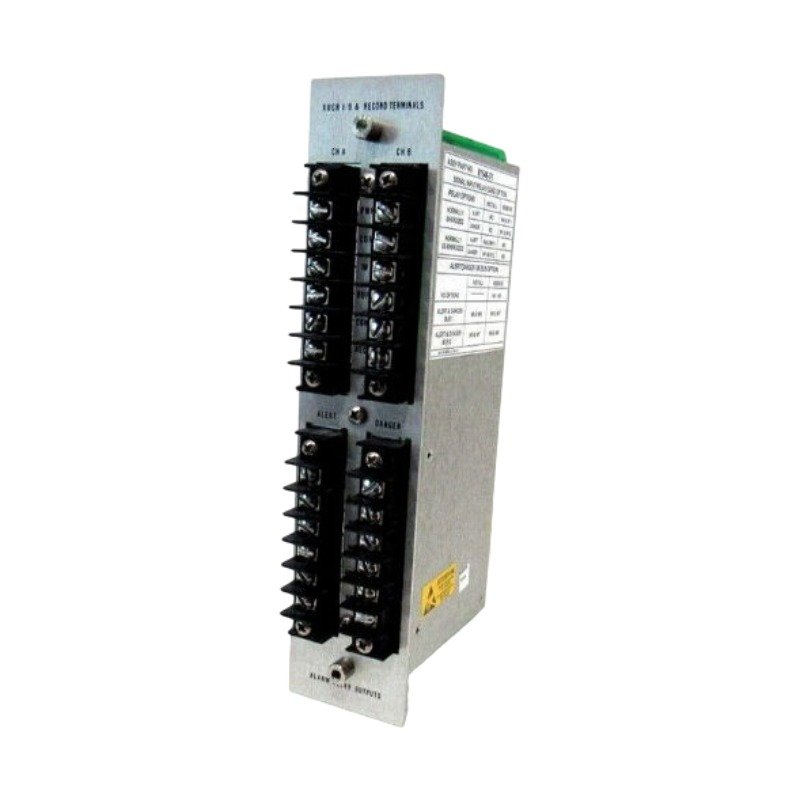

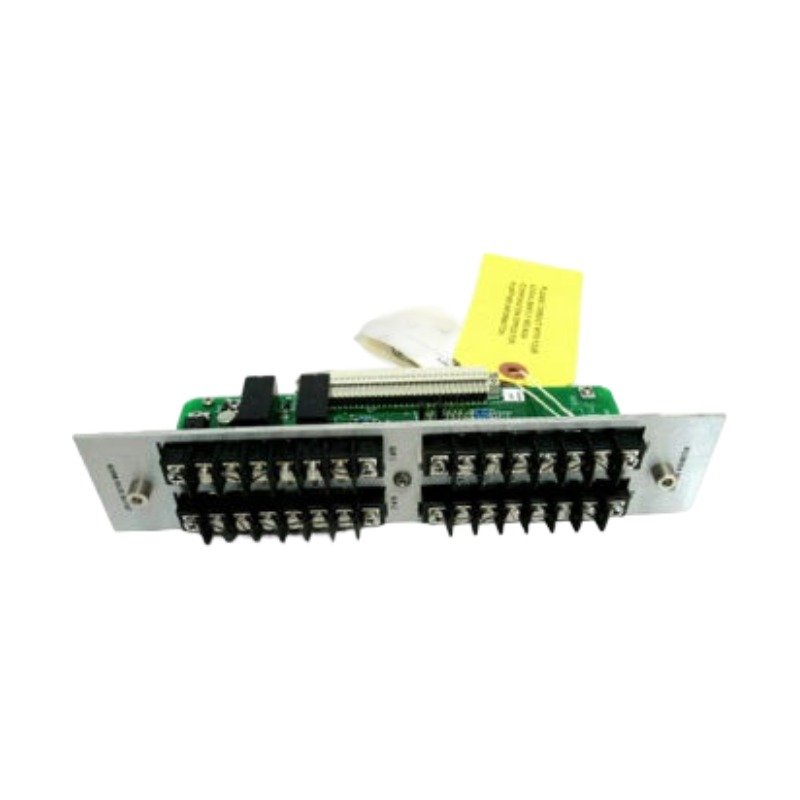

The Bently Nevada 78462-02, also cataloged as the 78462-02 Alarm Relay Output Module, operates as a dedicated hardware component for continuous machinery protection by providing physical relay switches and signal interface routing within the Bently Nevada 3300 Machinery Protection System.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 78462-02 relay module accepts processed control commands directly from adjacent vibration and position cards to manage physical safety interlocks against destructive rotor dynamics. Because this terminal block interfaces with primary monitor registers, the actuation of the discrete output paths depends entirely on the specific eddy-current probe scaling configured on the main system modules.

Simultaneously, the hardwired physical tracks deploy integrated grounding layers to achieve strict cross-talk suppression between high-density alarm paths. During loop commissioning phases, technicians run gap voltage validation on the front-end proximity probes to ensure the static DC bias centers on the designated -10 VDC target. If a sensor drifts from this linear threshold, the 78462-02 card immediately changes the continuity of its physical dry contact arrays, which alerts the emergency shutdown loop to an instrumentation fault condition.

Frequently Asked Questions

Q: What primary feature distinguishes the 78462-02 module from the 78462-01 variant?

A: The 78462-02 variant features higher-capacity physical relay contacts rated up to 5 A at 120 VAC, which provides greater electrical handling limits compared to the lower power ratings of the -01 version.

Q: Can an operator hot-swap the 78462-02 rear relay module under live system power?

A: No, field teams must isolate external power lines and power down the specific slot section before unseating the 78462-02 module. This safety step eliminates the risk of open-circuit transients or unexpected downstream machinery trips.

Field Installation Guidelines

1. Guide the 78462-02 module along the rear chassis tracks of the 3300 rack until the multi-pin connector mates securely with the system backplane assembly.
2. Tighten the rear retention screws firmly into the metal frame to ensure solid chassis grounding and mechanical protection.
3. Keep the high-current relay trip circuits isolated inside separate cable trunks to avoid introducing inductive noise fields into parallel low-voltage sensor lines.
4. Check that all cable conduit fittings establish at least 5-thread engagement when connecting external field lines through rigid NPT metallic junctions to the terminal housing.
