Description

Product Overview

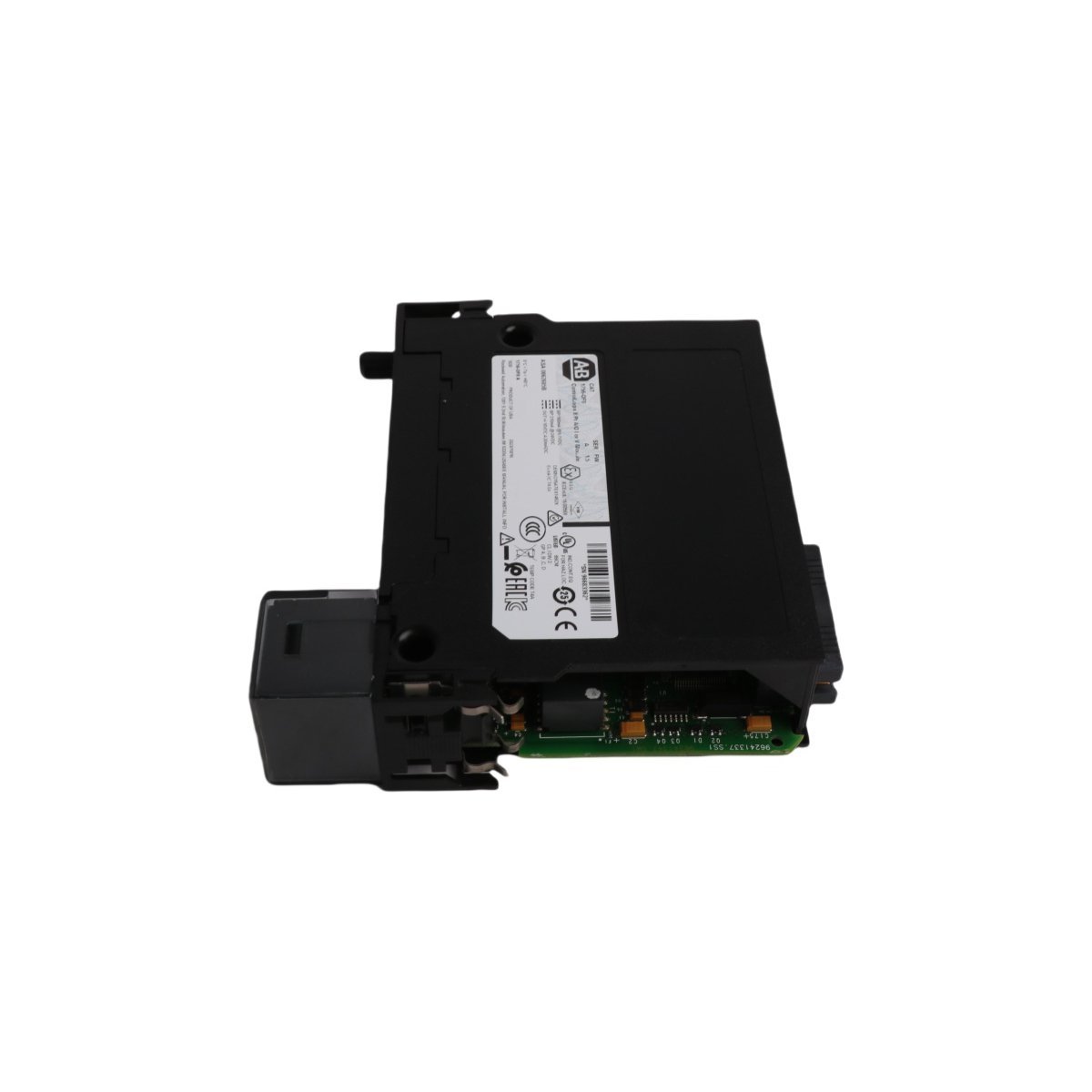

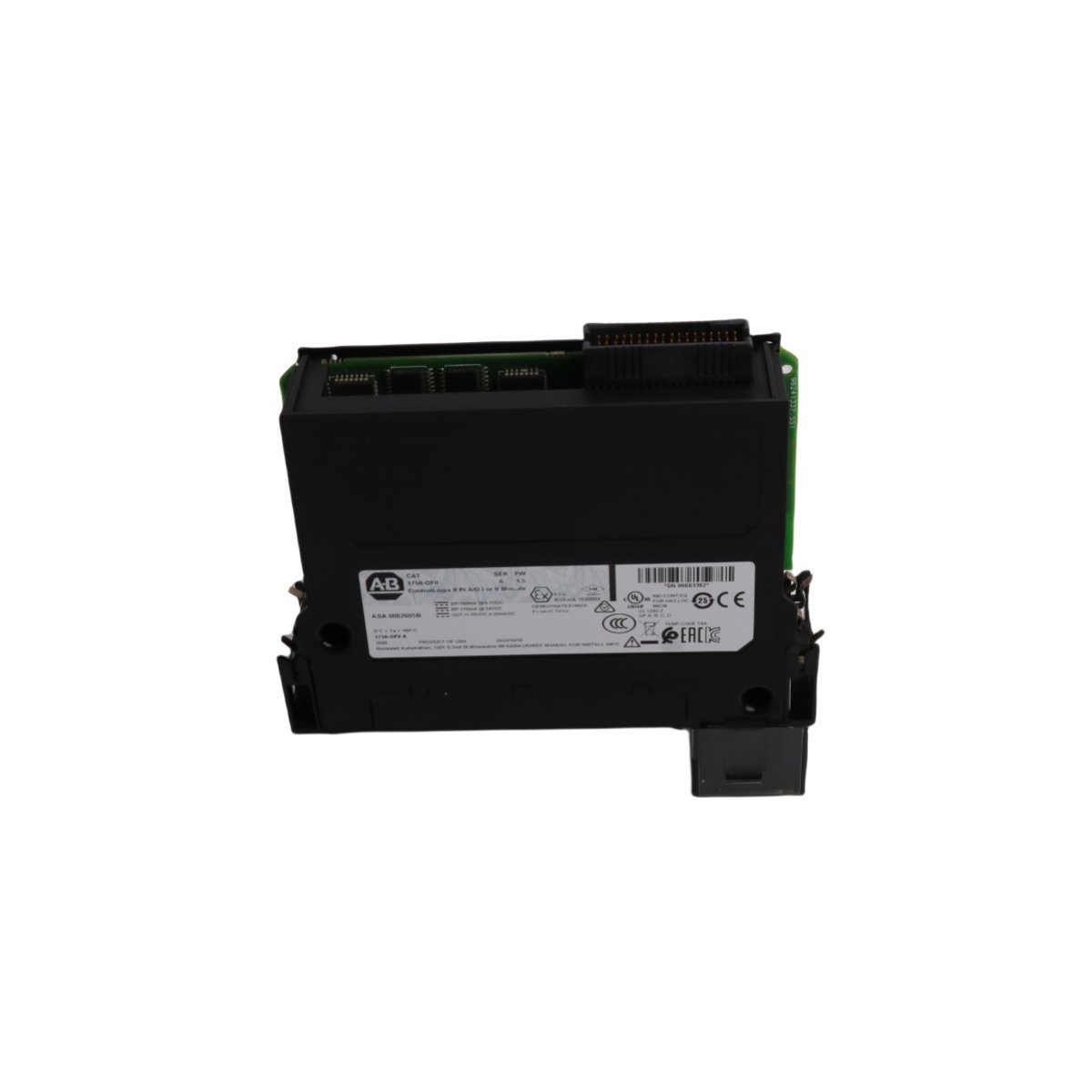

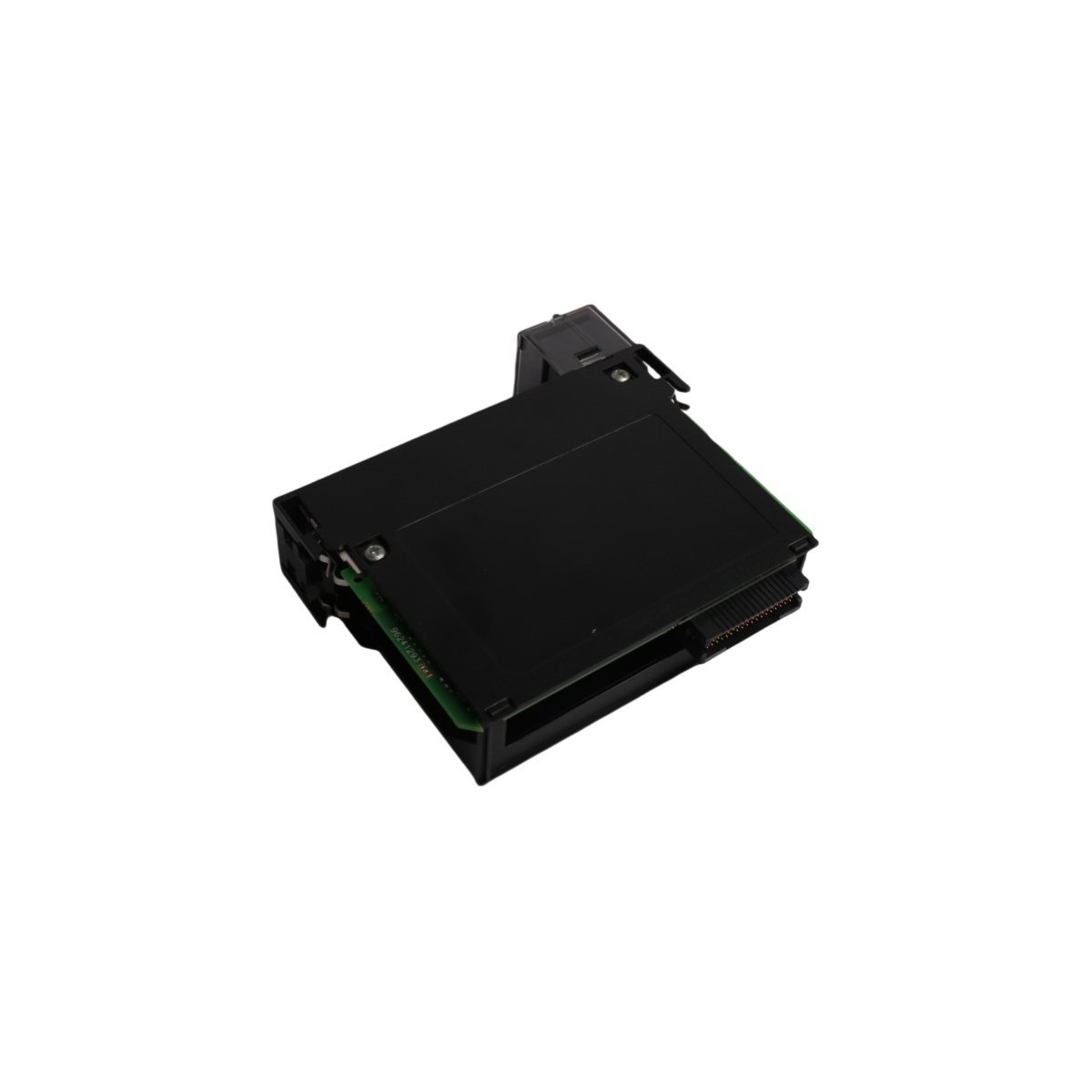

The 1756-OF8 serves as a high-density analog interface within the Rockwell Automation ControlLogix architecture, enabling precise control over field devices such as valves, actuators, and motor drives. This module converts digital PLC data into high-resolution analog signals, supporting both voltage (±10V) and current (0-20mA or 4-20mA) configurations. Because it supports chassis-based local installation and remote I/O via EtherNet/IP or ControlNet, engineers can deploy it across distributed automation networks with ease. Furthermore, the module ensures signal purity through advanced filtering and a high-resolution 15-bit to 16-bit DAC, making it ideal for industries where process accuracy is a mechanical necessity.

Technical Architecture and Signal Integrity

This ControlLogix module features a single-ended design that facilitates straightforward wiring for eight independent channels. To protect the system backplane and sensitive logic circuitry, the hardware incorporates 1500VAC channel-to-bus isolation. This galvanic barrier effectively mitigates the impact of ground loops and electrical noise common in heavy industrial environments. Additionally, the 1756-OF8 includes onboard diagnostic capabilities, allowing the system to detect and report open-wire conditions or field-side power failures. Transitioning between voltage and current modes occurs via software configuration in Studio 5000, which eliminates the need for physical jumpers and simplifies commissioning.

Applications and Industrial Value

• Precision valve positioning in oil and gas refineries.
• Variable speed drive (VSD) setpoint control in manufacturing plants.
• Environmental monitoring and climate control systems.
• High-accuracy chemical dosing and mixing applications.

Technical Specifications

• Manufacturer: Allen Bradley (Rockwell Automation)
• Model Number: 1756-OF8
• Product Series: ControlLogix
• Output Channels: 8 Single-ended points
• Output Ranges: +/- 10V, 0-10V, 0-20mA, 4-20mA
• Resolution: 15 bits across 21 mA / 15 bits across 10.5V
• Backplane Isolation: 1500VAC (Continuous)
• Current Draw: 150mA at 5.1VDC / 120mA at 24VDC
• Weight: 0.35 kg
• Dimensions: 23.3 cm x 18.3 cm x 5.3 cm
• HS Code: 8537101190
