Description

Technical Overview

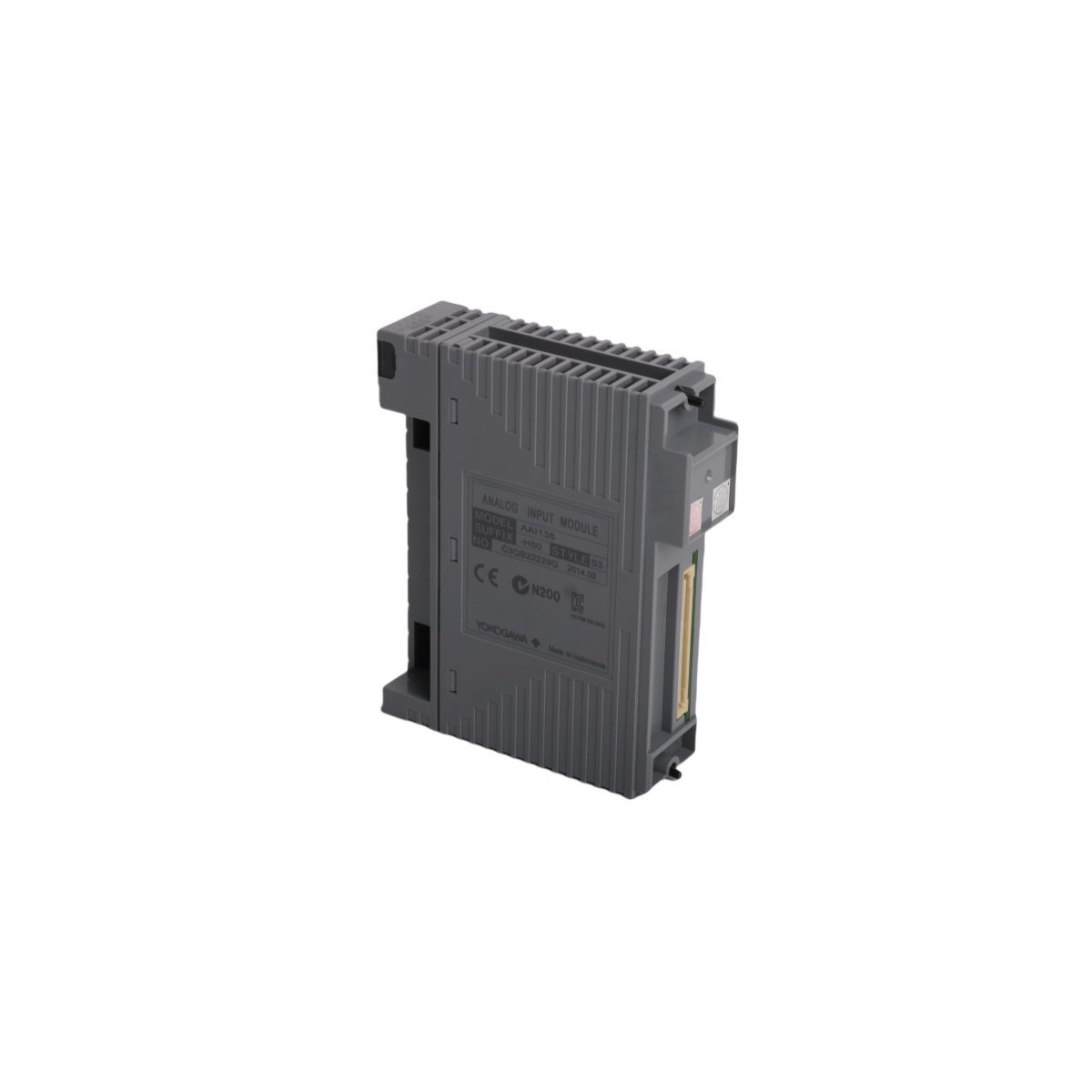

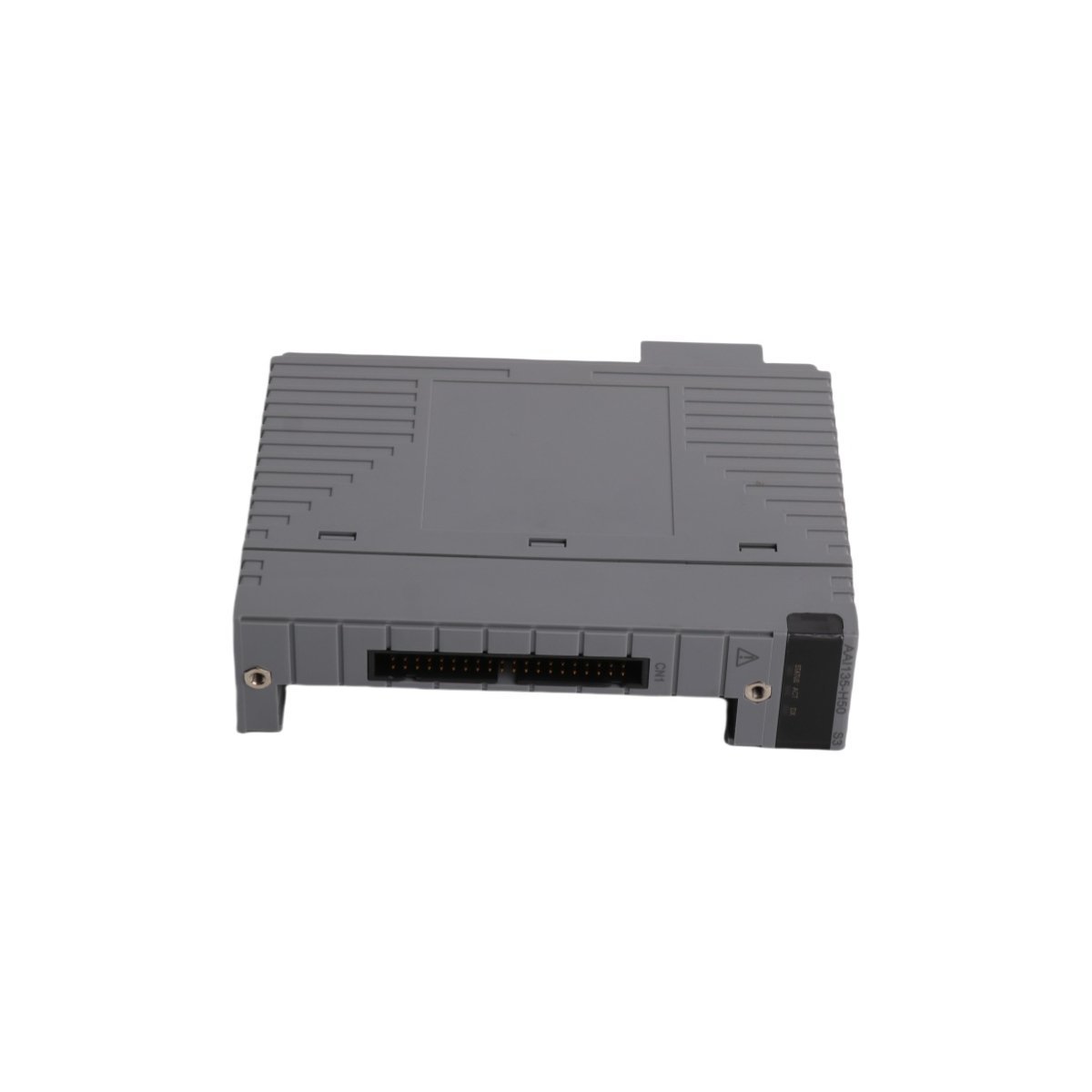

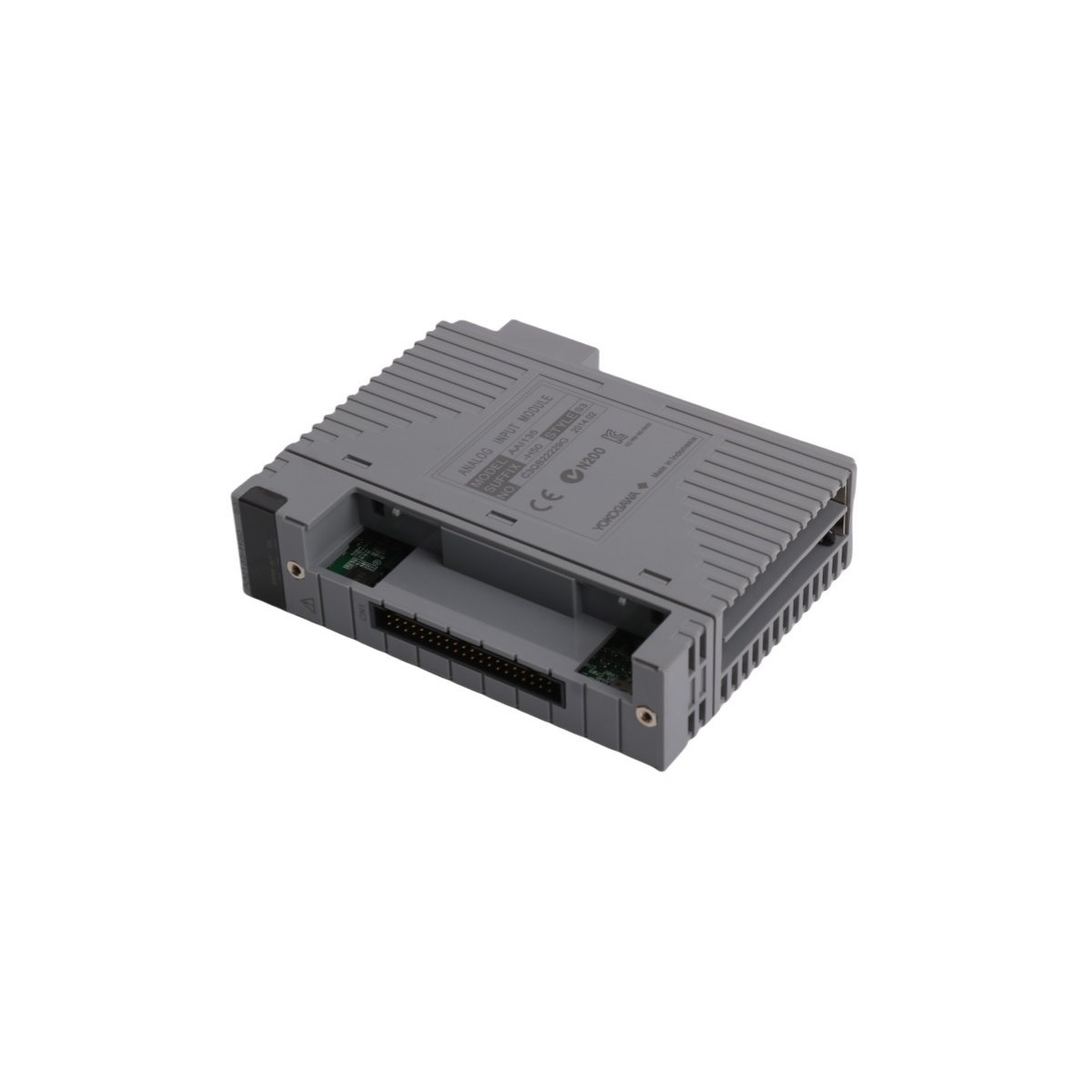

The Yokogawa AAI543-H50 S1 is a high-density current output module engineered for the CENTUM VP Distributed Control System (DCS). This module provides 16 isolated channels designed to drive field instruments such as control valve positioners and I/P converters. By converting digital commands from the system into precise 4 to 20 mA analog signals, it ensures stable and accurate process regulation. Furthermore, the unit features integrated HART communication capabilities, allowing for seamless digital data exchange with smart field devices for diagnostic and configuration purposes.

Core Functional Specifications

• Channel Configuration: 16 channels, fully isolated between the field and the system.
• Output Signal Range: 4 to 20 mA DC current output.
• Output Accuracy: High-precision delivery within ±0.1% of the full scale.
• Data Communication: Supports HART 7 protocol for bidirectional digital signaling.
• System Integration: Compatible with Yokogawa CENTUM VP and ProSafe-RS environments.
• Availability Features: Supports dual-redundant configuration to prevent single points of failure.
• Maintenance Protocol: Hot-swappable design permits module replacement without interrupting system power or process control.

Industrial Applications and Benefits

Process engineers utilize the AAI543-H50 S1 primarily in heavy industries including oil and gas, chemical processing, and power generation. Because the module incorporates three-layer isolation, it effectively mitigates electromagnetic interference and ground loops, which are common in dense industrial environments. Additionally, the inclusion of multicolor status LEDs allows maintenance personnel to identify module health and communication faults instantly. Consequently, this leads to reduced mean time to repair (MTTR) and enhanced plant safety.

Technical Dimensions and Logistics

• Manufacturer: Yokogawa Electric Corporation
• Country of Origin: Japan
• Physical Dimensions: 32 mm x 106 mm x 130 mm
• Net Weight: 0.25 kg
