Description

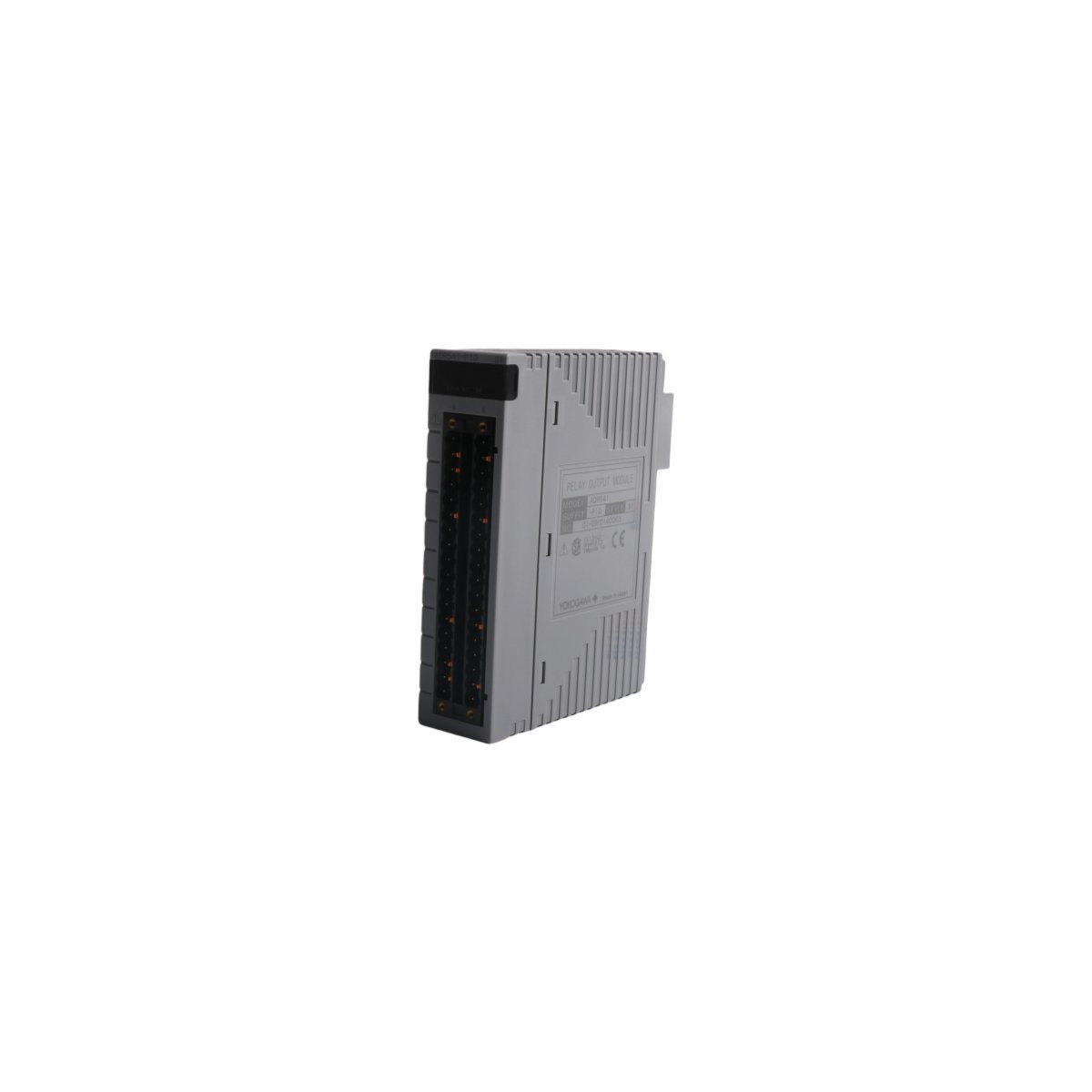

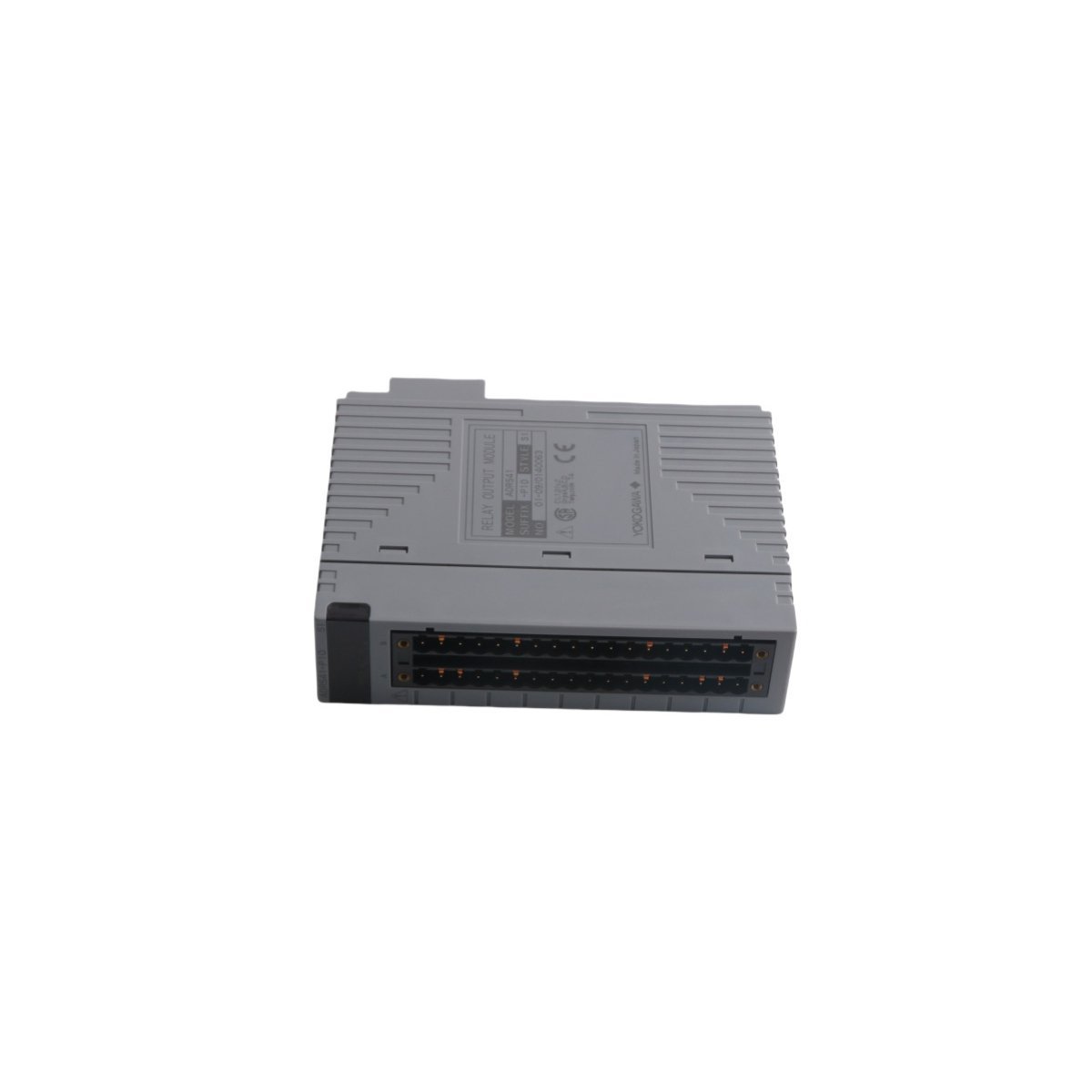

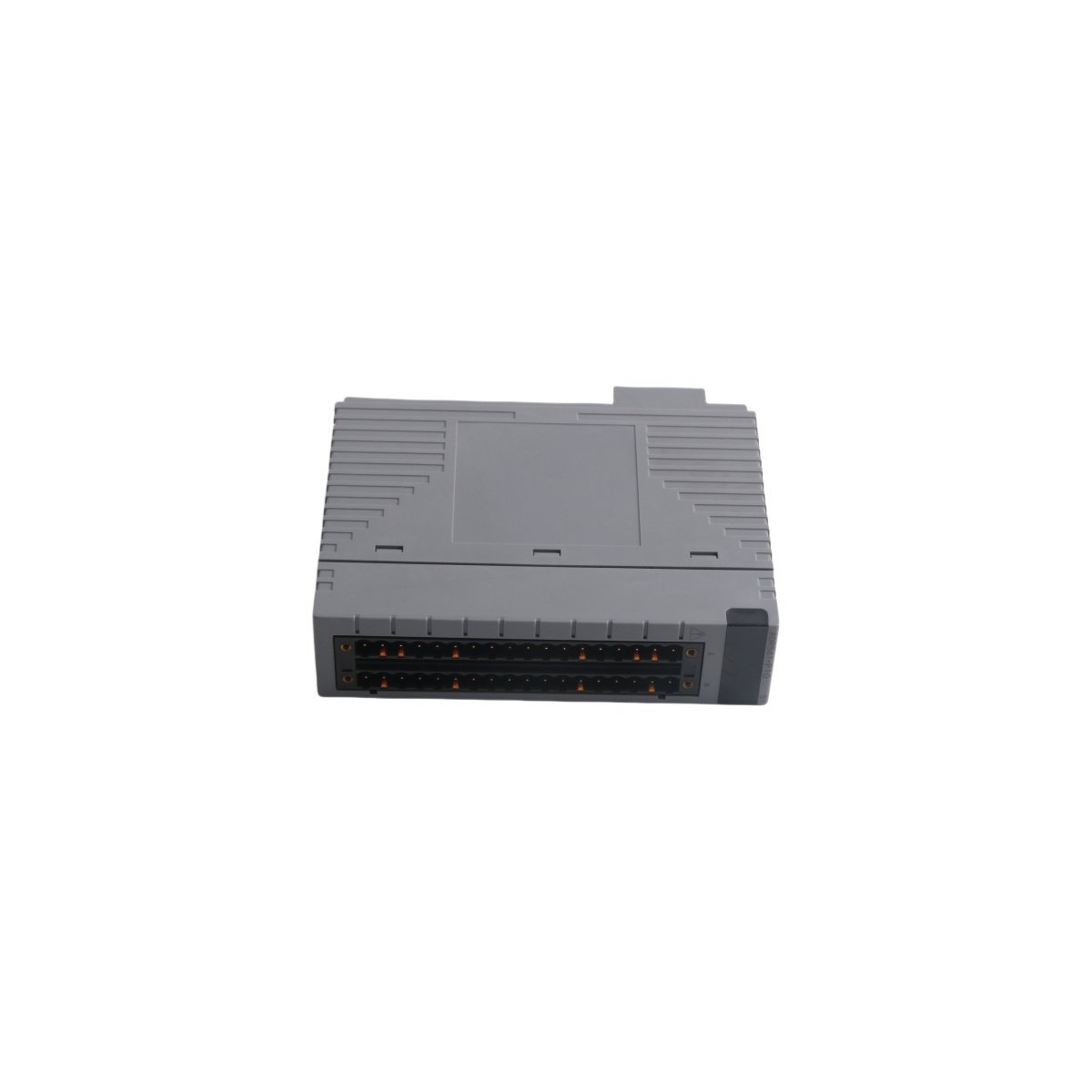

The Yokogawa ADR541-P10 S1 delivers high-performance signal management for complex industrial automation. This module features 16 independent output channels to drive multiple field devices simultaneously. It integrates pulse width modulation (PWM) to provide granular control over connected equipment. Furthermore, the unit supports time-proportional output functions for specialized process timing. These capabilities ensure high operational accuracy across diverse control loops. Consequently, the module serves as a versatile interface within the CENTUM VP architecture.

Rugged Design and Construction

Yokogawa builds this relay output module with premium materials for long-term industrial reliability. The internal components offer superior electrical conductivity to maintain signal purity. Additionally, the hardware provides excellent thermal stability during continuous operation. The compact modular footprint facilitates easy installation in high-density control cabinets. Although the design omits a status display, it prioritizes core functional durability. This makes the module suitable for standard industrial environments requiring consistent performance.

System Integration and Safety

This analog output unit fits seamlessly into existing distributed control system (DCS) frameworks. Its modular nature helps engineers reduce both installation time and overall labor costs. The hardware protects system integrity by adhering to strict manufacturing safety standards. Because it lacks explosion protection, it operates best in non-hazardous industrial areas. The module reflects Yokogawa’s commitment to precision and robust engineering. It effectively bridges the gap between digital logic and physical process actuation.

Technical Specifications
