Description

Brief Product Description

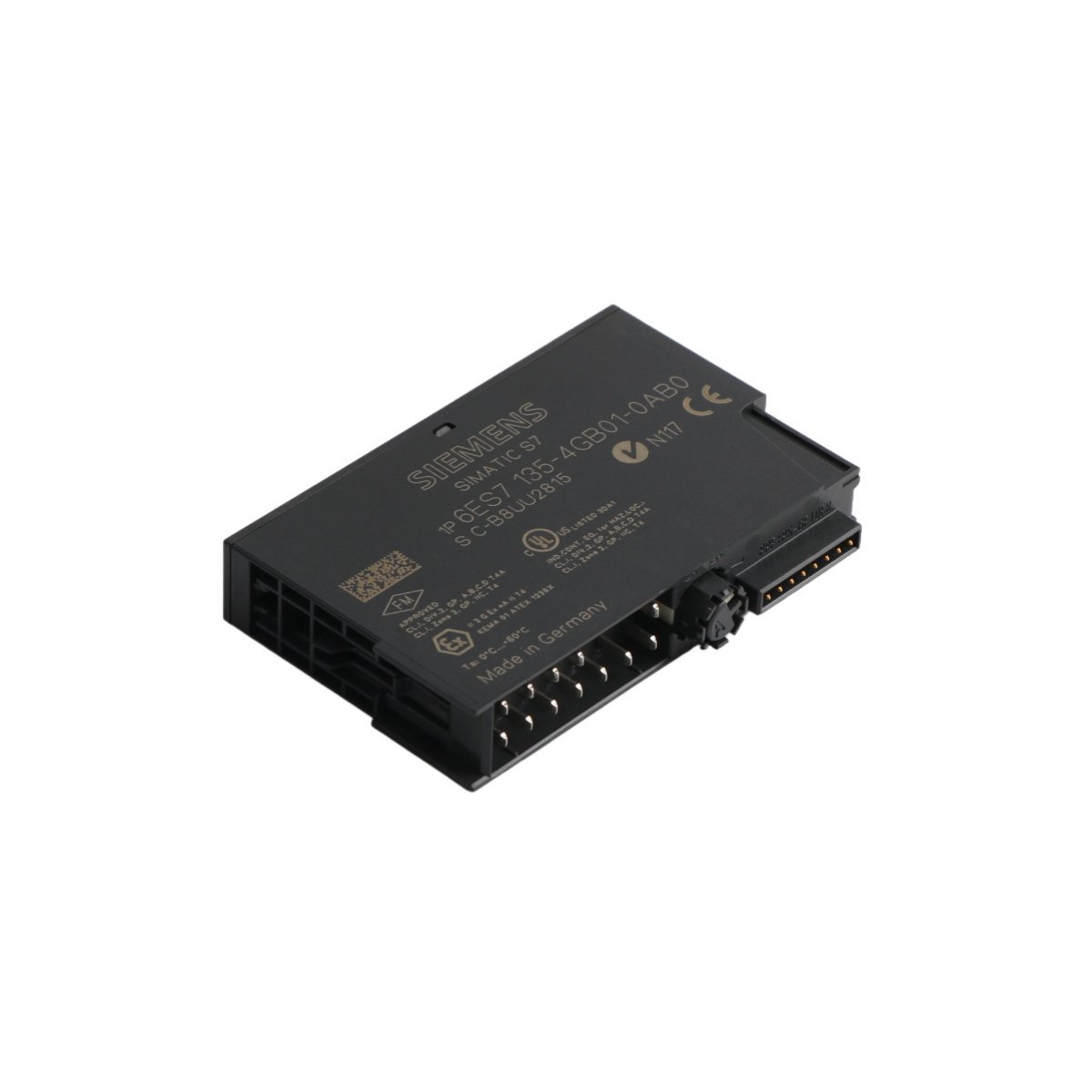

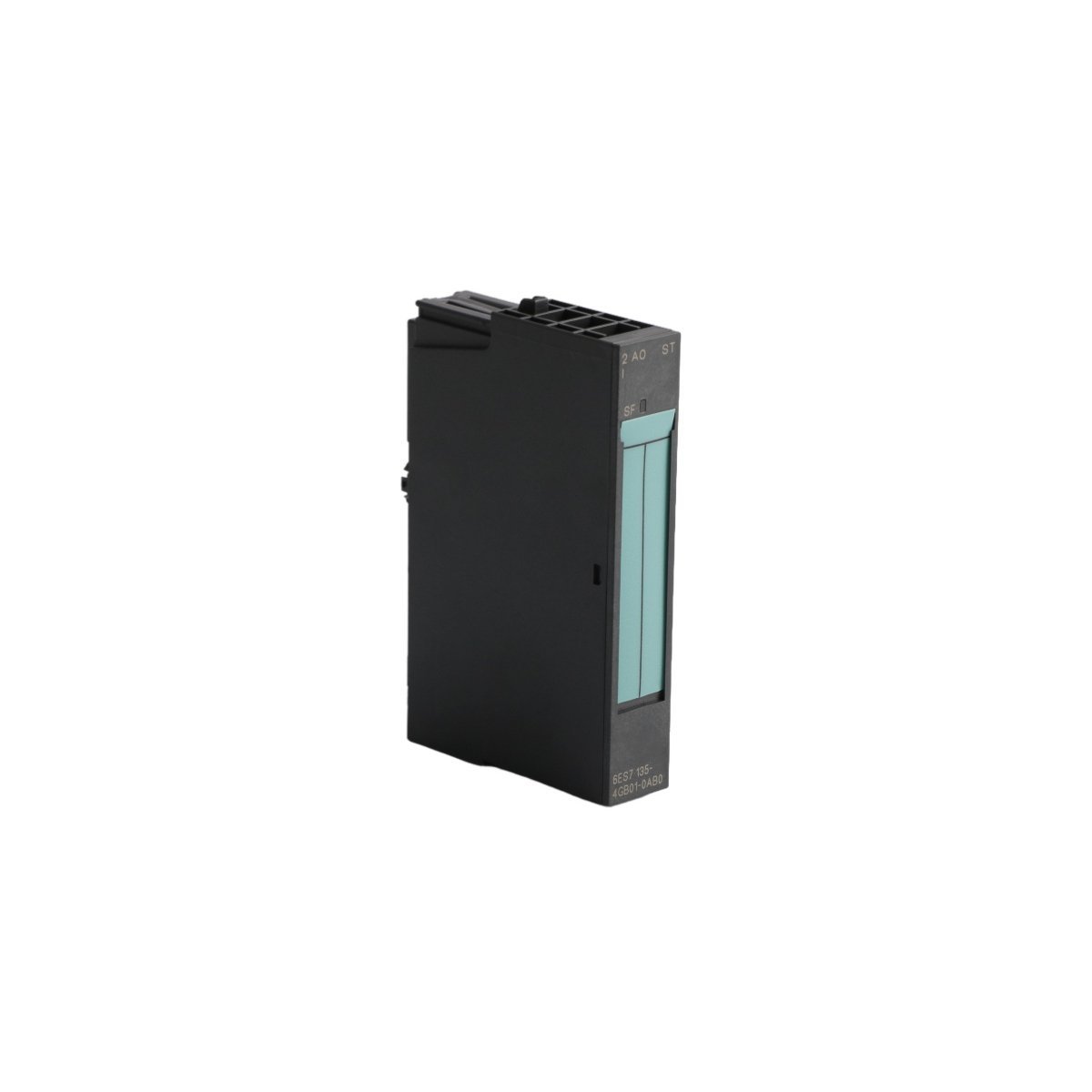

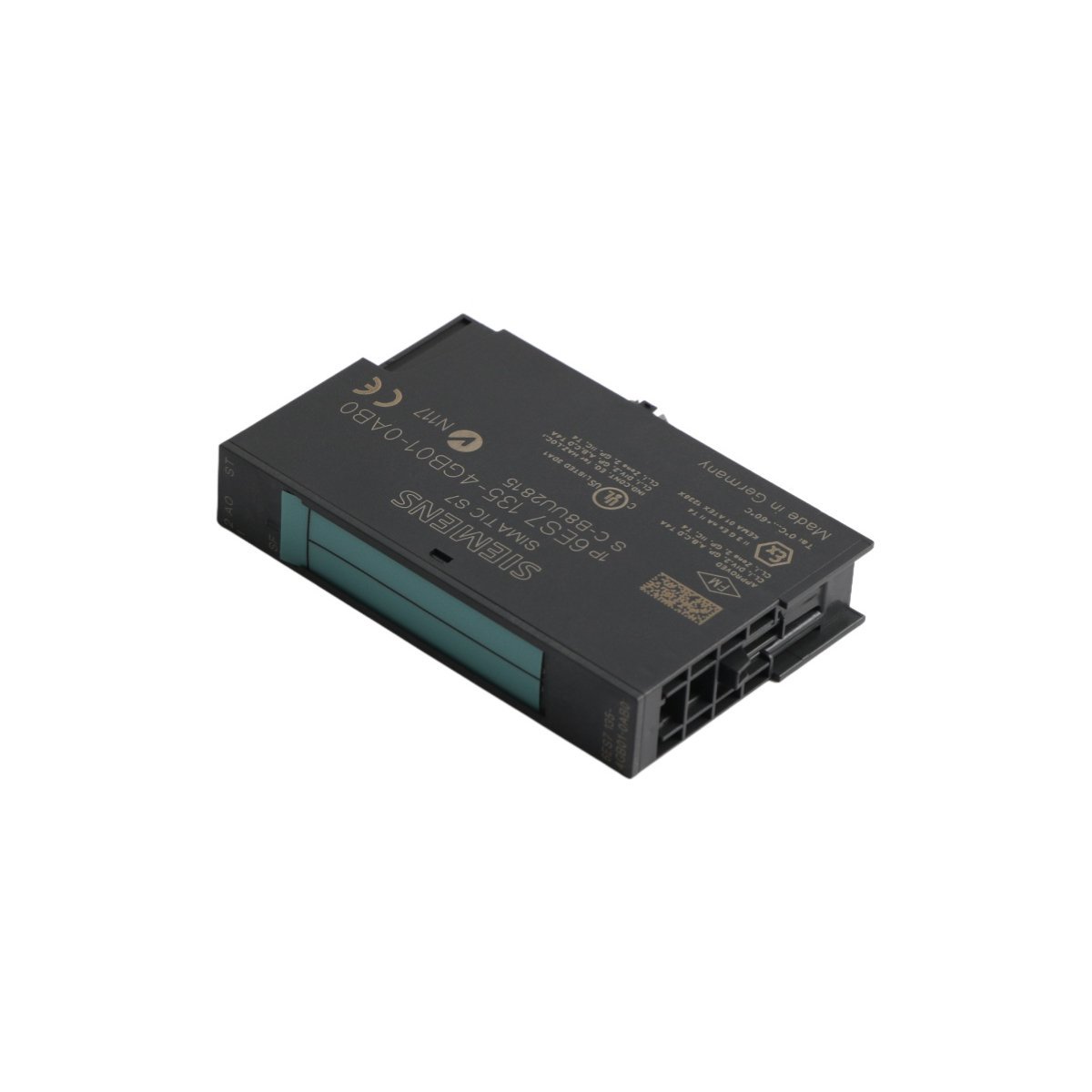

The Siemens 6ES7135-4GB01-0AB0 is a high-precision 2-channel analog output module designed for the SIMATIC ET 200S distributed I/O system. It provides isolated current outputs of ±20mA or 4-20mA with 13-bit resolution to drive actuators, valves, and other process control field devices.

High-Speed Precision Analog Control

The Siemens 6ES7135-4GB01-0AB0 belongs to the “Standard” (ST) class of electronic modules within the ET 200S distributed I/O family. This module manages two independent analog current outputs, converting digital CPU commands into precise industrial signals. Because it features a conversion time of less than 1ms, it supports high-speed control loops that require immediate physical responses. Engineers primarily utilize this module to interface with proportional valves, frequency converters, and varied actuators that rely on standardized current ranges.

Isolated Signal Integrity and Diagnostics

Signal reliability remains a priority for the 6ES7135-4GB01-0AB0. The module incorporates electrical isolation between the backplane bus and the load, effectively protecting the central controller from field-side electrical interference. Furthermore, the integrated “SF” (System Fault) LED provides a visible status indicator for rapid onsite troubleshooting. If the module detects an internal fault or a loss of supply voltage, it immediately reports the diagnostic interrupt to the SIMATIC DP master. This proactive error detection minimizes process interruptions and simplifies maintenance in complex automated environments.

Compact Integration and Versatile Installation

Designed with a slim 15mm form factor, the 6ES7135-4GB01-0AB0 maximizes space efficiency within industrial control cabinets. This module installs easily onto standard ET 200S terminal modules, allowing for “hot swapping” during operation to reduce system downtime. Its lightweight German-engineered construction ensures durability in demanding environments characterized by high vibration or electromagnetic noise. By supporting both ±20mA and 4-20mA ranges, the module provides the flexibility needed for various process automation architectures without requiring additional hardware variants.

Key Technical Characteristics

• Dual Analog Channels: Supports two isolated current outputs (2 AO I).
• High Resolution: Delivers 13-bit plus sign resolution for granular control of field equipment.
• Multiple Current Ranges: Compatible with ±20 mA and 4 to 20 mA industrial standards.
• Fast Response: Achieves a cycle time of less than 1ms for time-critical applications.
• Robust Diagnostics: Includes group fault indicators and diagnostic interrupts for high system availability.
• Space-Saving Design: 15mm module width allows for high-density I/O configurations.

Technical Specifications
