Description

Brief Product Description

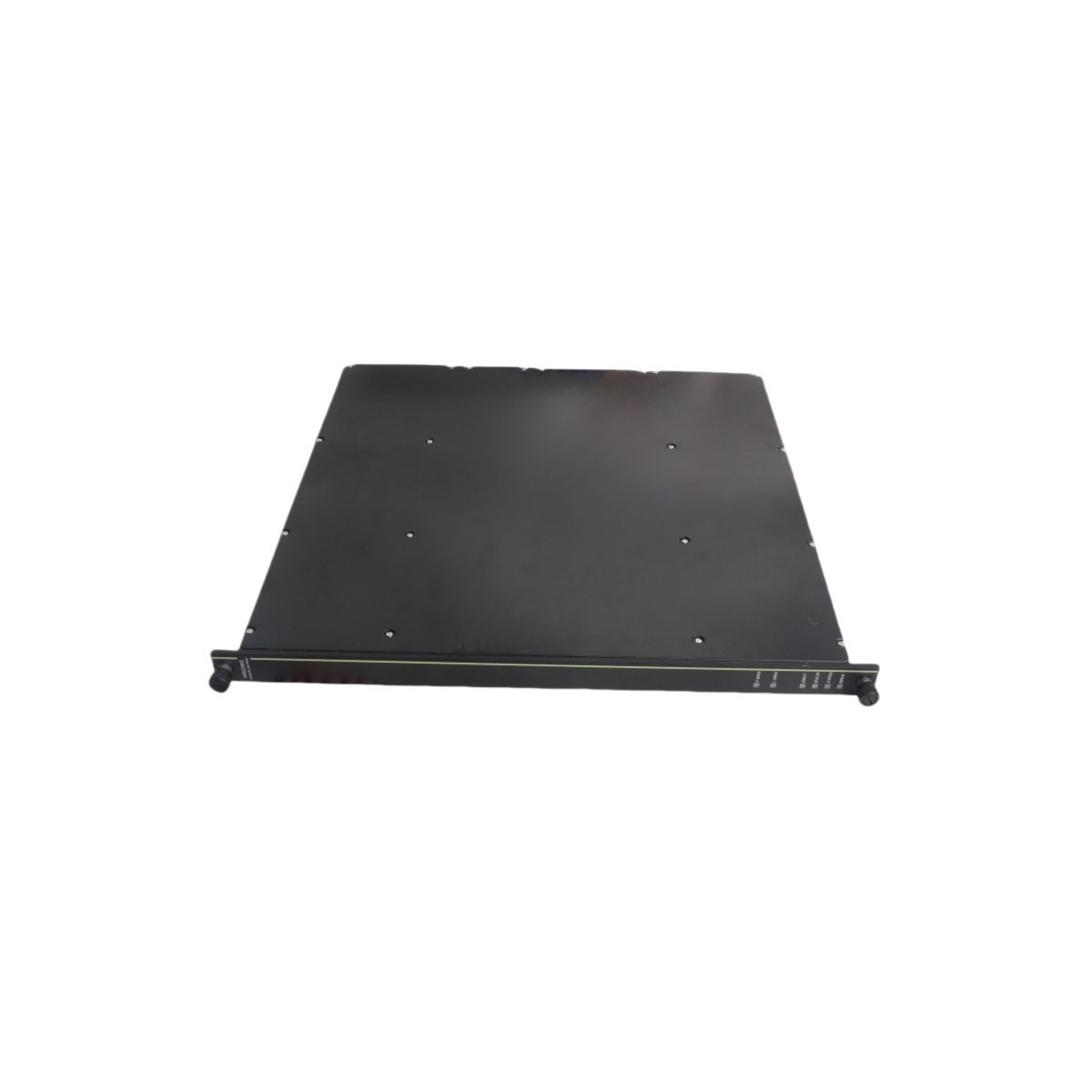

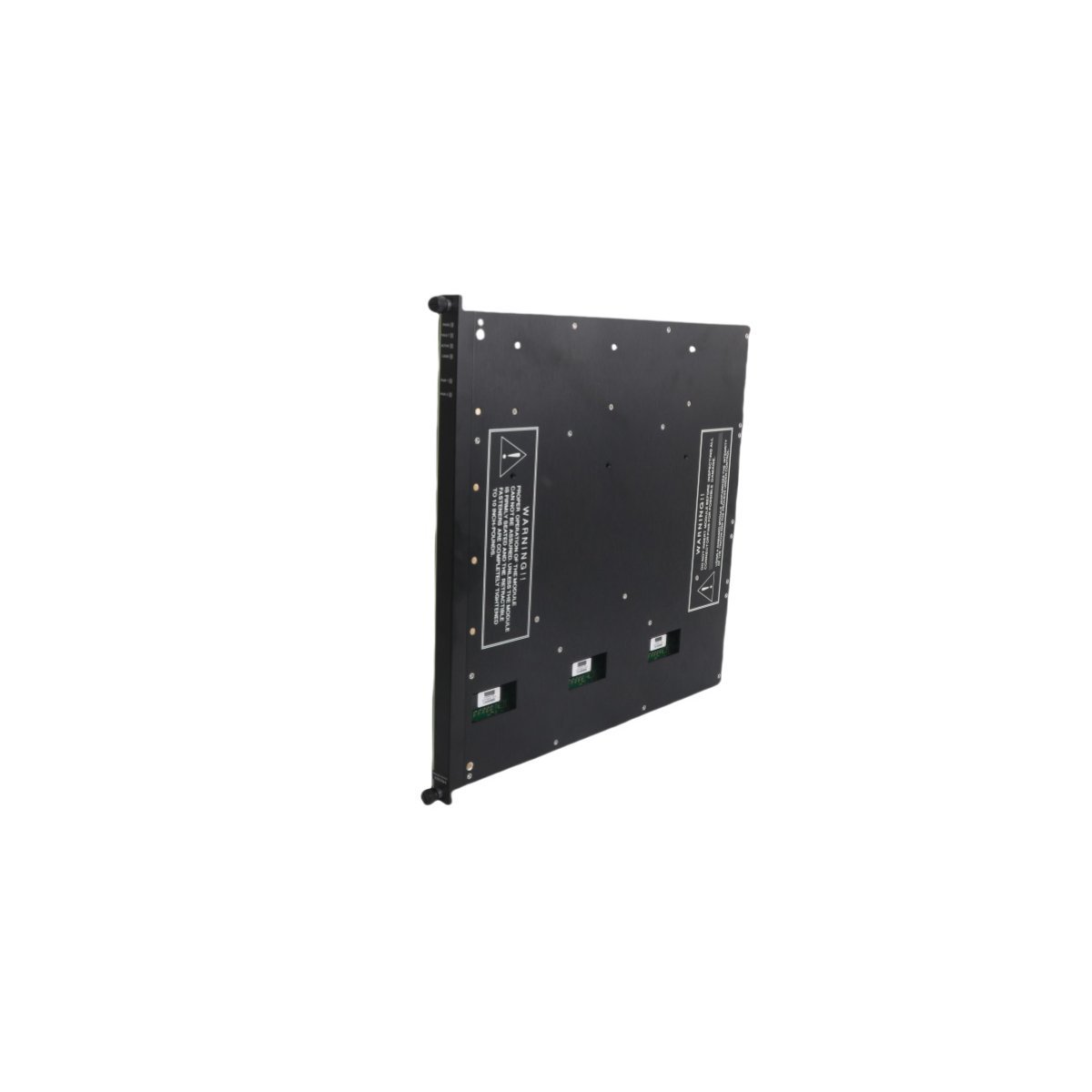

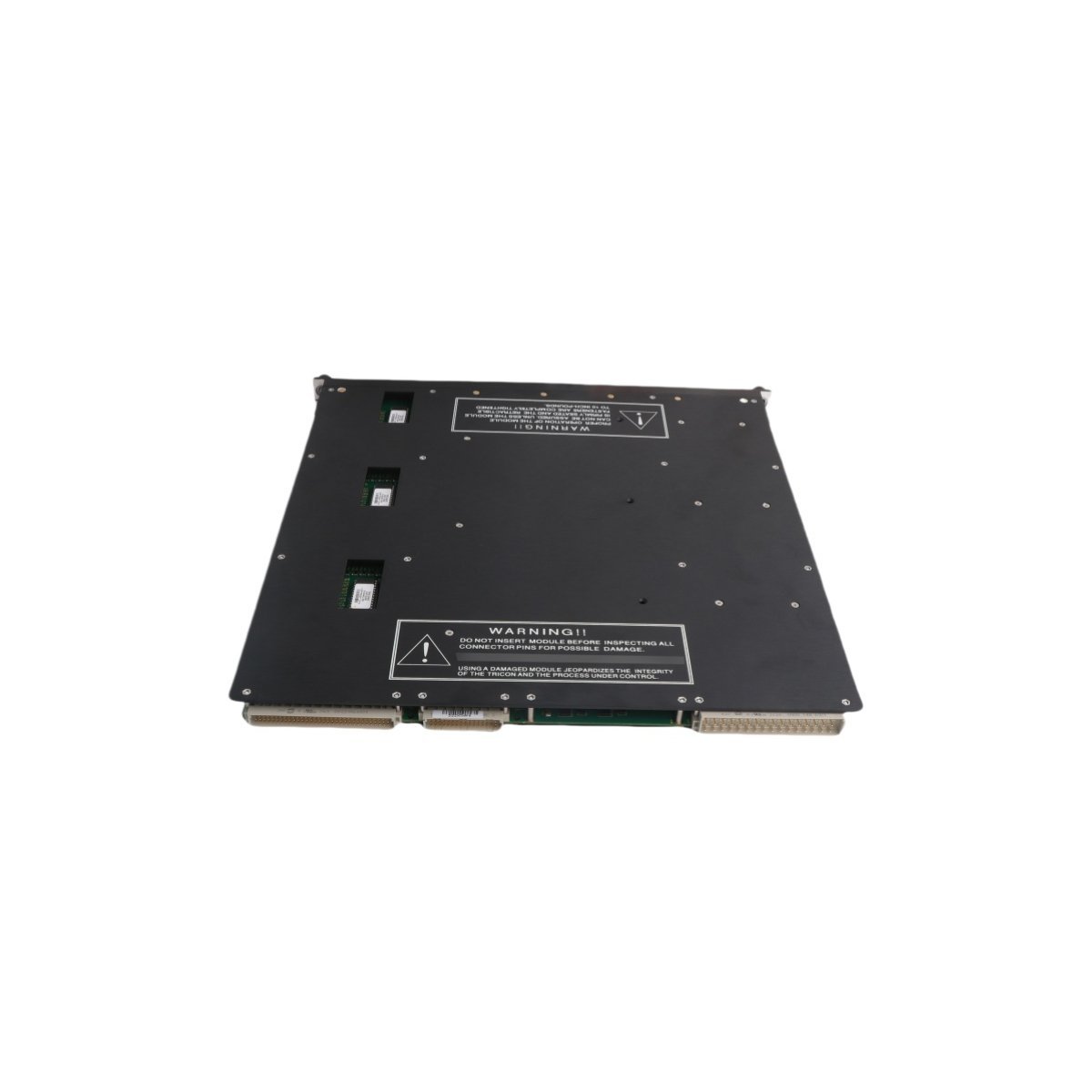

The Triconex 3805H is an 8-channel, Triple Modular Redundant (TMR) analog output module designed to provide high-precision 4-20mA signals for safety-critical actuators.³ It features SIL3-rated fault tolerance and 12-bit resolution to ensure accurate process control in hazardous industrial environments.⁴

Fault-Tolerant Analog Control for SIL3 Environments

The Triconex 3805H serves as a high-integrity interface for Safety Instrumented Systems (SIS), delivering 8 channels of precise analog control.⁵ By leveraging Triple Modular Redundant (TMR) technology, the module identifies and compensates for internal hardware failures in real time.⁶ This architecture ensures that critical signals, such as those governing control valves or turbine speeds, remain uninterrupted even during a component malfunction. Consequently, the 3805H meets the rigorous requirements for SIL3 safety loops, making it an essential component for emergency shutdown (ESD) and fire and gas (F&G) systems.

Precision Signal Delivery and Diagnostic Coverage

Operating with 12-bit resolution, the 3805H module provides fine-grained control over a range of 0 to 21.2 mA.⁷ The module maintains an impressive accuracy of less than 0.25% of the Full Scale Range (FSR), ensuring that field devices receive exact setpoints.⁸ Furthermore, the unit includes an integrated +6% overrange capability to handle process surges effectively.⁹ To maintain system health, the module continuously monitors its current loops for open circuits or field-side faults. Transitioning to this proactive diagnostic model allows maintenance teams to rectify loop issues before they impact the safety of the facility.

Rugged Engineering for Global Industrial Applications

The 3805H reflects the robust engineering standards of the Schneider Electric (formerly Invensys) Triconex portfolio. Housed in a large-format chassis, the module utilizes DC-coupled current loops designed to withstand the electromagnetic interference typical of heavy industrial zones.¹⁰ While it operates reliably in standard conditions from 0°C to 60°C, its internal components are rated to resist environmental stressors found in oil and gas, chemical processing, and power generation sectors. Moreover, the independent isolation of each channel prevents electrical faults from migrating between loops, thereby ensuring maximum system availability and data integrity across the entire DCS network.

Key Technical Characteristics

• 8 Isolated Analog Outputs: Delivers dedicated 4-20mA signals with independent calibration for each channel.¹¹
• TMR Fault Tolerance: Employs three-way hardware voting to eliminate single points of failure in the output stage.¹²
• 12-Bit Resolution: Provides high-precision signal increments for demanding process automation tasks.¹³
• Automated Loop Monitoring: Detects and reports field-side wiring faults and internal circuit discrepancies instantly.
• Industrial Hardening: Designed for high-vibration and hazardous areas with comprehensive galvanic protection.
• Extensive Operating Range: Supports overrange signaling up to 21.2 mA for specialized control scenarios.
