Description

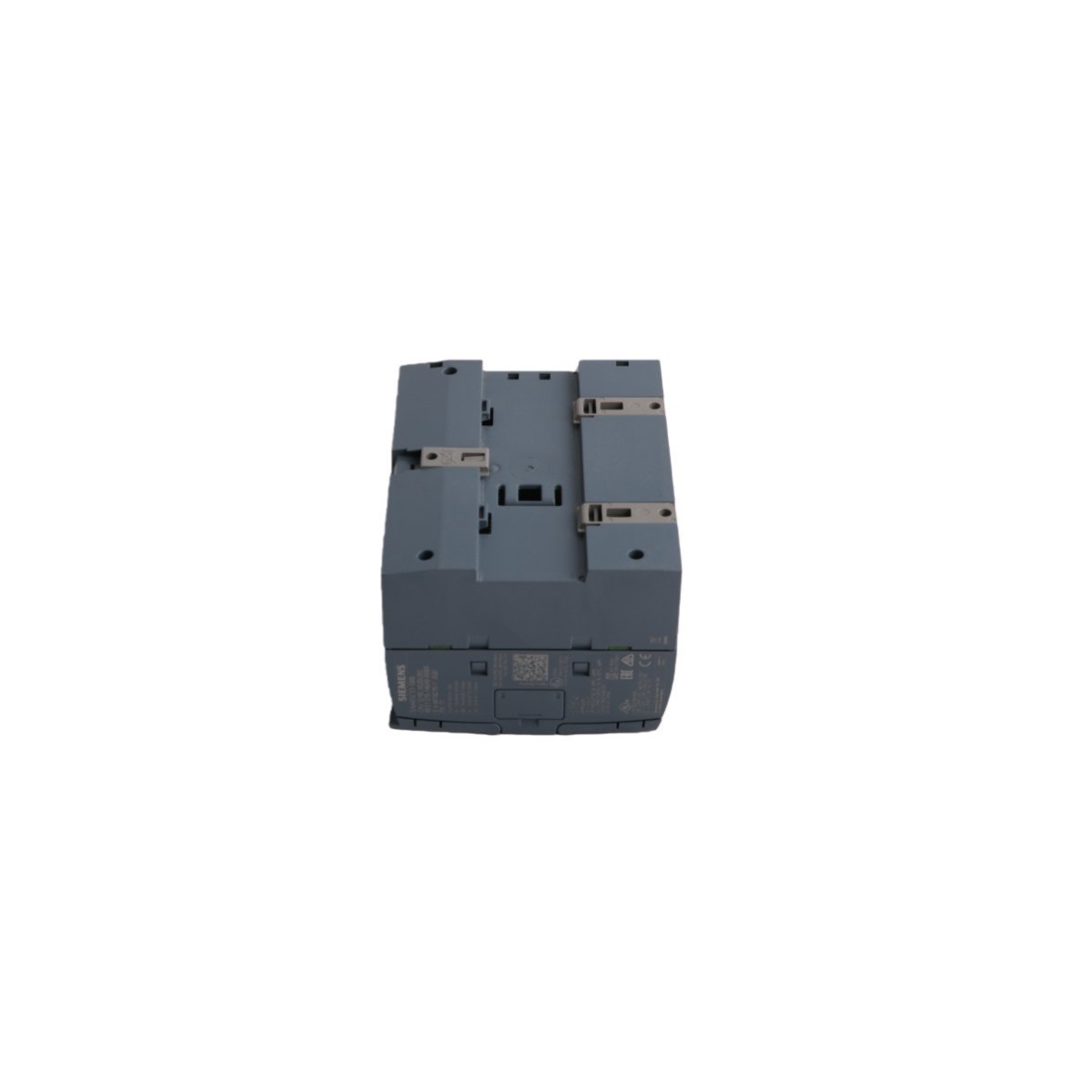

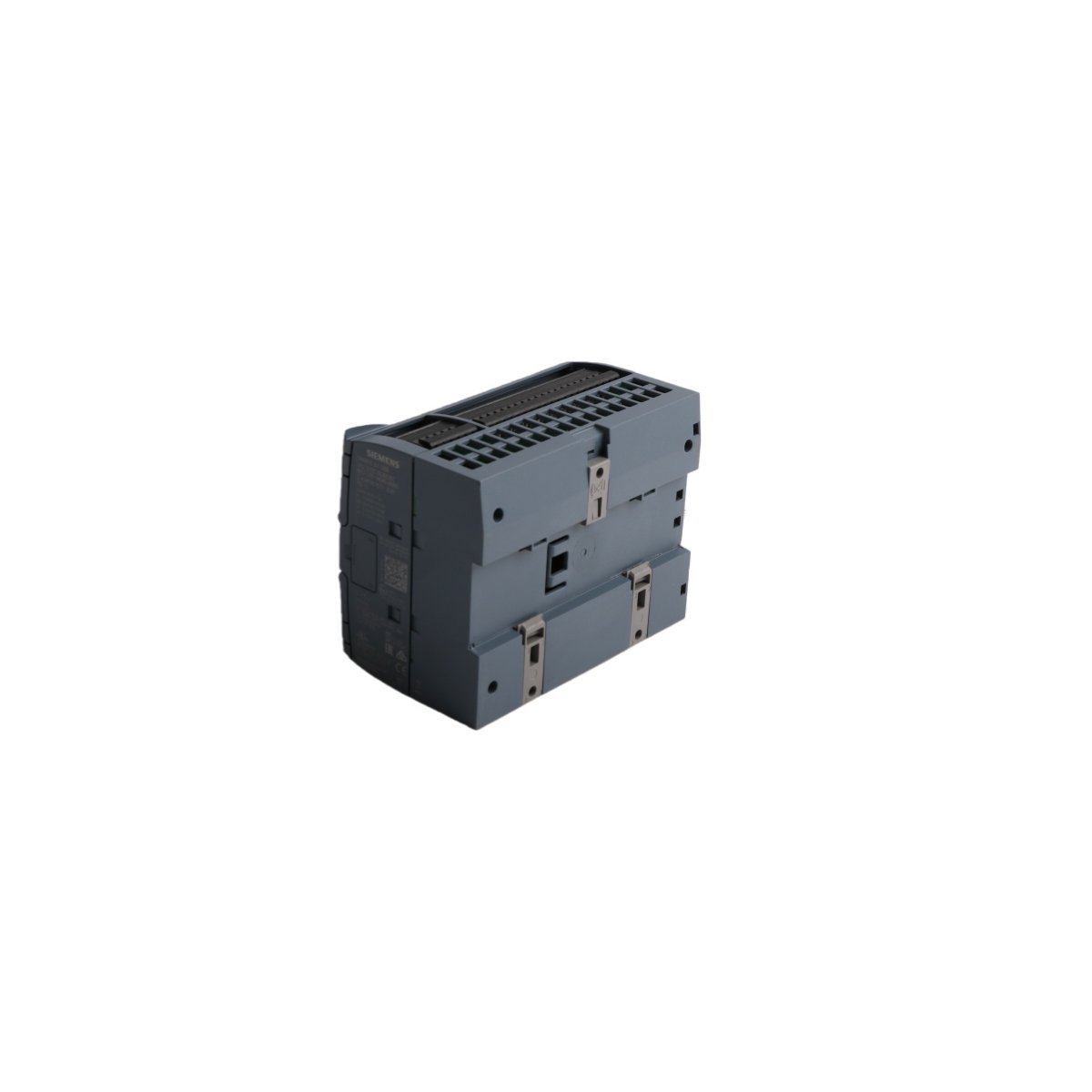

Siemens 6ES7215-1AG40-0XB0 as a central controller for the SIMATIC S7-1200 automation system. This specific unit features a DC/DC/DC configuration, meaning it uses 24 V DC for power, inputs, and outputs. The device integrates 14 digital inputs and 10 digital transistor outputs directly on the CPU board. Users also benefit from two onboard analog inputs and two analog outputs for precise process control. Dual PROFINET ports enable fast communication and simple network topologies without extra switches. The controller offers 125 KB of work memory to handle complex logic and data tasks efficiently. Operators program the unit using the TIA Portal engineering framework for streamlined development. High-speed counting and pulse train output functions support basic motion control applications directly. Robust design ensures reliable operation in harsh industrial environments with varying temperatures. This compact CPU serves as the brain for machinery in packaging, material handling, and processing sectors.

Technical Specifications

Application and Integration

Facilities deploy this CPU in standalone machines requiring integrated I/O and communication. The dual PROFINET interface allows daisy-chain configurations to save on network hardware costs. Engineers utilize the onboard analog channels for monitoring pressure, temperature, or flow rates directly. Transistor outputs provide rapid switching speeds suitable for controlling servo drives or valves. The extensive work memory supports large programs with numerous data blocks and function calls. Maintenance teams access diagnostic information remotely via the integrated web server functionality. Users expand the system with signal boards or communication modules without increasing the footprint. This controller executes logic cycles quickly to ensure precise synchronization of mechanical components. Its versatility makes it an ideal choice for modernizing older relay-based control systems.
