Product Overview

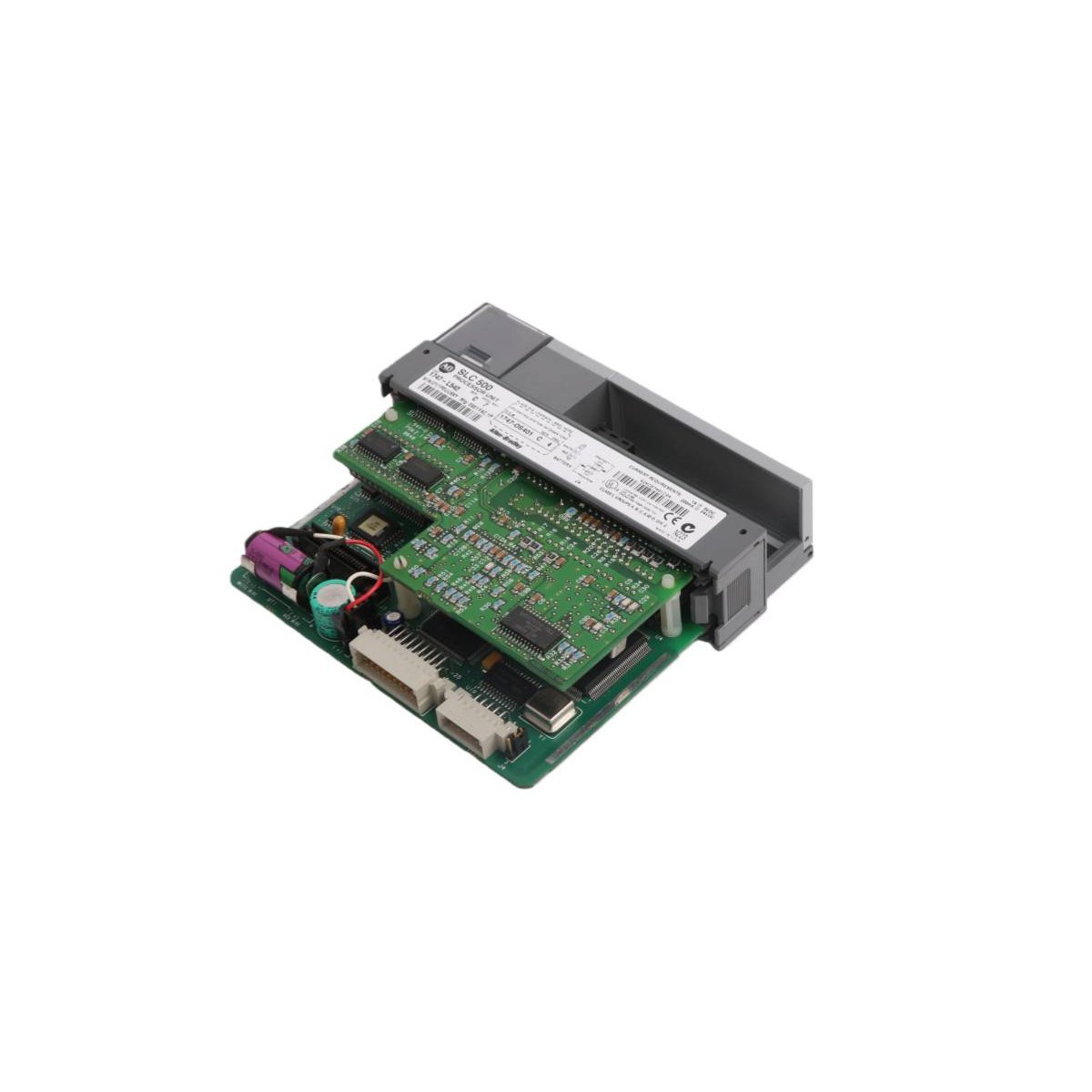

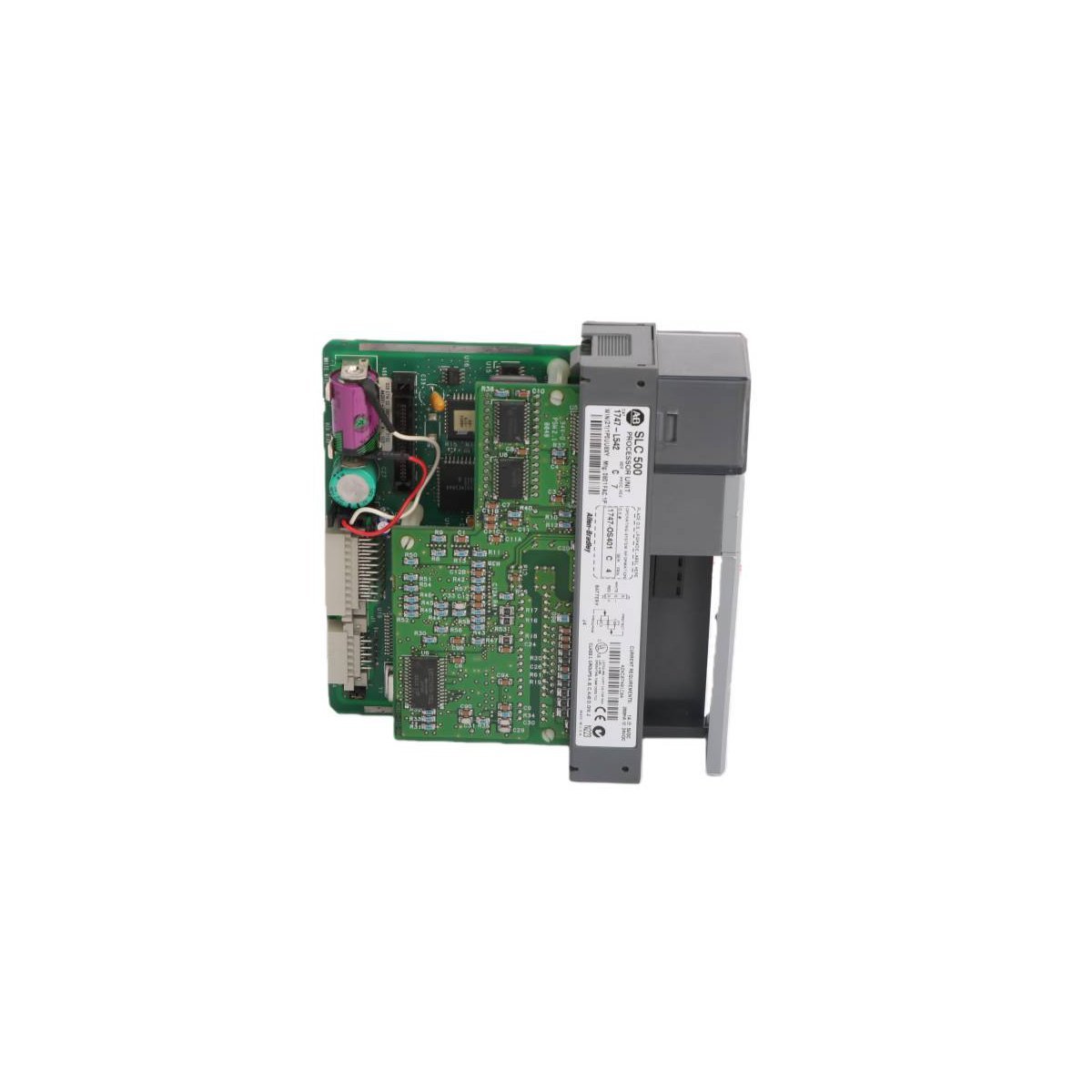

The Allen-Bradley 1747-L542 functions as a high-performance CPU within the SLC 500 controller series. Rockwell Automation engineered this processor to provide robust control for mid-sized automation tasks, supporting up to 4,096 discrete input/output points. Engineers typically mount this module in the first slot of an SLC 500 chassis, where it interfaces directly with the backplane for power and data communication. Because of its reliable scan rates and versatile networking options, this processor maintains widespread utility in legacy industrial control architectures.

Technical Specifications

• Model Number: 1747-L542
• Controller Series: SLC 5/04
• User Memory Capacity: 32K words
• Maximum I/O Capacity: 4,096 points
• Program Scan Time: 0.9 ms per 1K words
• Communication Ports: RS-232 (DH-485 protocol) and Data Highway Plus (DH+)
• Memory Backup: Battery-backed RAM and optional Flash EPROM
• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Physical Dimensions: 3.5 x 13 x 14.5 cm
• Weight: 0.9 kg

Key Functional Features

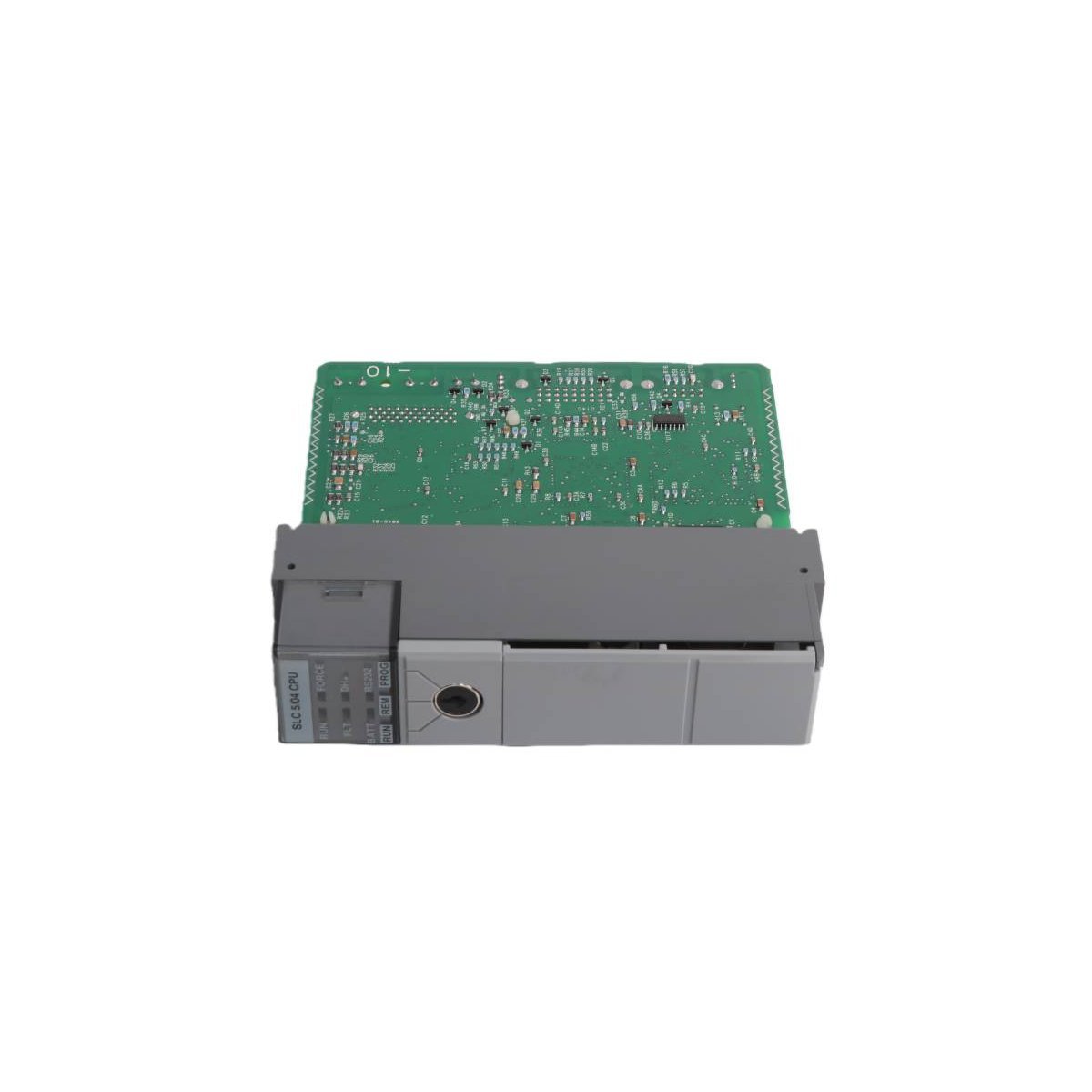

Engineers utilize the dual communication ports to integrate the controller into complex networks. The integrated Data Highway Plus port facilitates high-speed data exchange with other Allen-Bradley controllers, SCADA systems, and operator interfaces. Furthermore, the front-mounted LED indicators allow maintenance personnel to monitor system health in real-time, providing immediate diagnostics for CPU faults, battery status, and active communication. The design also emphasizes data security, as the combination of battery-backed RAM and non-volatile memory storage ensures program retention during unexpected power loss.

Industrial Applications

This controller excels in manufacturing environments that require consistent logic execution and modular expansion. The 1747-L542 supports up to three local chassis, which allows the system to scale according to specific process requirements. Its ruggedized construction withstands the high vibration and shock levels commonly found in heavy industrial settings, ensuring that automation processes remain stable over long operational lifecycles.
