Description

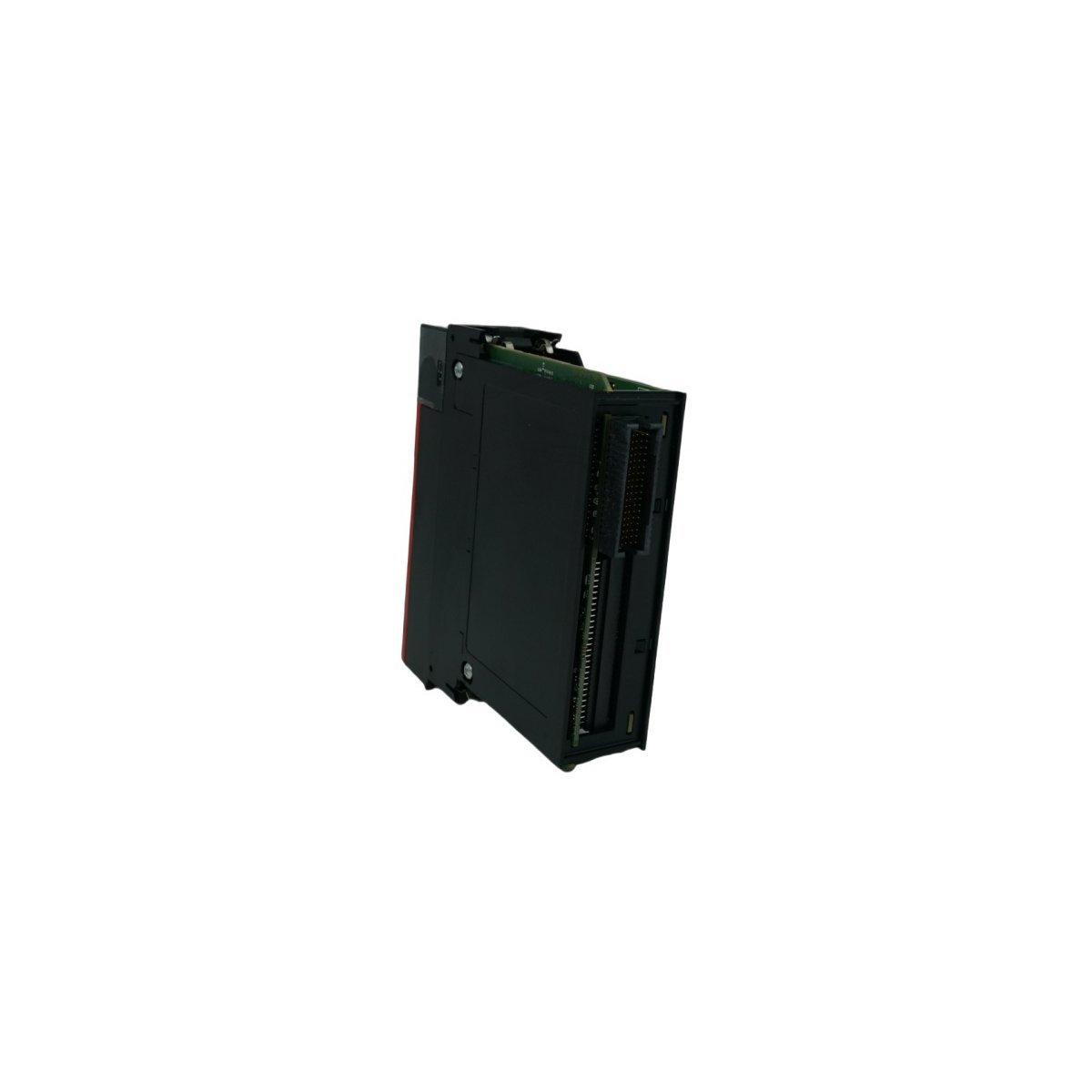

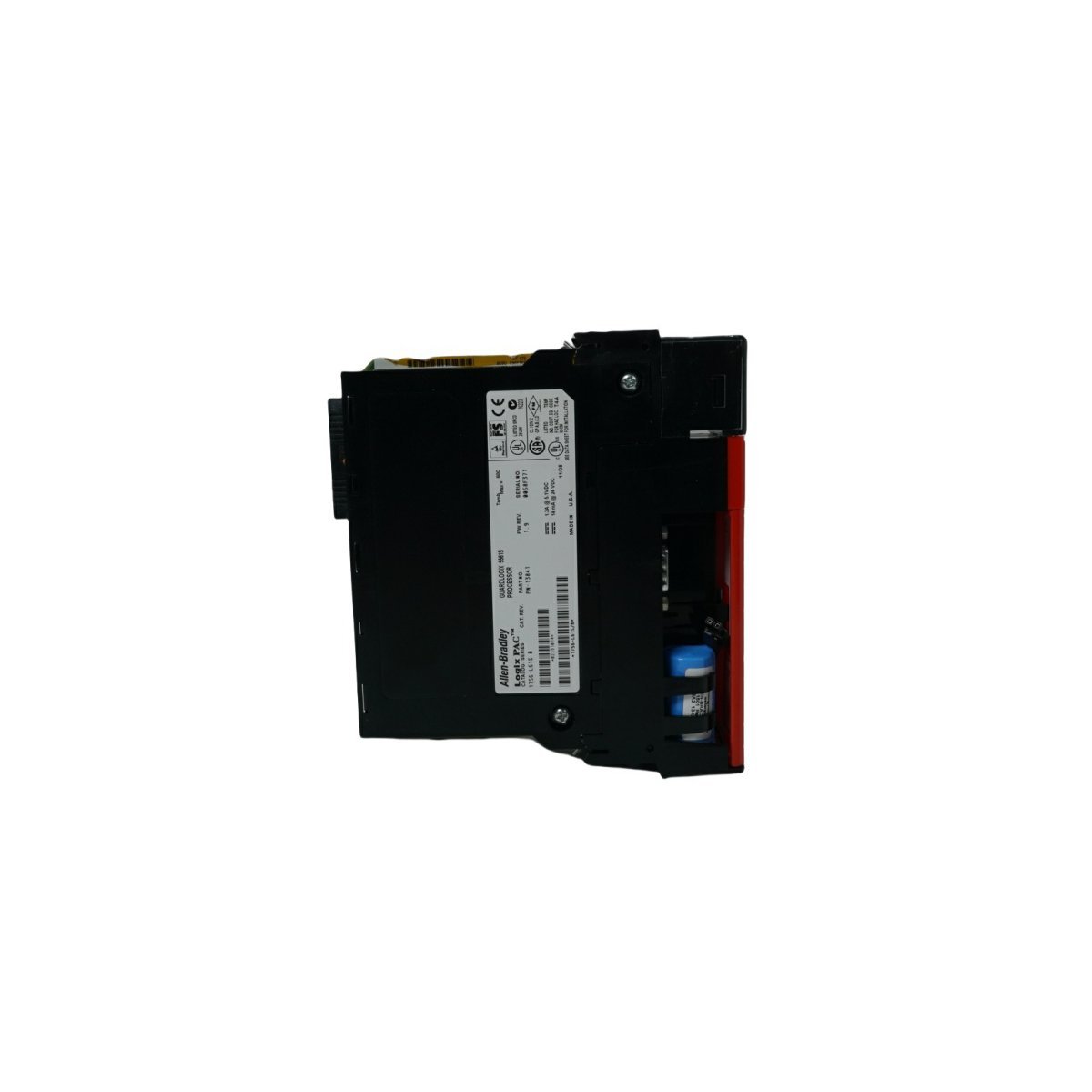

The Allen-Bradley 1756-L61S functions as a high-performance safety controller within the GuardLogix 5561S system. This module utilizes a primary safety controller and a partner safety partner module. Together, they achieve up to SIL 3 and PLe safety ratings. It provides a specialized environment for both standard and safety-related control tasks. This integration simplifies system design by using a single programming environment. Consequently, users manage machine safety and standard logic within one unified platform.

Memory Configuration and Performance

This GuardLogix CPU features 2 MB of standard user memory for general logic. Additionally, it reserves 1 MB of safety memory for protective routines. The module also contains 478 KB of dedicated I/O memory for signal processing. This distribution ensures that safety tasks remain independent and prioritized. For data persistence, the unit supports CompactFlash cards for non-volatile storage. Furthermore, the processor maintains high-speed communication across the 1756 ControlLogix backplane. This speed supports rapid response times for critical safety events.

Environmental Resilience and Integration

The 1756-L61S offers enhanced reliability through its conformal coating. This protective layer resists moisture, dust, and airborne chemical pollutants. Therefore, the module thrives in demanding industrial settings and harsh atmospheres. To communicate across networks, users pair this CPU with 1756 interface modules. It supports EtherNet/IP, ControlNet, and DeviceNet protocols for broad connectivity. The unit also draws 1200 mA at 5.1V DC to sustain its advanced processing power.

Technical Specifications

System Compatibility

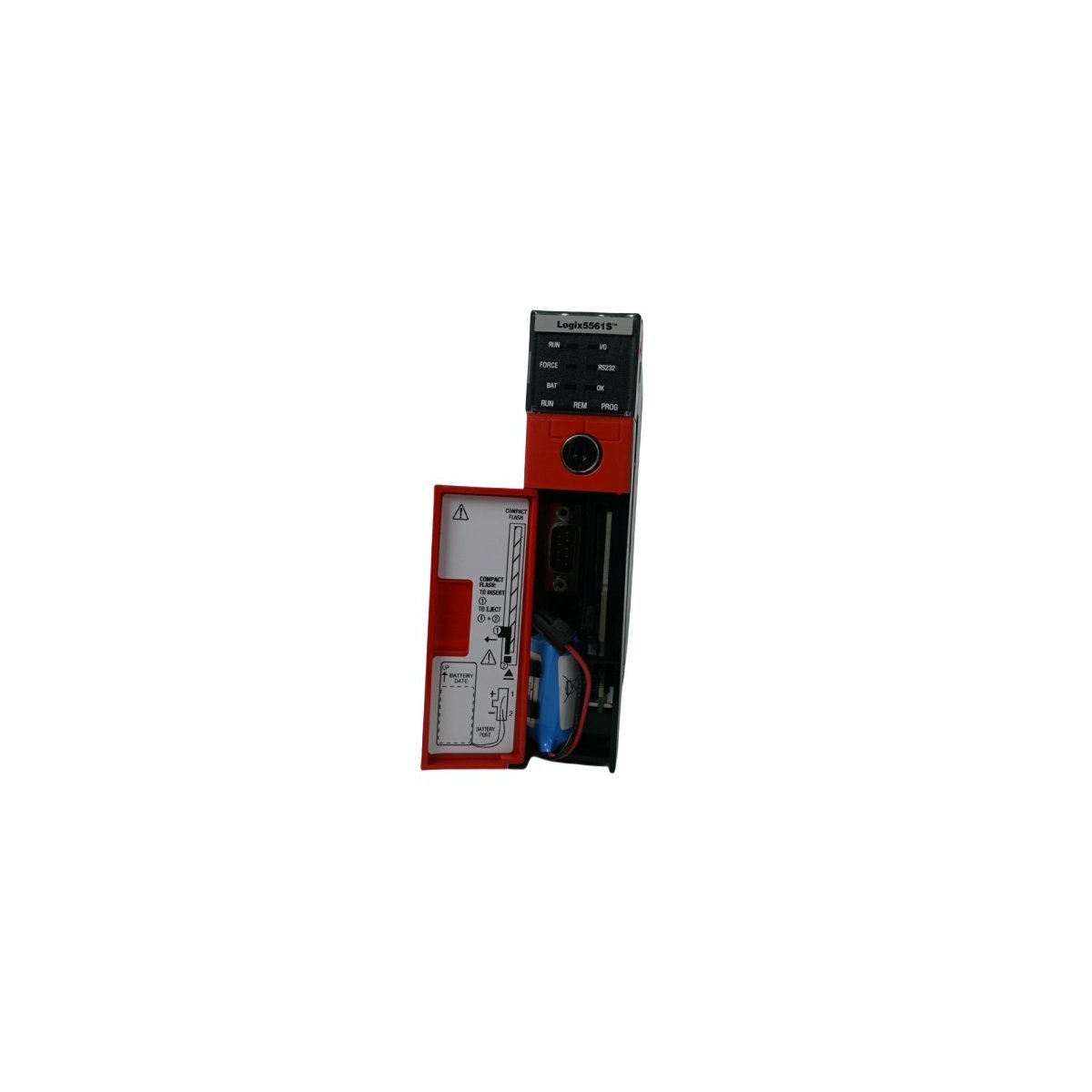

This processor fits into any standard 1756 ControlLogix chassis. It requires a 1756-LSP Safety Partner module for full safety functionality. Maintenance teams can easily monitor system health via the integrated front-panel display. Moreover, the module supports up to 250 connections for complex network topologies. This makes it an ideal choice for automotive and heavy manufacturing plants.
