Product Overview

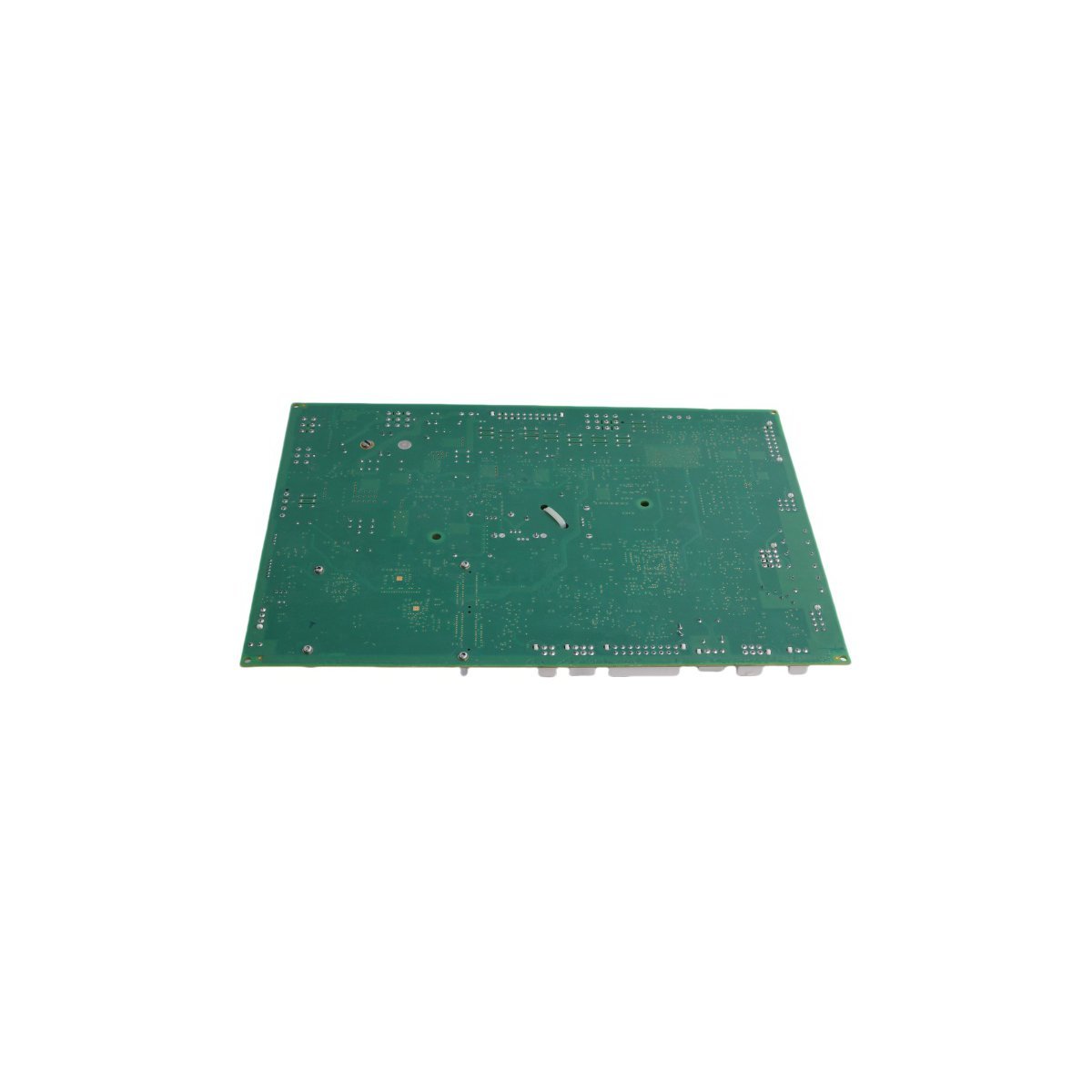

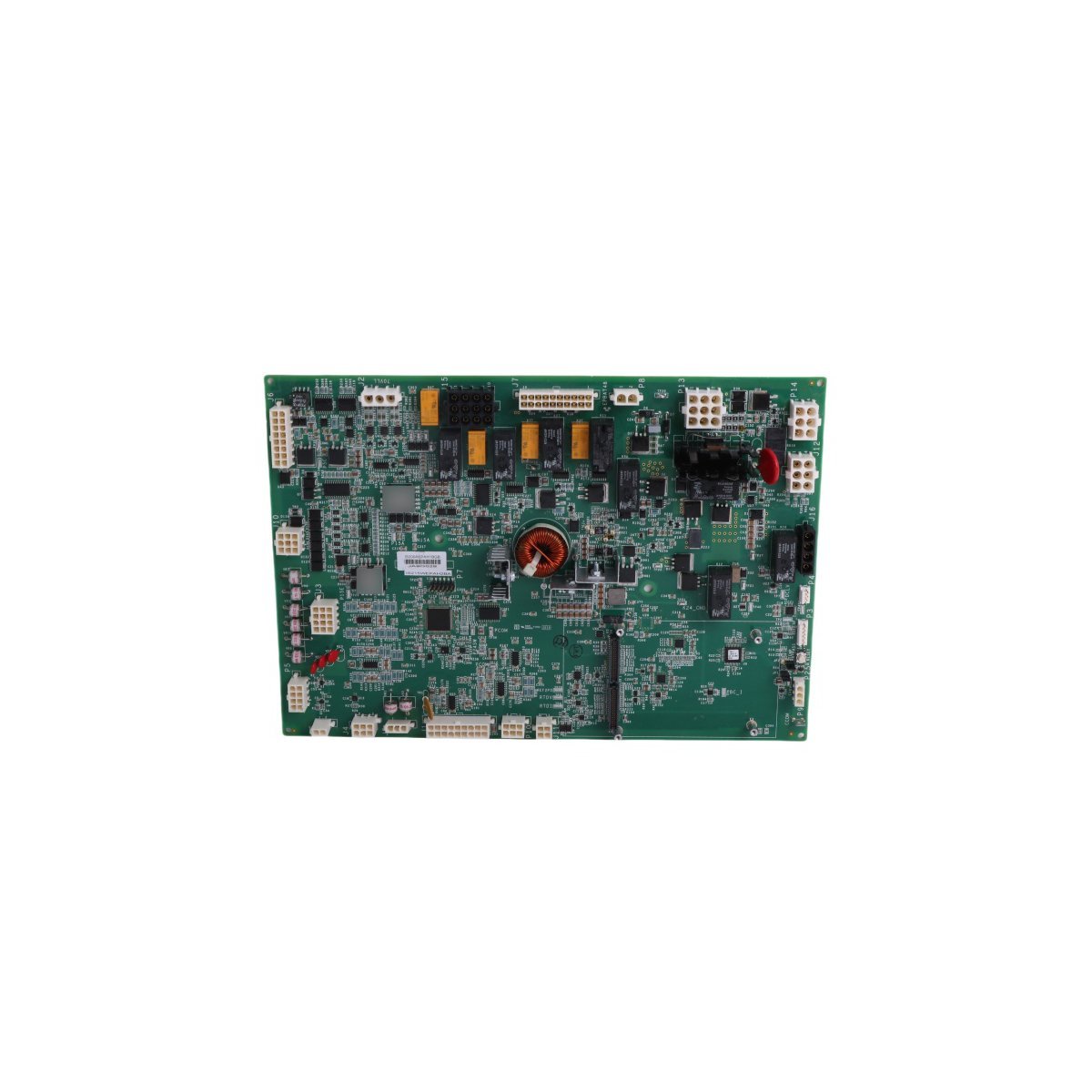

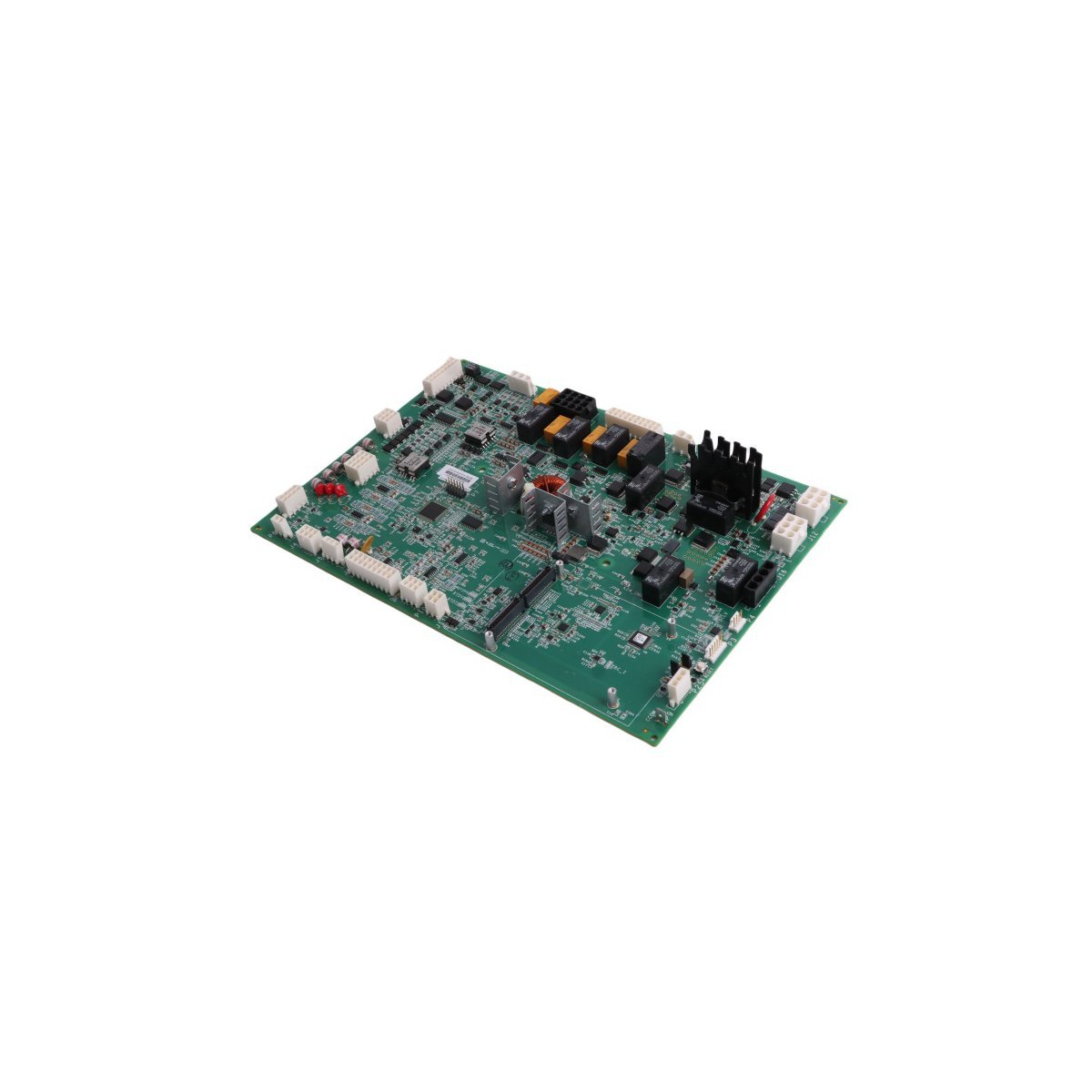

The General Electric IS200AEPAH1BMF is a high-performance I/O pack processor board designed for the Mark VIe and EX2100 control platforms. This module serves as a localized computational engine that digitizes field signals and executes high-speed control algorithms for industrial steam and gas turbines.

High-Speed Signal Processing and Control

The IS200AEPAH1BMF serves as the primary intelligence layer within an I/O pack, bridging the gap between physical terminal boards and the central controller. By processing analog and digital signals directly at the source, this board reduces network latency and enhances the overall responsiveness of the Speedtronic system. The processor executes complex logic routines locally, ensuring that turbine speed, torque, and protection variables remain within precise operational limits. Consequently, this decentralized processing architecture improves system reliability and enables more granular diagnostics for maintenance teams.

Integration with Mark VIe Ecosystem

As a core component of the Mark VIe series, the IS200AEPAH1BMF integrates seamlessly into high-speed Ethernet-based control networks (IONet). This board handles the synchronization of data packets across redundant paths, making it suitable for Triple Modular Redundant (TMR) applications where uptime is critical. The assembly features specialized onboard memory and logic components that maintain configuration data even during power cycles. Furthermore, the board’s design facilitates rapid “plug-and-play” replacement, allowing operators to swap I/O packs without extensive manual recalibration or system-wide downtime.

Industrial Standards and Thermal Management

Engineered for the rigorous environments of power generation facilities, the IS200AEPAH1BMF utilizes industrial-grade surface mount technology (SMT) to withstand vibration and thermal fluctuations. The compact form factor allows for dense mounting within EX2100 or Mark VIe cabinets, optimizing control room space. To ensure long-term stability, the PCB includes specialized thermal dissipation paths that prevent overheating during high-intensity processing cycles. This robust physical construction ensures that the processor maintains consistent timing and data integrity, even when subjected to the electromagnetic interference (EMI) typical of excitation and turbine control environments.

Technical Characteristics
