Description

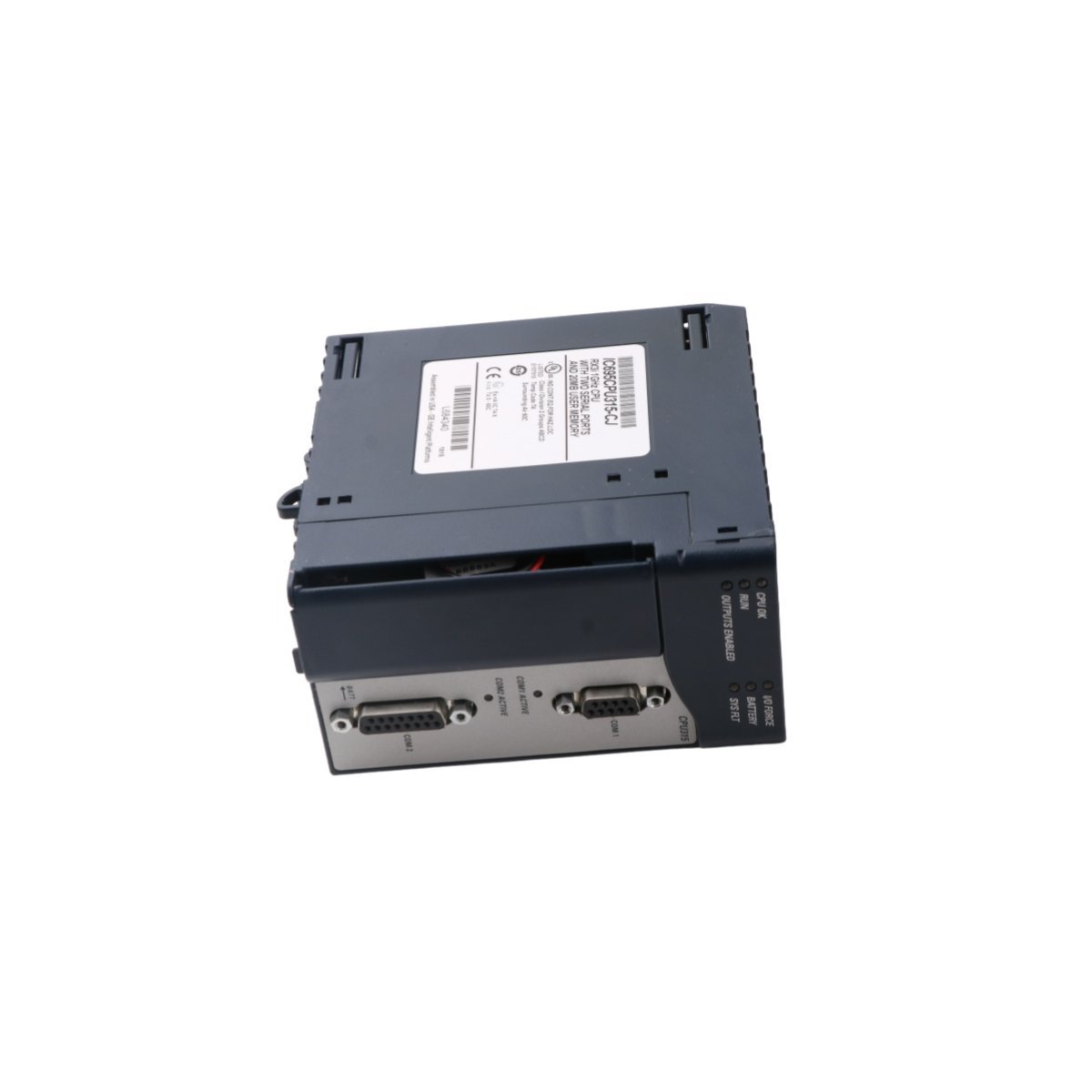

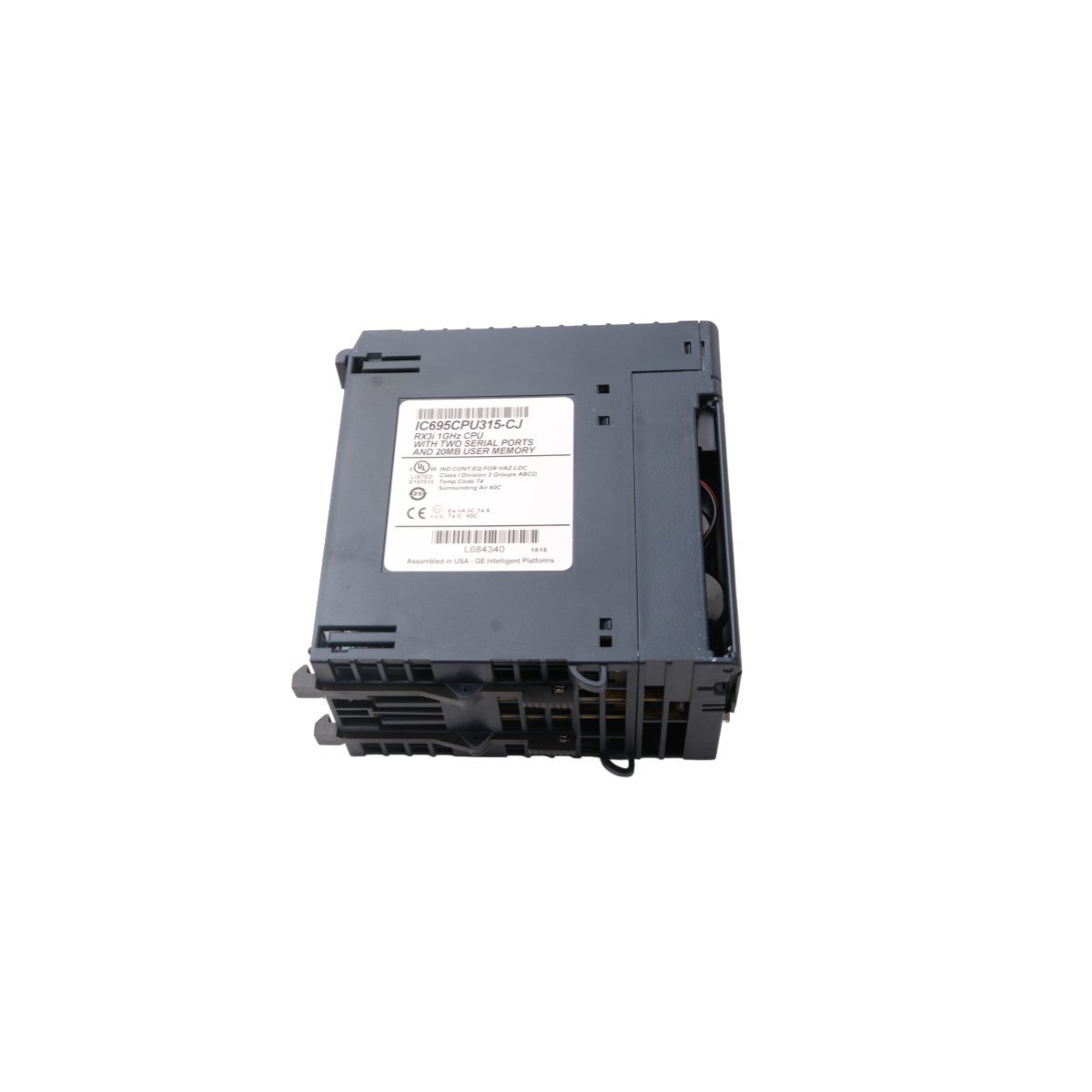

The GE IC695CPU315 serves as the high-performance heart of the PACSystems RX3i automation platform. This controller utilizes a 1.0 GHz Celeron M processor to manage complex industrial logic. It handles large-scale data processing for both machine control and process automation. Because it features 20 MB of user memory, it supports up to 512 individual program blocks. The CPU effectively coordinates communication between the backplane and field I/O modules. It ensures rapid execution of control algorithms in demanding manufacturing environments.

Technical Performance and Memory Architecture

This unit provides a sophisticated memory structure for reliable data storage and execution.

• Processor: 1.0 GHz Intel Celeron M
• User Memory: 20 MB battery-backed RAM
• Non-Volatile Storage: 20 MB internal NVRAM
• Discrete I/O Capacity: Up to 32,768 bits
• Analog I/O Capacity: Up to 32,768 words
• Timing Accuracy: Better than 0.01% with 2 seconds daily drift
• Firmware: Field-upgradable to support evolving system requirements

System Compatibility and Scalability

The IC695CPU315 offers excellent backward compatibility within the GE automation ecosystem. It works alongside most Series 90-30 modules and expansion racks. This flexibility allows for cost-effective system migrations and upgrades. Furthermore, the CPU manages symbolic variables that occupy any part of the available user memory. This removal of fixed memory maps simplifies the development of advanced control applications. Consequently, engineers can implement more sophisticated diagnostic and monitoring routines. This processor remains a dependable choice for modernizing distributed control systems.
