Description

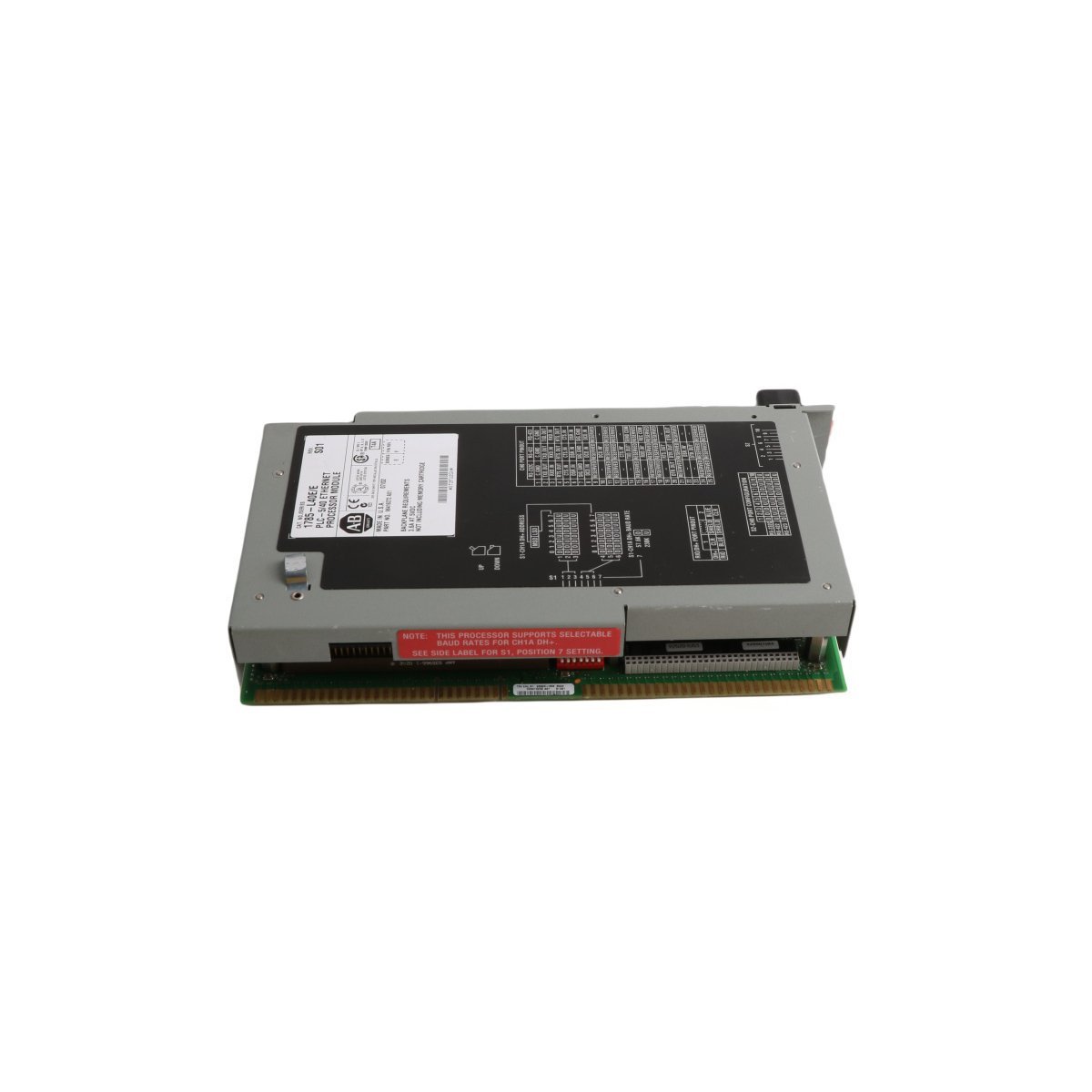

The Allen-Bradley 1785-L40E functions as a high-performance central processing unit for the PLC-5 platform. This module effectively manages complex automation tasks across medium and large-scale industrial facilities. It resides within the 1771 I/O chassis system to orchestrate logic and data flow. Furthermore, the 48KB of internal memory supports sophisticated user programs and data storage. The processor handles up to 2048 total I/O points for comprehensive machine control. Consequently, it remains a cornerstone for legacy system maintenance and expansion.

Integrated Ethernet and Multi-Port Connectivity

This controller features an onboard Ethernet port for high-speed 10 Mbps data exchange. This interface allows for direct connection to plant-wide networks and supervisory systems. Additionally, the module includes two combination ports for Data Highway Plus or Remote I/O. A dedicated serial port supports RS-232, RS-422A, and RS-423 standards for peripheral communication. These diverse connection options enable seamless integration with human-machine interfaces and other controllers. Therefore, users can achieve efficient distributed control without extra communication hardware.

Sophisticated Logic and Execution

The 1785-L40E executes advanced control algorithms to manage discrete and analog hardware. It supports multiple programming styles including Ladder Logic and Sequential Function Charts. Moreover, the processor provides built-in PID capabilities for precise process loop regulation. Fast scan times ensure rapid response to changing field conditions. Specifically, extended-local I/O configurations can achieve scan rates as low as 0.5 milliseconds. This high execution speed improves the accuracy of high-speed production machinery.

Technical Specifications

Reliability in Demanding Environments

Rockwell Automation engineered the 1785-L40E to withstand harsh manufacturing conditions. The rugged hardware operates reliably within a standard temperature range of 0 to 60°C. Furthermore, it installs easily into various 1771-A1B through 1771-A4B chassis models. Integrated status indicators provide immediate feedback on the health of the CPU and network. These visual tools simplify the diagnosis of communication or logic faults. Ultimately, this module ensures long-term stability for critical infrastructure and factory lines.
