Description

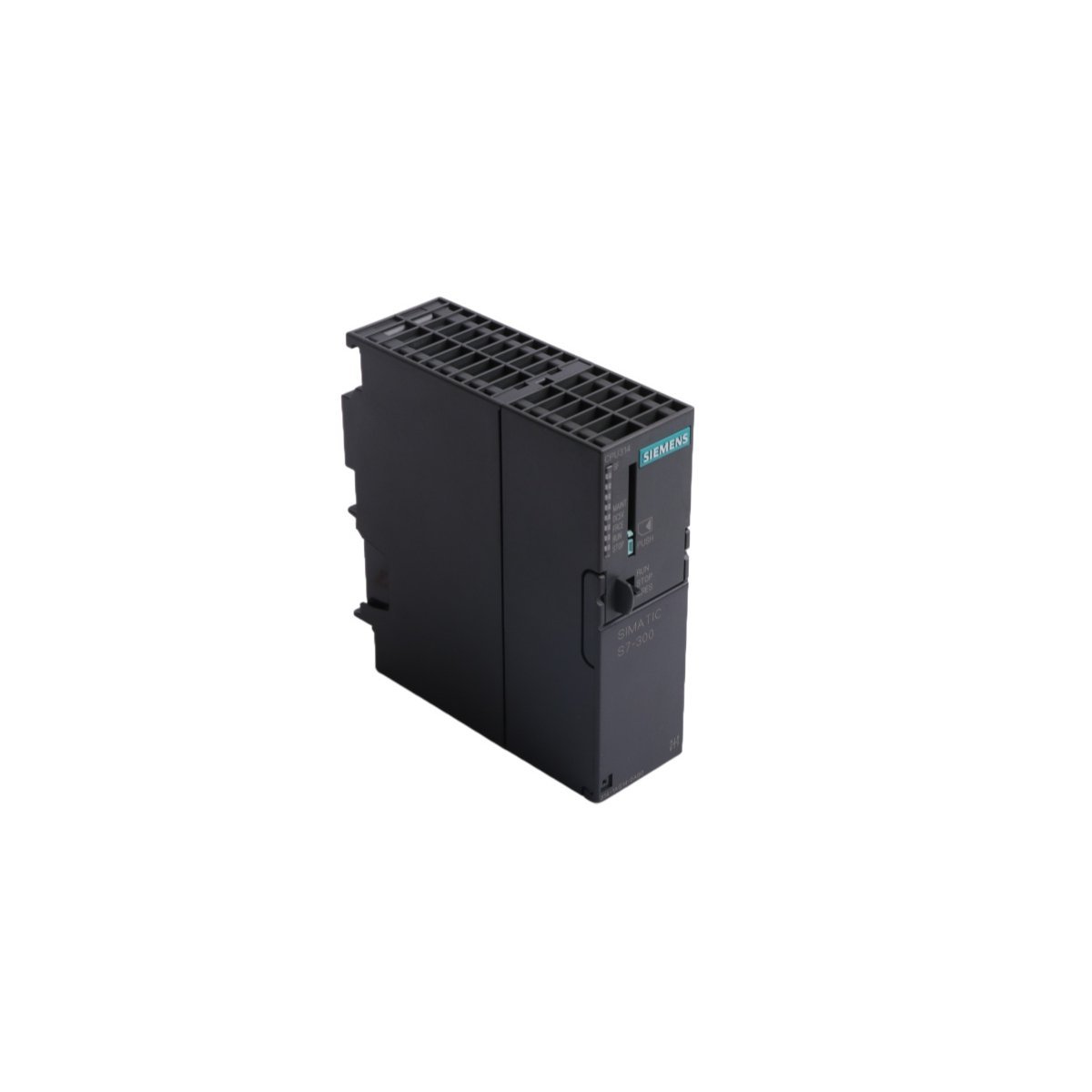

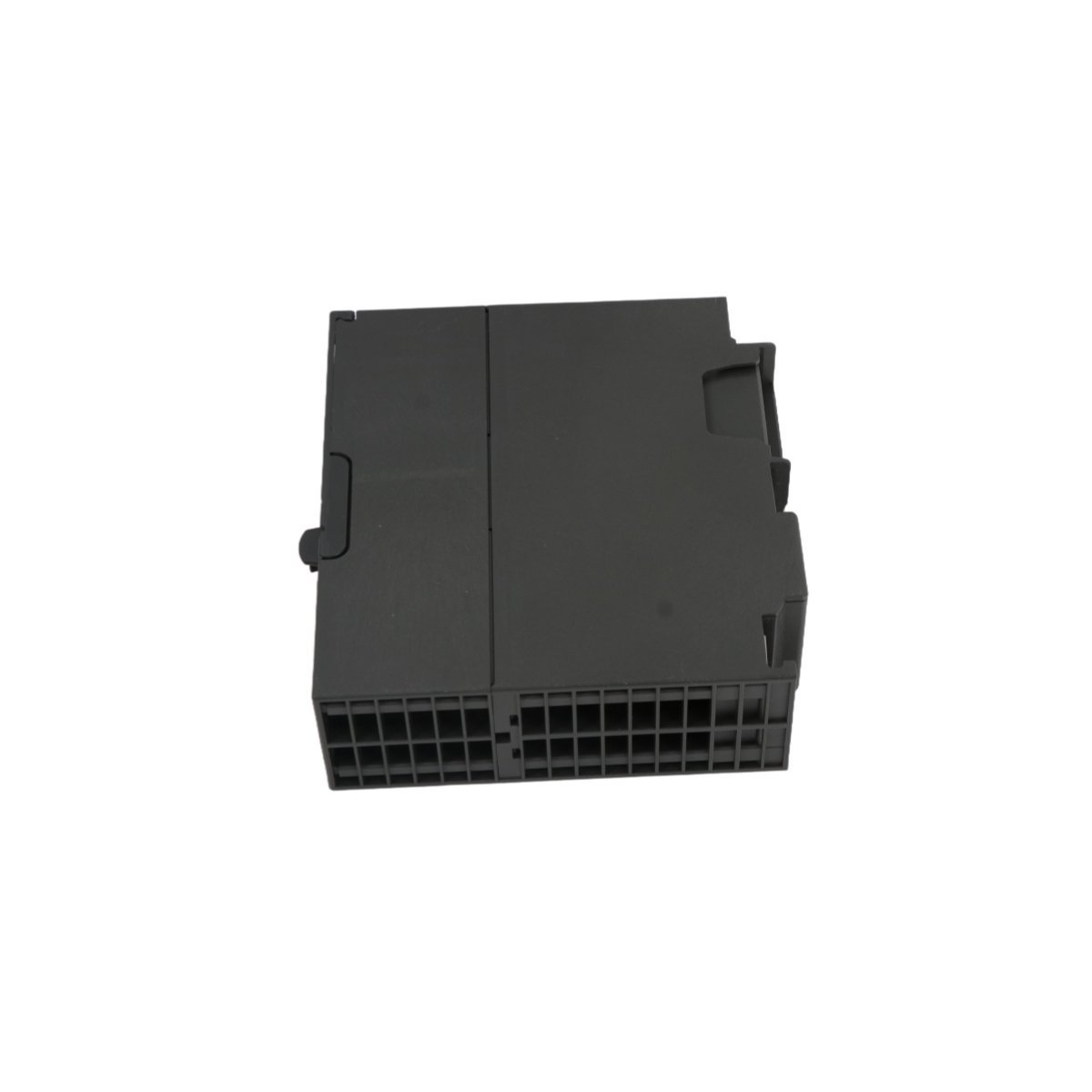

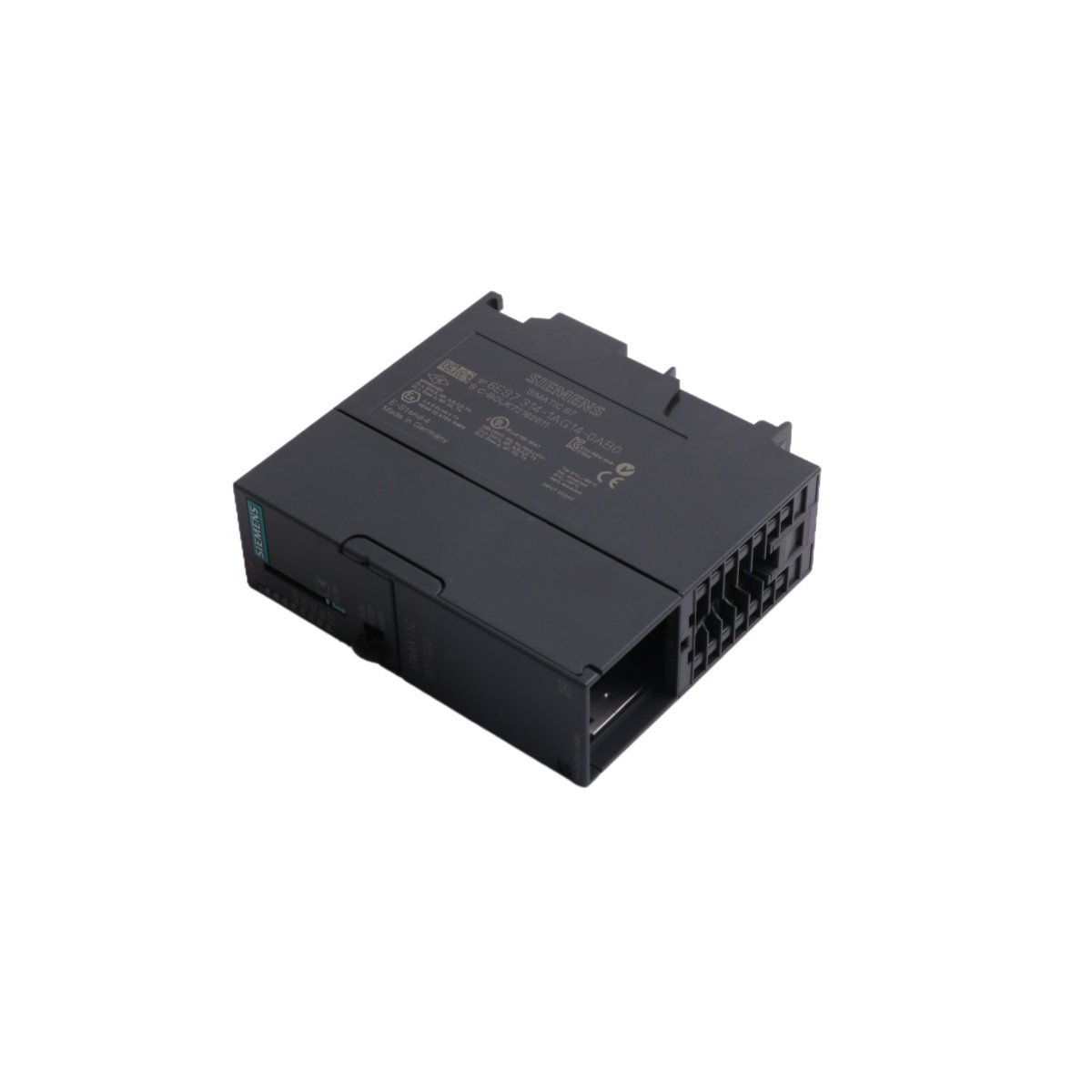

The Siemens 6ES7314-1AG14-0AB0 serves as a high-performance central processing unit for the SIMATIC S7-300 PLC system. This module manages medium-sized automation tasks with precision and speed. It features a work memory of 128 KB for user programs and data. The processor executes binary instructions in approximately 0.06 µs. This fast execution speed ensures responsive control for dynamic industrial processes.

The unit requires a Micro Memory Card (MMC) for operation. This card stores the entire project and prevents data loss during power failures. The CPU includes an integrated MPI interface. This port supports communication with other CPUs, PCs, or HMI devices. Users can expand the system capacity by adding specialized S7-300 signal modules.

Core Technical Specifications

Industrial Applications

Engineers typically deploy the CPU 314 in discrete manufacturing environments. It excels in packaging machinery and material handling systems. The module also controls specialized equipment in the textile and food industries. Its robust design allows for reliable operation in harsh factory settings. The S7-300 architecture supports modular expansion for growing production lines.

Key Product Features

• Compact housing saves valuable space inside the electrical cabinet.
• High processing speed optimizes cycle times for complex logic.
• Integrated MPI interface simplifies network connectivity for local devices.
• Maintenance-free data backup occurs through the Micro Memory Card.
• Diagnostic LEDs provide immediate status updates for troubleshooting.
• Compatibility with STEP 7 programming software streamlines engineering workflows.
