Description

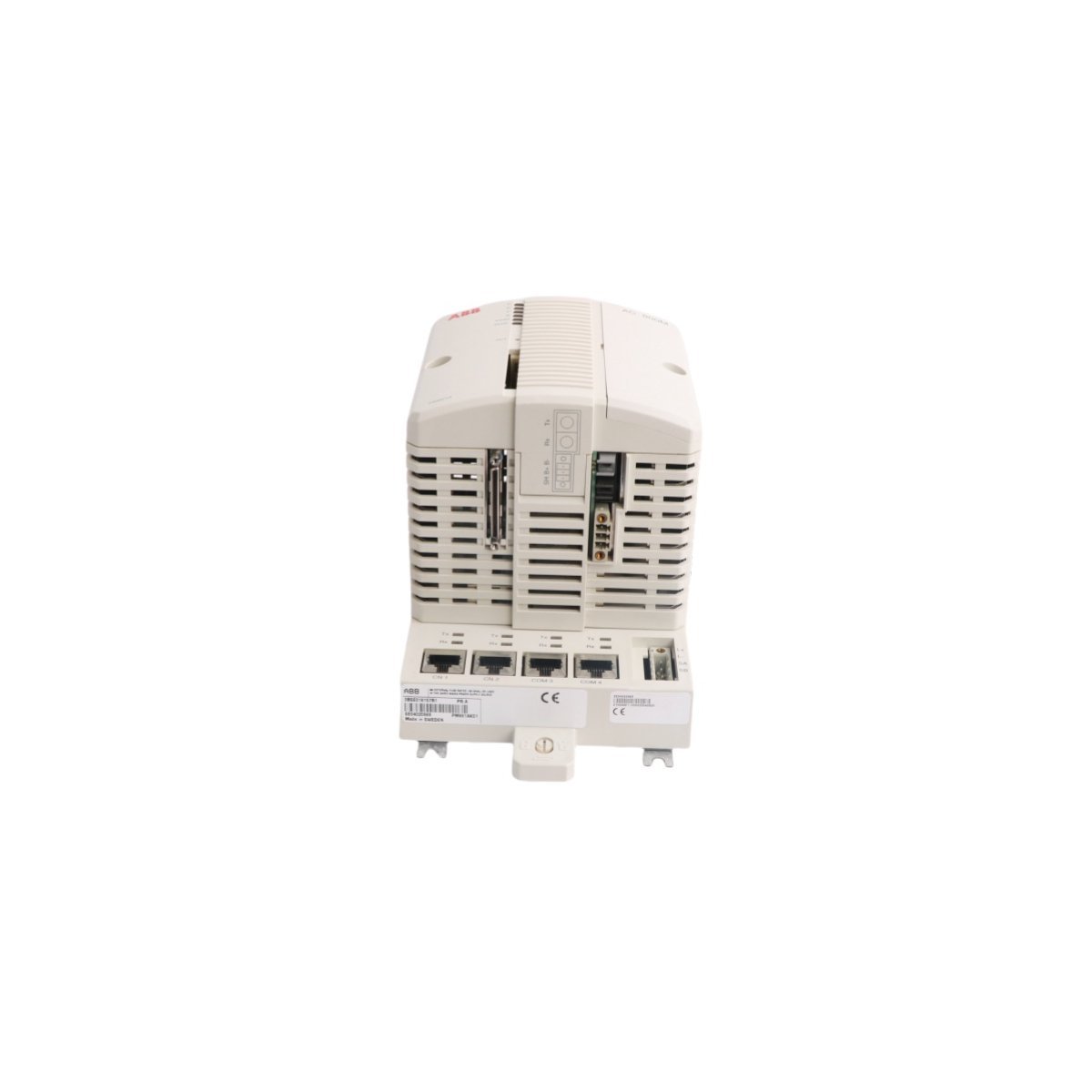

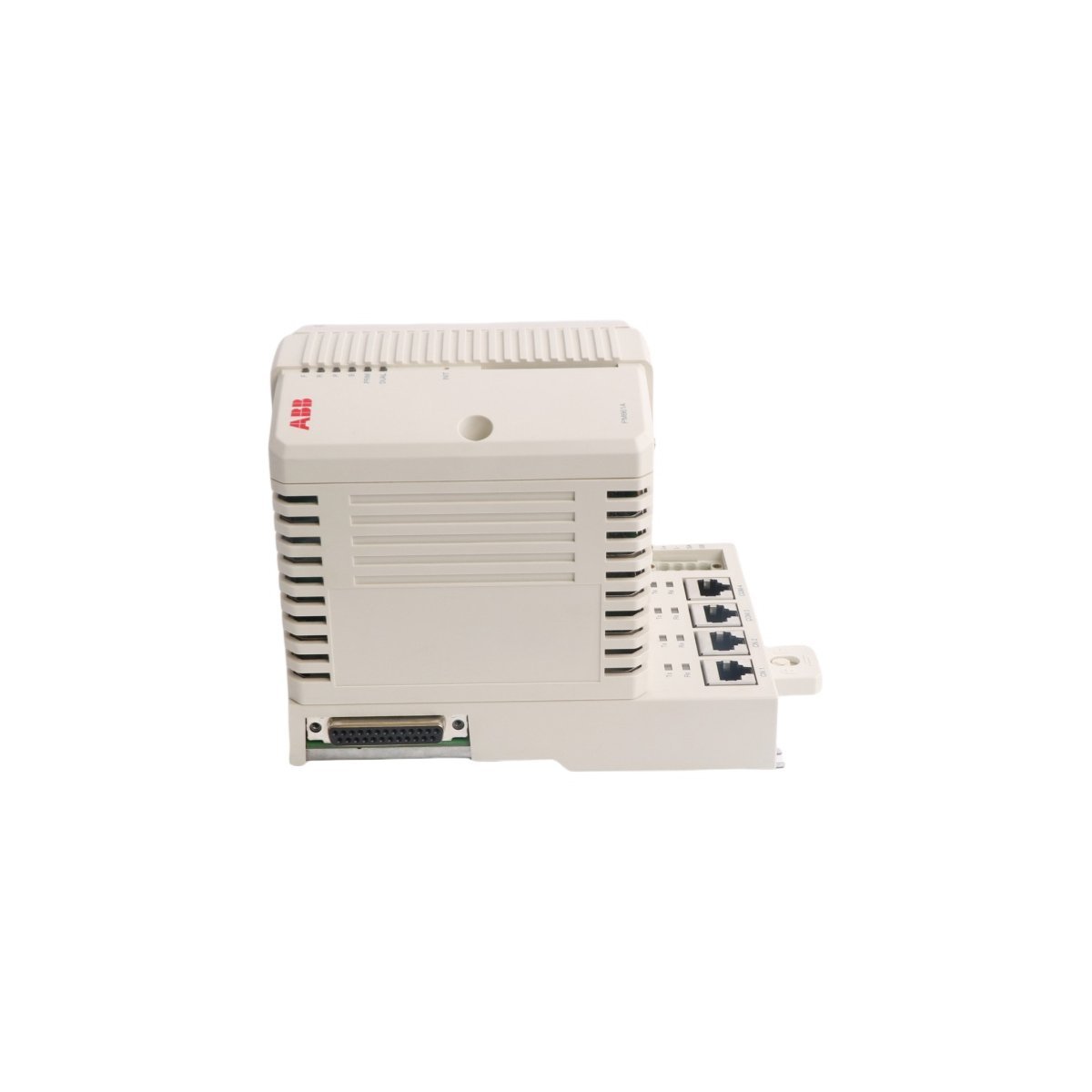

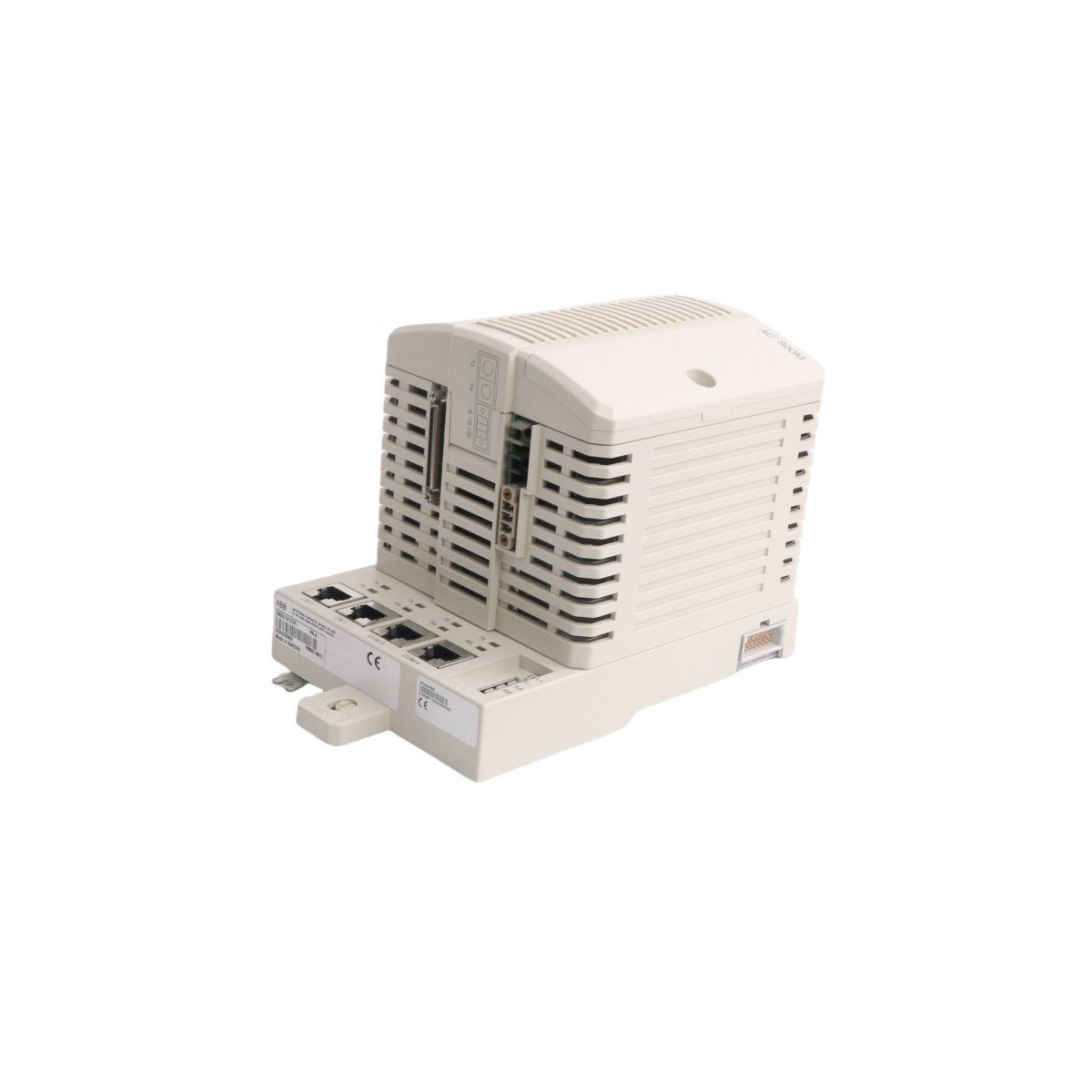

The ABB PM861AK01 3BSE018157R1 acts as the central intelligence for the AC 800M automation platform. This processor unit kit manages complex logic and data processing tasks within the 800xA architecture. It features a powerful microprocessor paired with high-capacity RAM for efficient program execution. Additionally, an integrated real-time clock ensures precise event logging and synchronization across the network. The hardware includes a CompactFlash interface to simplify firmware updates and data storage. Consequently, this unit provides a stable foundation for demanding industrial control strategies.

Versatile Connectivity and Redundancy

This controller provides extensive communication options to link field devices and supervisory systems. It contains two built-in Ethernet ports for high-speed networking and redundancy. Furthermore, the kit offers two serial ports to support diverse peripheral connections. The isolated COM4 port typically handles configuration tools while COM3 manages RS232C modem signals. Most importantly, the PM861AK01 supports full CPU and I/O redundancy to prevent system failure. This dual-link capability ensures continuous operation in critical infrastructure and process plants.

Technical Specifications

Industrial Durability and Integration

The PM861AK01 kit utilizes a robust design for reliable performance in harsh factory environments. It holds full EMC certification to resist electrical noise and interference. Moreover, the hardware features a unique embedded Ethernet address for instant network identification. The intuitive slide and lock mechanism allows for fast installation on standard DIN rails. This processor integrates perfectly with the 800xA Control Builder software environment. Therefore, engineers can quickly deploy and maintain complex automation projects with minimal effort.

Application and System Scalability

Process industries choose this unit for its exceptional scalability and modular architecture. It supports a wide range of CEX-Bus communication interfaces and S800 I/O modules. Furthermore, it excels in power generation, chemical processing, and large-scale manufacturing sectors. The controller manages PROFIBUS DP and Ethernet protocols to ensure broad device compatibility. By choosing the PM861AK01, facilities achieve better operational transparency and reduced maintenance costs. It remains a top choice for high-availability DCS configurations worldwide.
