Description

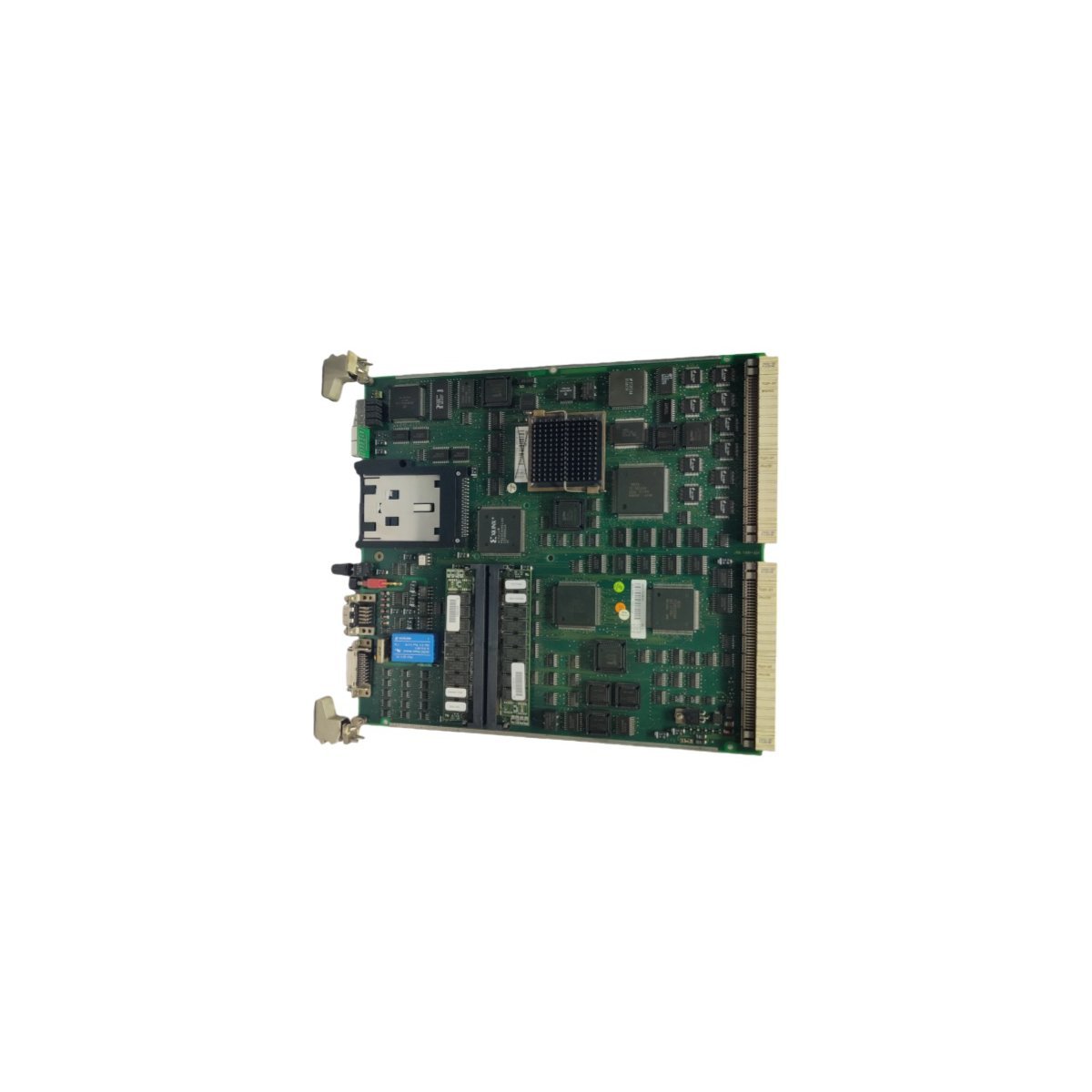

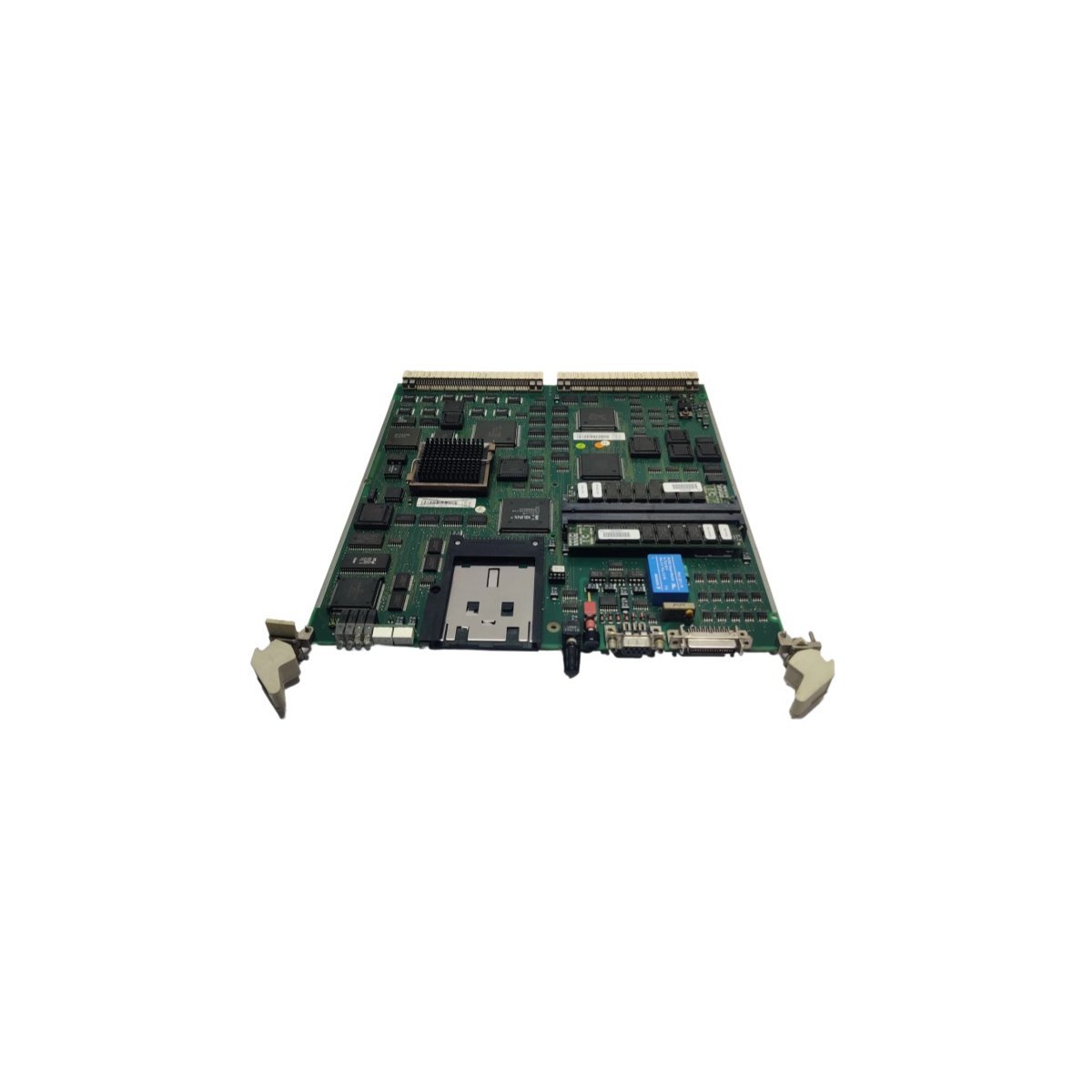

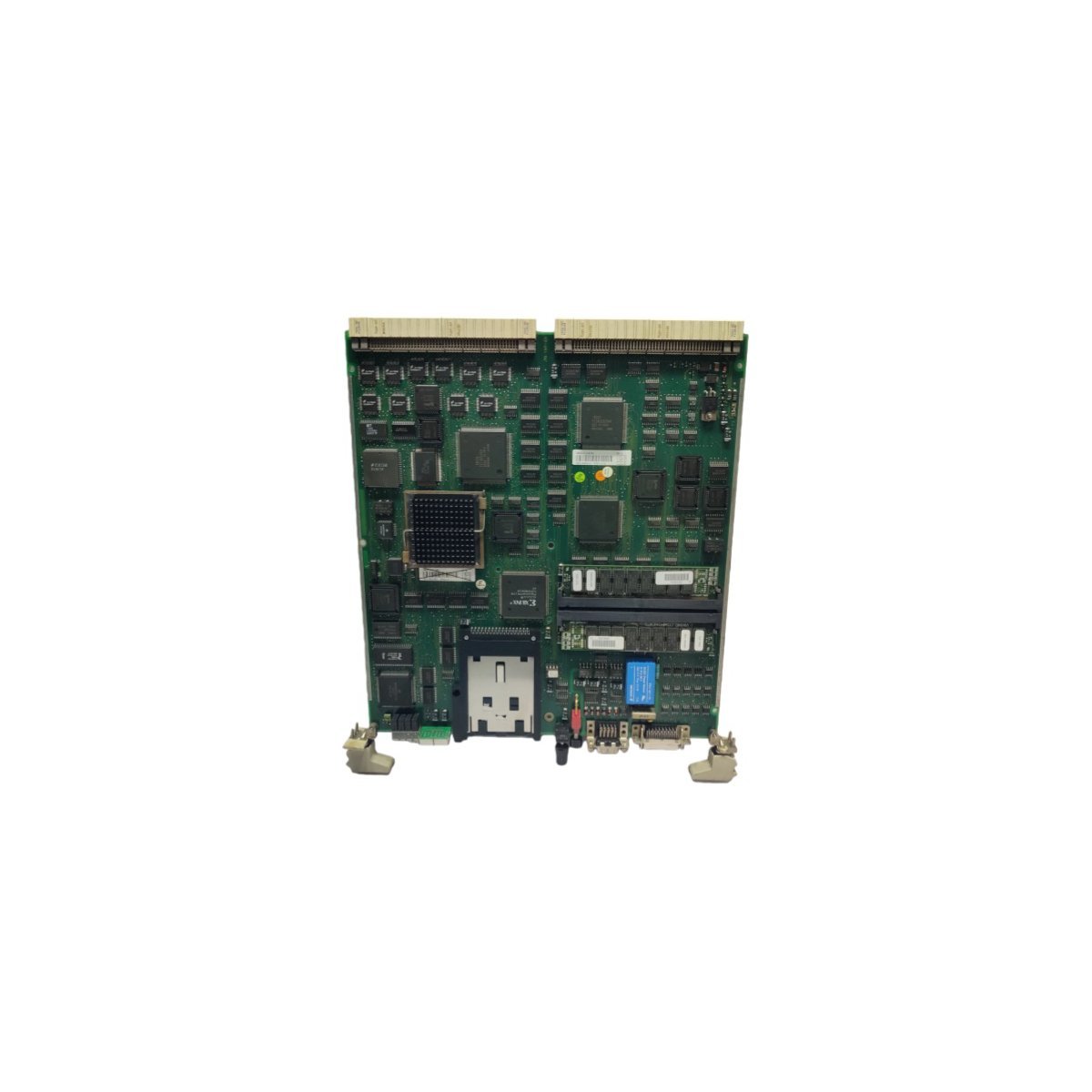

The ABB PM511V16 serves as the primary intelligence for the Advant Controller 400 series. This unit utilizes a 25 MHz Motorola 68040 processor to execute complex automation algorithms. Furthermore, the module includes 16 Mbytes of high-speed dynamic RAM. This memory incorporates Error Correcting Code (ECC) technology to ensure maximum data integrity. Consequently, the processor maintains stable operation during intensive real-time processing tasks. It effectively manages high-density I/O configurations across various distributed control system (DCS) architectures.

Technical Specifications

• Brand Name: ABB
• Model Designation: PM511V16
• Order Number: 3BSE011181R1
• Processor Type: Motorola 68040 (25 MHz)
• Memory Capacity: 16 Mbytes ECC RAM
• Storage Interface: PCMCIA Slot for Flash Memory Cards
• Hardware Weight: 1.22 kg
• Module Dimensions: 24 x 19 x 5.3 cm
• Manufacturing Origin: Sweden
• System Category: Advant OCS / AC400

Storage and Modular Versatility

The hardware design features a dedicated PCMCIA slot for convenient system software management. This interface allows for rapid firmware updates and secure application storage. Additionally, the standard configuration includes two SIMM memory modules for reliable performance. Users can also adapt the memory configuration using onboard switches for specific architectural needs. This flexibility makes the PM511V16 suitable for a wide range of process control requirements. The modular layout facilitates quick installation and maintenance within industrial racks.

Environmental Durability

ABB engineers the 3BSE011181R1 to withstand the rigors of harsh industrial settings. The module is available with marine-grade coating to prevent corrosion in high-moisture areas. Moreover, its robust chassis protects internal components against vibration and thermal stress. This durability makes the unit a preferred choice for offshore platforms and chemical processing plants. Because it meets stringent international standards, the module ensures long-term reliability in continuous process industries.

Industrial System Application

This processor module acts as the central hub for coordination in large-scale automation projects. It excels in sectors such as power generation and metallurgical processing. Furthermore, the unit integrates seamlessly with existing AC400 platform components. This compatibility protects long-term investments in legacy industrial infrastructure. By providing steady computational power, the PM511V16 helps facilities optimize their production efficiency and safety protocols.
