Description

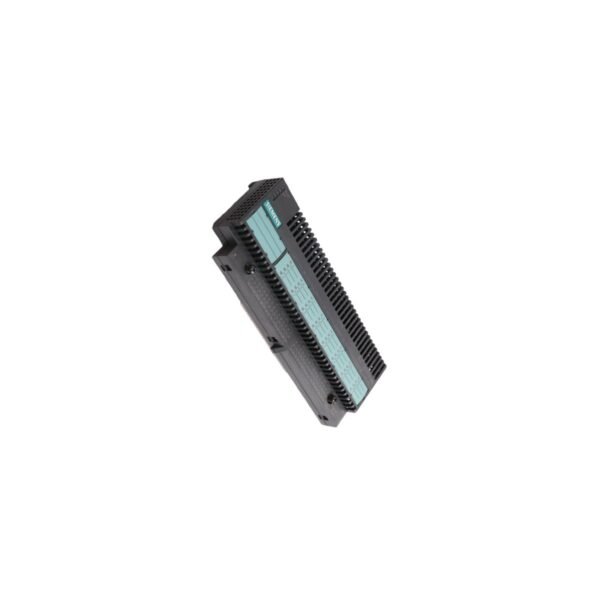

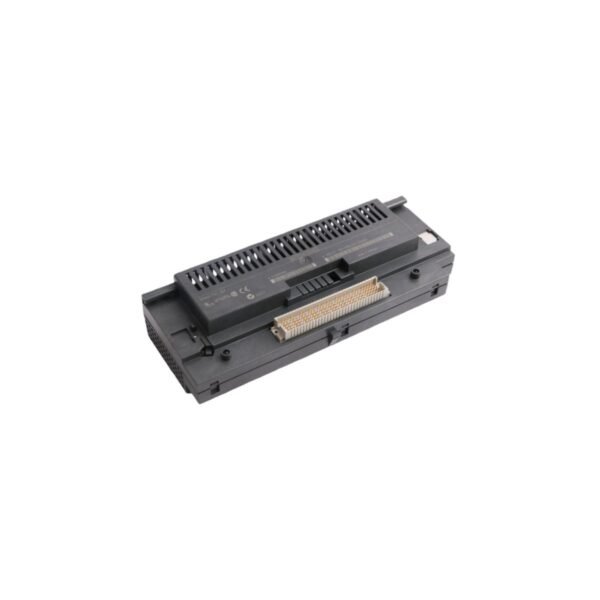

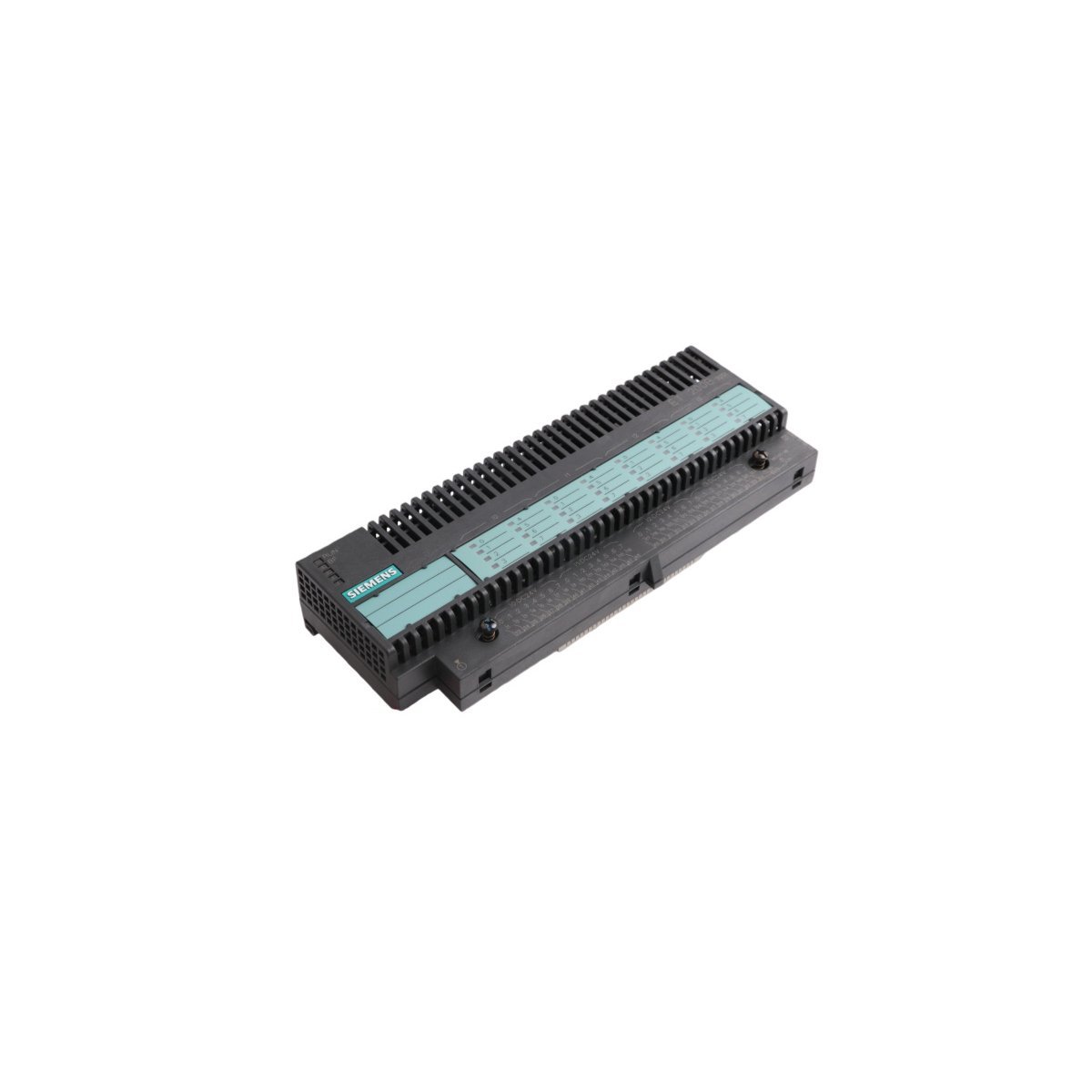

The Siemens 6ES7131-0BL00-0XB0 serves as a high-density digital input component for the SIMATIC DP decentralized I/O system. This electronic module integrates 32 digital inputs into a single compact housing. Consequently, it significantly reduces the required installation space within control cabinets. The hardware effectively interfaces with various sensors to monitor machine states in real-time. This specific ET 200B series module excels in large-scale automation projects. It manages high volumes of binary signals with exceptional reliability.

Core Technical Specifications

• Brand Name: Siemens
• Model Code: 6ES7131-0BL00-0XB0
• Input Quantity: 32 Digital Inputs
• Rated Voltage: 24V DC
• Voltage Range: 18.5V to 30.2V DC
• Logic High Level: 13V to 30V DC
• Logic Low Level: -3V to 5V DC
• Maximum Input Delay: 3.0 ms
• Typical Power Loss: 4.8 W
• Sensor Supply: Up to 1000 mA
• Module Width: 235 mm
• Country of Origin: Germany

Electrical Robustness and Connectivity

This module features advanced circuitry to withstand standard industrial voltage fluctuations. It maintains stable operation even during brief power surges or dips. Furthermore, the unit supports unshielded cable lengths of up to 100 meters. This flexibility allows for diverse field installations without expensive specialized cabling. The hardware connects easily to TB2/DC or TB4/DC terminal blocks. Therefore, engineers can achieve rapid wiring and commissioning of the decentralized station.

Professional Industrial Application

Automation specialists utilize the 6ES7131-0BL00-0XB0 for complex manufacturing and process control. The module ensures rapid data updates for the central PLC via the PROFIBUS DP interface. Additionally, it offers clear LED status indicators for each input channel. This feature simplifies onsite troubleshooting and diagnostic verification. Its high channel count makes it cost-effective for dense sensor networks. Ultimately, this Siemens module provides a dependable foundation for gathering critical binary plant data.
