Description

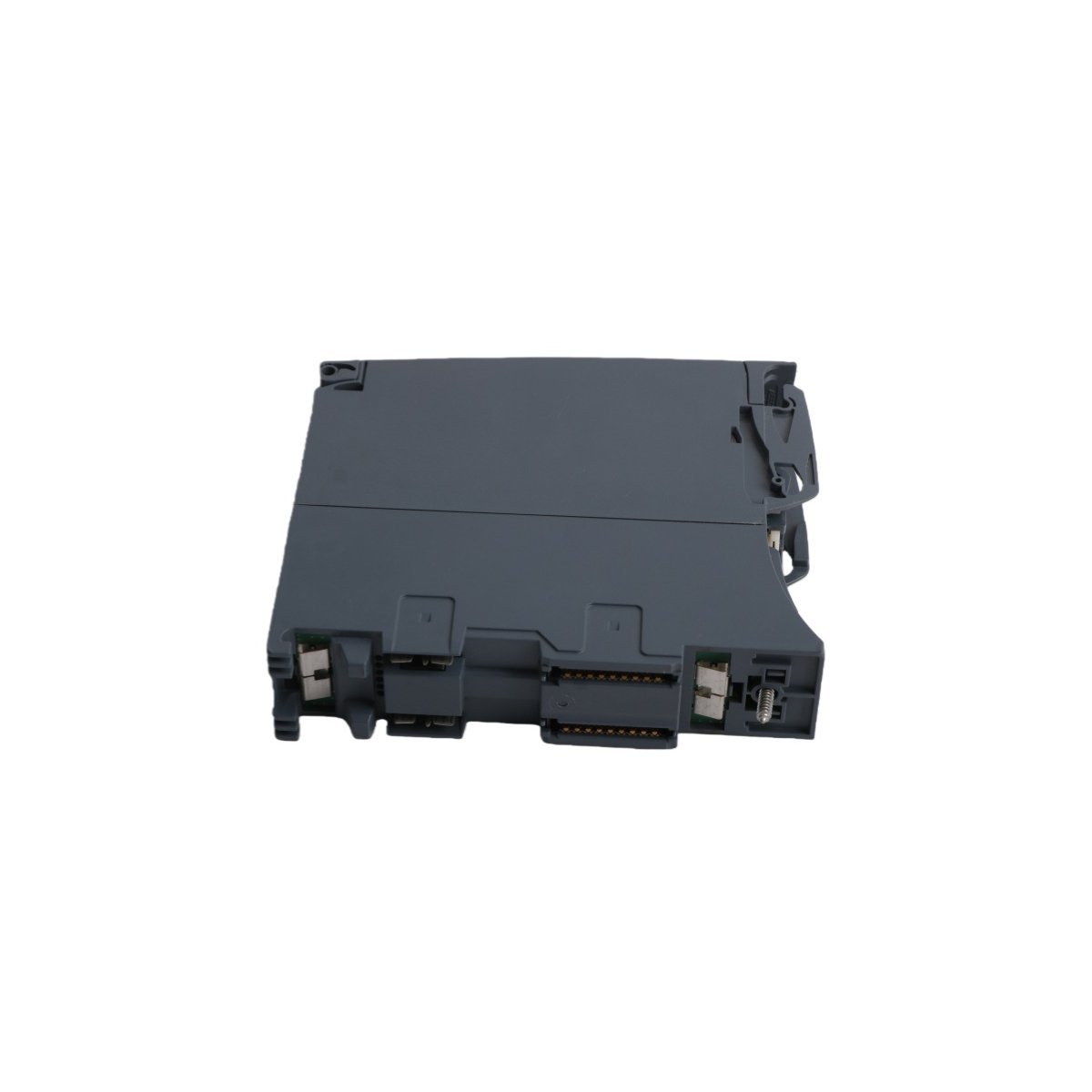

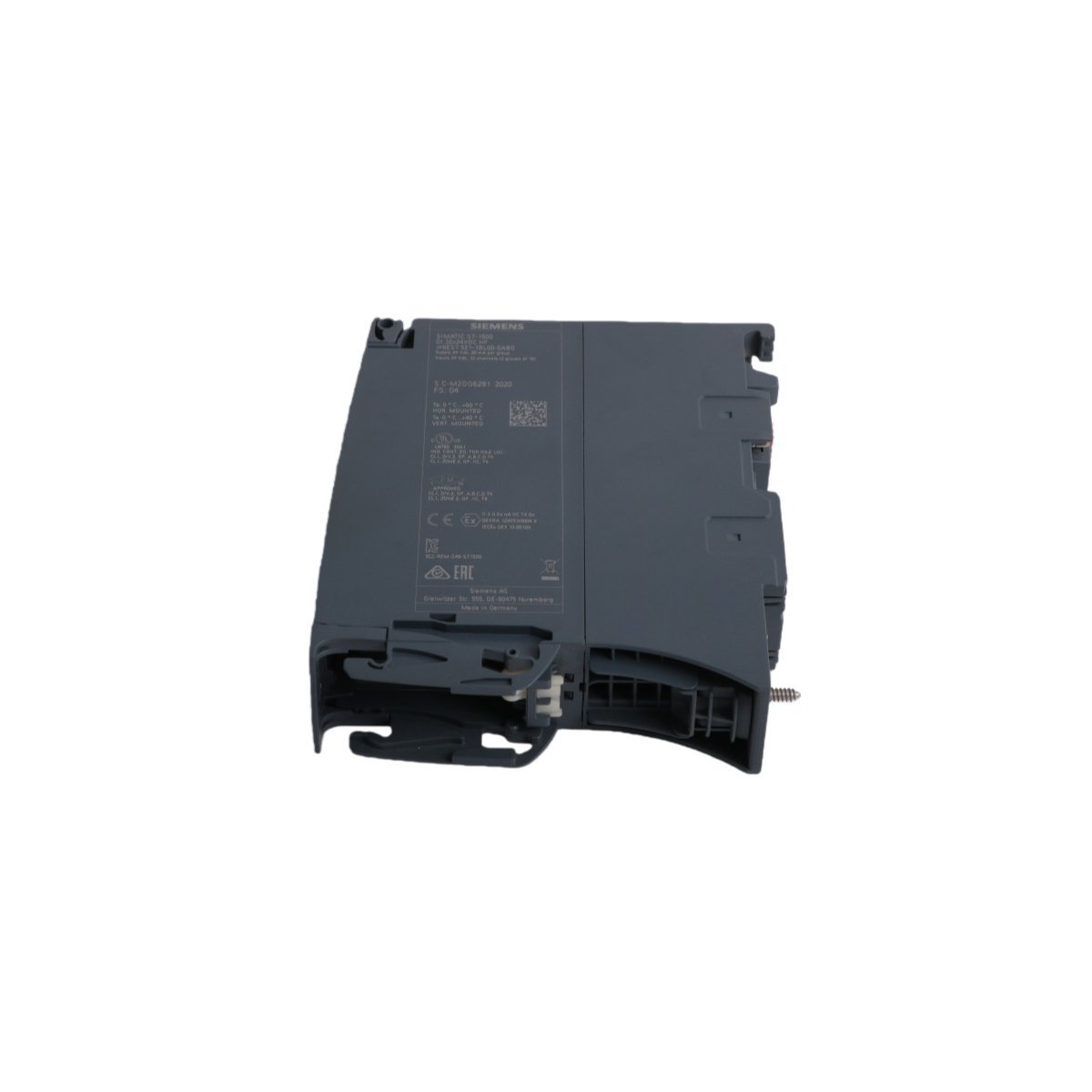

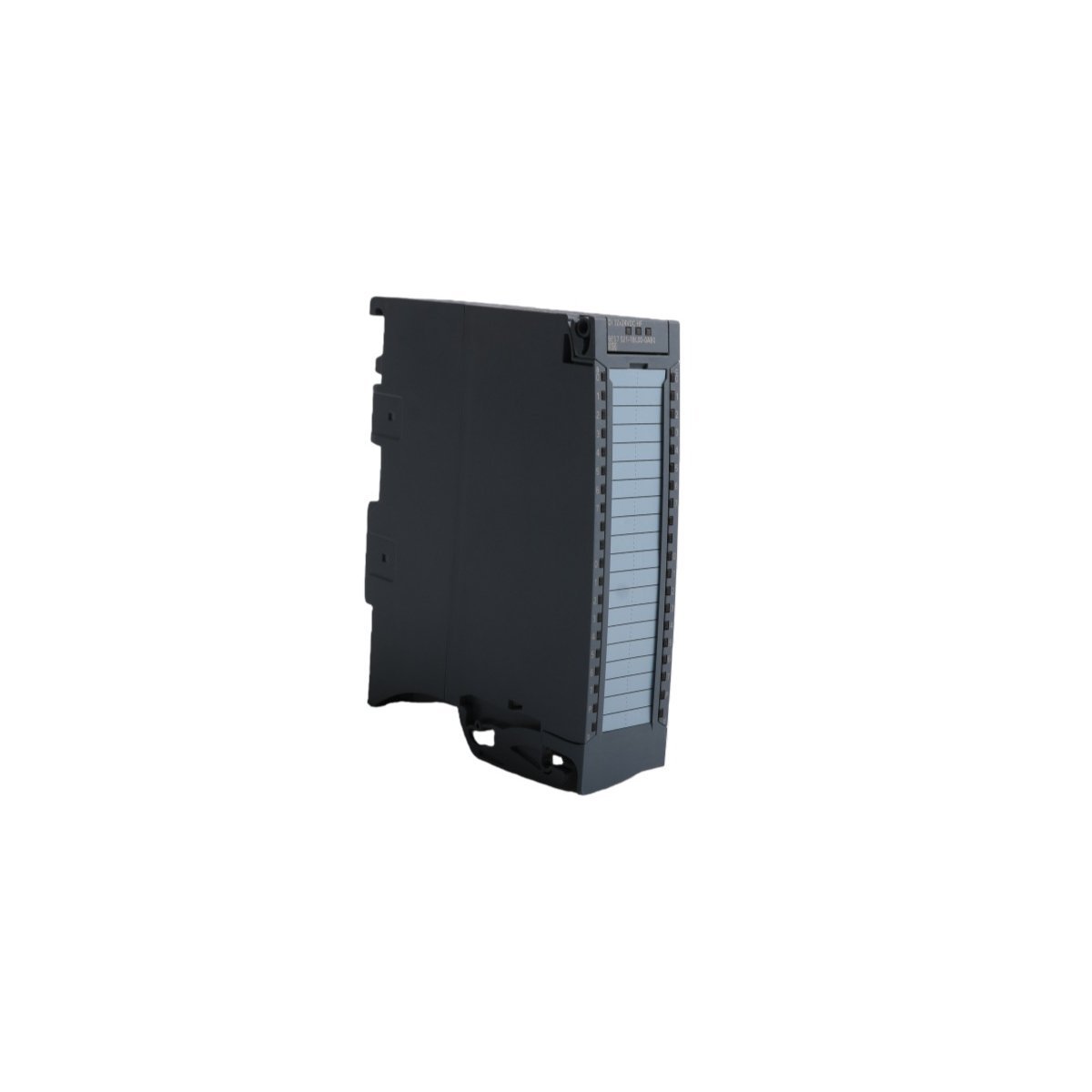

The Siemens 6ES7521-1BL10-0AA0 functions as a high-density input interface for the SIMATIC S7-1500 controller series. This module effectively captures 32 digital signals from the field level. It translates these binary states into actionable data for the central processing unit. Because it features a 35 mm wide design, it maximizes rail space within the electrical cabinet. This hardware supports sinking input configurations and adheres to the Type 3 characteristic according to IEC 61131-2.

Core Technical Specifications

• Brand: Siemens
• Article Number: 6ES7521-1BL10-0AA0
• Input Quantity: 32 Digital Inputs
• Rated Supply Voltage: 24V DC
• Input Delay: Typical 3.2 ms
• Input Characteristic: Type 3 (IEC 61131)
• Channel Grouping: 2 groups of 16
• Connection Technology: Push-in front connector
• Status Display: Green LED per channel
• Diagnostic Indicators: Red LED for module errors
• Dimensions: 35 x 147 x 129 mm
• Weight: Approx. 0.26 kg

Optimized Installation and Connectivity

Installation efficiency improves significantly through the integrated push-in terminal system. This mechanism allows for tool-free wiring of the 32 input channels. Furthermore, the front connector includes a pre-defined cable storage position. This feature keeps the cabinet organized and prevents wire strain. The module supports firmware updates to ensure long-term compatibility with evolving industrial standards. Consequently, maintenance teams can swap or upgrade units with minimal effort.

Industrial Applications and Reliability

Automation professionals deploy this module in high-performance machinery and complex production lines. It excels in monitoring limit switches, proximity sensors, and operator pushbuttons. The hardware provides robust electrical isolation between the backplane bus and the input circuits. This protection prevents field-side disturbances from damaging the expensive PLC CPU. Additionally, the integrated diagnostics monitor the supply voltage to ensure continuous operation. Ultimately, this module provides a dependable foundation for large-scale digital data acquisition.
