Description

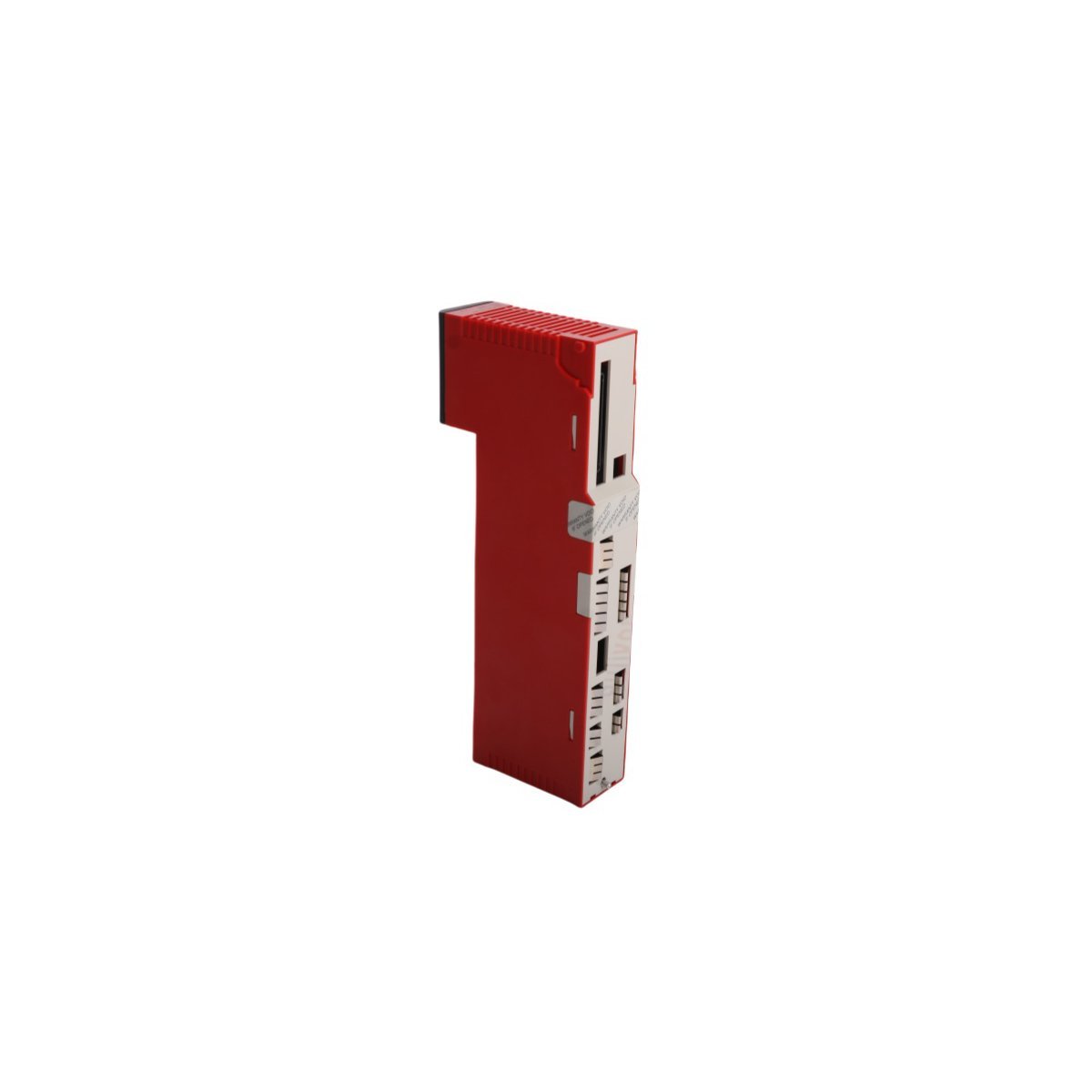

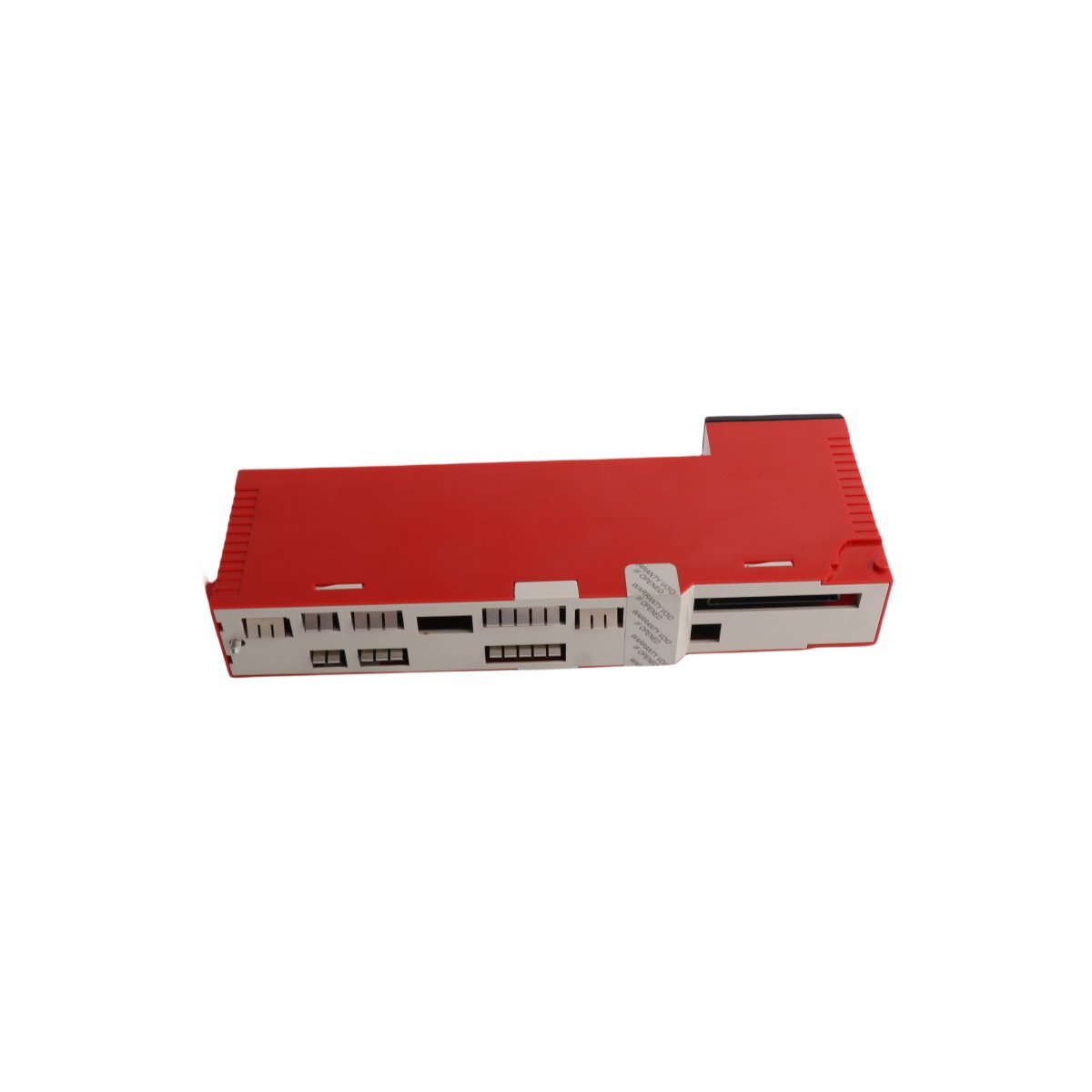

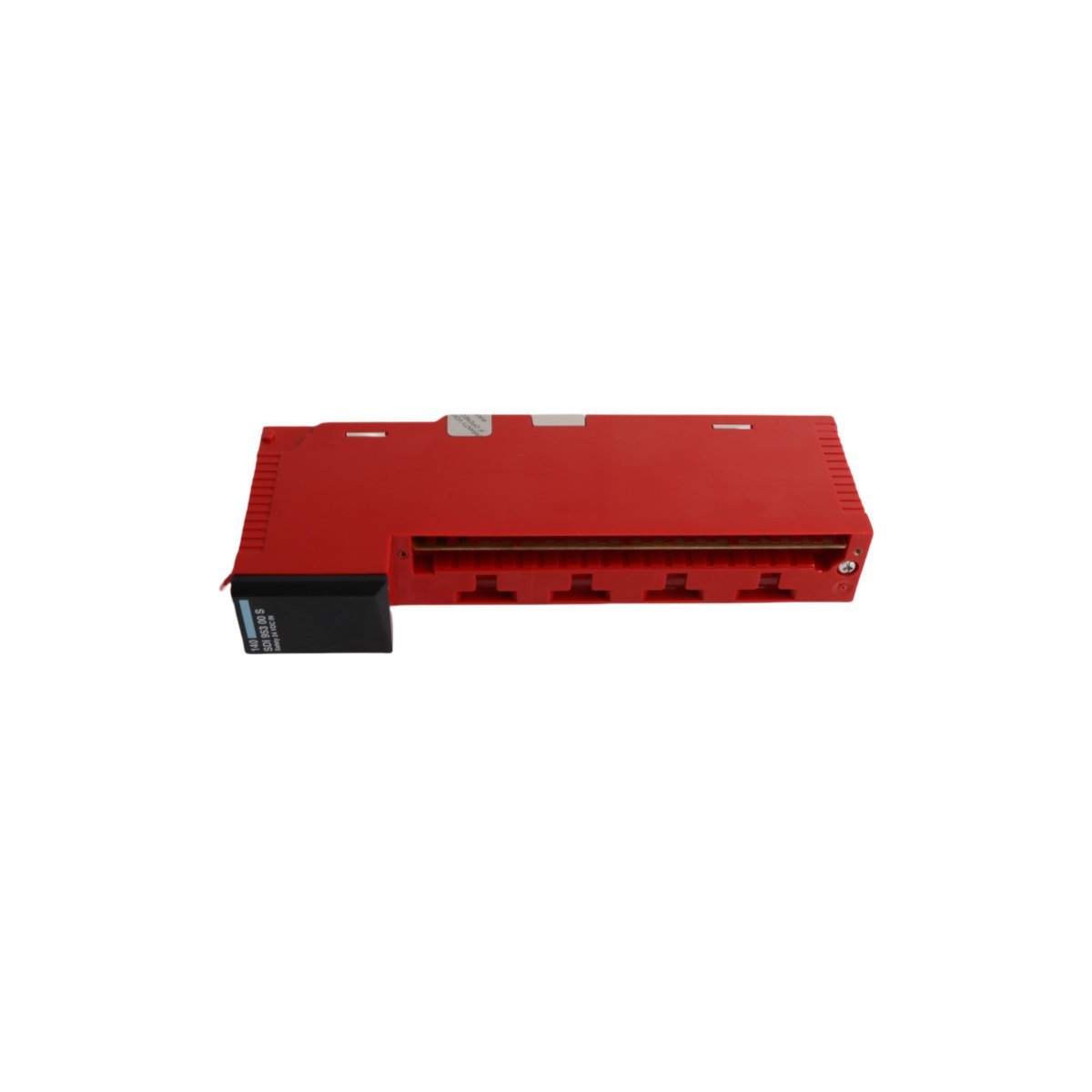

The Schneider Electric 140SDI95300S operates as a specialized safety discrete input module within the Modicon Quantum family. This unit provides high-integrity monitoring for critical safety loops in industrial automation environments. It features 16 individual channels designed to interface with safety sensors and emergency stop devices. Because it complies with strict international safety standards, this module ensures reliable protection for personnel and machinery.

Core Functional Capabilities

This safety module employs advanced diagnostic routines to detect internal and external faults. It monitors input signals with extreme precision to prevent hazardous conditions during hardware failure. The internal circuitry performs continuous self-checks to maintain the integrity of the safety function. Consequently, users can integrate this module into systems requiring high Safety Integrity Levels (SIL). It also supports various wiring configurations to accommodate different safety circuit designs.

Technical Parameters and Environmental Limits

Reliability in Demanding Applications

The hardware excels in extreme industrial settings where temperature fluctuations occur frequently. Its wide operating range allows for deployment in diverse geographic locations. Furthermore, the compact form factor optimizes space within the PLC rack. The terminal block design simplifies the wiring process during initial installation. This feature also speeds up maintenance tasks when technicians must replace components.

Diagnostics and System Integration

Integrated diagnostic LEDs provide immediate visual feedback regarding the status of each input. The module communicates detailed fault data to the central processor via the Quantum backplane. This transparency allows operators to identify issues like short circuits or wire breaks quickly. By providing real-time health data, the 140SDI95300S reduces the mean time to repair. It serves as a cornerstone for modern, safety-conscious industrial control architectures.
