Description

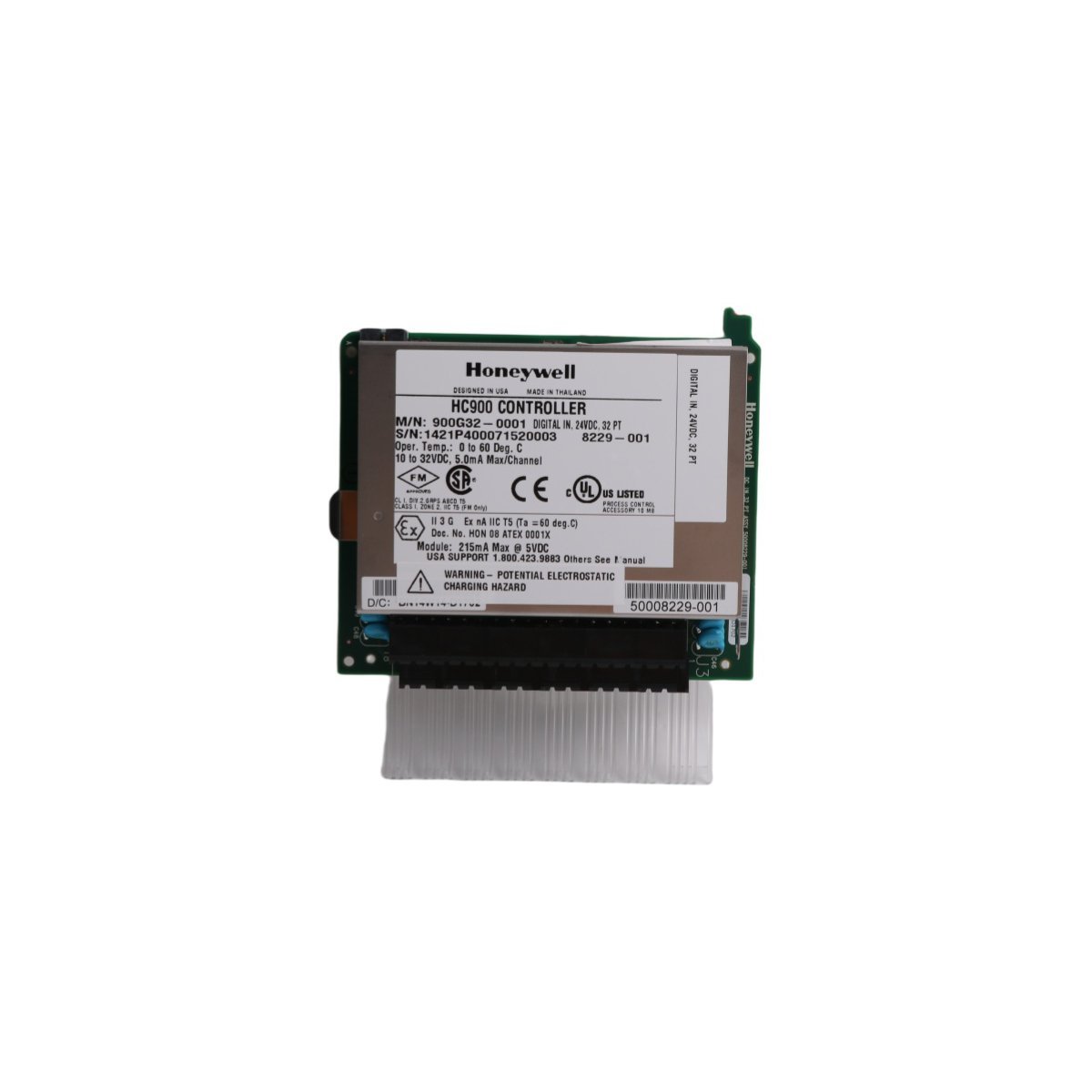

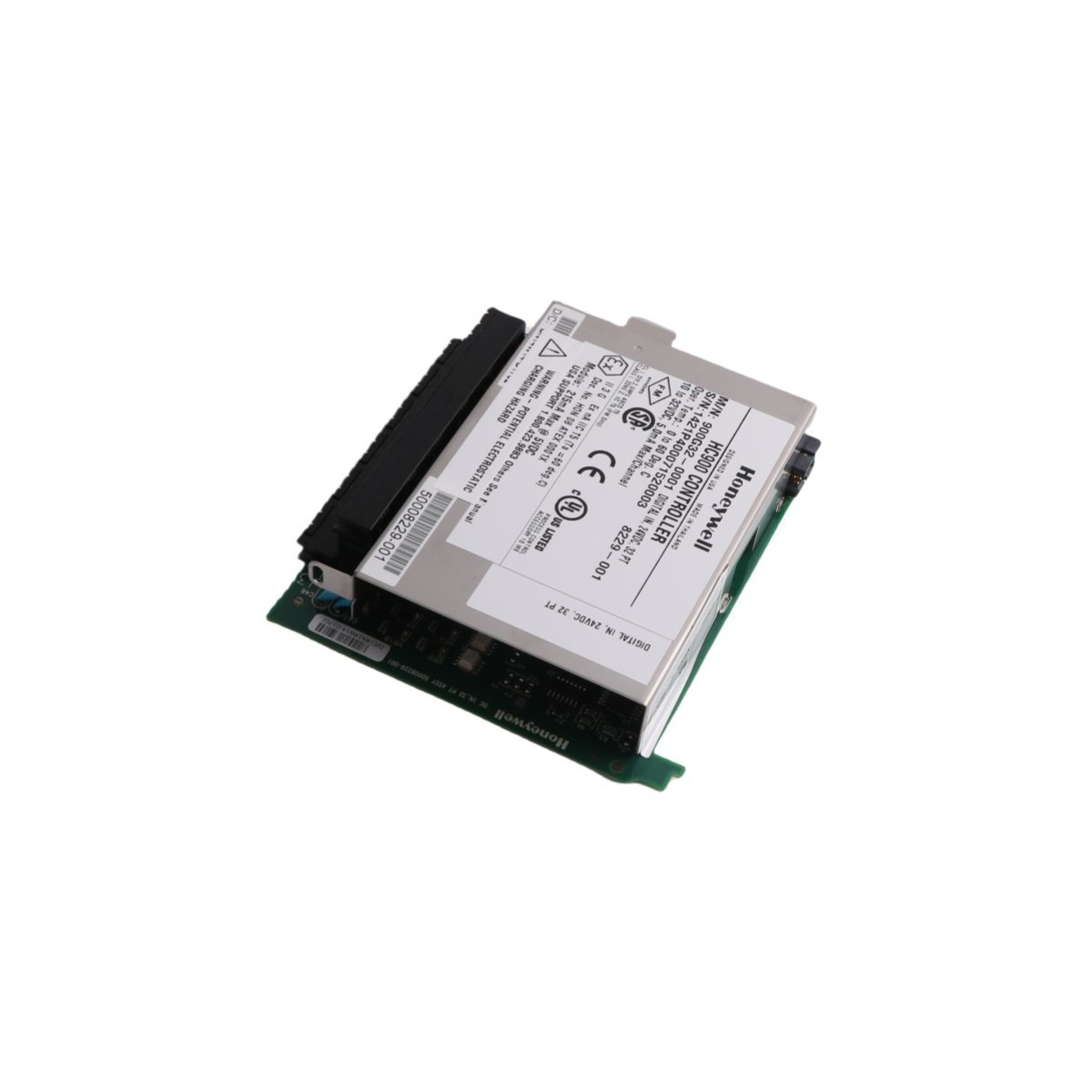

The Honeywell 900G32-0301 serves as a high-density interface for discrete signal acquisition. This module manages 32 individual digital inputs within a compact form factor. It specifically organizes these channels into two isolated groups of 16. Each group utilizes a dedicated common terminal to allow flexible wiring layouts. When the system detects 24 VDC at an input, the channel transitions to an active state. Furthermore, the controller logic can invert these states to support diverse field device configurations. This flexibility ensures compatibility with both normally open and normally closed sensors.

Diagnostic Capabilities and Monitoring

Visual feedback remains a core feature of the 900G32-0301 hardware design. Every channel includes a green LED to indicate real-time signal activity. Additionally, the module features several status indicators for rapid troubleshooting. A pulsing green LED confirms that the controller is actively scanning the hardware. Meanwhile, a red LED illuminates to signal internal module faults or hardware failures. If an operator manually forces a channel, an amber LED provides immediate warning. These diagnostic tools significantly reduce maintenance time and prevent process errors.

Key Technical Characteristics

• High-Density Monitoring: Supports 32 digital points to maximize cabinet space efficiency.
• Electrical Isolation: Groups of 16 channels feature galvanic isolation to prevent signal cross-talk.
• Ruggedized Construction: Operates reliably in environments with high vibration and electrical noise.
• Real-Time Status: Individual LEDs provide local visibility of field input conditions.
• System Integration: Connects seamlessly with ControlEdge HC900 and Experion PKS architectures.

Product Specifications

Industrial Applications

Engineers typically deploy the 900G32-0301 in large-scale manufacturing and power facilities. It effectively monitors limit switches, pushbuttons, and motor starter contacts. Because the module resists temperature fluctuations, it excels in demanding oil and gas applications. The high-density design allows for extensive system expansion without increasing the hardware footprint. It provides a stable foundation for digital state monitoring in critical automation loops. Consequently, it remains a standard choice for modern distributed control systems.
