Description

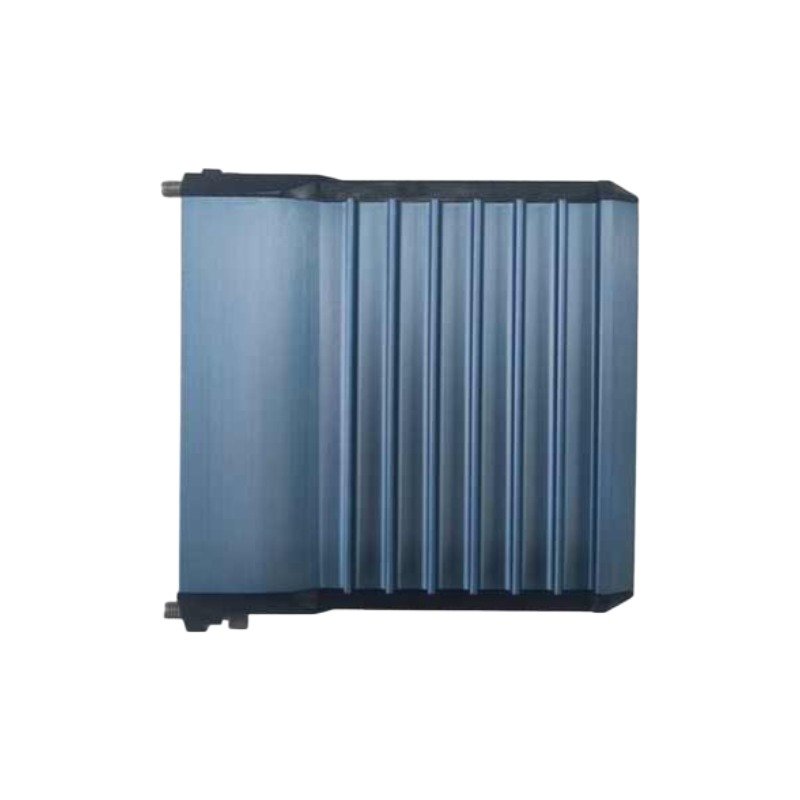

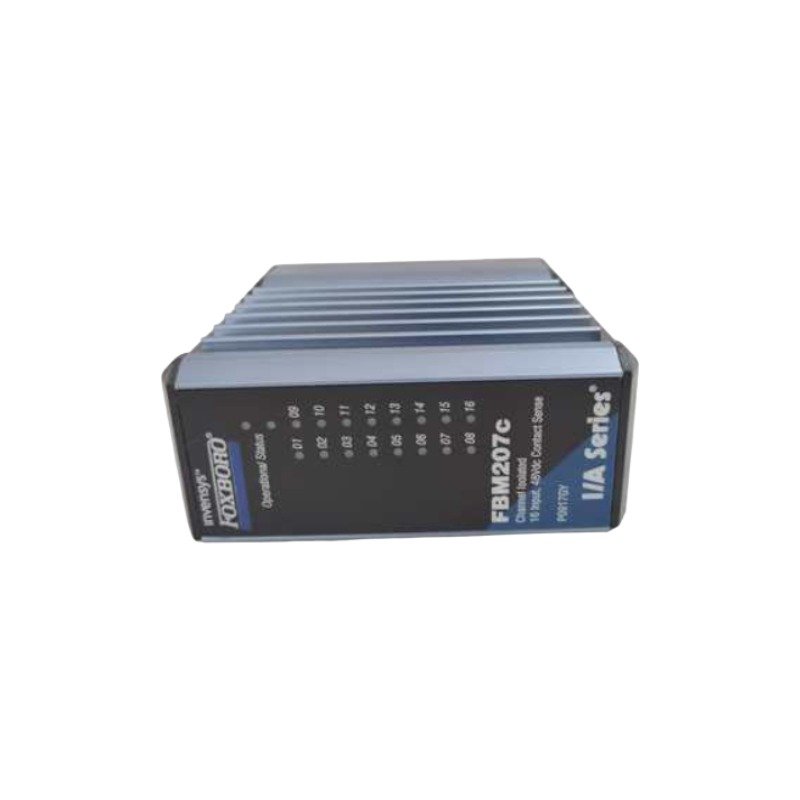

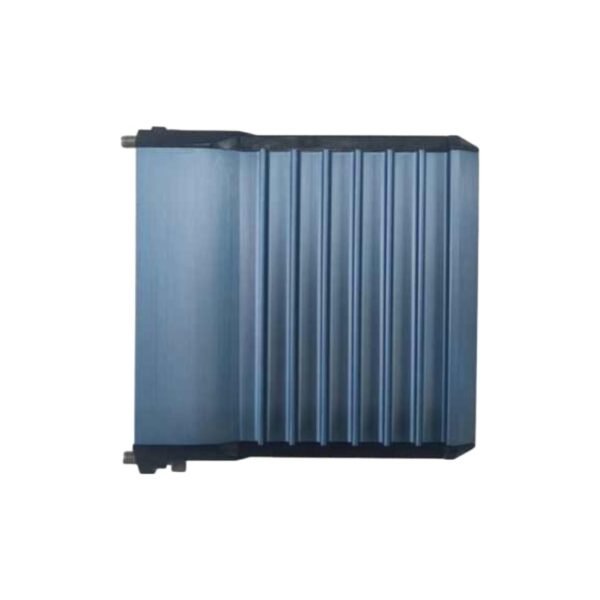

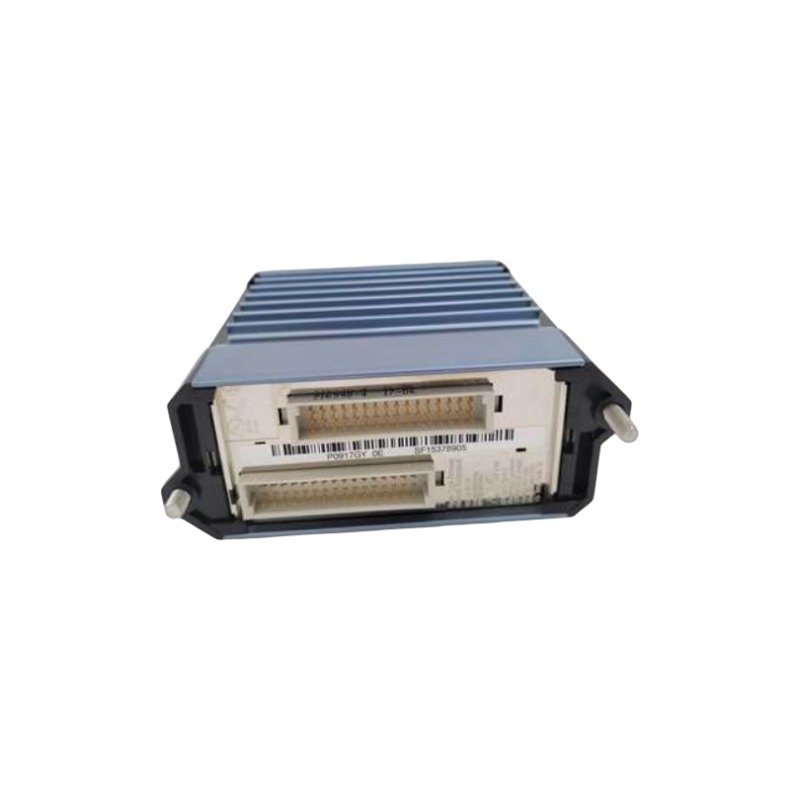

The Invensys FBM207C, also cataloged as the FBM207C Discrete Input Module, operates as a dedicated hardware component for contact sensing and discrete signal acquisition within Foxboro I/A Series DCS networks. Configured with 16 individually channel-isolated inputs, the module monitors field switch positions and voltage contacts using a 48 VDC sensing excitation loop. Internal circuit logic digitizes input state changes and transfers discrete status data directly across the backplane bus to host control processors.

Hardware Specifications

Process Control & Channel Isolation Dynamics

The Invensys FBM207C incorporates channel-to-channel isolation across all 16 discrete inputs to preserve signal processing integrity in electrically noise-prone control environments. Designed to interface with field contact sensing loops, the module continuously evaluates 48 VDC contact logic levels while isolating field wiring from internal backplane electronics. This galvanic separation prevents ground potential loops, mitigates cross-talk between high-density discrete lines, and suppresses common-mode surge voltage coupling to protect system logic.

Frequently Asked Questions

Q: How does channel-to-channel isolation benefit field contact monitoring on the FBM207C?

A: Each of the 16 input channels features dedicated galvanic isolation, preventing ground potential loops and stopping transient voltage spikes on one channel from interfering with adjacent inputs or backplane communications.

Q: What is the field contact sensing voltage requirement for the FBM207C?

A: The module executes discrete contact sense detection using a nominal 48 VDC field loop excitation voltage.

Q: How is the FBM207C installed into the Foxboro I/A Series system rack?

A: The module slides into a dedicated slot on a standard Foxboro baseplate, interfacing directly with the backplane bus for power and data exchange without requiring external jumpers.

Field Installation Guidelines

Mount the Invensys FBM207C module directly into an available slot on the Foxboro I/A Series baseplate. Prior to insertion, verify that the baseplate card guide slots and edge connectors are free of debris or physical contamination. Align the circuit card guides carefully with the slot rails and press the module firmly until the mechanical locking latch snaps securely into place.

Wire all 16 discrete 48 VDC field contact circuits to the corresponding termination assembly using shielded cables. Connect cable drain shields to a single dedicated earth ground bar inside the panel enclosure to eliminate stray electromagnetic noise. Separate field discrete wiring from high-voltage AC lines to maintain signal noise suppression across all channels.
