Description

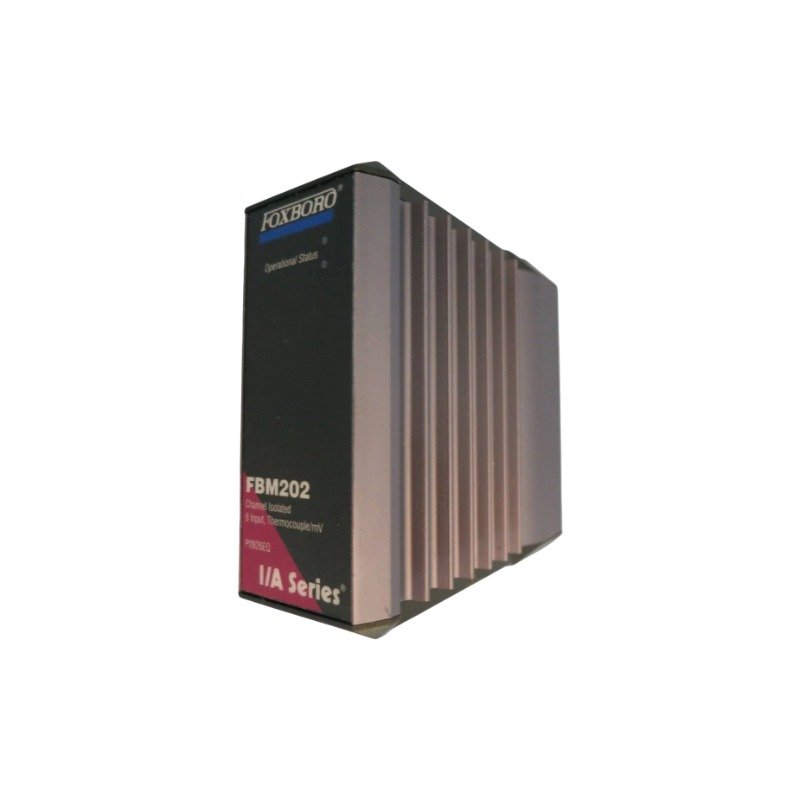

The Foxboro FBM202 P09261Q, also cataloged as the FBM202 Thermocouple/MV Input Module, operates as a dedicated hardware component for multi-channel temperature and millivolt signal conversion within Evo Process Automation Systems. The module features eight isolated input channels and one isolated RTD reference junction compensation channel to process low-level analog inputs. Designed to interface with passive termination assemblies, the unit executes signal conditioning across field wiring to map temperature variables into the control system database.

Hardware Specifications

Channel Isolation & Cold Junction Compensation Dynamics

The Foxboro FBM202 P09261Q incorporates channel-to-channel isolation across its input architecture to preserve low-level millivolt and thermocouple measurement accuracy in industrial environments. By integrating an isolated RTD reference junction compensation channel, the module provides precise cold junction compensation (CJC) for thermocouples directly at the termination interface. This isolation strategy prevents ground loop current circulation, suppresses common-mode electrical noise, and protects sensitive analog front-end circuitry from high-voltage transient coupling.

Frequently Asked Questions

Q: How does the FBM202 P09261Q handle cold junction compensation for thermocouple inputs?

A: The module utilizes a dedicated, isolated RTD reference junction compensation channel to provide accurate cold junction compensation across all active thermocouple inputs.

Q: What is the maximum allowable length for termination cables connecting to the module?

A: Termination cables supporting the FBM202 P09261Q can be deployed in lengths of up to 30 meters (98 feet).

Q: Can the module be installed on standard structural mounting surfaces other than baseplates?

A: Yes, the hardware supports mounting on standard baseplates or via DIN rail configurations depending on the cabinet layout.

Field Installation Guidelines

Mount the Foxboro FBM202 P09261Q onto its designated baseplate slot or compatible DIN rail assembly within the control enclosure. Prior to insertion, inspect the backplate connector pins and guide rails to ensure they are free of dust, moisture, or mechanical obstruction. Align the module card edge carefully and push inward until the mechanical locking mechanism secures the unit to the backplane.

Connect all thermocouple and millivolt field wiring through the specified passive termination assemblies or adapters using appropriate extension grade thermocouple wire. Ground all signal cable shields at a single dedicated earth grounding bar inside the enclosure to eliminate electromagnetic interference. Maintain strict physical separation between low-level analog signal runs and high-voltage power distribution cables.
